Green ATX motherboard with black heatsinks, four DDR4 slots, two M.2 sockets, HDMI and DVI-D ports, USB 3.1 headers

ASUS

ASUS PRIME Z370-P II Intel motherboard

SKU CH-0W90-JZQFZ

ATX motherboard for Intel 9th and 8th Gen Core processors with dual M.2, four DDR4 slots up to 64GB, HDMI 4096x2160 at 30Hz, SATA 6.0Gb/s and USB 3.1 Gen 1

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeIntel Core 9th Gen (LGA 1151)
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0* * The Intel Turbo
  • ChipsetIntel Z370
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support Mu
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 9th and 8th Gen Intel Core processors with LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB with overclocked speeds to 4000 MHz
  • Dual M.2 slots for SATA or NVME SSDs plus Intel Optane memory ready
  • HDMI output up to 4096 x 2160 at 30 Hz and DVI-D up to 1920 x 1200 at 60 Hz
  • Realtek ALC887 8-channel audio and Realtek RTL8111H LAN with 5X Protection III safeguards

LGA 1151 Z370 ATX motherboard

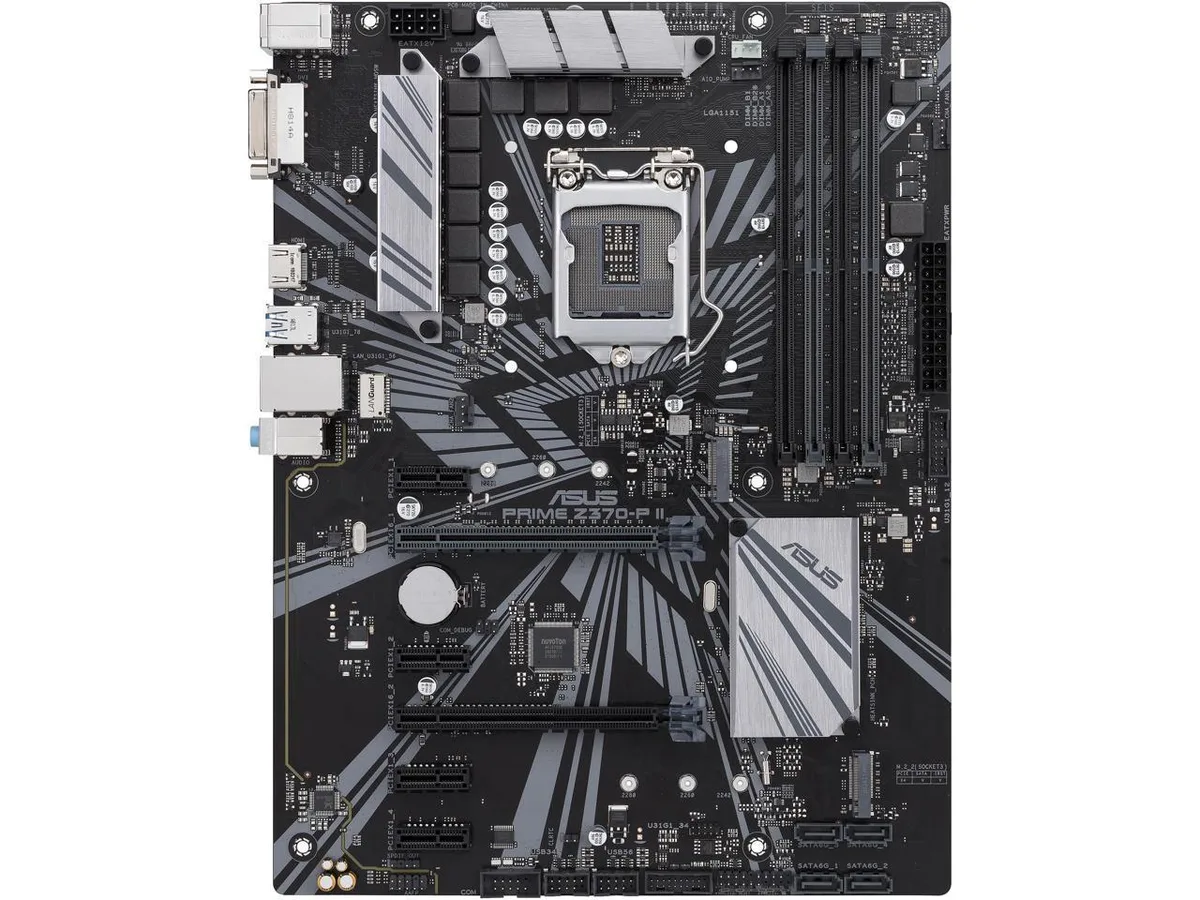

The ASUS PRIME Z370-P II is an ATX motherboard built on the Intel Z370 chipset for LGA 1151 300 Series processors. It supports 8th and 9th Generation Intel Core, Pentium Gold and Celeron CPUs with Intel Turbo Boost Technology 2.0. Four DDR4 slots accept up to 64 GB of memory running at speeds up to 4000 MHz when overclocked. Dual M.2 sockets and four SATA 6.0 Gb/s ports provide flexible storage options.

Builders needing HDMI video and Optane support

This board suits builders who want integrated graphics output via HDMI 4096 x 2160 at 30 Hz or DVI-D 1920 x 1200 at 60 Hz. Intel Optane Memory Ready support accelerates compatible drives. Realtek ALC887 8-channel audio and Realtek RTL8111H LAN handle basic connectivity. It is not suited for users requiring built-in Wi-Fi, Bluetooth, USB 3.1 Gen 2 or more than two M.2 slots.

One PCIe 3.0 x16 slot plus x4 secondary

The primary PCIe 3.0 x16 slot runs at x16 or splits to x8/x4+x4 for multi-GPU or Hyper M.2 X16 card use. A second PCIe 3.0 x16 slot operates at x4 mode only. Four PCIe 3.0 x1 slots add expansion room. SATA RAID 0/1/5/10 is supported across the four SATA ports.

Highlights

  • Supports 9th and 8th Gen Intel Core processors with LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB with overclocked speeds to 4000 MHz
  • Dual M.2 slots for SATA or NVME SSDs plus Intel Optane memory ready
  • HDMI output up to 4096 x 2160 at 30 Hz and DVI-D up to 1920 x 1200 at 60 Hz
  • Realtek ALC887 8-channel audio and Realtek RTL8111H LAN with 5X Protection III safeguards

Specifications

BrandASUS
ModelPRIME Z370-P II
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeIntel Core 9th Gen (LGA 1151)
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0*
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel Z370
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024MB (for iGPU exclusively)
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4000(O.C.)*/ 3866(O.C.)*/ 3733(O.C.)*/ 3600(O.C.)*/ 3466(O.C.)*/ 3400(O.C.)*/ 3333(O.C.)*/ 3300(O.C.)*/ 3200(O.C.)*/ 3000(O.C.)*/ 2800(O.C.)*/ 2666 / 2400 / 2133
* The maximum memory frequency supported varies by processor
** Refer to www.asus.com for the Memory QVL (Qualified Vendors List)
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCIe 3.0/2.0 x16 (x16, x8/x4+x4) *
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
* PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card.**
** Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.
PCI Express x14 x PCI Express 3.0/2.0 x1 slots
Serial ATA (SATA)4 x SATA 6.0Gb/s ports (gray)
M.22 x M.2 Socket 3*, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
* When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
LAN ChipsetRealtek RTL8111H
Max LAN Speed1Gbps
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D
HDMI1 x HDMI
RJ451 x RJ45
USB 3.14 x USB 3.1 Gen 1 (blue) Type-A
USB 1.1/2.02 x USB 2.0
Audio Ports3 Ports
Onboard USB2 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
2 x Chassis Fan connector(s) (2 x 4-pin)
1 x S/PDIF out header(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x AIO PUMP Header
Form FactorATX
Dimensions (W x L)12.0" x 9.1"
Power Pin1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
FeaturesMulti-GPU Support:
Supports AMD CrossFireX Technology
Special Features:
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS OptiMem:
- Optimem (Improved DDR4 stability)
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Cha

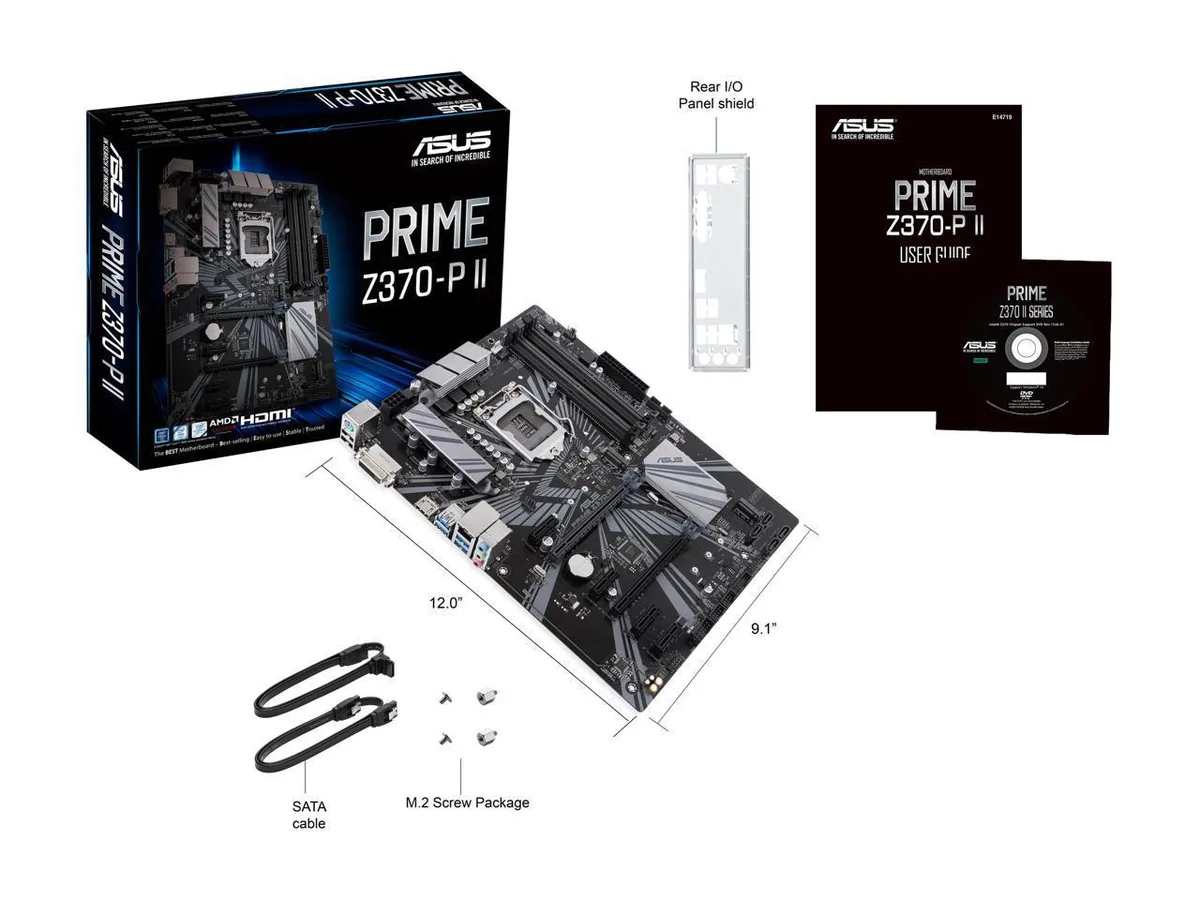

Package ContentsAccessories:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x SCD

Questions about this item

Will my LGA 1151 9th Gen Intel Core CPU fit this socket?

Yes. The board uses the LGA 1151 (300 Series) socket, which supports 9th Gen Intel Core, Pentium Gold and Celeron processors.

Can I run four DDR4 sticks at 3200 MT/s in dual-channel mode?

The board has four 288-pin DDR4 slots with dual-channel support. Speeds up to 3200(O.C.) are listed; 2666 and 2400 run natively. Maximum capacity is 64 GB.

Does the M.2_1 slot share bandwidth with a SATA port?

When a SATA-mode M.2 drive occupies M.2_1, the SATA_1 port becomes unavailable. The second M.2 socket does not affect SATA ports.
