ATX motherboard with black PCB, silver heatsinks, LGA 1151 socket, four DDR4 slots, two M.2 slots, HDMI and DVI ports

ASUS

ASUS Prime Z370-P LGA 1151 (300 Series) Intel motherboard

SKU CH-VG05-MDJP4

ATX board for 8th-gen Intel Core CPUs with dual M.2 slots, HDMI 1.4, DDR4 up to 4000 MHz and Realtek audio

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeLGA 1151 (300 Series)
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0* * The Intel Turbo
  • ChipsetIntel Z370
  • Onboard Video ChipsetIntegrated Graphics Processor- Intel HD Graphics support Mul
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • DDR4 memory up to 4000 MHz overclocked for high-speed performance
  • Dual M.2 slots with SATA and PCIe 3.0 x4 modes for flexible storage
  • HDMI 1.4b and DVI-D outputs drive displays up to 4096 x 2160 resolution
  • Realtek ALC887 8-channel audio and Realtek 8111H Gigabit LAN for connectivity

Socket and chipset

The ASUS Prime Z370-P is an ATX motherboard built around the Intel Z370 chipset and the LGA 1151 socket for 8th generation Intel Core processors. It provides four 288-pin DDR4 slots supporting dual-channel memory up to 64 GB, with overclocked speeds reaching 4000 MHz and native support for 2133, 2400 and 2666 MHz.

Build focus

This board suits builders who want a straightforward Z370 platform with dual M.2 sockets for 2242, 2260 or 2280 drives and a single PCIe 3.0 x16 slot reinforced by SafeSlot Core. Users needing multiple full-length graphics cards, integrated Wi-Fi, or legacy CPU compatibility should consider other models.

Included extras

The I/O panel supplies HDMI 1.4b and DVI-D outputs for integrated graphics, plus USB 3.1 Gen 1 ports for peripheral connectivity. FanXpert 4 Core software adds an AIO pump header and advanced fan curves, while 5X Protection III hardware safeguards and LANGuard enhance long-term reliability.

Highlights

  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • DDR4 memory up to 4000 MHz overclocked for high-speed performance
  • Dual M.2 slots with SATA and PCIe 3.0 x4 modes for flexible storage
  • HDMI 1.4b and DVI-D outputs drive displays up to 4096 x 2160 resolution
  • Realtek ALC887 8-channel audio and Realtek 8111H Gigabit LAN for connectivity

Specifications

BrandASUS
ModelPrime Z370-P
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeLGA 1151 (300 Series)
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0*
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel Z370
Onboard Video ChipsetIntegrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D port
- Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
- Supports DVI-D with max. resolution of 1920 x 1200@60Hz
Supports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/Insider
Maximum shared memory of 1024MB (for iGPU exclusively)
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4000(O.C.)*/ 3866(O.C.)*/ 3733(O.C.)*/ 3600(O.C.)*/ 3466(O.C.)*/ 3400(O.C.)*/ 3333(O.C.)*/ 3300(O.C.)*/ 3200(O.C.)*/ 3000(O.C.)*/ 2800(O.C.)*/ 2666/ 2400/ 2133
*The maximum memory frequency supported varies by processor
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0/2.0 x16 slot (support x16, x8/x4+x4*)
1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)
* For 3 Intel SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
PCI Express x14 x PCI Express 3.0/2.0 x1 slots
Serial ATA (SATA)4 x SATA 6.0Gb/s ports (gray)
M.22 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*
* When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
LAN ChipsetRealtek 8111H
Max LAN Speed1Gbps

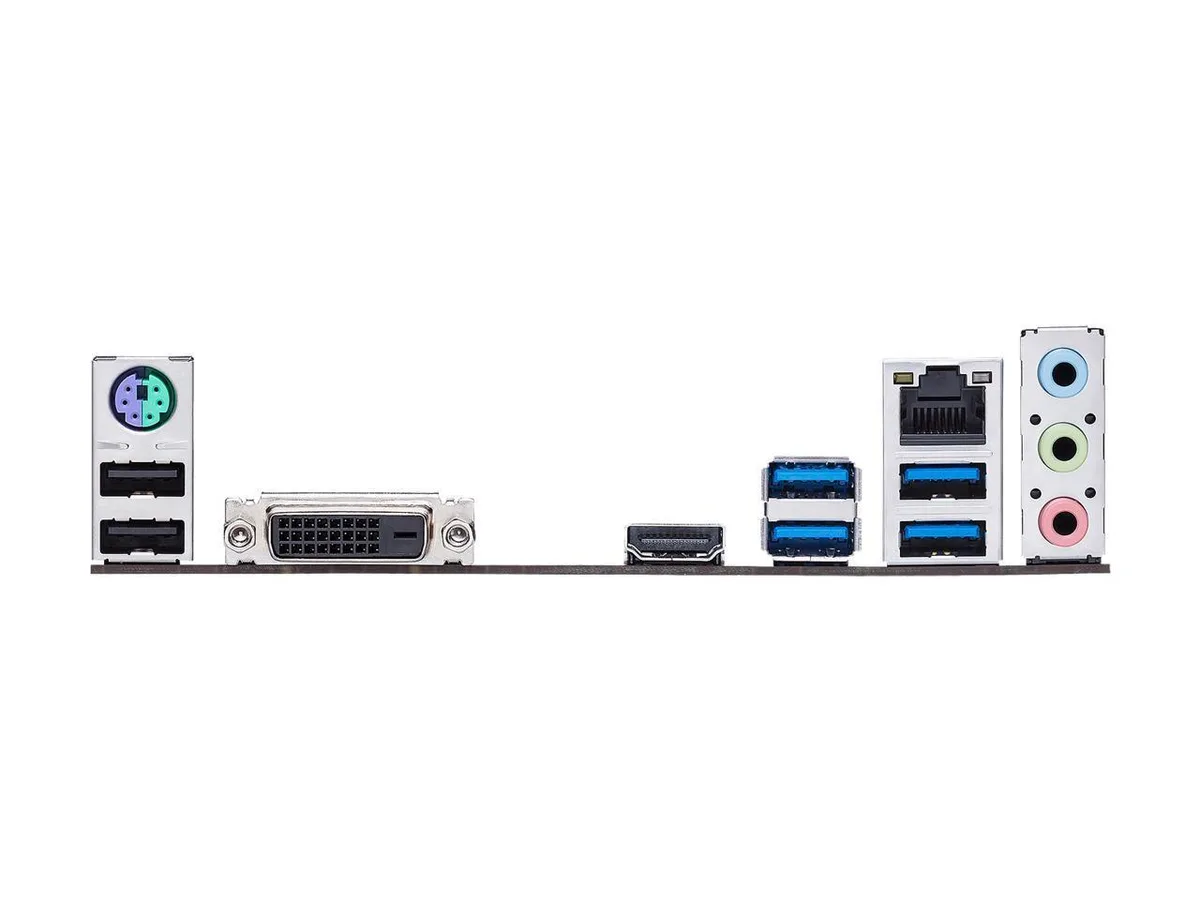

Back I/O Ports1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.14 x USB 3.1 Gen 1 Type A
USB 1.1/2.02 x USB 2.0
Audio Ports3 Ports
Onboard USB2 x USB 3.1 Gen 1 connectors support additional 4 USB ports (19-pin)
2 x USB 2.0 connectors support additional 4 USB ports
Other Connectors1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control*
2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control*
1 x AIO PUMP connector
1 x Front panel audio connector (AAFP)
1 x System panel connector
1 x S/PDIF out header
1 x COM Header
1 x Clear CMOS jumper
* By default, the CPU/Chassis Q-Fan control setting is set to Auto mode, which detects the CPU and chassis fans installed and changes the control mode automatically.
Form FactorATX
Dimensions (W x L)12.0" x 8.9"
Power Pin1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
FeaturesMulti-GPU Support:
Supports AMD CrossFireX Technology
ASUS Special Features:
ASUS 5X PROTECTION III
- ASUS SafeSlot Core: Fortified PCIe with solid soldering
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 7 Phase digital power design
Superb Performance
M.2 onboard
- The latest transfer technologies with up to 32Gb/s data transfer speeds
ASUS Fan Xpert 4 Core
- A

Questions about this item

What CPU socket must my processor match to fit this board?

The board uses the LGA 1151 (300 Series) socket, which only accepts 8th generation Intel Core processors; earlier LGA 1151 CPUs are not supported.

Can I keep my existing DDR4 2400 MHz memory when upgrading to this motherboard?

Yes, DDR4 2400 MHz is listed among the supported memory standards, so your current modules will work at their rated speed.

How can I confirm the motherboard is posting correctly after assembly?

Connect a monitor to the HDMI or DVI-D port; if the integrated Intel HD Graphics initialise you will see the BIOS splash screen on a successful POST.
