ATX motherboard, dark PCB, silver heatsinks, four DDR4 slots, reinforced PCIe x16 slot, two M.2 sockets, HDMI and DVI ports

ASUS

ASUS Prime Z370-P LGA 1151 Intel motherboard 64GB DDR4

SKU CH-AXZF-HX6KZ

ATX Intel Z370 board with LGA 1151 socket, four DDR4 slots up to 64GB, dual M.2, HDMI 1.4b and gigabit LAN

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0* / * The Intel Tur
  • ChipsetIntel Z370
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4000(O.C.)*/ 3866(O.C.)*/ 3733(O.C.)*/ 3600(O.C.)*/ 346
  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB across four slots
  • Reinforced PCIe slot protects heavy graphics cards from damage
  • Two M.2 sockets accept 2242, 2260 and 2280 drives in SATA or PCIe mode
  • Realtek ALC887 codec delivers eight-channel high-definition audio

ASUS Prime Z370-P LGA 1151 Intel Motherboard

This ATX motherboard uses the Intel Z370 chipset and an LGA 1151 socket for 8th Gen Intel Core i7, i5, i3, Pentium and Celeron processors. It provides four 288-pin DDR4 memory slots supporting up to 64GB in dual-channel mode. The board includes Realtek ALC887 8-channel audio and Realtek 8111H Gigabit LAN.

Check CPU generation and M.2 slot sharing

The LGA 1151 socket on this 300-series board only accepts 8th Gen Intel Core processors and is not backward compatible with older LGA 1151 CPUs. Verify your processor generation before ordering. When a SATA M.2 device occupies the M.2_1 socket, the SATA_1 port becomes unavailable. The primary PCIe x16 slot runs at x16 or x8/x4+x4; the second x16 slot operates at up to x4 mode.

Sustained load behaviour with FanXpert 4 Core

FanXpert 4 Core with an AIO pump header manages system cooling dynamically under continuous workloads. SafeSlot Core reinforces the primary PCIe slot to withstand heavyweight graphics cards during extended sessions. 5X Protection III hardware safeguards including LANGuard and overvoltage protection maintain component longevity and reliability over long periods.

Highlights

  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB across four slots
  • Reinforced PCIe slot protects heavy graphics cards from damage
  • Two M.2 sockets accept 2242, 2260 and 2280 drives in SATA or PCIe mode
  • Realtek ALC887 codec delivers eight-channel high-definition audio

Specifications

BrandASUS
ModelPrime Z370-P
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0* / * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel Z370
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4000(O.C.)*/ 3866(O.C.)*/ 3733(O.C.)*/ 3600(O.C.)*/ 3466(O.C.)*/ 3400(O.C.)*/ 3333(O.C.)*/ 3300(O.C.)*/ 3200(O.C.)*/ 3000(O.C.)*/ 2800(O.C.)*/ 2666/ 2400/ 2133 / *The maximum memory frequency supported varies by processor
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0/2.0 x16 slot (support x16, x8/x4+x4*) / 1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices) / * For 3 Intel SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
PCI Express x14 x PCI Express 3.0/2.0 x1 slots
Serial ATA (SATA)4 x SATA 6.0Gb/s ports (gray)
M.22 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)* / * When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
LAN ChipsetRealtek 8111H
Max LAN Speed1Gbps

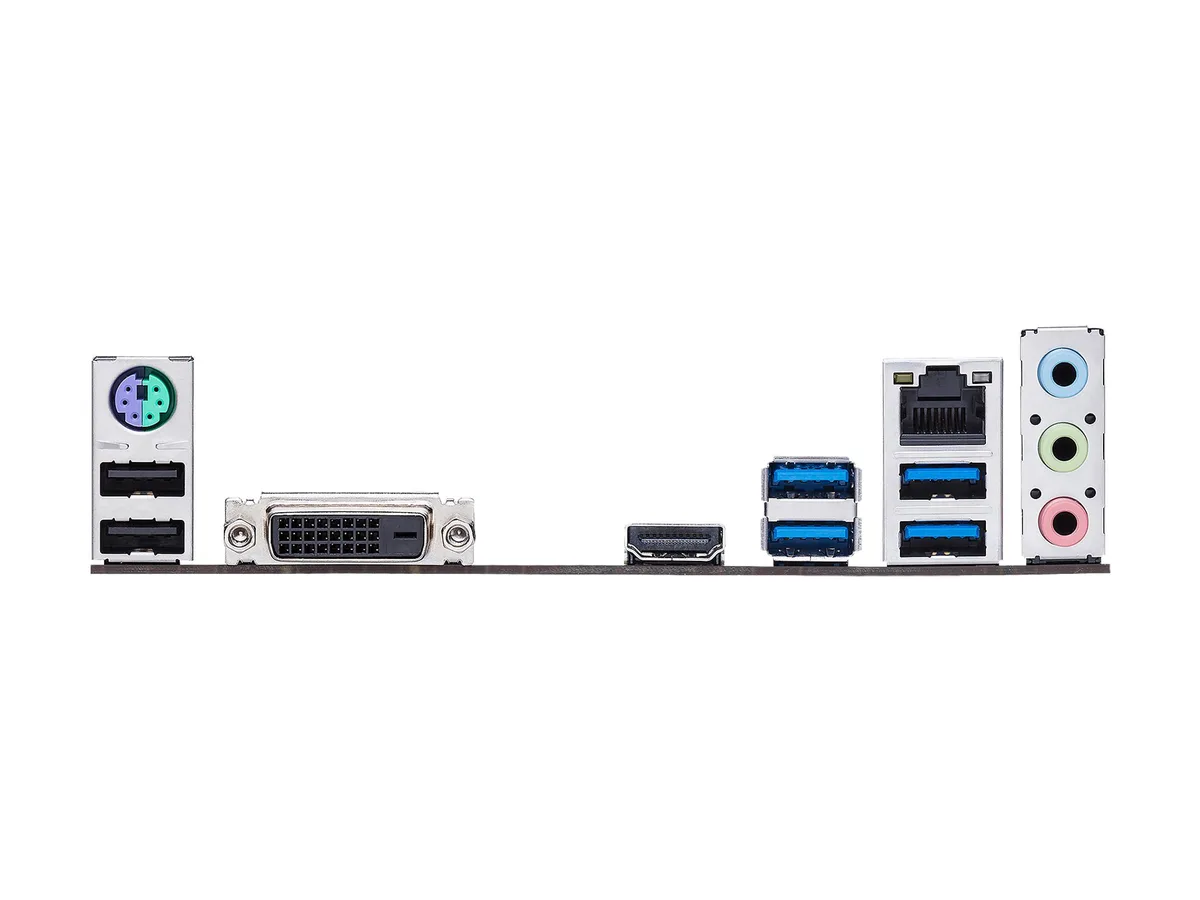

PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.14 x USB 3.1 Gen 1 Type A
USB 1.1/2.02 x USB 2.0
Audio Ports3 Ports
Onboard USB2 x USB 3.1 Gen 1 connectors support additional 4 USB ports (19-pin) / 2 x USB 2.0 connectors support additional 4 USB ports
Other Connectors1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control* / 2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control* / 1 x AIO PUMP connector / 1 x Front panel audio connector (AAFP) / 1 x System panel connector / 1 x S/PDIF out header / 1 x COM Header / 1 x Clear CMOS jumper / * By default, the CPU/Chassis Q-Fan control setting is set to Auto mode, which detects the CPU and chassis fans installed and changes the control mode automatically.
Form FactorATX
Dimensions (W x L)12.0" x 8.9"
Power Pin1 x 24-pin EATX Power connector / 1 x 8-pin EATX 12V Power connector
FeaturesMulti-GPU Support: / Supports AMD CrossFireX Technology / / ASUS Special Features: / ASUS 5X PROTECTION III / - ASUS SafeSlot Core: Fortified PCIe with solid soldering / - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! / - ASUS Overvoltage Protection: World-class circuit-protecting power design / - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! / - ASUS DIGI+ VRM: 7 Phase digital power design / Superb Performance / M.2 onboard / - The latest transfer technologies with up to 32Gb/s data transfer speeds /

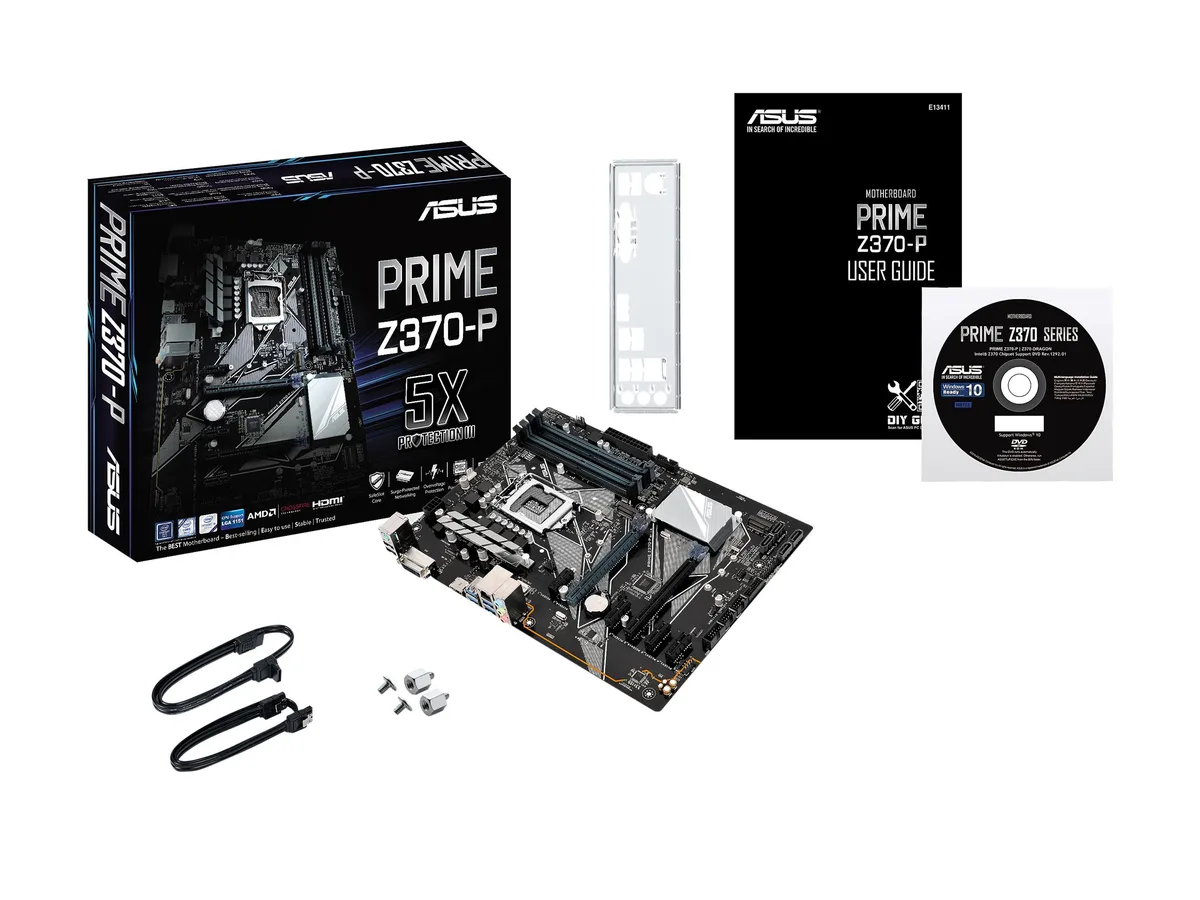

Package ContentsAccessories: / 2 x SATA 6Gb/s cables / 1 x IO Shield / 1 x M.2 Screw Package / 1 x Support DVD / 1 x User's manual

Questions about this item

What comes in the box and which essential parts must I buy separately for the ASUS Prime Z370-P?

The board includes the ATX motherboard, I/O shield, SATA cables, M.2 screws, driver disc and manual. You must purchase an 8th Gen Intel Core CPU for the LGA 1151 socket, DDR4 memory modules, a graphics card if your CPU lacks integrated graphics, storage drives and a power supply.

Which DDR4 speed should I choose for the four 288-pin slots supporting up to 64 GB on this Z370 board?

Install matched DDR4 kits rated 2666 MT/s or 2400 MT/s for guaranteed operation without overclocking. Higher speeds such as 3200, 3600 or 4000 MT/s are listed as overclocked profiles and require a compatible CPU and manual BIOS tuning to run stably.

What does the single PCIe 3.0 x16 slot running at x16 mean for a graphics card installed in the top slot of the Prime Z370-P?

The primary slot delivers full PCIe 3.0 x16 bandwidth to one graphics card. If a second card is added to the lower x16 slot wired for x4, the top slot remains at x16 while the second operates at x4, so single-GPU performance is unaffected.
