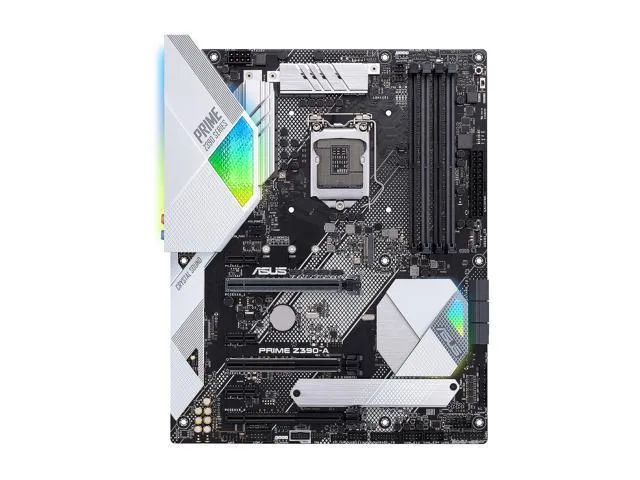

ATX motherboard with black PCB silver heatsinks and RGB lighting

ASUS

ASUS Prime Z390-A Intel Motherboard

SKU CH-60FN-MBVTD

ATX board for LGA 1151 300 Series CPUs with dual-channel DDR4 up to 64 GB, six SATA 6 Gb/s ports, two M.2 slots and Intel I219-V 1 Gbps LAN

  • CPU Socket TypeLGA 1151 (300 Series)
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0* * The Intel Turbo
  • ChipsetIntel Z390
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) /
  • Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 64GB with speeds to 4266 OC
  • Two M.2 slots for NVME storage including one supporting 22110 drives
  • Six SATA 6Gb/s ports plus RAID 0/1/5/10 for flexible drive arrays
  • Realtek ALC S1220A 8-channel audio with Crystal Sound 3 for clear output

Z390 ATX motherboard for 8th and 9th gen Intel Core

The ASUS Prime Z390-A uses the LGA 1151 (300 Series) socket and Intel Z390 chipset to support 8th and 9th generation Intel Core processors. Four 288-pin DDR4 slots accept up to 64 GB in dual-channel mode. The board provides three PCI Express 3.0 x16 slots, three PCI Express 3.0 x1 slots, six SATA 6Gb/s ports and two M.2 sockets for storage expansion.

Sustained-load behaviour with 5-Way Optimization

The 5-Way Optimization suite uses thermal telemetry to set a stable overclock in one click, keeping clocks consistent during long workloads. FanXpert 4 and a dedicated AIO pump header adjust cooling curves in real time so temperatures stay controlled under continuous stress. Intel I219-V LAN and 8-channel Realtek ALC S1220A audio maintain steady throughput without throttling.

Build quality and daily connectivity

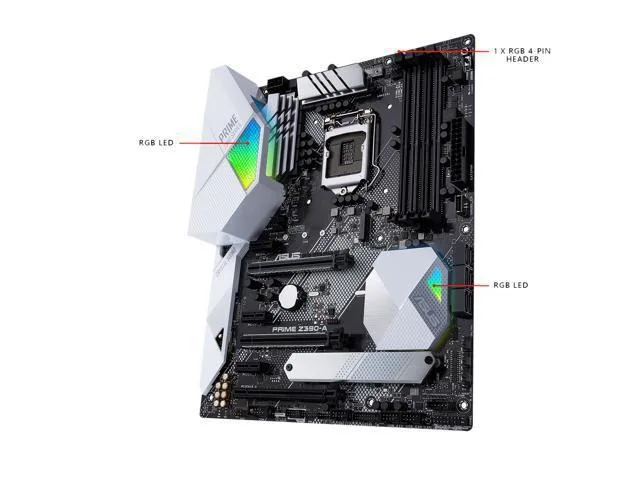

SafeSlot Core reinforces the primary PCIe slots to withstand heavy graphics cards, while LANGuard and overvoltage protection shield network and power circuits. Two M.2 sockets accept 2242, 2260, 2280 and 22110 devices with both SATA and PCIe 3.0 x4 modes. AURA Sync RGB headers allow coordinated lighting across compatible components.

Highlights

  • Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 64GB with speeds to 4266 OC
  • Two M.2 slots for NVME storage including one supporting 22110 drives
  • Six SATA 6Gb/s ports plus RAID 0/1/5/10 for flexible drive arrays
  • Realtek ALC S1220A 8-channel audio with Crystal Sound 3 for clear output

Specifications

BrandASUS
ModelPrime Z390-A
CPU Socket TypeLGA 1151 (300 Series)
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0*
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel Z390
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666 / 2400 / 2133 *
* The maximum memory frequency supported varies by processor.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x163 x PCI Express 3.0 x16*
* PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card.
* PCIEX16_2 slot supports up to 2 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card.
* Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.
* The PCIe x16_3 slot shares bandwidth with SATA_5 and SATA_6. The PCIe x16_3 is default set at x2 mode.
PCI Express x13 x PCI Express 3.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)*
* The M.2_1 socket shares bandwidth with SATA_2 port when using M.2 SATA devices. Adjust BIOS settings to use a SATA device.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC S1220A High Definition Audio CODEC featuring Crystal Sound 3
Audio Channels8 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
3 x USB 3.1 Gen 2 (teal blue) Type-A
1 x USB 3.1 Gen 2 Type-C
2 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Onboard USB1 x USB 3.1 Gen 1 front panel Type-C connector
1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
Other Connectors2 x Aura RGB Strip Headers
1 x TPM header
1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x CPU OPT Fan connector(s) (1 x 4-pin)
2 x Chassis Fan connector(s) (2 x 4-pin)
1 x AIO_PUMP connector (1 x 4-pin)
1 x W_PUMP+ connector
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! II switch(es)
1 x CPU OV
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x EXT_Fan header
1 x Thermal sensor connector
1 x M.2 Fan Header
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
FeaturesMulti-GPU Support:
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
Special Features:
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
- Procool Power connector design
TPU
- Auto Tuning, TPU, GPU Boost
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against

Questions about this item

Will this board run my 9th-generation Intel Core i7 without a BIOS update?

The LGA 1151 (300 Series) socket natively supports 9th and 8th generation Intel Core processors, so a compatible CPU will work out of the box.

Can I install four DDR4 sticks to reach the 64 GB limit?

Yes, the board has four 288-pin DDR4 slots running in dual-channel mode and supports up to 64 GB total capacity.

How many M.2 drives can I use at once and what lengths fit?

Two M.2 Socket 3 slots are provided: the first accepts 2242, 2260, 2280 and 22110 lengths in PCIe 3.0 x4 mode; the second takes 2242, 2260 and 2280 lengths in either SATA or PCIe 3.0 x4 mode.
