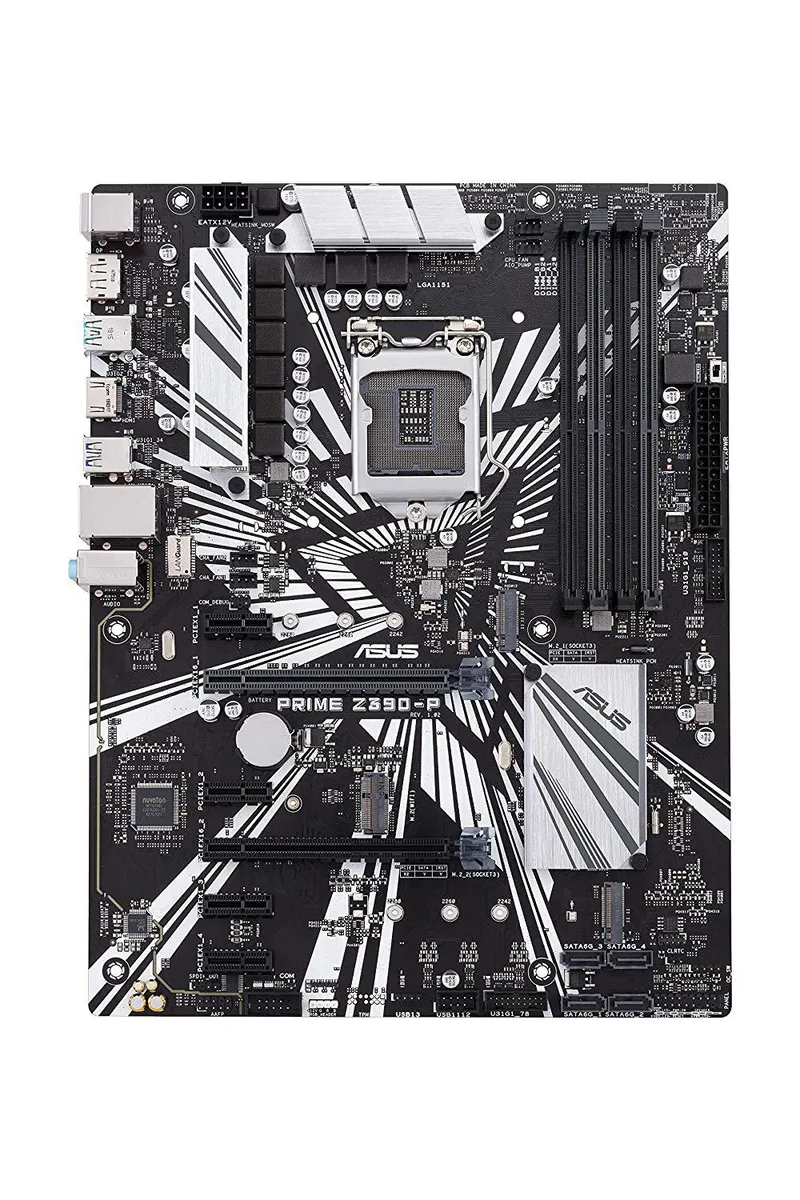

ATX Intel motherboard, black PCB with silver heatsinks, four DDR4 slots, PCIe x16 and x1 slots, M.2 socket, four SATA ports

ASUS

ASUS Prime Z390-P LGA 1151 Intel Motherboard

SKU CH-GEQR-75HMC

ATX motherboard for 8th and 9th generation Intel Core processors with dual-channel DDR4 up to 64 GB, one full-length PCIe 3.0 x16 slot, four SATA 6.0 Gb/s ports and an M.2 socket supporting 2242.

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0* The Intel Turbo B
  • ChipsetIntel Z390
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.
  • Supports 9th and 8th Gen Intel Core CPUs for broad processor choice
  • Four DDR4 slots handle up to 64 GB for large memory capacity
  • Realtek ALC887 codec delivers 8-channel HD audio for immersive sound
  • Two M.2 sockets accept 2242, 2260 and 2280 drives for flexible storage options
  • 5X Protection III hardware safeguards shield components for long-term reliability

Prime Z390-P for 8th and 9th Generation Intel Core

This ATX motherboard uses the Intel Z390 chipset and an LGA 1151 socket to support Core i7, i5, i3, Pentium and Celeron processors. Four DDR4 slots accept up to 64 GB of memory with speeds ranging from 2133 to 4266 MHz when overclocked. The board targets builders who want a mainstream platform with current connectivity.

Build quality and daily connectivity

The 5X Protection III suite adds SafeSlot Core reinforcement on the primary PCIe 3.0 x16 slot, LANGuard for the Realtek RTL8111H network controller and overvoltage protection across the PCB. Four SATA 6.0 Gb/s ports handle traditional drives while a single M.2 Socket 3 accepts 2242, 2260 or 2280 devices in SATA or PCIe 3.0 x2 mode. Four PCIe 3.0 x1 slots and an M.2 Key E slot for a CNVi Wi-Fi module complete the expansion options.

Bundled software and accessories

FanXpert 4 software provides automatic fan tuning and includes a dedicated AIO pump header for liquid-cooling control. The Realtek ALC887 codec drives 8-channel HD audio through the rear panel and front-panel header. ASUS OptiMem II topology improves trace routing for better DRAM overclocking stability, while Intel Optane memory readiness allows caching of a mechanical drive when a compatible module is installed.

Highlights

  • Supports 9th and 8th Gen Intel Core CPUs for broad processor choice
  • Four DDR4 slots handle up to 64 GB for large memory capacity
  • Realtek ALC887 codec delivers 8-channel HD audio for immersive sound
  • Two M.2 sockets accept 2242, 2260 and 2280 drives for flexible storage options
  • 5X Protection III hardware safeguards shield components for long-term reliability

Specifications

BrandASUS
ModelPrime Z390-P
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel Z390
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133* The maximum memory frequency supported varies by processor** Refer to www.asus.com for the Memory QVL (Qualified Vendors List)
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)1 x PCIe 3.0/2.0 x16 (max at x4 mode) * For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
PCI Express x14 x PCI Express 3.0/2.0 x1 slots
Other Slots1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT and Intel CNVi (Integrated Wi-Fi/BT) module** The Wi-Fi/BT module is purchased separately
Serial ATA (SATA)4 x SATA 6.0Gb/s ports (gray)
M.21 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)*1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode)* When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels8 Channels* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
LAN ChipsetRealtek RTL8111H
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 2 Type-A4 x USB 3.1 Gen 1 Type-A3 x 8-channel Audio I/O
Onboard USB2 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors1 x Lighting Control RGB Strip Header(s)1 x COM port(s) connector(s)1 x CPU Fan connector(s)2 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x S/PDIF out header(s)1 x Front panel audio connector(s) (AAFP)1 x MemOK! II switch(es)1 x Clear CMOS jumper(s)1 x System panel connector
Form FactorATX
Dimensions (W x L)12.0" x 9.2"
Power Pin1 x 24-pin EATX Power connector1 x 8-pin EATX 12V Power connector
FeaturesMulti-GPU Support:Supports AMD CrossFireX Technology Special Features:Fan Xpert4- Advanced fan and liquid controls for ultimate cooling and quietnessASUS 5X Protection III:- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: Premium components provide better power efficiencyASUS Optimem II:- Optimem (Improved DDR4
Package ContentsAccessories:User's manualI/O Shield2 x SATA 6Gb/s cable(s)2 x M.2 Screw Package1 x SCD

Questions about this item

What PCI Express 3.0 x16 link widths does the Prime Z390-P support?

The board provides one x16 slot that runs at x16 or splits to x8+x4+x4, and a second x16 slot limited to x4 mode.

What clearance does the ATX form factor and SafeSlot Core require in the chassis?

Standard ATX dimensions apply; the fortified SafeSlot Core needs a case with enough rear-bracket depth for heavyweight graphics cards.

How is the M.2 storage drive installed and what step is often missed?

Insert the 2242, 2260 or 2280 drive into the M-key socket at a 30° angle, secure with the standoff screw, and enable PCIe 3.0 x4 or SATA mode in BIOS.
