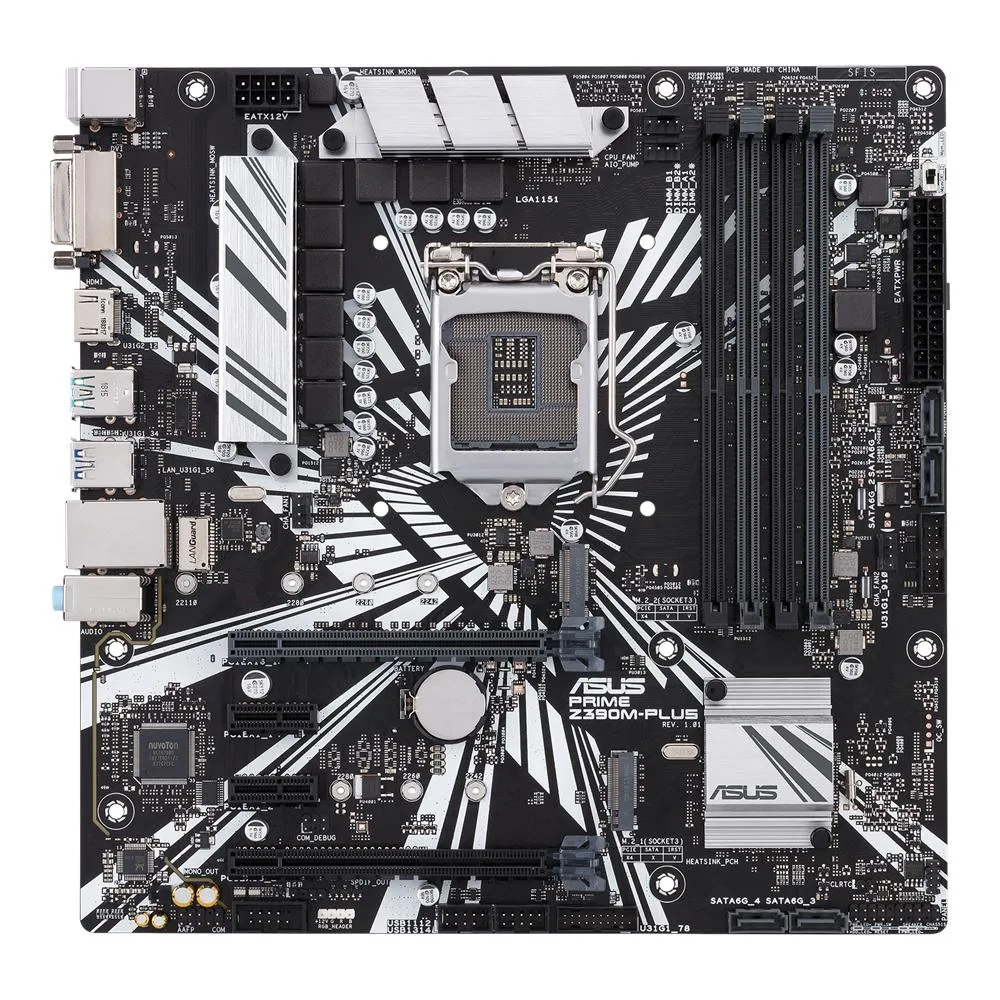

Micro ATX motherboard in dark finish with silver heatsinks and multiple expansion slots

ASUS

ASUS PRIME Z390M-PLUS LGA 1151 Intel motherboard

SKU CH-GF0Y-G76WX

Micro-ATX Intel Z390 board for LGA 1151 CPUs with four DDR4 slots up to 128 GB, one PCIe 3.0 x16 slot, two M.2 sockets, four SATA ports, Intel I219-V gigabit LAN and Realtek ALC887 8-channel audio

  • CPU Socket TypeLGA 1151
  • CPU TypeIntel Core 9th Gen (LGA 1151)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel Z390
  • Number of Memory Slots4x288pin (DDR4)
  • Memory Standard4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(
  • Supports Intel 9th Gen CPUs on LGA 1151 socket
  • Dual-channel DDR4 memory up to 128 GB capacity
  • Intel I219-V LAN delivers 1 Gbps wired networking
  • Realtek ALC887 codec provides 8-channel audio output
  • Two M.2 slots plus four SATA ports for storage expansion

Compact Z390 foundation

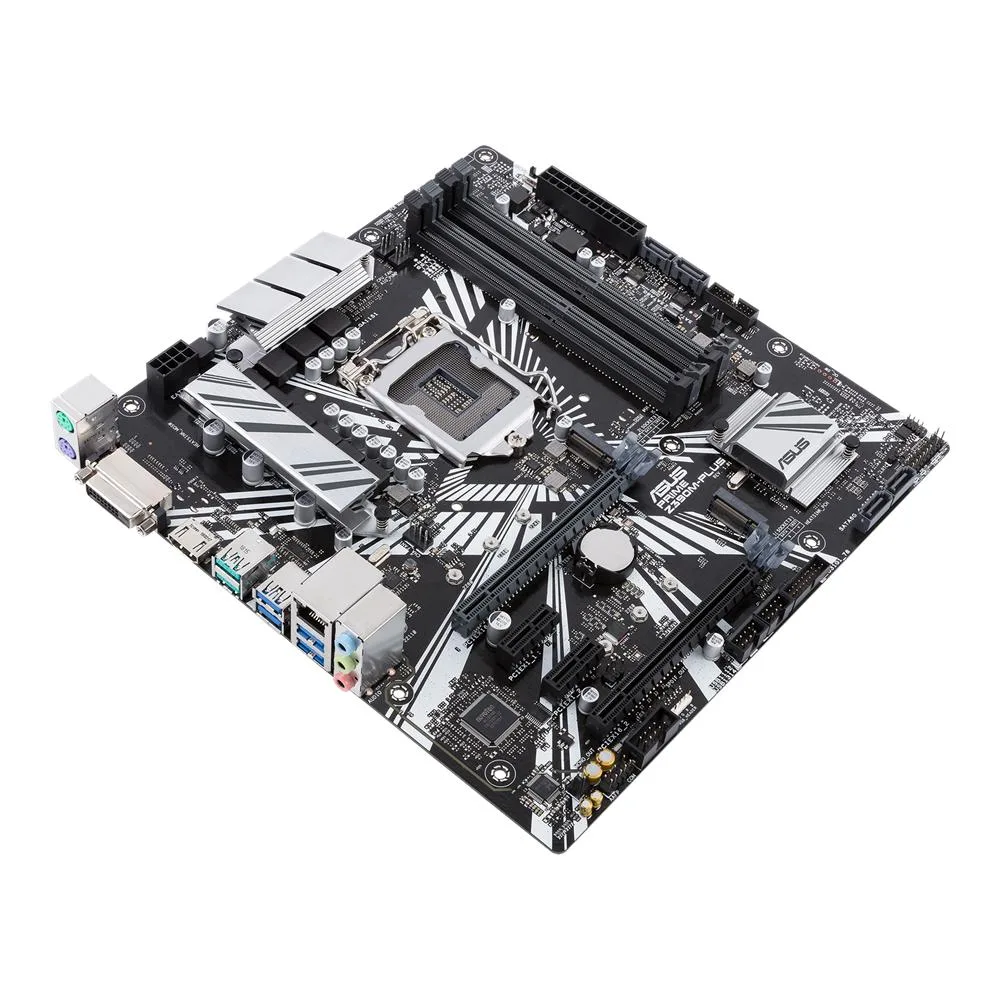

The ASUS PRIME Z390M-PLUS is a micro-ATX motherboard built around the Intel Z390 chipset and LGA 1151 socket. It accepts Intel Core 8th and 9th generation processors including Celeron, Pentium, Core i3, i5, i7 and i9 models. Four 288-pin DDR4 slots support dual-channel memory up to 128 GB with overclocked speeds reaching 4266 MHz.

Build focus and limits

This board suits builders who want a compact Z390 platform with two M.2 sockets, four SATA 6 Gb/s ports and a single full-length PCIe 3.0 x16 slot that can split into x8, x4, x4 configurations. A second x16 slot runs at x4 and two x1 slots round out expansion. Users needing integrated Wi-Fi, additional PCIe lanes or more than two M.2 drives should consider other models.

Deciding specification

The LGA 1151 socket paired with the Z390 chipset determines CPU compatibility and feature set. Only 8th and 9th generation Intel Core, Pentium and Celeron processors fit this socket, so the motherboard cannot be used with newer 10th generation or later CPUs. This single constraint decides whether the board matches the intended processor.

Highlights

  • Supports Intel 9th Gen CPUs on LGA 1151 socket
  • Dual-channel DDR4 memory up to 128 GB capacity
  • Intel I219-V LAN delivers 1 Gbps wired networking
  • Realtek ALC887 codec provides 8-channel audio output
  • Two M.2 slots plus four SATA ports for storage expansion

Specifications

BrandASUS
ModelPRIME Z390M-PLUS
CPU Socket TypeLGA 1151
CPU TypeIntel Core 9th Gen (LGA 1151)
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel Z390
Number of Memory Slots4x288pin (DDR4)
Memory Standard4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express x12 x PCIe 3.0/2.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps

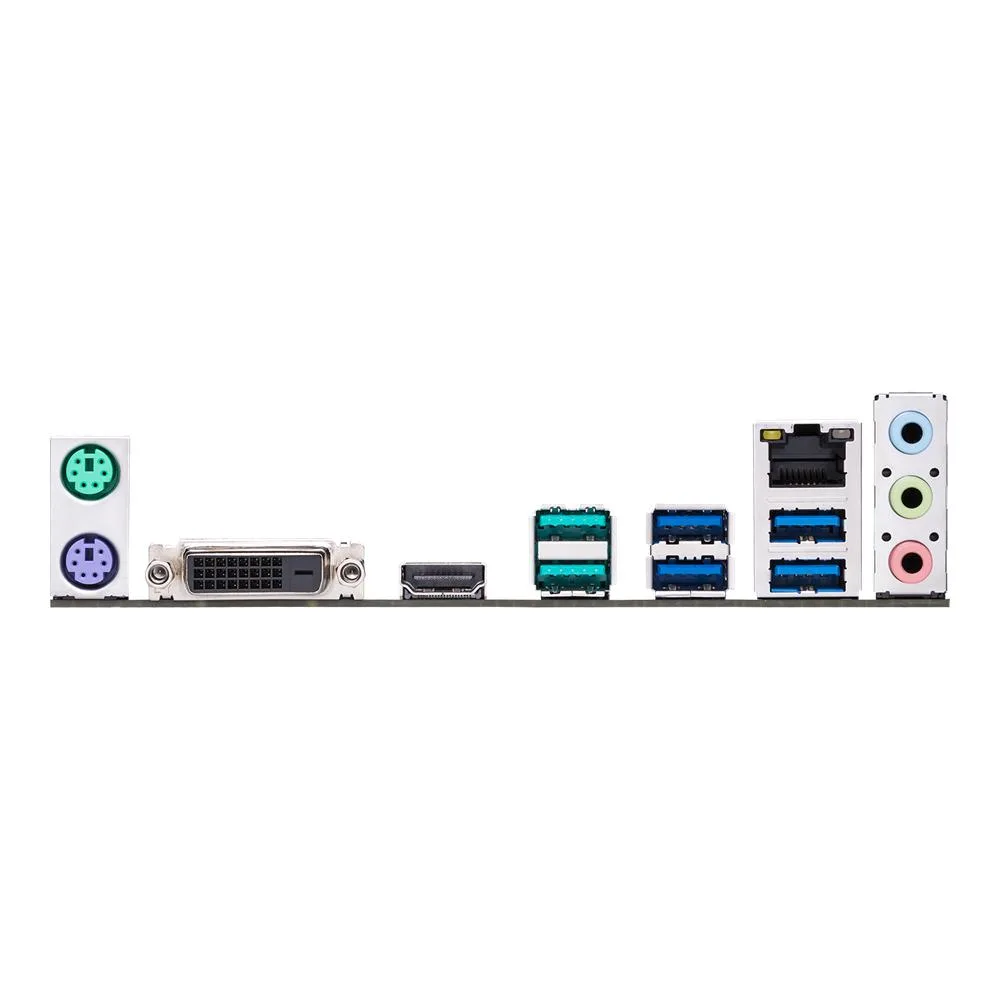

PS/21 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
Video PortsDVI
HDMI1 x HDMI
RJ451 x RJ45
USB 3.02 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1 Type-A
Audio Ports3 Ports
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Package ContentsUser's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x SCD (by region)

Questions about this item

Will my existing DDR4 memory work at its rated speed without overclocking?

The board runs DDR4 at 2133, 2400 and 2666 MHz natively; any higher frequency listed requires manual overclocking in the BIOS.

Can I install a 9th-generation Core i7 in this socket?

Yes, the LGA 1151 socket supports Intel Core 9th Gen processors alongside 8th Gen, Core i3, i5, i9, Pentium and Celeron CPUs.

How many M.2 drives can I fit at once?

Two M.2 slots are available, so you can populate both simultaneously.
