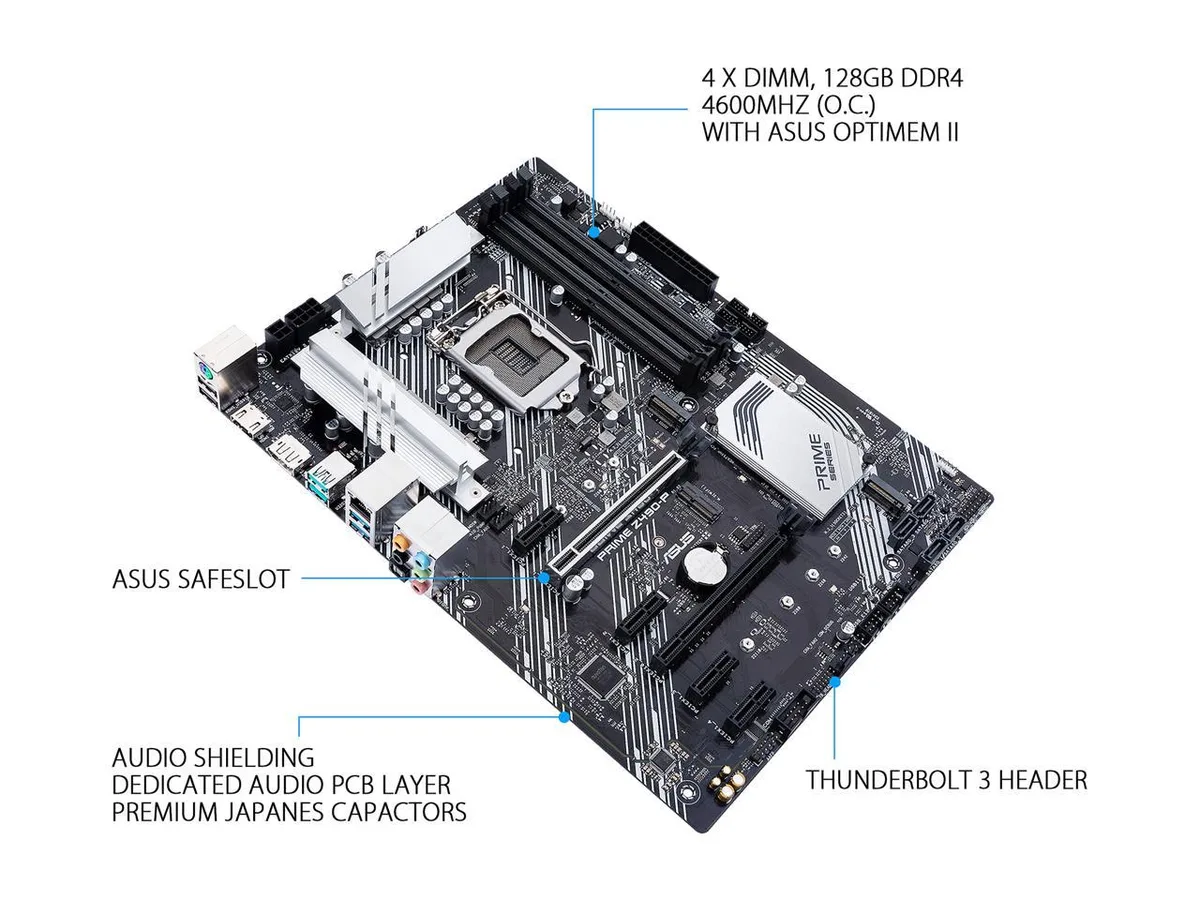

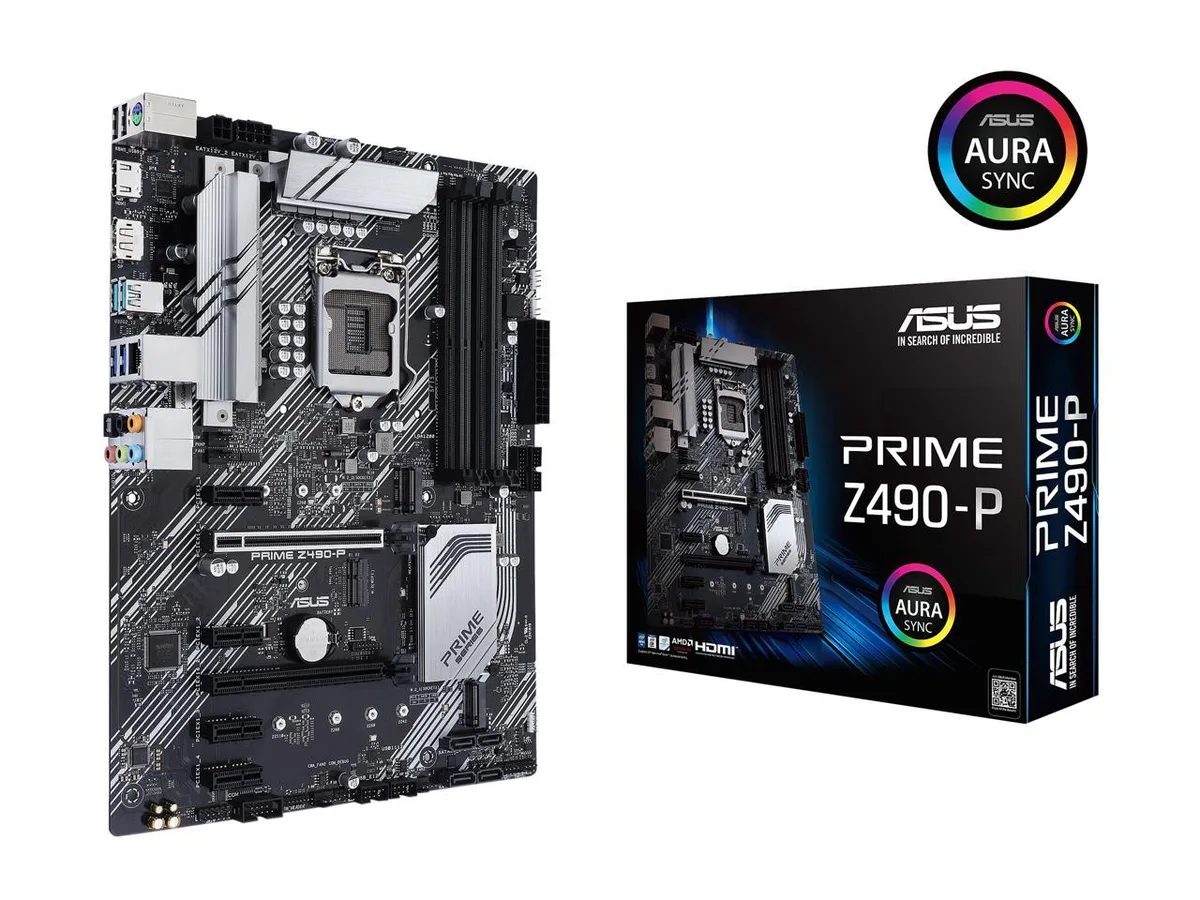

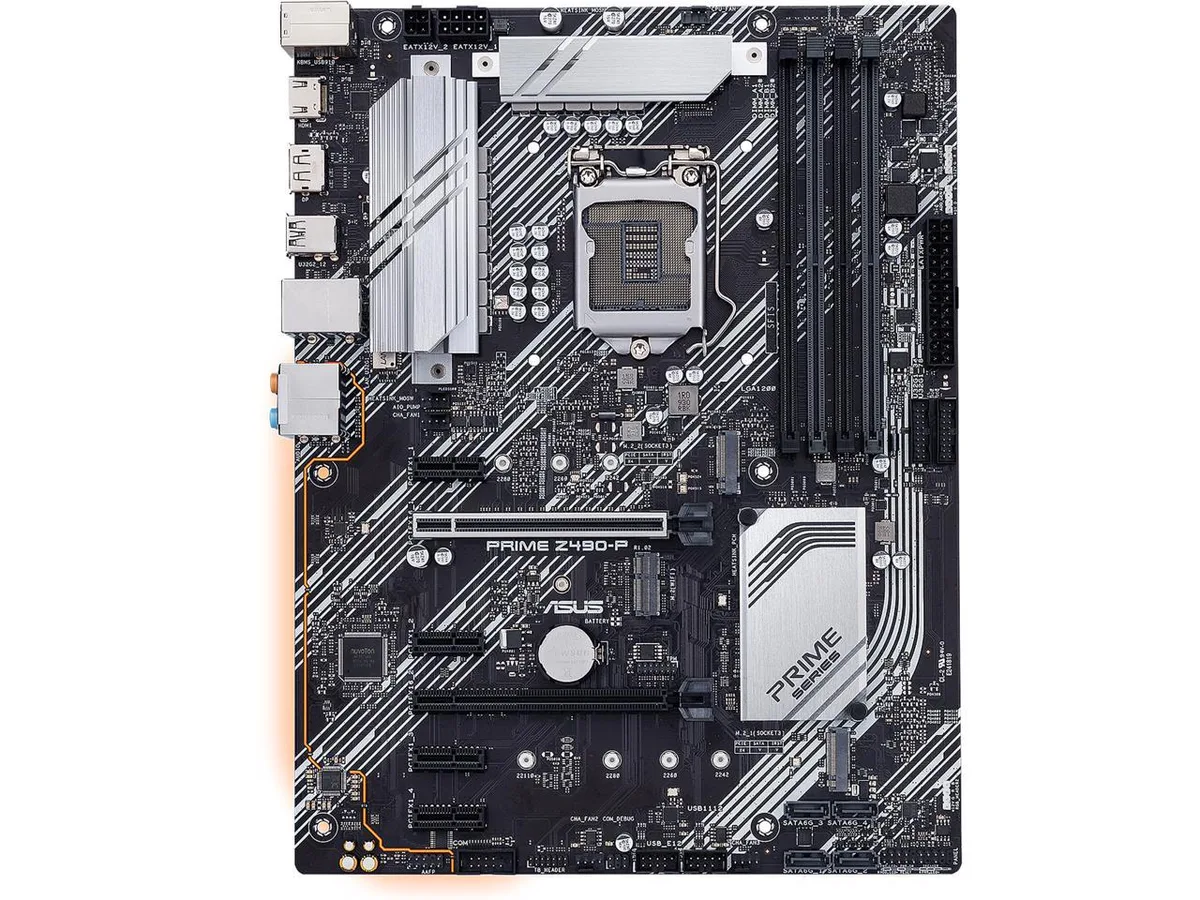

ATX motherboard dark grey PCB silver heatsinks LGA 1200 socket four DDR4 slots dual M.2 slots

ASUS

ASUS PRIME Z490-P LGA 1200 Intel motherboard

SKU CH-4R9K-HP0XF

ATX Intel Z490 board with LGA 1200 socket, dual M.2 slots, DDR4 4600 support, 1Gb Ethernet, USB 3.2 Gen 2 Type-A and Thunderbolt 3 support

  • CPU Socket TypeLGA 1200
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel Z490
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 2666
  • Maximum Memory Supported128GB
  • Supports 10th Gen Intel Core processors with LGA 1200 socket
  • Stable power from 10+1 DrMOS stages, 6-layer PCB and ProCool sockets
  • VRM and PCH heatsinks plus Fan Xpert 4 keep temperatures low
  • OptiMem II layout pushes DDR4 kits to 4600 MHz
  • Dual M.2 slots, 1Gb Ethernet, USB 3.2 Gen 2 Type-A and Thunderbolt 3 support

Socket LGA 1200 platform

This ATX motherboard uses the Intel Z490 chipset and an LGA 1200 socket for 10th Gen Intel Core processors. Four DDR4 slots support up to 128GB of memory in dual-channel mode. Dual M.2 slots, four SATA 6Gb/s ports and USB 3.2 Gen 2 Type-A provide fast storage and peripheral connections. Realtek ALC887 audio delivers 8-channel output.

Builders wanting Z490 features without onboard Wi-Fi

The board suits DIY builders who need CPU overclocking headroom, dual PCI Express 3.0 x16 slots and Thunderbolt 3 header support. Users requiring integrated wireless, 1Gbps LAN only, or a smaller form factor should consider other models. The M.2 Key E slot accepts a separate Wi-Fi module if wireless is added later.

LGA 1200 socket for 10th Gen Intel Core

The LGA 1200 socket is the single specification that determines CPU compatibility. Only 10th Gen Intel Core processors fit this socket; newer or older generations are not supported. Verify your processor generation before purchase.

Highlights

  • Supports 10th Gen Intel Core processors with LGA 1200 socket
  • Stable power from 10+1 DrMOS stages, 6-layer PCB and ProCool sockets
  • VRM and PCH heatsinks plus Fan Xpert 4 keep temperatures low
  • OptiMem II layout pushes DDR4 kits to 4600 MHz
  • Dual M.2 slots, 1Gb Ethernet, USB 3.2 Gen 2 Type-A and Thunderbolt 3 support

Specifications

BrandASUS
SeriesPrime
CPU Socket TypeLGA 1200
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel Z490
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2666
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCI Express 3.0 x16
PCI Express x14 x PCI Express x1
Other SlotsM.2 slot (Key E) (Wi-Fi module is sold separately)
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
Max LAN Speed1Gbps
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 1.1/2.02 x USB 2.0
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB4 x USB 3.2 + 4 x USB 2.0
Windows 11Supported
Form FactorATX
LED LightingRGB
Power Pin24 Pin

Questions about this item

How hot or loud does the VRM heatsink and Fan Xpert 4 setup get during all-day loads?

The board uses a VRM heatsink, PCH heatsink and hybrid fan headers managed by Fan Xpert 4 to keep temperatures and noise in check under sustained workloads.

Which processor and memory must I already have to use this LGA 1200 board?

You need a 10th Gen Intel Core CPU for the LGA 1200 socket and DDR4 modules; the board supports up to 128 GB across four slots at 2666 MHz standard.

Will my existing SATA drives and PCIe 3.0 add-in cards work without changes?

Yes — four SATA 6 Gb/s ports, two PCIe 3.0 x16 slots and four PCIe x1 slots accept current drives and expansion cards directly.
