Micro-ATX board in dark grey with black heatsinks, silver PCIe slots, four DDR4 DIMM sockets and a rear I/O shield showing USB Type-C

ASUS

ASUS PRIME Z490M-PLUS Intel motherboard

SKU CH-XKZZ-Z3MQN

Micro-ATX board for 10th and 11th Gen Intel Core CPUs with DDR4 up to 4400 MHz, dual M.2, 1 Gb Ethernet and USB 3.2 Gen 2 Type-C

  • CPU Socket TypeLGA 1200
  • CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
  • ChipsetIntel Z490
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C
  • Maximum Memory Supported128GB
  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket

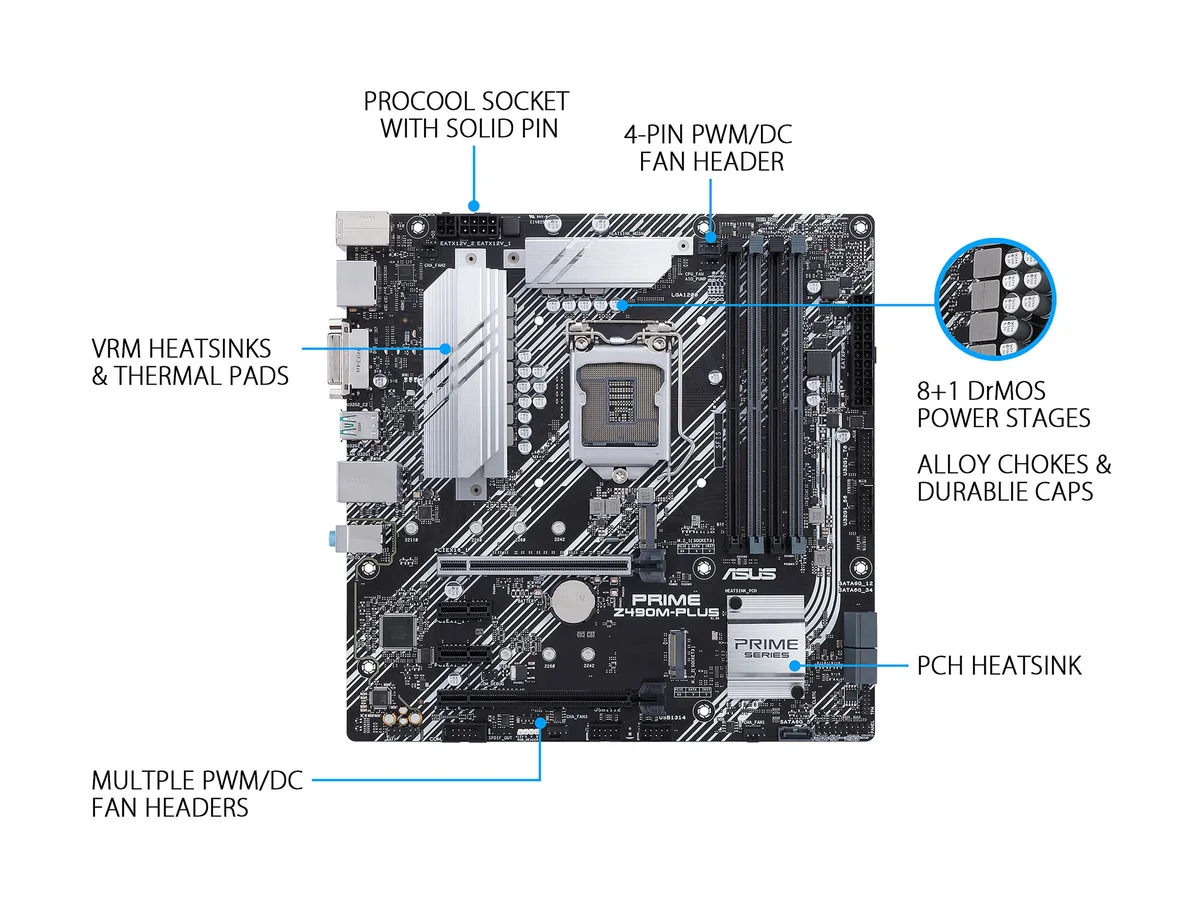

  • 8+1 DrMOS power stages with ProCool connector deliver stable power for overclocking
  • VRM and PCH heatsinks plus Fan Xpert 4 utility keep temperatures low
  • ASUS OptiMem trace routing preserves signal integrity for higher DDR4 speeds
  • Dual M.2 slots, Intel I219-V 1Gb Ethernet and USB 3.2 Gen 2 Type-A provide fast connectivity

Micro ATX board for 10th and 11th Gen Intel Core

The ASUS PRIME Z490M-PLUS fits an LGA 1200 socket and the Intel Z490 chipset into a Micro ATX layout. It targets builders who want a compact platform for 10th and 11th Gen Intel Core i9, i7, i5 or i3 processors. Four DDR4 slots and dual M.2 sockets provide expansion room inside smaller cases.

128 GB DDR4 ceiling with wide overclock range

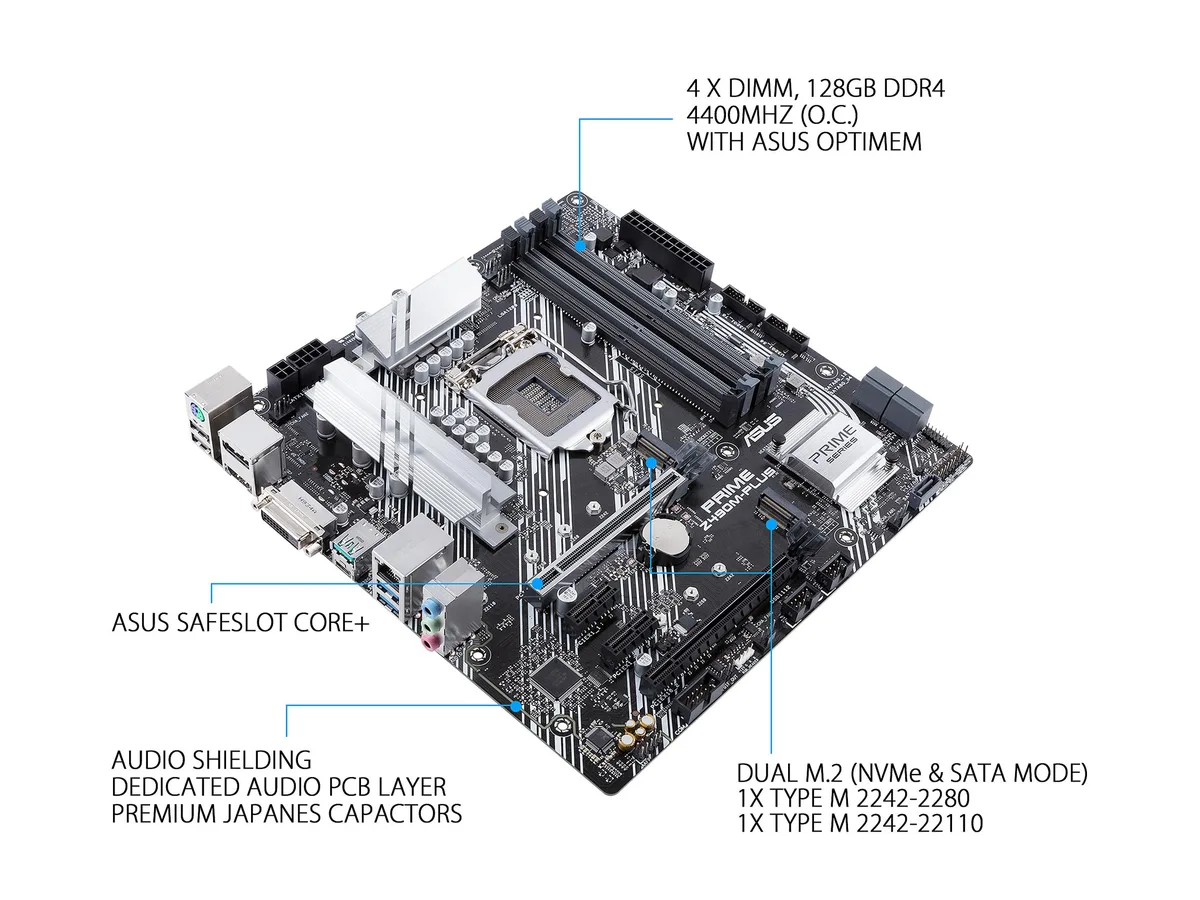

Four 288-pin slots accept up to 128 GB of non-ECC unbuffered DDR4. Native speeds reach 2933 MHz on 10th Gen i9 and i7 CPUs; the board validates overclocked steps from 3000 through 4400 MHz. Two channels keep bandwidth balanced. Memory runs out when all slots are populated at the highest frequencies or when a kit exceeds the qualified vendor list.

Dual M.2 plus display outputs for integrated

The first M.2 socket takes 2242, 2260, 2280 and 22110 modules on a PCIe 3.0 x4 link. The second accepts 2242, 2260 or 2280 drives in either SATA or PCIe 3.0 x4 mode. Rear I/O includes DisplayPort 1.4, HDMI 1.4b and DVI-D, enabling video from CPUs with integrated graphics. Fan Xpert 4 and hybrid headers let software tune cooling curves.

Highlights

  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • 8+1 DrMOS power stages with ProCool connector deliver stable power for overclocking
  • VRM and PCH heatsinks plus Fan Xpert 4 utility keep temperatures low
  • ASUS OptiMem trace routing preserves signal integrity for higher DDR4 speeds
  • Dual M.2 slots, Intel I219-V 1Gb Ethernet and USB 3.2 Gen 2 Type-A provide fast connectivity

Specifications

BrandASUS
ModelPRIME Z490M-PLUS
CPU Socket TypeLGA 1200
CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
ChipsetIntel Z490
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory */* 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x16Intel Socket LGA1200*/1 x PCIe 3.0 x16 slot (supports x16 mode)/Intel Z490 Chipset/1 x PCIe 3.0 x16 slot (supports x4 mode)/* Support PCIe bifurcation for RAID on CPU function.
PCI Express x12 x PCIe 3.0 x1 slots
Serial ATA (SATA)5 x SATA 6Gb/s
M.2M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)/M.2_2 slot (Key M), type 2242/2260/2280 (supports SATA & PCIe 3.0 x4 mode)*/* When a device in SATA mode is installed on the M.2_2 socket, SATA 6G_1 port cannot be used.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels8 Channels/* A chassis with an HD audio module in the front panel is required to support 8-channel audio output.
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Back I/O Ports2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)/2 x USB 3.2 Gen 1 ports (2 x Type-A)/2 x USB 2.0 ports (2 x Type-A) /1 x DisplayPort/1 x HDMI port/1 x DVI-D port/1 x Intel I219V 1Gb Ethernet/3 x Audio jacks/1 x PS/2 Keyboard/Mouse combo port
Onboard USB2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports/2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and cooling related /1 x 4-pin CPU Fan header/1 x 4-pin AIO Pump header/3 x 4-pin Chassis Fan header(s)/Miscellaneous/1 x RGB header/1 x Clear CMOS header/1 x COM Port header/1 x Front Panel Audio header (AAFP) /1 x S/PDIF Out header/1 x 20-3-pin System Panel header with Chassis intrude function/1 x SPI TPM header (14-1-pin)
Form FactorMicro ATX
LED LightingRGB
Power Pin1 x 24-pin Main Power connector/1 x 8-pin +12V Power connector/1 x 4-pin +12V Power connector
FeaturesMulti-GPU Support:/Supports AMD 2-Way CrossFireX Technology//Special Features:/ASUS 5X PROTECTION III/- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)/- ASUS LANGuard/- ASUS Overvoltage Protection/- ASUS SafeSlot Core+/- ASUS Stainless-Steel Back I/O/ASUS Q-Design /- ASUS Q-DIMM/- ASUS Q-Slot/ASUS Thermal Solution/- Stylish heatsink/ASUS EZ DIY/- Procool//Software Features:/ASUS Exclusive Software/Armoury Crate/AI Suite 3/- Performance And Power Saving Utility /EPU /Digi+ VRM/Fan Xpert 4 /- EZ update/AI Charger /WinRAR/UEFI BIOS/ASUS EZ DIY /- ASUS CrashFree BIOS 3 /- ASUS EZ F
Package ContentsAccessories:/Cables/2 x SATA 6Gb/s cables /Miscellaneous/1 x I/O Shield /1 x M.2 SSD screw package/Installation Media/1 x Support DVD/Documentation/1 x User manual

Questions about this item

Will my existing DDR4 2666 MHz memory work with the PRIME Z490M-PLUS?

Yes, the board natively supports DDR4 2666 MHz modules in its four 288-pin slots up to 128 GB total.

How can I confirm the Realtek ALC887 audio is functioning after assembly?

Connect speakers to the three rear audio jacks, install the Realtek driver, and verify 8-channel output in Windows Sound control panel.

Does the box include M.2 mounting screws or must I buy them separately?

The retail package supplies the M.2 standoffs and screws; no separate purchase is needed for the two Key M slots.
