Green ATX motherboard with black heatsinks and silver sockets

ASUS

ASUS PRIME Z590-P LGA 1200 Intel motherboard

SKU CH-PJ57-QYZV4

ATX Intel Z590 board for 10th and 11th Gen Core CPUs with four DDR4 slots up to 128GB, PCIe 4.0 x16, four SATA 6Gb/s ports, 2.5Gb Ethernet and 7.1 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th Gen / 10th Gen Intel Core Processors* Supports
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel Z590
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 11th and 10th Gen Intel Core processors with LGA 1200 socket
  • Intel Z590 chipset enables PCIe 4.0 x16 slot for modern graphics cards
  • Four DDR4 slots accept up to 128 GB at speeds up to 5133 MHz OC
  • Realtek 2.5 Gb Ethernet plus 7.1 channel audio for fast networking and surround sound
  • Four SATA 6Gb/s ports and two M.2 slots provide flexible storage expansion

Intel Z590 ATX Motherboard

The ASUS PRIME Z590-P is an Intel Z590 ATX motherboard built for LGA 1200 processors. It supports 11th Gen and 10th Gen Intel Core processors along with Intel Pentium Gold and Celeron CPUs. Four DDR4 slots accept up to 128GB of memory in dual-channel mode.

Suited for 11th Gen or 10th Gen Builders

This board suits builders using 11th Gen or 10th Gen Intel Core chips who need 2.5Gb Ethernet and 7.1-channel audio. It provides one PCIe 4.0 x16 slot active only with 11th Gen CPUs plus a second PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots. Users needing integrated Wi-Fi should look at a different model.

PCIe 4.0 x16 Slot Requires 11th Gen CPU

The single PCIe 4.0 x16 slot operates at 4.0 speeds only when an 11th Gen processor is installed; with 10th Gen CPUs it runs at PCIe 3.0. This distinction decides whether the board can deliver full PCIe 4.0 bandwidth to a graphics card or high-speed add-in card.

Highlights

  • Supports 11th and 10th Gen Intel Core processors with LGA 1200 socket
  • Intel Z590 chipset enables PCIe 4.0 x16 slot for modern graphics cards
  • Four DDR4 slots accept up to 128 GB at speeds up to 5133 MHz OC
  • Realtek 2.5 Gb Ethernet plus 7.1 channel audio for fast networking and surround sound
  • Four SATA 6Gb/s ports and two M.2 slots provide flexible storage expansion

Specifications

BrandASUS
ModelPRIME Z590-P
CPU Socket TypeLGA 1200
CPU TypeSupports 11th Gen / 10th Gen Intel Core Processors*
Supports Intel Pentium Gold and Celeron Processors*
* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z590
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*
* 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU typ
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCIe 4.0/3.0 x16 slot
* Actual support may vary by CPU.
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x12 x PCIe 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s

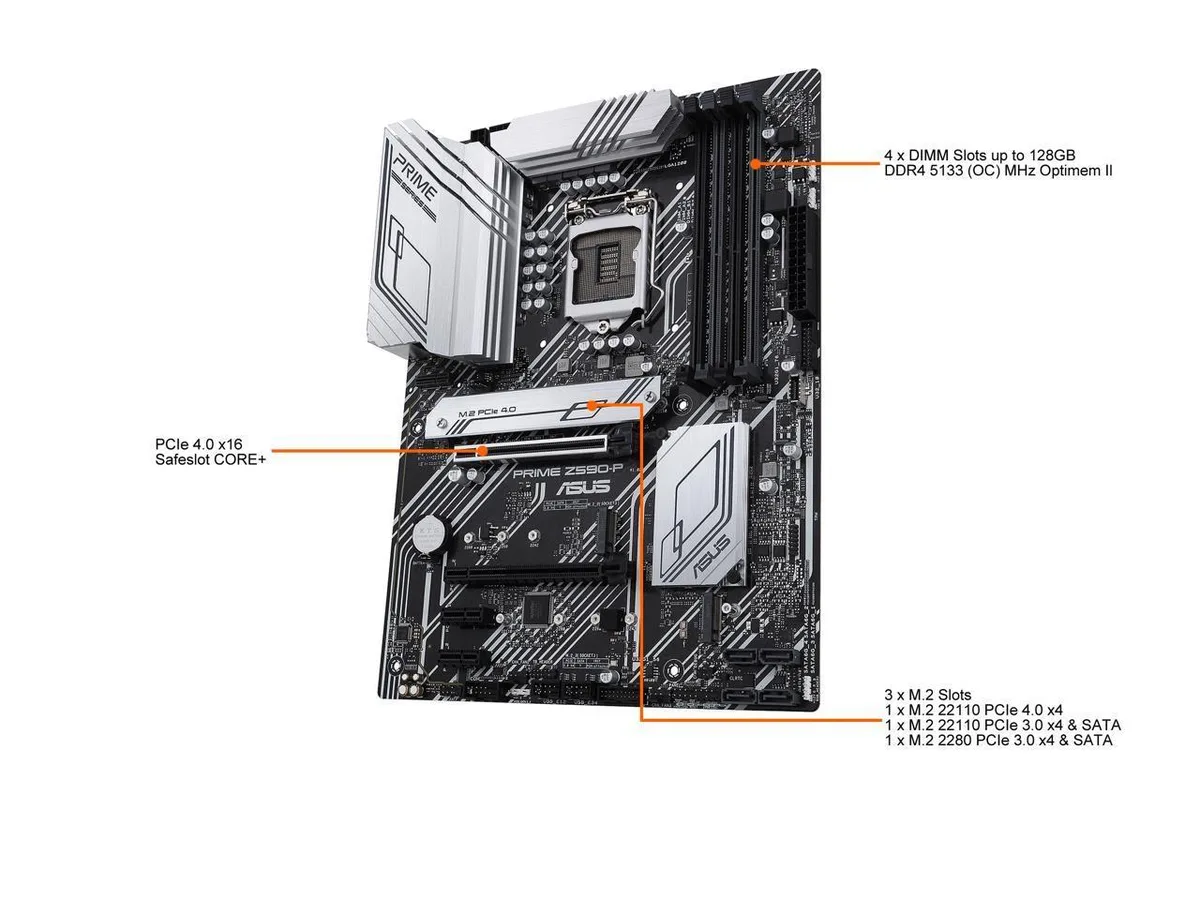

M.2Intel 11th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Z590 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
* When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
Intel Optane ReadyYes
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5Gb Ethernet
Max LAN Speed2.5Gbps
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
Onboard USB1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

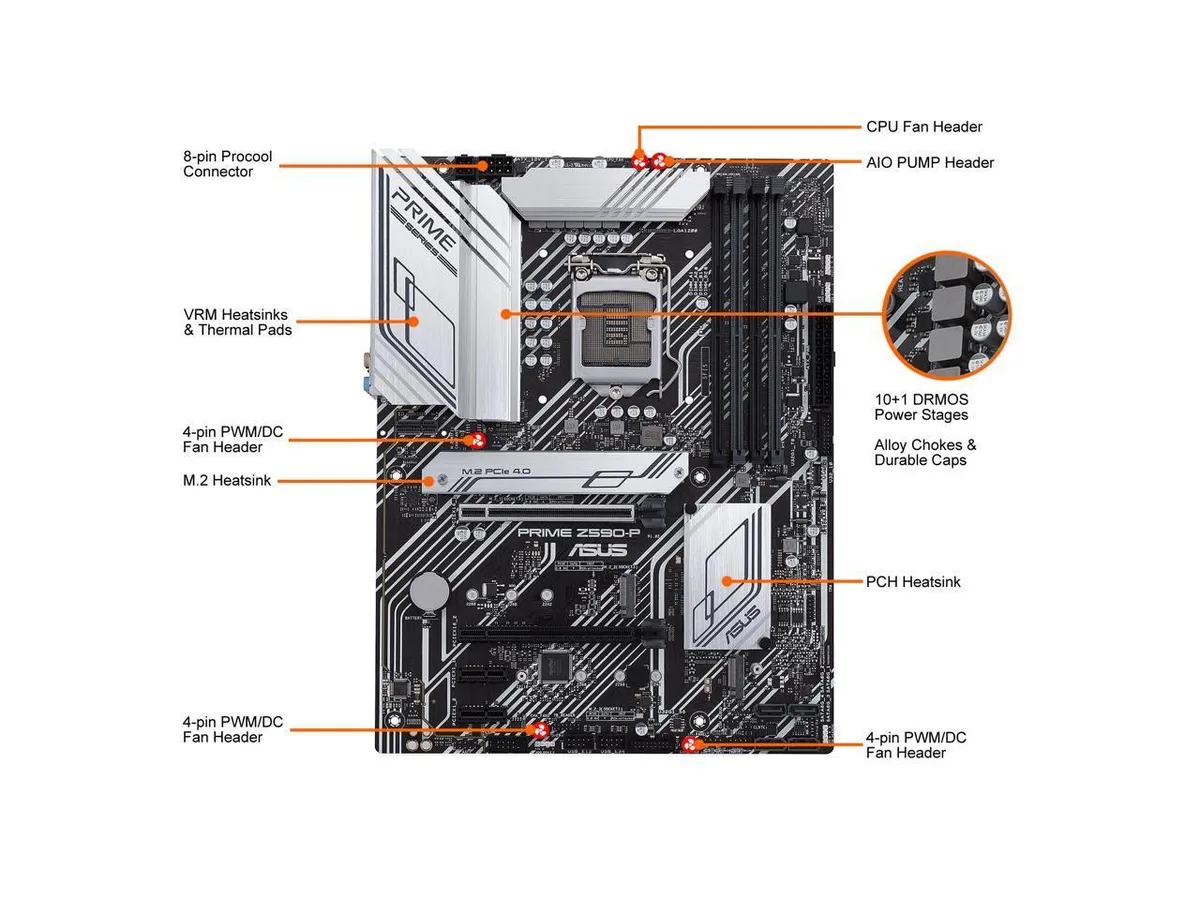

Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt header
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.2"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
FeaturesSpecial Features:
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software Features:
ASUS Exclusive Software
Armoury Crate
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Tr
Package ContentsAccessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User manual

Questions about this item

What comes in the box with the ASUS PRIME Z590-P and what must I buy separately?

The board includes the ATX motherboard itself, I/O shield, SATA cables, M.2 screws and documentation. You must purchase a LGA 1200 CPU, DDR4 memory modules, storage drives, power supply, case and CPU cooler separately.

Should I choose an 11th Gen or 10th Gen Intel Core processor for the PRIME Z590-P?

An 11th Gen Core processor enables the M.2_1 slot at PCIe 4.0 x4 and the PCIe 4.0 x16 slot at full speed. A 10th Gen Core processor still works but disables M.2_1 and limits the top slot to PCIe 3.0 x16.

What does the 2.5 Gb Ethernet figure mean once the board is in a real machine?

The Realtek 2.5Gb Ethernet controller provides up to 2.5 Gb/s link speed to a compatible switch or router, reducing latency for gaming and speeding large file transfers over wired LAN.
