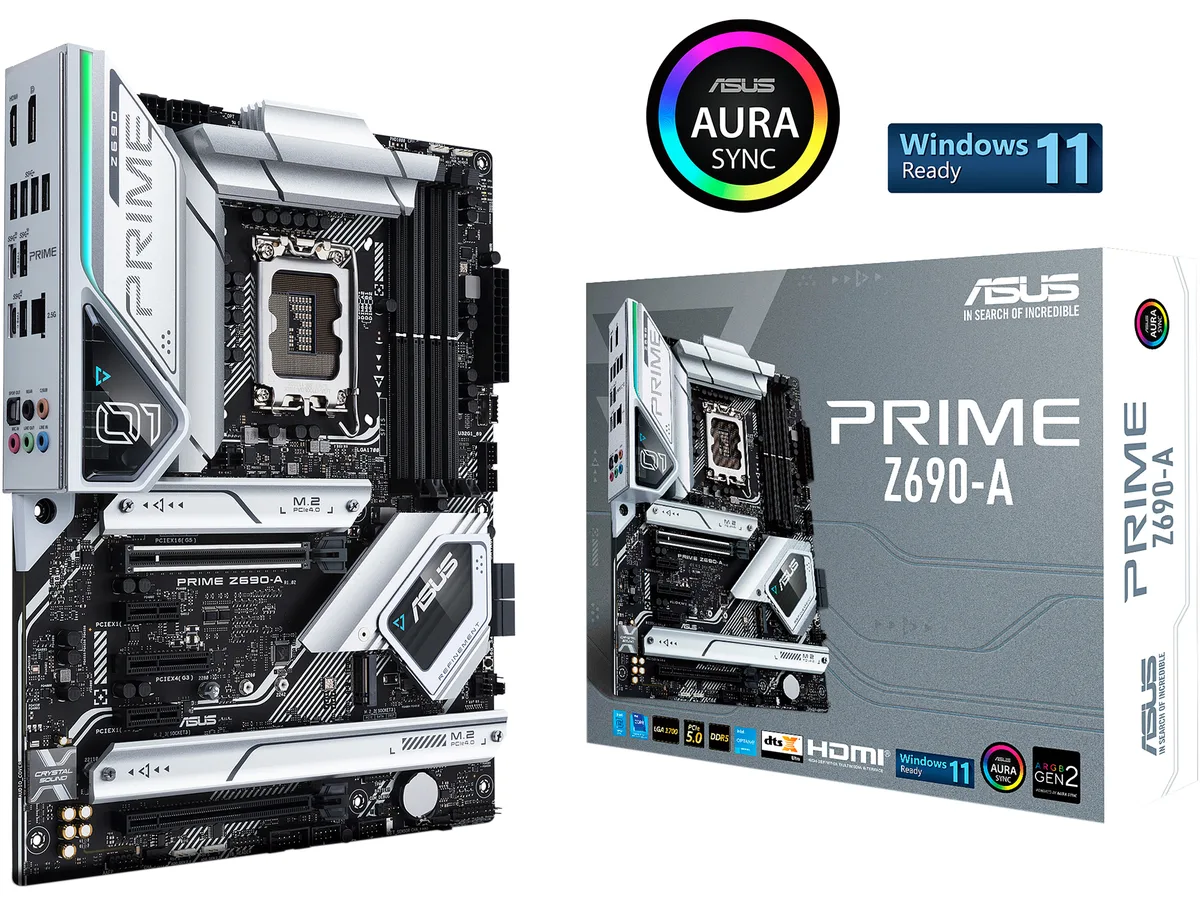

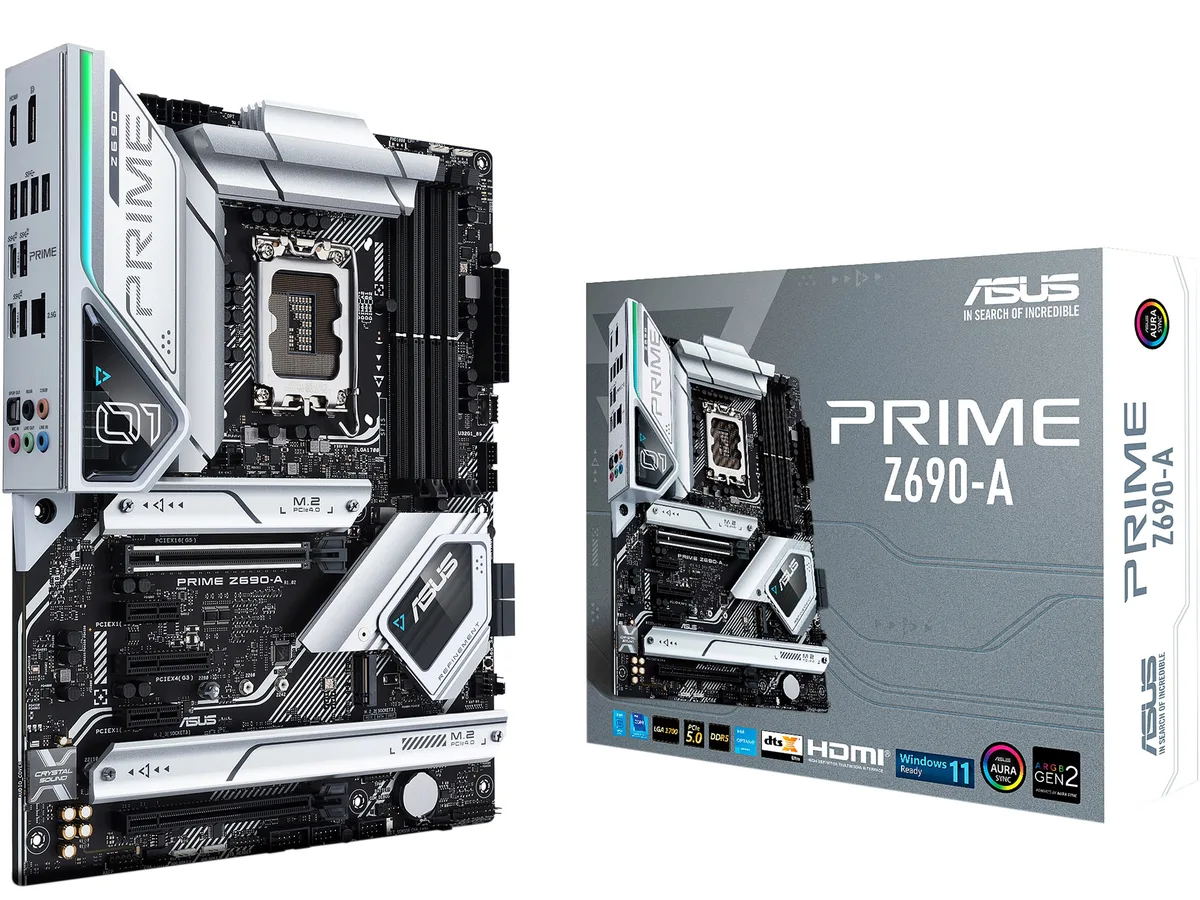

ATX motherboard, black PCB with silver heatsinks and RGB accents

ASUS

ASUS Prime Z690-A 90MB18L0-M0AAY0 Intel motherboard

SKU CH-5G0W-1WMZB MPN 90MB18L0-M0AAY0

Supports 12th and 13th Gen Intel Core CPUs on an LGA 1700 Z690 ATX board with 16+1 DrMOS, DDR5 to 6000(OC), PCIe 5.0, four M.2 slots, 2.5 Gb LAN and Thunderbolt 4 header

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 13th / 12th Gen Intel Core Processors, Pentium Gold
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel Z690
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR5)
  • LGA 1700 socket supports 12th and 13th Gen Intel Core processors

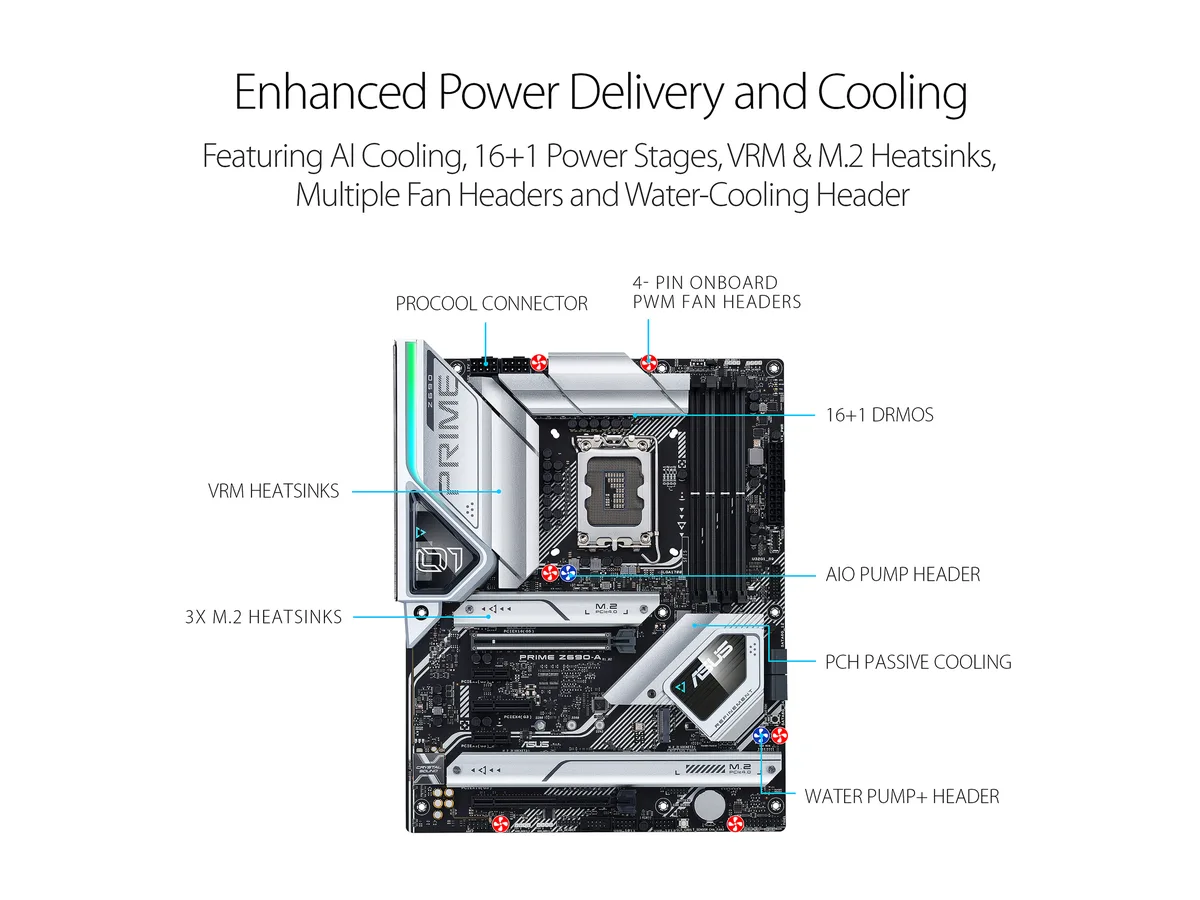

  • 16+1 DrMOS power stages deliver stable power for overclocking
  • DDR5 memory up to 6000 MT/s with OptiMem II trace optimisation
  • PCIe 5.0 x16 slot enables next-generation graphics bandwidth
  • Intel 2.5 Gb Ethernet plus Thunderbolt 4 header for fast wired connectivity

Socket and generation support

This ATX motherboard uses the Intel LGA 1700 socket and the Z690 chipset. It accepts 12th and 13th Generation Intel Core processors, plus Pentium Gold and Celeron models. A BIOS update may be required before a 13th Generation CPU will boot.

Memory capacity and speed headroom

Four 288-pin slots support DDR5 up to 256 GB in dual-channel mode. Rated speeds range from 4800 MT/s at stock to 6000 MT/s when overclocked, with intermediate steps at 5000, 5200, 5400, 5600 and 5800 MT/s. Stability at the highest frequencies depends on the memory kit and CPU silicon quality.

Primary expansion slot

A single PCI Express 5.0 x16 slot provides the main graphics or accelerator connection. Actual link width and generation depend on the installed processor, so verify the CPU specification before choosing a card.

Highlights

  • LGA 1700 socket supports 12th and 13th Gen Intel Core processors
  • 16+1 DrMOS power stages deliver stable power for overclocking
  • DDR5 memory up to 6000 MT/s with OptiMem II trace optimisation
  • PCIe 5.0 x16 slot enables next-generation graphics bandwidth
  • Intel 2.5 Gb Ethernet plus Thunderbolt 4 header for fast wired connectivity

Specifications

BrandASUS
ModelPRIME Z690-A
Part Number90MB18L0-M0AAY0
CPU Socket TypeLGA 1700
CPU TypeSupports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/
* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z690
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
* Actual support may vary by CPU.
* Please check PCIe bifurcation table in support site.
PCI Express 3.0 x161 x PCI Express 3.0 x16
* Supports x4 mode.
PCI Express x41 x PCI Express 3.0 x4
PCI Express x12 x PCIe 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel Z690 Chipset:**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
* Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane ReadyYes
Audio ChipsetRealtek S1220A
Audio Channels7.1 Channels
LAN ChipsetIntel 2.5Gb Ethernet
Max LAN Speed2.5Gbps

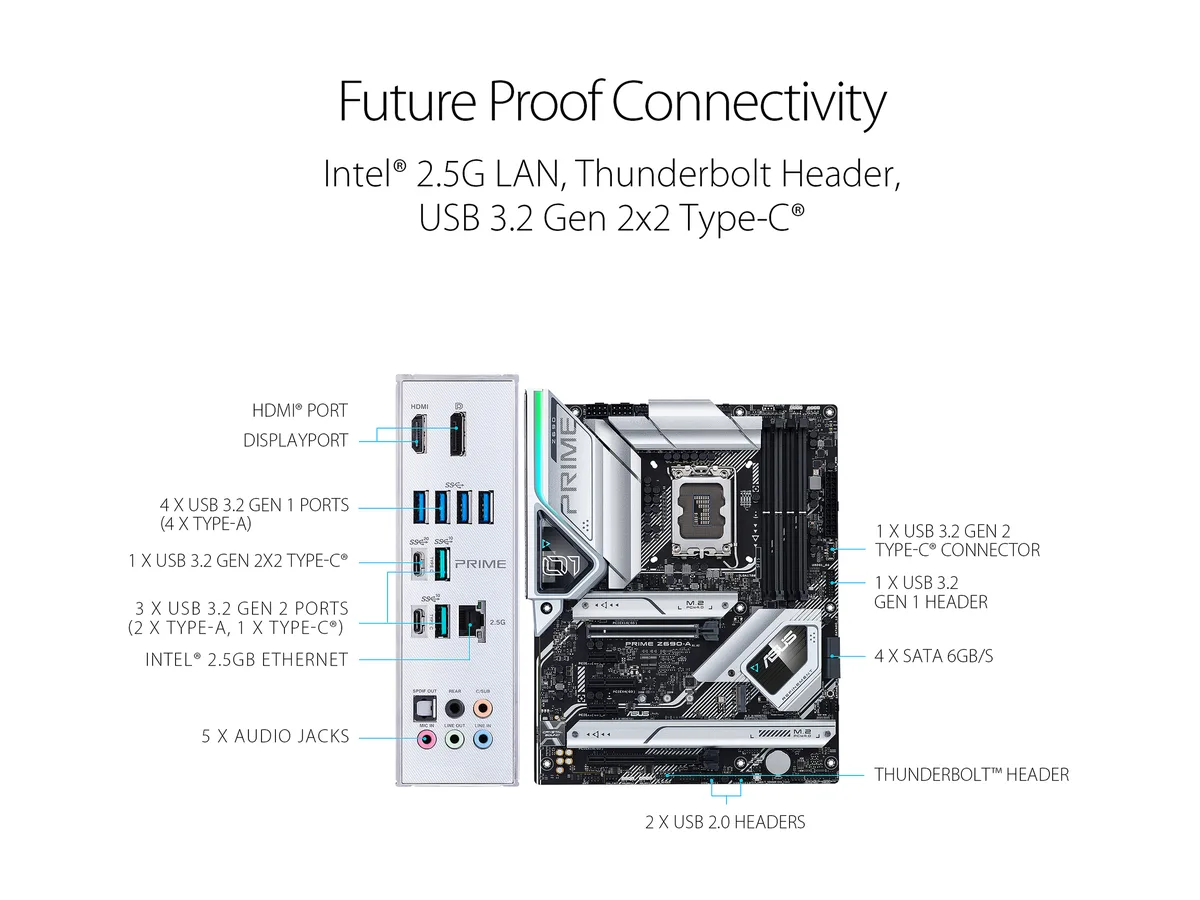

Back I/O Ports1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C )
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Onboard USB1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
1 x W_PUMP+ header(s)
Miscellaneous

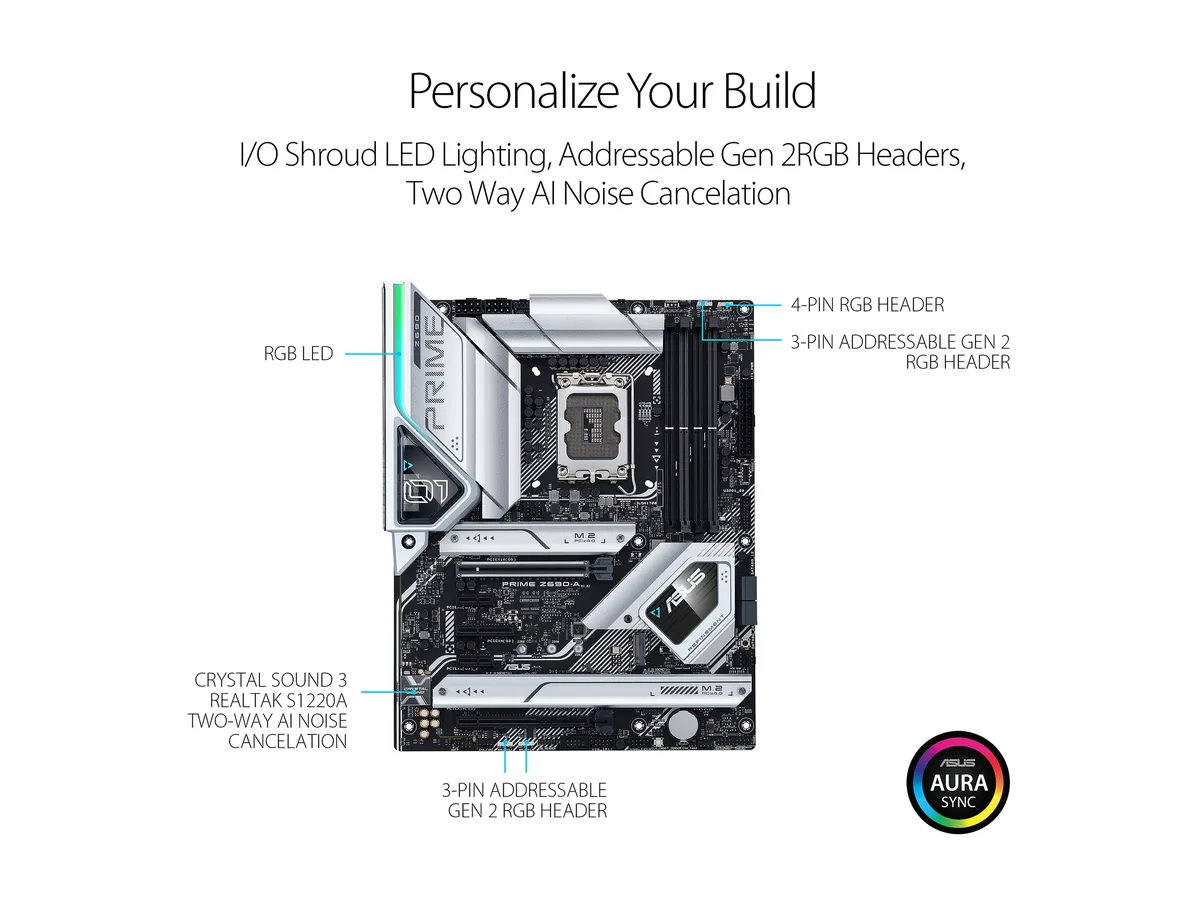

3 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS button
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Power button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
FeaturesSpecial Features:
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Box headers
- Clear CMOS button
- CPU socket lever protector
- ProCool
- Pre-mounted I/O shield
AURA Sync
- AURA RGB header(s)
- Addressable
Shipping weight1.77 kg
Package size335 × 270 × 71 mm

Questions about this item

Will my existing LGA 1200 CPU cooler fit the LGA 1700 socket on this board?

Yes, the board includes dual mounting holes compatible with both LGA 1700 and LGA 1200 cooling brackets.

How can I verify the DDR5 memory is running at the 6000 MT/s speed shown on the box?

Open the UEFI or a tool such as CPU-Z; the memory tab will display the current DRAM frequency matching the rated data rate.

Does the package include the Wi-Fi antenna and M.2 screws, or must I buy them separately?

The open-box unit ships with the motherboard, I/O shield, SATA cables and manual; Wi-Fi antenna and M.2 screws are not included.
