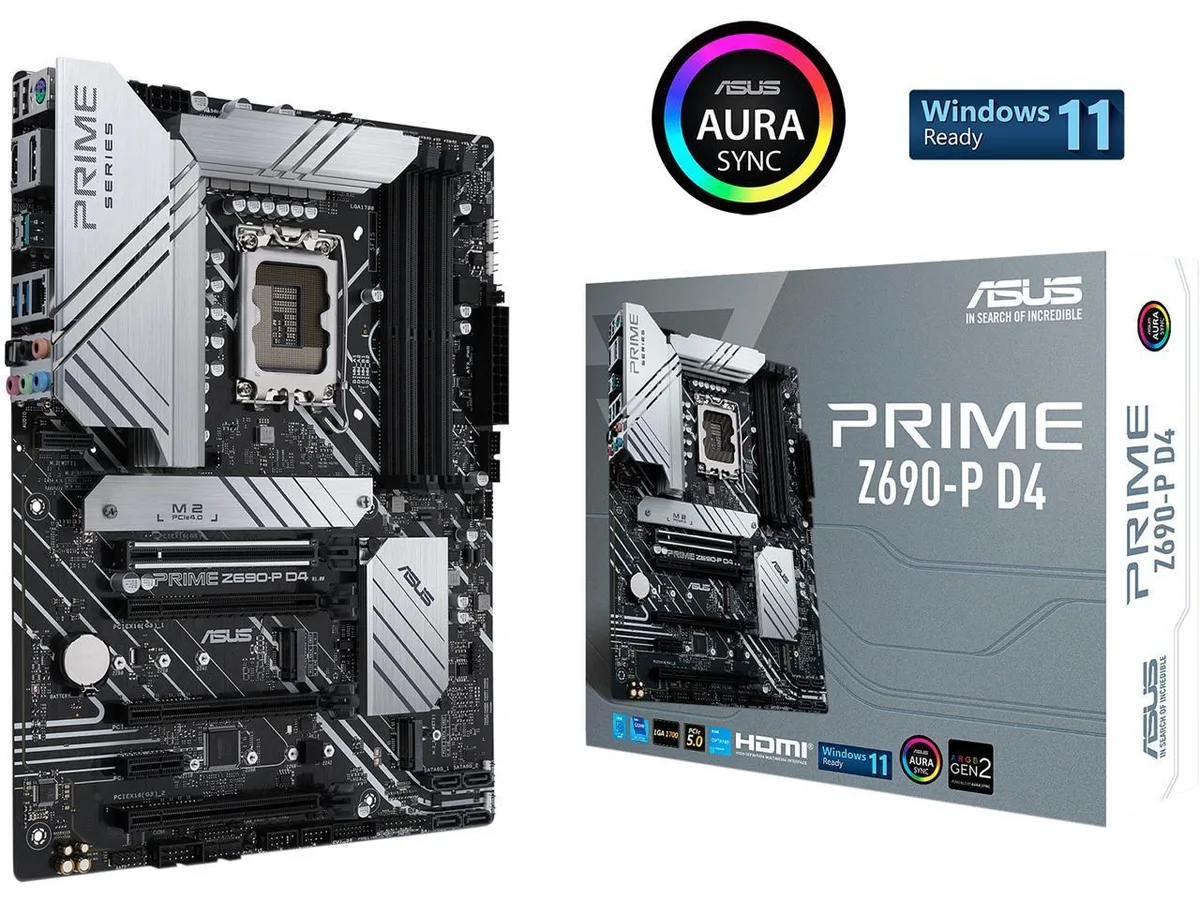

Black ATX motherboard with silver heatsinks and four DDR4 slots

ASUS

ASUS Prime Z690-P D4 Intel motherboard

SKU CH-WE0N-SHN1F

ATX board for 12th and 13th Gen Intel CPUs with 14+1 DrMOS power, PCIe 5.0, three M.2 slots, 2.5Gb LAN and DDR4 up to 128 GB

  • CPU TypeIntel Core 12th Gen (LGA 1700)
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel Z690
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) /
  • Ready for 12th and 13th Gen Intel Core processors with LGA 1700 socket

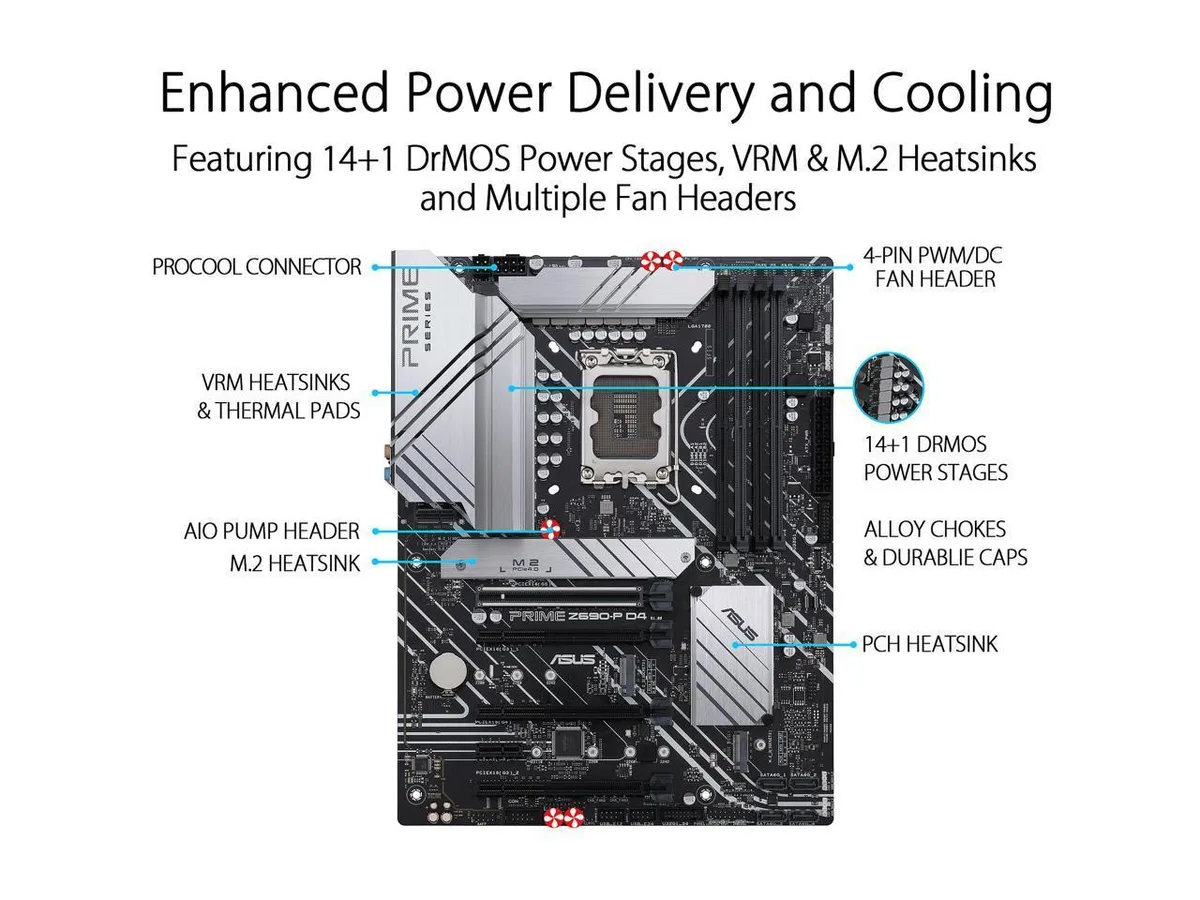

  • Stable power delivery from 14+1 DrMOS stages with ProCool connector and alloy chokes
  • Comprehensive cooling via large VRM heatsink, flexible M.2 heatsink, PCH heatsink and Fan Xpert 4
  • Ultrafast connectivity including PCIe 5.0, 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C and Thunderbolt 4 header support
  • DIY-friendly design with PCIe 5.0 SafeSlot, Q-LED Code and dual mounting holes for LGA 1700 and LGA 1200 coolers

Z690 ATX board for 12th and 13th Gen Intel

The ASUS Prime Z690-P D4 is an ATX motherboard built around the Intel Z690 chipset and LGA 1700 socket. It supports 12th and 13th Generation Intel Core processors and delivers PCIe 5.0 on the primary x16 slot. Four DDR4 slots accept up to 128 GB of memory with a long list of overclocked speeds.

Best for DDR4 builders who want PCIe 5.0

This board suits builders reusing DDR4 kits or choosing DDR4 for cost reasons while still gaining a PCIe 5.0 graphics slot, three M.2 sockets and 2.5 Gb Ethernet. It lacks onboard Wi-Fi and the V-M.2 e-key slot needs a separate module, so buyers requiring integrated wireless should look elsewhere.

Primary graphics slot runs at PCIe 5.0 x16

The top PCIe x16 slot is wired for PCIe 5.0 x16 directly from the CPU, providing the highest bandwidth path for current and future graphics cards. Actual operation depends on the installed processor supporting PCIe 5.0.

Highlights

  • Ready for 12th and 13th Gen Intel Core processors with LGA 1700 socket
  • Stable power delivery from 14+1 DrMOS stages with ProCool connector and alloy chokes
  • Comprehensive cooling via large VRM heatsink, flexible M.2 heatsink, PCH heatsink and Fan Xpert 4
  • Ultrafast connectivity including PCIe 5.0, 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C and Thunderbolt 4 header support
  • DIY-friendly design with PCIe 5.0 SafeSlot, Q-LED Code and dual mounting holes for LGA 1700 and LGA 1200 coolers

Specifications

BrandASUS
ModelPRIME Z690-P D4
Part NumberPrime Z690-P D4
CPU TypeIntel Core 12th Gen (LGA 1700)
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z690
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
* Actual support may vary by CPU.
* Please check PCIe bifurcation table in support site.
PCI Express 4.0 x161 x PCI Express 4.0 x16
* Supports x4 mode.
PCI Express 3.0 x162 x PCI Express 3.0 x16
* Support x4 mode.
PCI Express x11 x PCIe 3.0 x1
Other SlotsV-M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel Z690 Chipset:**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
* Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5Gb Ethernet
Max LAN Speed2.5Gbps
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
Onboard USB1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous

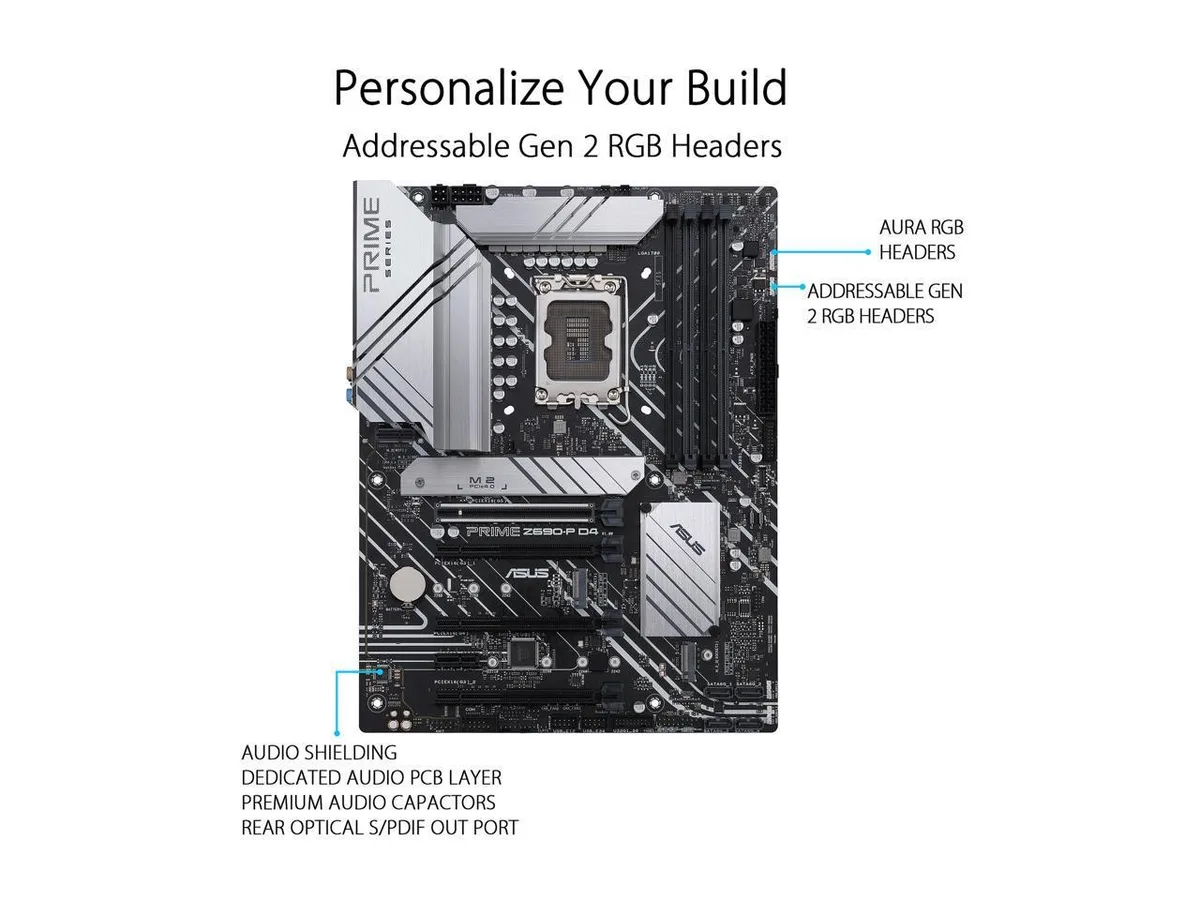

3 x Addressable Gen 2 headers
1 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt header
Windows 11Ready
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.2"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
FeaturesSpecial Features:
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
Software Features:
ASUS Exclusive Software
Armoury Crate
- AURA Sync
- Fan Xpert 4
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
-
Package ContentsAccessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User guide

Questions about this item

Does the Prime Z690-P D4 need a CPU with an LGA 1700 socket to boot?

Yes, the board only accepts Intel 12th and 13th Gen Core processors that fit the LGA 1700 socket; without one of those CPUs the system will not start.

Will a PCIe 3.0 graphics card run at full speed in the PCIe 5.0 x16 slot?

The primary x16 slot is wired for PCIe 5.0 but is fully backward compatible, so a PCIe 3.0 card will operate at its native 3.0 speeds without any configuration.

How can I confirm the 14+1 DrMOS power stages are delivering clean power after assembly?

The on-board Q-LED code display shows real-time POST codes; a steady 00 or AA code after boot indicates the VRM is functioning normally.
