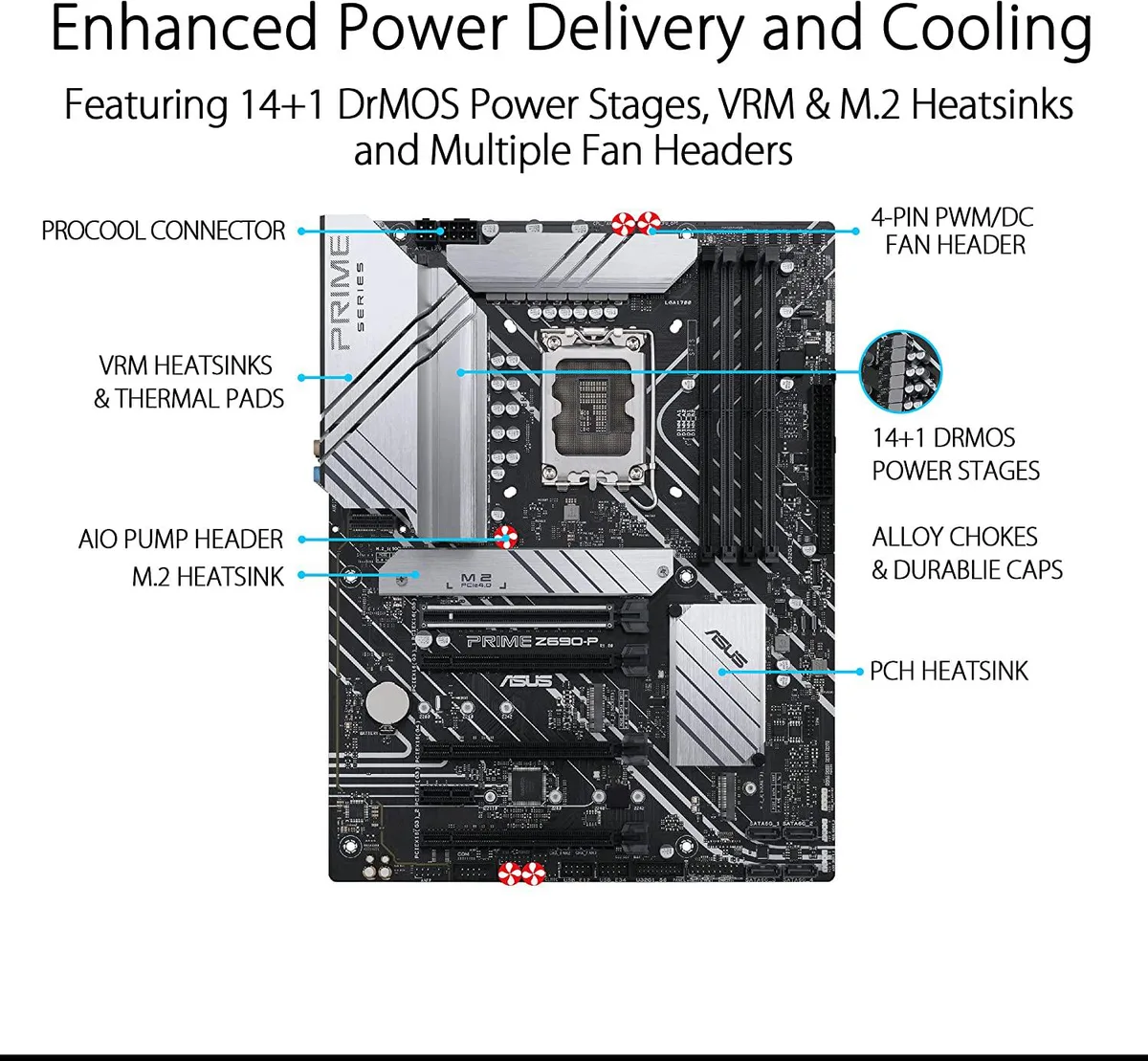

ATX motherboard in dark finish with silver I/O shield

ASUS

ASUS PRIME Z690-P Intel Motherboard A

SKU CH-C02G-8KQJ1

Supports Intel Core 12th Gen processors on LGA 1700 with DDR5 up to 128 GB, PCIe 5.0 x16, and two M.2 slots in ATX form factor

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 12th Gen (LGA 1700)
  • ChipsetIntel Z690
  • Memory StandardDDR5
  • Maximum Memory Supported128GB
  • PCI Express 5.0 x161 x PCI Express 5.0 x16
  • Supports 12th Gen Intel Core processors via LGA 1700 socket
  • DDR5 memory standard enables up to 128GB capacity
  • PCI Express 5.0 x16 slot delivers 16 lanes for modern GPUs
  • Two M.2 slots provide fast storage expansion options
  • ATX form factor fits standard desktop cases

ASUS PRIME Z690-P LGA 1700 ATX Motherboard

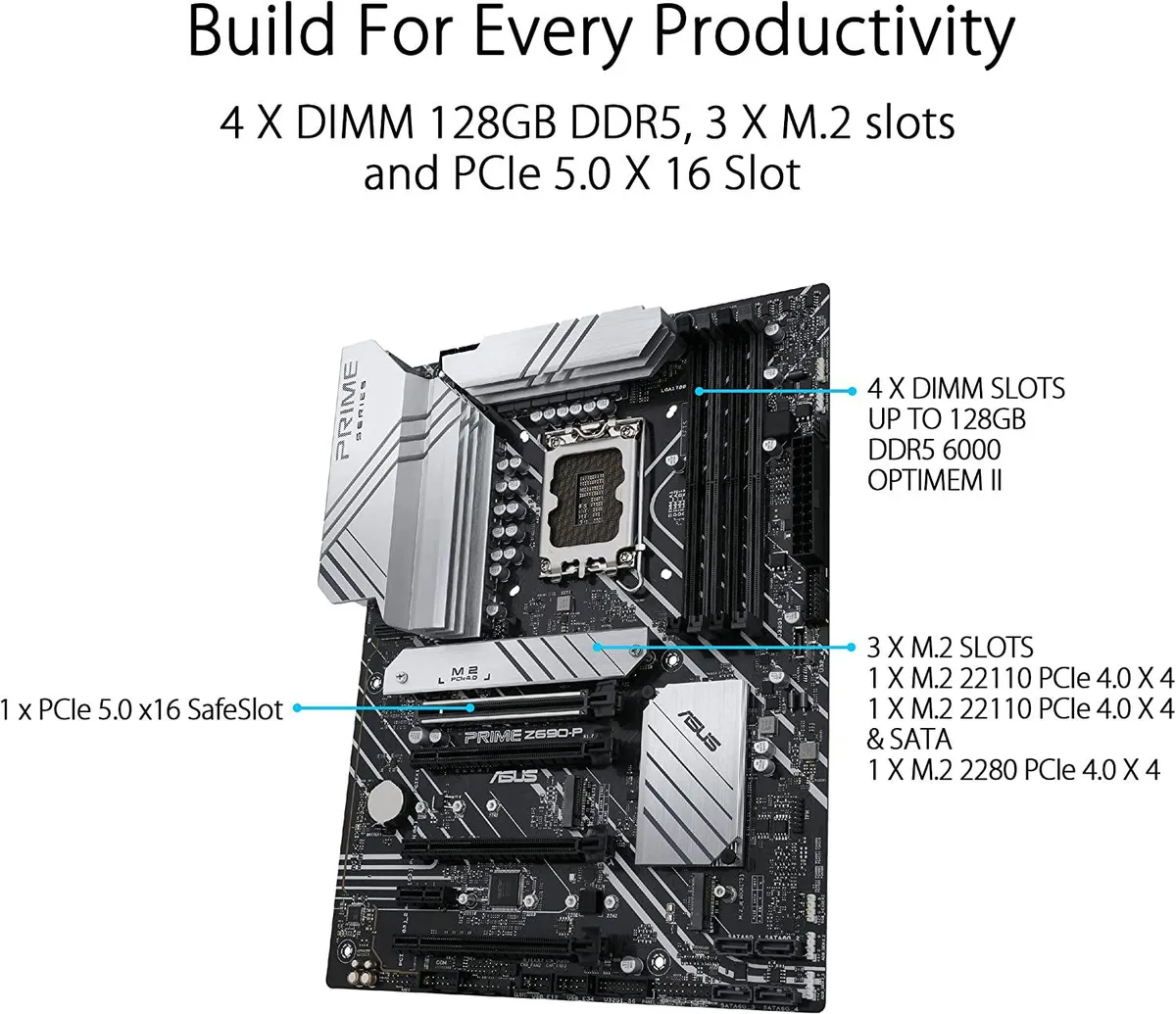

This refurbished ATX motherboard uses the Intel Z690 chipset and LGA 1700 socket for 12th Generation Intel Core processors. It supports DDR5 memory up to 128GB and provides a single PCI Express 5.0 x16 slot alongside one additional PCI Express x16 slot and one PCI slot. Two M.2 sockets are available for storage expansion. The rear I/O panel includes a DisplayPort and a USB 3.1 Gen 2 Type-A port.

Builders needing DDR5 and PCIe 5.0 on Z690

This board suits builders who want a Z690 platform with DDR5 memory support and a PCI Express 5.0 x16 slot for modern graphics cards. It is not for buyers who need more than two M.2 slots, additional rear USB ports, or integrated Wi-Fi and Bluetooth connectivity. The package includes only the motherboard and I/O shield, so builders requiring SATA cables or extra accessories must source them separately.

Single PCI Express 5.0 x16 slot decides GPU

The motherboard provides one PCI Express 5.0 x16 slot that delivers the full 5.0 bandwidth to a single graphics card. A second full-size slot is present but does not share the 5.0 specification, so multi-GPU configurations cannot run both cards at the highest speed. Buyers planning a single high-end GPU should verify this slot meets their needs.

Highlights

  • Supports 12th Gen Intel Core processors via LGA 1700 socket
  • DDR5 memory standard enables up to 128GB capacity
  • PCI Express 5.0 x16 slot delivers 16 lanes for modern GPUs
  • Two M.2 slots provide fast storage expansion options
  • ATX form factor fits standard desktop cases

Specifications

BrandASUS
ModelPRIME Z690-P
CPU Socket TypeLGA 1700
CPU TypeIntel Core 12th Gen (LGA 1700)
ChipsetIntel Z690
Memory StandardDDR5
Maximum Memory Supported128GB
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express x161
PCI Slots1 x PCI Slot
M.22 x M.2
Back I/O Ports1 x DisplayPort / 1 x USB 3.1 Gen 2 Type-A
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.11 x USB 3.1
Form FactorATX

Questions about this item

How much power does the ASUS PRIME Z690-P draw when running all day?

The board uses the Intel Z690 chipset with LGA 1700 socket and DDR5 memory slots. Actual power draw depends on the installed 12th Gen processor and workload, not on the motherboard alone.

What components must I already own for this motherboard to work?

You need an Intel Core 12th Gen LGA 1700 CPU, DDR5 memory modules up to 128 GB total, a graphics card for the PCI Express 5.0 x16 slot, and an ATX power supply with 24-pin and 8-pin EPS connectors.

Will my older SATA drives and PCI add-in cards work with this board?

The board provides SATA ports for existing hard drives or SSDs and one legacy PCI slot for older expansion cards. The PCI Express 5.0 x16 slot also accepts earlier-generation graphics cards.
