Green Micro ATX motherboard with silver heatsinks and black PCB

ASUS

ASUS PRIME Z690M-PLUS D4 Intel motherboard

SKU CH-ZBGY-JAQA0

LGA 1700 Intel Z690 Micro ATX board supporting 12th and 13th Gen CPUs with four DDR4 slots up to 128 GB and PCIe 5.0 x16

  • CPU Socket TypeLGA 1700 * Designed with dual mounting holes compatible with
  • CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron P
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel Z690
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 12th and 13th Gen Intel Core processors with LGA 1700 socket
  • Dual-channel DDR4 memory up to 128 GB at speeds up to 5333 OC
  • PCI Express 5.0 x16 slot for latest graphics cards
  • Four SATA 6Gb/s ports plus three M.2 slots for fast storage
  • 1 channel audio and 1 Gbps LAN for connectivity

LGA 1700 Z690 Micro ATX board

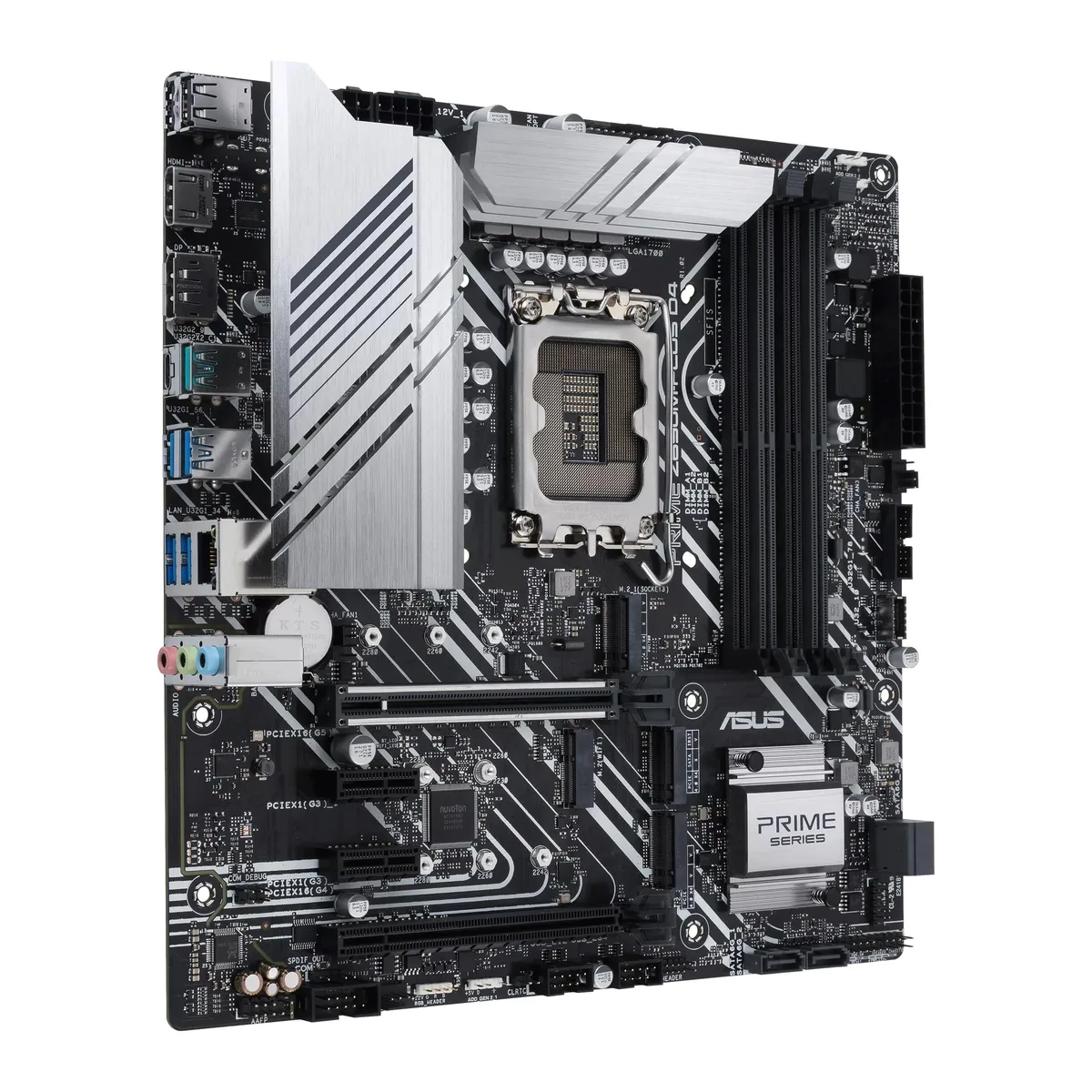

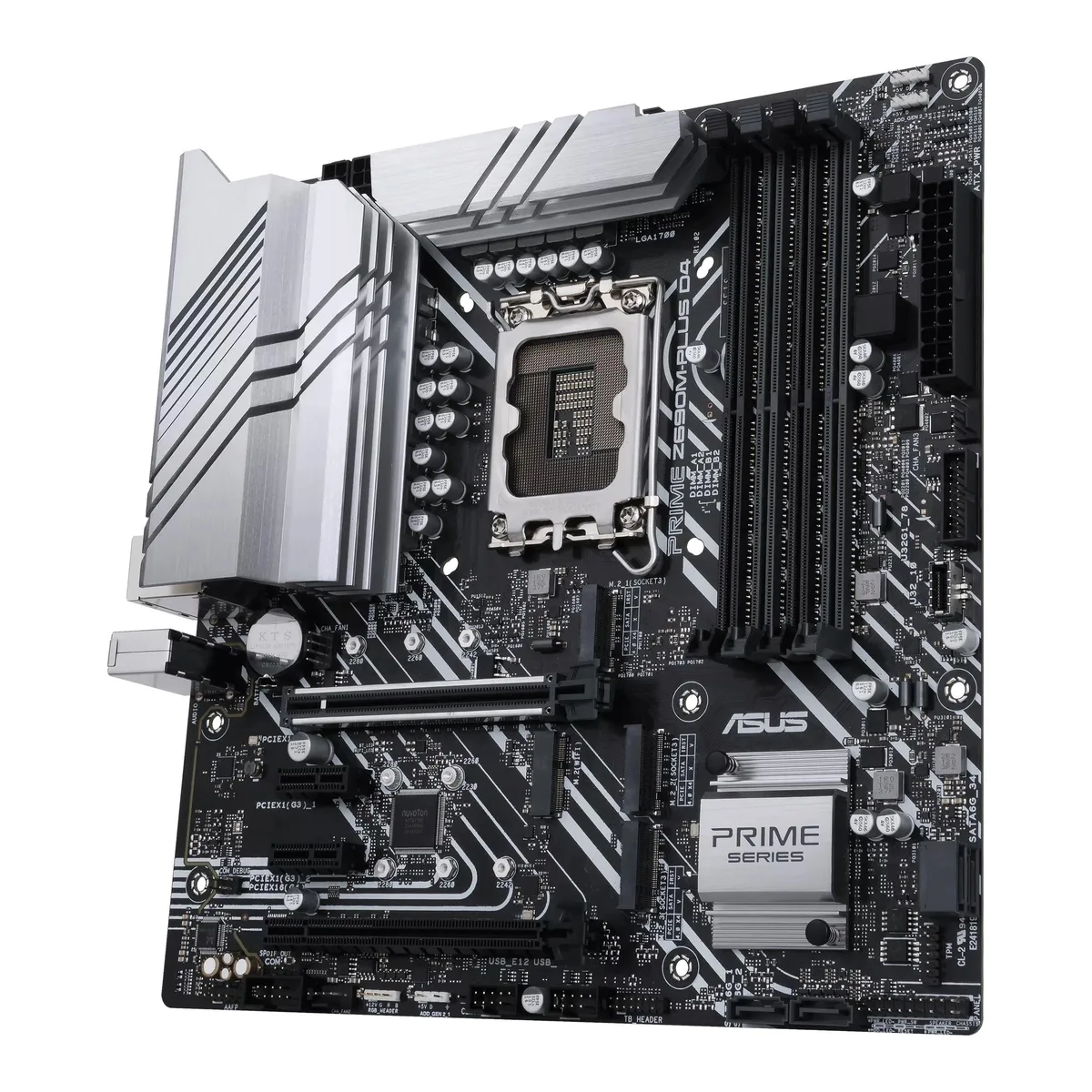

This Micro ATX motherboard uses the Intel Z690 chipset and an LGA 1700 socket for 12th and 13th Gen Intel Core, Pentium Gold and Celeron processors. Dual mounting holes accept both LGA 1700 and LGA 1200 coolers. Four 288 pin DDR4 slots support dual channel memory up to 128 GB.

Installation notes

The board fits standard Micro ATX cases and uses common ATX power connectors. Memory installs in the four DDR4 slots; populate matched pairs for dual channel operation. CPU cooler brackets for LGA 1700 or LGA 1200 both align with the dual mounting holes. M.2 screws are small and easily dropped; keep a tray handy.

Capacity and headroom

The primary PCI Express 5.0 x16 slot and one M.2 slot run at PCIe 4.0 x4 with 12th Gen CPUs. A second PCIe 4.0 x16 slot operates at x4 and two PCIe 3.0 x1 slots add expansion. Four SATA 6 Gb/s ports and three M.2 slots provide storage headroom. DDR4 overclocks scale to 5333 MT/s; beyond that the memory controller limits stability.

Highlights

  • Supports 12th and 13th Gen Intel Core processors with LGA 1700 socket
  • Dual-channel DDR4 memory up to 128 GB at speeds up to 5333 OC
  • PCI Express 5.0 x16 slot for latest graphics cards
  • Four SATA 6Gb/s ports plus three M.2 slots for fast storage
  • 1 channel audio and 1 Gbps LAN for connectivity

Specifications

BrandASUS
ModelPRIME Z690M-PLUS D4
CPU Socket TypeLGA 1700
* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors*
* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z690
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
* Actual support may vary by CPU.
PCI Express 4.0 x161 x PCI Express 4.0 x16
* Supports x4 mode.
PCI Express x12 x PCIe 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel Z690 Chipset:*
M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
* Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio Channels7.1 Channels
Max LAN Speed1Gbps
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Intel 1Gb Ethernet port
3 x Audio jacks
Onboard USB1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
Windows 11Ready
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
FeaturesSpecial Features:
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB header
- Addressable Gen 2headers
Software Features:
ASUS Exclusive Software
Armoury Crate
- AURA Sync
- Fan Xpert 4
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- AS
Package ContentsAccessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User guide

Questions about this item

How can I confirm the ASUS PRIME Z690M-PLUS D4 is posting correctly after assembly?

Power on the system and watch for the BIOS splash screen or listen for a single beep; the board supports 12th and 13th Gen Intel Core processors in the LGA 1700 socket.

What comes in the box and which essential parts must I purchase separately for this Micro ATX board?

The motherboard includes SATA cables, I/O shield and documentation; you must buy a compatible LGA 1700 CPU, DDR4 memory modules, storage drives and a power supply separately.

Which DDR4 speed should I choose for the PRIME Z690M-PLUS D4 given its supported memory standards?

The board validates DDR4 up to 5333 MT/s overclocked and 3200 MT/s native; pick a kit rated 3200 or 3600 for stability, or a higher OC kit if you plan to tune voltages in BIOS.
