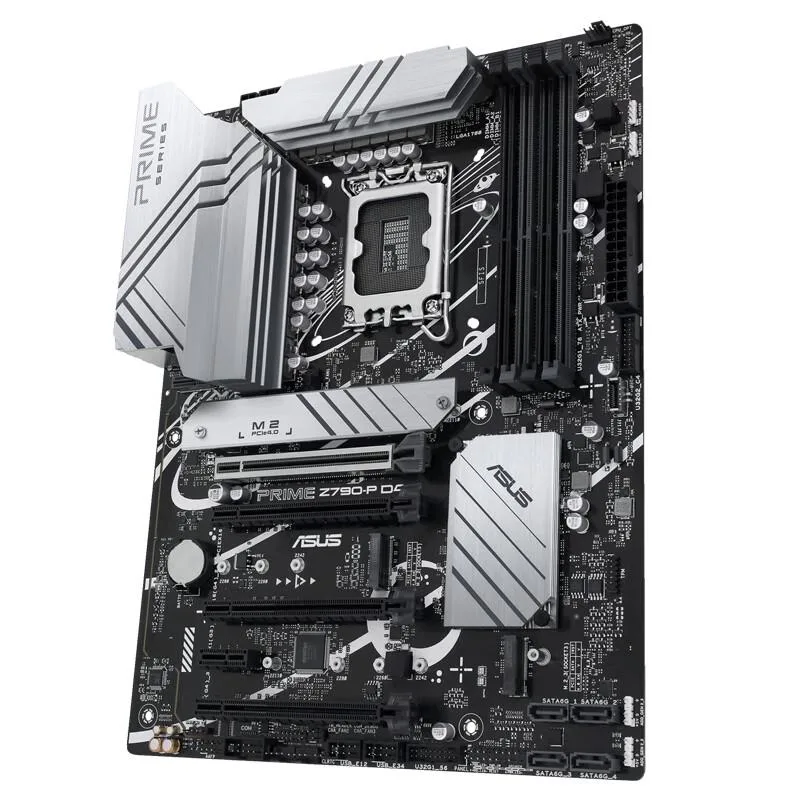

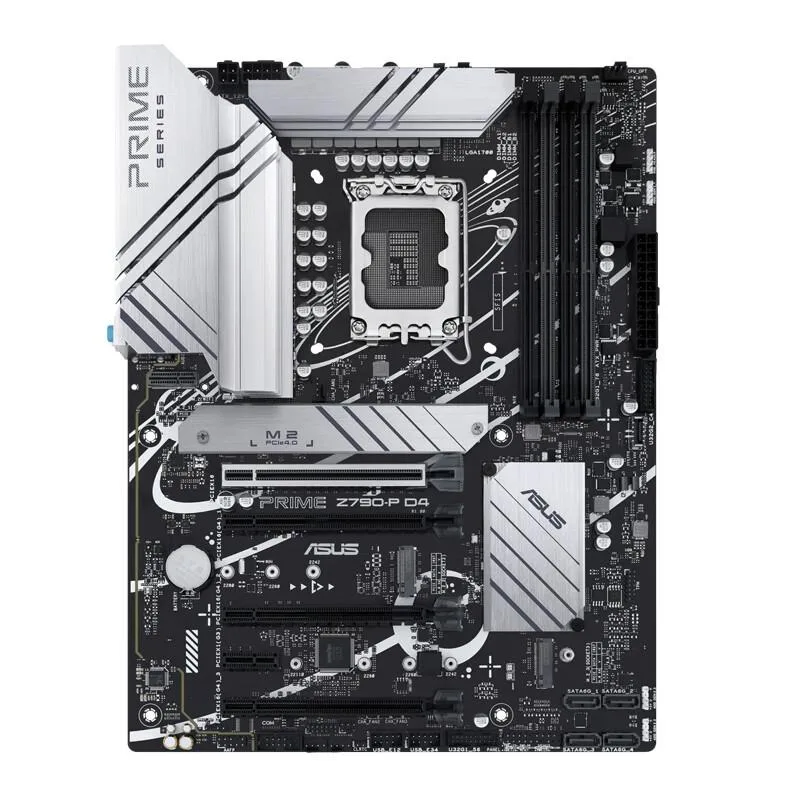

ATX motherboard, dark PCB with silver heatsinks, LGA 1700 socket, four DDR4 slots, multiple PCIe slots, rear I/O shield attached

ASUS

ASUS PRIME Z790-P D4 Intel motherboard

SKU CH-069B-2FWXB

An ATX board with Intel Z790 chipset, LGA 1700 socket for 12th, 13th and 14th Gen CPUs, dual-channel DDR4 up to 128 GB, PCIe 5.0 x16, three PCIe 4.0 x16 slots, four SATA III ports.

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Socket LGA1700 1st & 13th Gen processors for Intel Cor
  • ChipsetIntel Z790
  • Memory StandardSupport dual-channel DDR4 5333 (OC)/5133 (OC)/5066 (OC)/5000
  • Maximum Memory Supported128GB
  • PCI SlotsIntel Core processors (14th & 13th & 12th Gen) * 1 x PCIe 5.
  • Supports Intel Core 12, 13 and 14 processors via LGA 1700 socket
  • Dual-channel DDR4 up to 5333 OC with 128 GB maximum capacity
  • PCIe 5.0 x16 slot plus three PCIe 4.0 x16 slots for graphics and add-in cards
  • Realtek 2.5 Gb Ethernet and 7.1 surround audio for wired networking and sound
  • Rear I/O includes USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A and four USB 2.0 ports

Socket and generation fit

This ATX motherboard uses the Intel LGA 1700 socket and the Z790 chipset. It accepts Intel Core 12, 13 and 14 generation processors as well as Pentium Gold and Celeron CPUs for the same socket. The board delivers a standard ATX footprint of 30.5 by 21.8 centimetres.

Memory ceiling and speeds

Four DDR4 slots support up to 128 gigabytes of system memory. The board validates a long list of overclocked data rates from 5333 down to 3200 megatransfers per second, plus the base 3000 and 3200 speeds. Dual-channel architecture is supported across all populated slots.

Expansion and connectivity bundle

One PCIe 5.0 x16 slot, three PCIe 4.0 x16 slots wired at x4 and a single PCIe 3.0 x1 slot handle add-in cards. Storage connects through three M.2 interfaces and four SATA III ports; one SATA cable is included in the box. Rear I/O supplies eight USB ports including a USB 3.2 Gen 2x2 Type-C connector, while front-panel headers add nine more USB connections. A Realtek 2.5 gigabit Ethernet controller and 7.1 channel audio codec complete the onboard feature set.

Highlights

  • Supports Intel Core 12, 13 and 14 processors via LGA 1700 socket
  • Dual-channel DDR4 up to 5333 OC with 128 GB maximum capacity
  • PCIe 5.0 x16 slot plus three PCIe 4.0 x16 slots for graphics and add-in cards
  • Realtek 2.5 Gb Ethernet and 7.1 surround audio for wired networking and sound
  • Rear I/O includes USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A and four USB 2.0 ports

Specifications

BrandASUS
SeriesASUS PRIME Z790-P D4
ModelASUS PRIME Z790-P D4
CPU Socket TypeLGA 1700
CPU TypeIntel Socket LGA1700 1st & 13th Gen processors for Intel Core 14, Intel Core 12 Gen, Pentium Gold and Celeron processors *
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 **
ChipsetIntel Z790
Memory StandardSupport dual-channel DDR4 5333 (OC)/5133 (OC)/5066 (OC)/5000 (OC)/4800 (OC)/4700 (OC)/4600 (OC)/4500 (OC)/4400 (OC)/4266 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory
Maximum Memory Supported128GB
PCI SlotsIntel Core processors (14th & 13th & 12th Gen) *
1 x PCIe 5.0 x16 slot
Intel Z790 chipset
3 x PCIe 4.0 x16 slots (x4 mode supported)
1 x PCIe 3.0 x1 slot
SATA RAID3xM.2 interface, 4xSATA III interface
Audio ChipsetRealtek 7.1 surround high fidelity Audio Codec *
LAN Chipset1 x Realtek 2.5Gb Ethernet
Onboard USBRear USB (8 ports in total)
1 x USB 3.2 Gen 2x2 interface (1 x USB Type-C)
1 x USB 3.2 Gen 2 interface (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (9 ports in total)
1 x USB 3.2 Gen 2 interface (supports USB Type-C)
2 x USB 3.2 Gen 1 pins support 4 additional USB 3.2 Gen 1 ports
2X USB 2.0 pins support 4 additional USB 2.0 ports
USB_E1, USB_E2, USB_E3 and USB_E4 ports share bandwidth.
USB_E5, USB_E6, USB_E7 and USB_E8 ports share bandwidth.

Questions about this item

How much system memory can the Z790 chipset and four DDR4 slots actually address?

The board supports up to 128 GB of dual-channel DDR4 across four slots.

What does the PCIe 5.0 x16 slot mean for a graphics card today?

One full-length slot runs at PCIe 5.0 x16 from the CPU; three additional x16 slots from the chipset operate at x4 electrical, and a single x1 slot runs at PCIe 3.0.

Will a standard ATX case and PSU fit the 30.5 x 21.8 cm board?

Yes — the board follows the ATX form factor at 30.5 cm by 21.8 cm, using standard 24-pin and 8-pin EPS power connectors.
