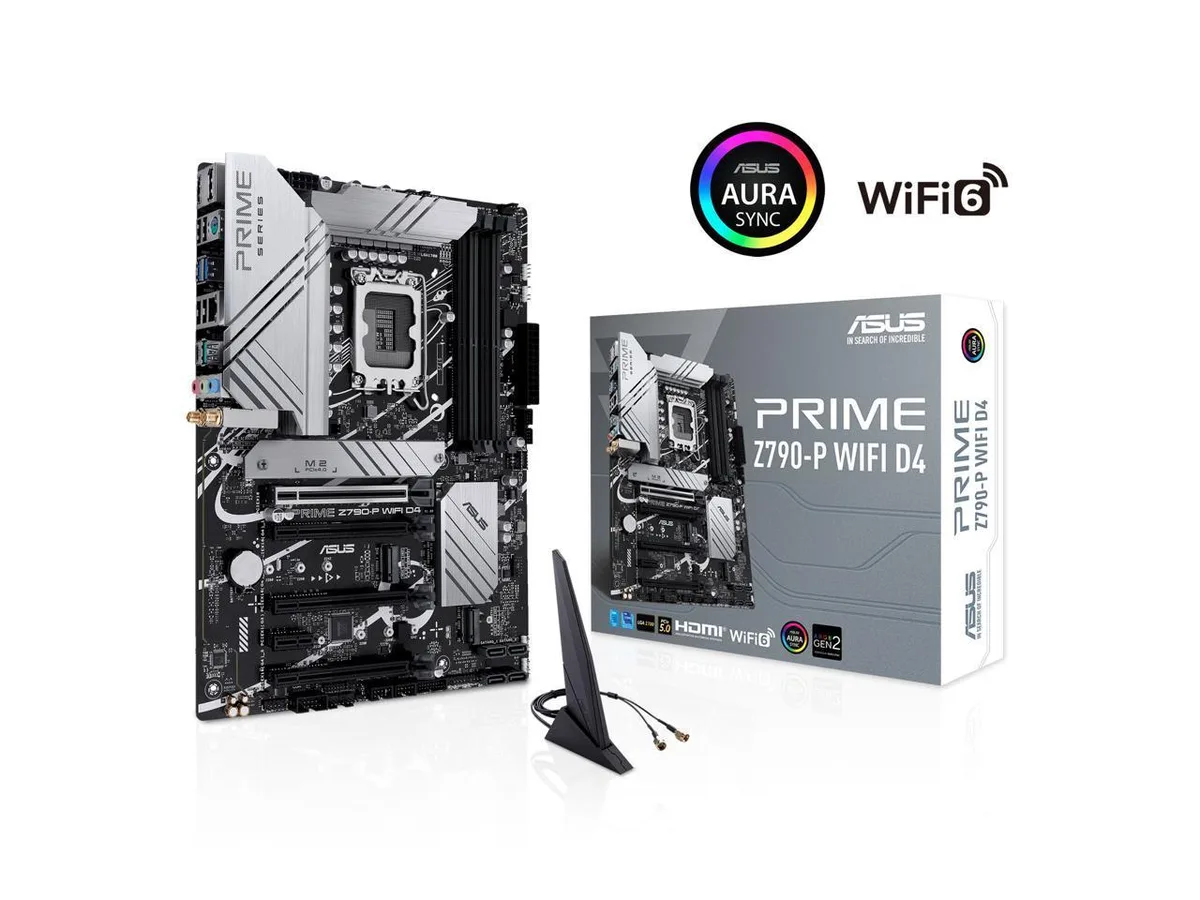

ATX motherboard in matte black with large silver VRM heatsink and rear I/O shield

ASUS

ASUS PRIME Z790-P WIFI D4 Intel motherboard

SKU CH-0C28-KE95W

ATX motherboard for Intel 12th, 13th and 14th Gen CPUs with DDR4, PCIe 5.0, three M.2 slots, WiFi 6 and 2.5Gb LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ Proce
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR4)
  • Memory Standard4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(O
  • Ready for 14th, 13th and 12th Gen Intel Core processors with LGA 1700 socket

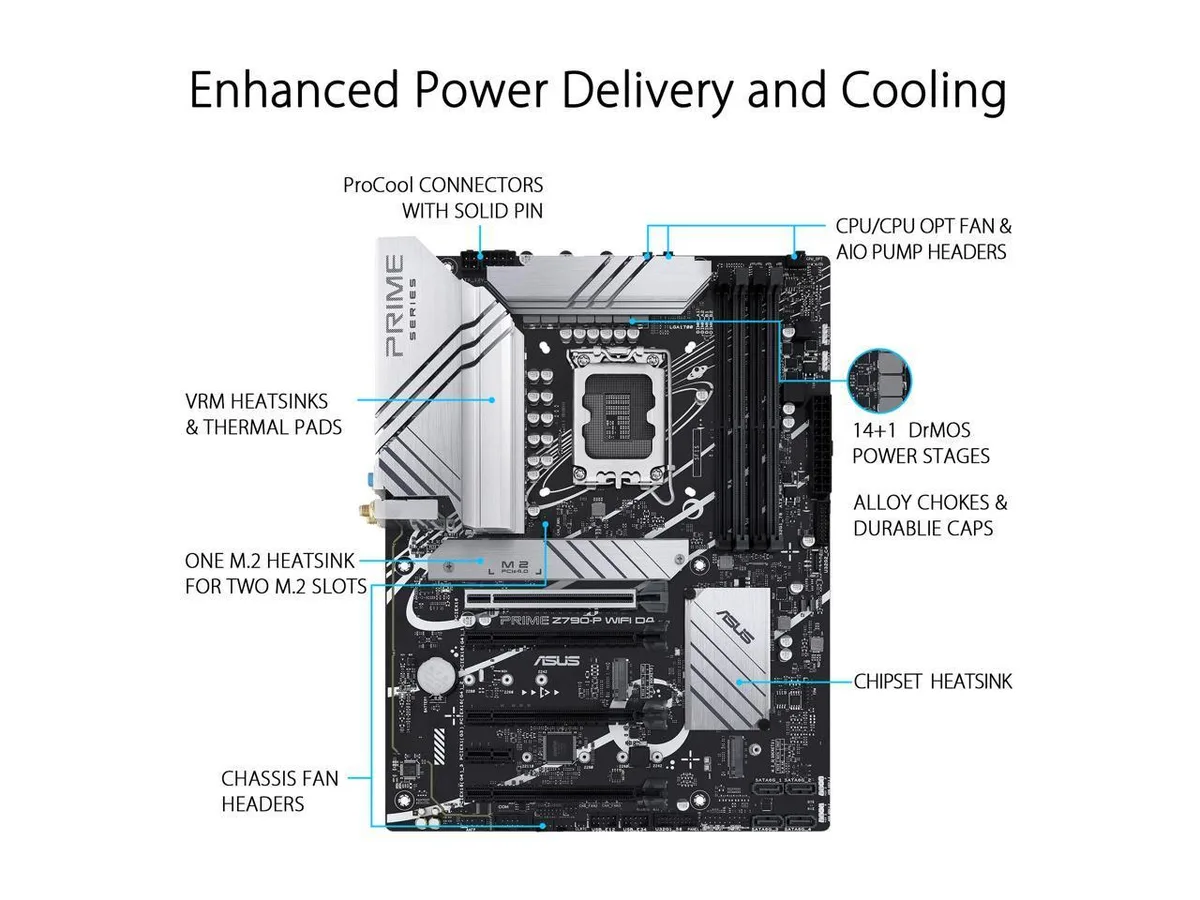

  • Stable power delivery through 14+1 DrMOS, ProCool connector, alloy chokes and durable capacitors
  • Comprehensive cooling with large VRM heatsink, flexible M.2 heatsink, PCH heatsink and Fan Xpert 4
  • Ultrafast connectivity via PCIe 5.0, DDR4, WiFi 6, 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C and Thunderbolt 4 header
  • PC DIY friendly design featuring PCIe 5.0 Safeslot and Q-LED Code for easy troubleshooting

Socket and generation support

The ASUS PRIME Z790-P WIFI D4 is an ATX motherboard built for Intel LGA 1700 processors from the 12th, 13th and 14th generations. It pairs the Z790 chipset with DDR4 memory slots, letting builders reuse existing DDR4 kits while moving to a newer platform. Four DIMM sockets support up to 128 GB in dual-channel mode.

Expansion and storage layout

One PCIe 5.0 x16 slot, three PCIe 4.0 x16 slots running at x4 and a single PCIe 3.0 x1 slot provide room for a graphics card and add-in boards. Three M.2 sockets accept 2242, 2260, 2280 and 22110 modules, with the top slot wired for PCIe 4.0 x4 from the CPU. Four SATA 6 Gb/s ports remain available for additional drives.

Connectivity and DIY features

Onboard WiFi 6 and 2.5 Gb Ethernet handle networking, while a front-panel USB 3.2 Gen 2 Type-C header and a Thunderbolt 4 header add high-speed peripheral options. Realtek 7.1 audio with shielding drives 24-bit/192 kHz output. A 14+1 DrMOS power stage array, large VRM heatsink, M.2 heatsink and Fan Xpert 4 headers simplify cooling setup, and Q-LED codes assist troubleshooting.

Highlights

  • Ready for 14th, 13th and 12th Gen Intel Core processors with LGA 1700 socket
  • Stable power delivery through 14+1 DrMOS, ProCool connector, alloy chokes and durable capacitors
  • Comprehensive cooling with large VRM heatsink, flexible M.2 heatsink, PCH heatsink and Fan Xpert 4
  • Ultrafast connectivity via PCIe 5.0, DDR4, WiFi 6, 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C and Thunderbolt 4 header
  • PC DIY friendly design featuring PCIe 5.0 Safeslot and Q-LED Code for easy troubleshooting

Specifications

BrandASUS
SeriesPrime
ModelPRIME Z790-P WIFI D4
Part Number90MB1DB0-M0AAY0
CPU Socket TypeLGA 1700
CPU TypeIntel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR4)
Memory Standard4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/
3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 5.0 x16Intel® 14th, 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express 4.0 x163 x PCIe 4.0 x16 slots (support x4 mode)
PCI Express x11 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 14th, 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID0/1/5/10
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
LAN Chipset1 x Realtek 2.5Gb Ethernet
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
BluetoothBluetooth v5.2

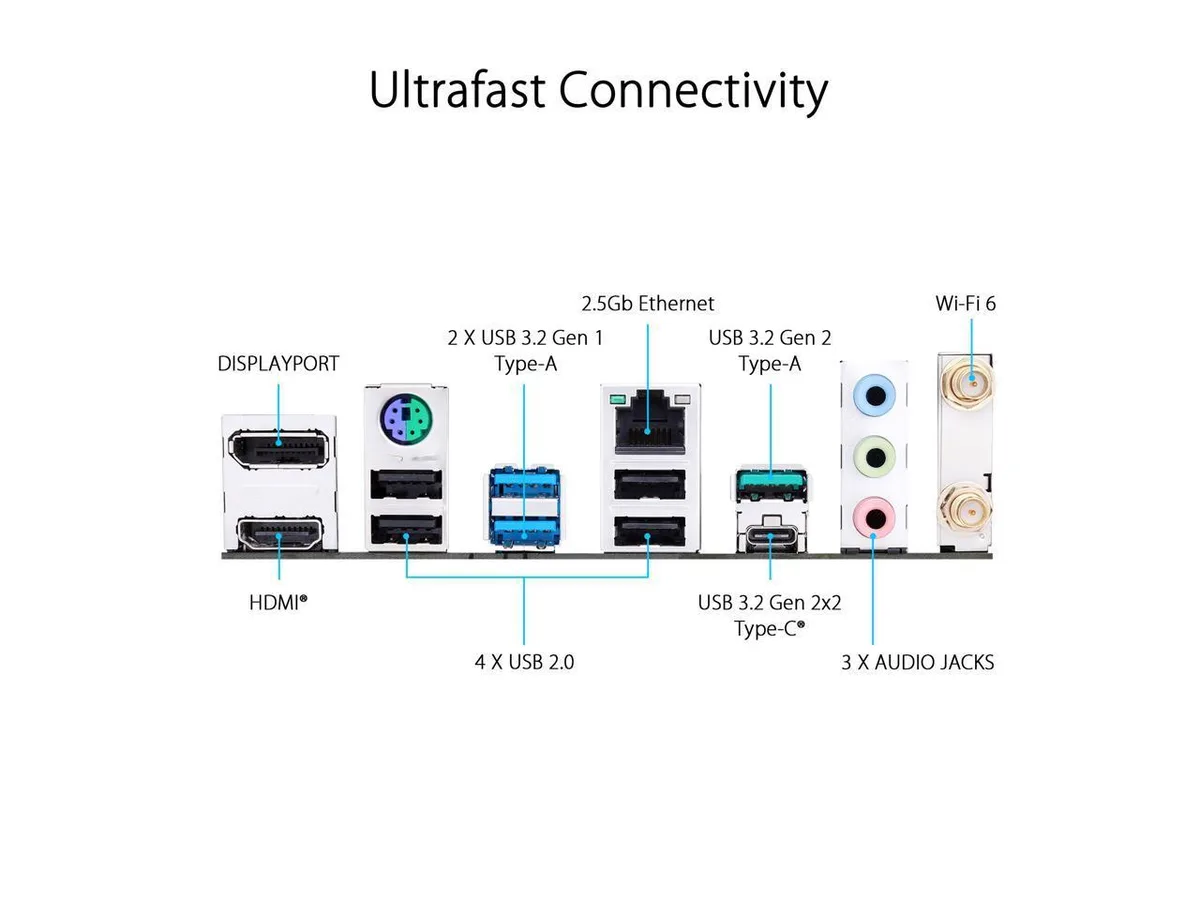

Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Onboard USB1 x USB 3.2 Gen 2 Gen 2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
** USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thunderbolt header
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
Documentation
1 x User guide

Questions about this item

Will this board run my 12th, 13th or 14th Gen Intel Core CPU without a BIOS update?

12th and 13th Gen Core processors are supported out of the box. 14th Gen Core processors may require a BIOS update; check the ASUS support site for the latest version before installing.

What DDR4 memory speeds can I use and how much total capacity does the board support?

The four slots accept DDR4 modules up to 5333 MT/s overclocked and standard speeds down to 2666 MT/s, with a maximum total capacity of 128 GB in dual-channel mode.

How many M.2 drives can I install and which slots support PCIe 4.0?

Three M.2 slots are available. The top slot runs at PCIe 4.0 x4 from the CPU; the other two run at PCIe 4.0 x4 from the Z790 chipset. All accept 2242, 2260, 2280 and 22110 form factors.
