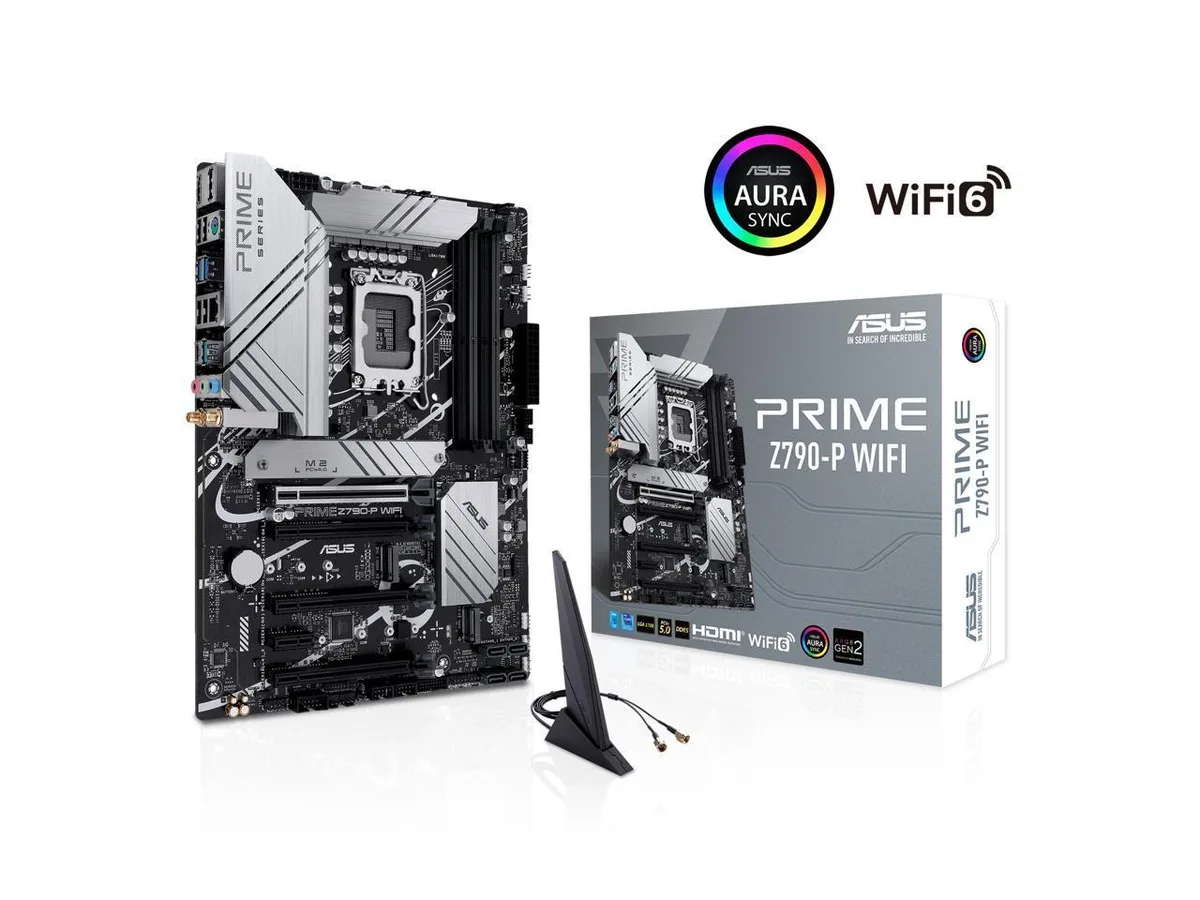

Black ATX motherboard with silver heatsinks, four DDR5 slots, three M.2 covers and a rear I/O shield

ASUS

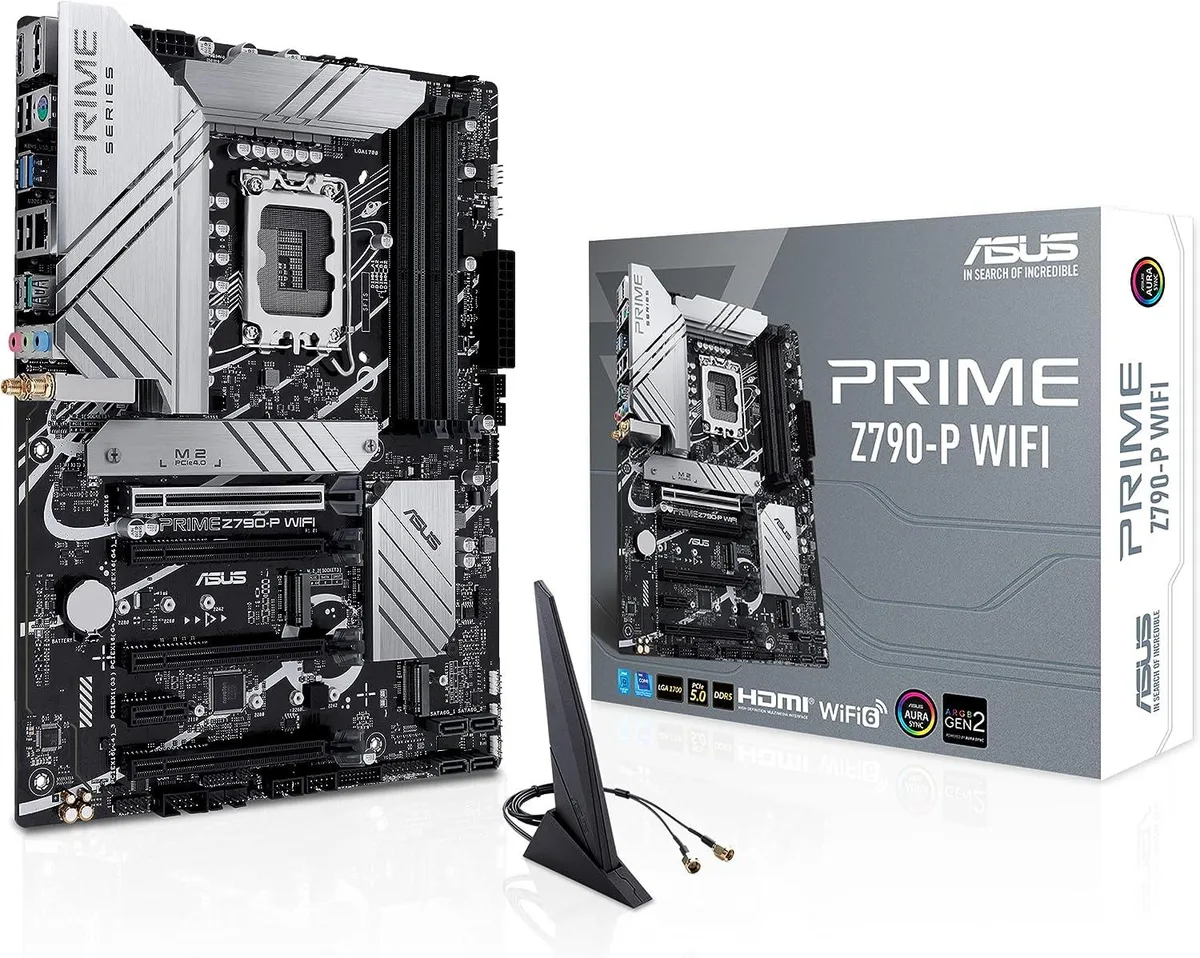

ASUS Prime Z790-P WiFi Intel motherboard

SKU CH-6VPF-HPVAE

LGA 1700 ATX board for 12th and 13th Gen Intel Core, with DDR5 up to 7200 OC, PCIe 5.0, three M.2 slots, WiFi 6, 2.5Gb LAN and Thunderbolt header

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 13th Gen Intel Core & 12th Gen Intel Core Processor
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/
  • Ready for 12th & 13th Gen Intel Core processors with LGA 1700 socket
  • Stable power delivery via 14+1 DrMOS, ProCool connector, alloy chokes and durable capacitors
  • Comprehensive cooling with large VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • Higher memory frequencies at lower voltages through ASUS OptiMem II proprietary trace layout
  • Ultrafast connectivity with PCIe 5.0, DDR5, WiFi 6, 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 2 Type-C.

Socket and platform

This ASUS Prime Z790-P WiFi motherboard uses the Intel LGA 1700 socket and the Z790 chipset to support 12th and 13th Gen Intel Core processors. It is built for PC builders who want a stable foundation with PCIe 5.0 and DDR5 memory capability out of the box.

Sustained-load behaviour

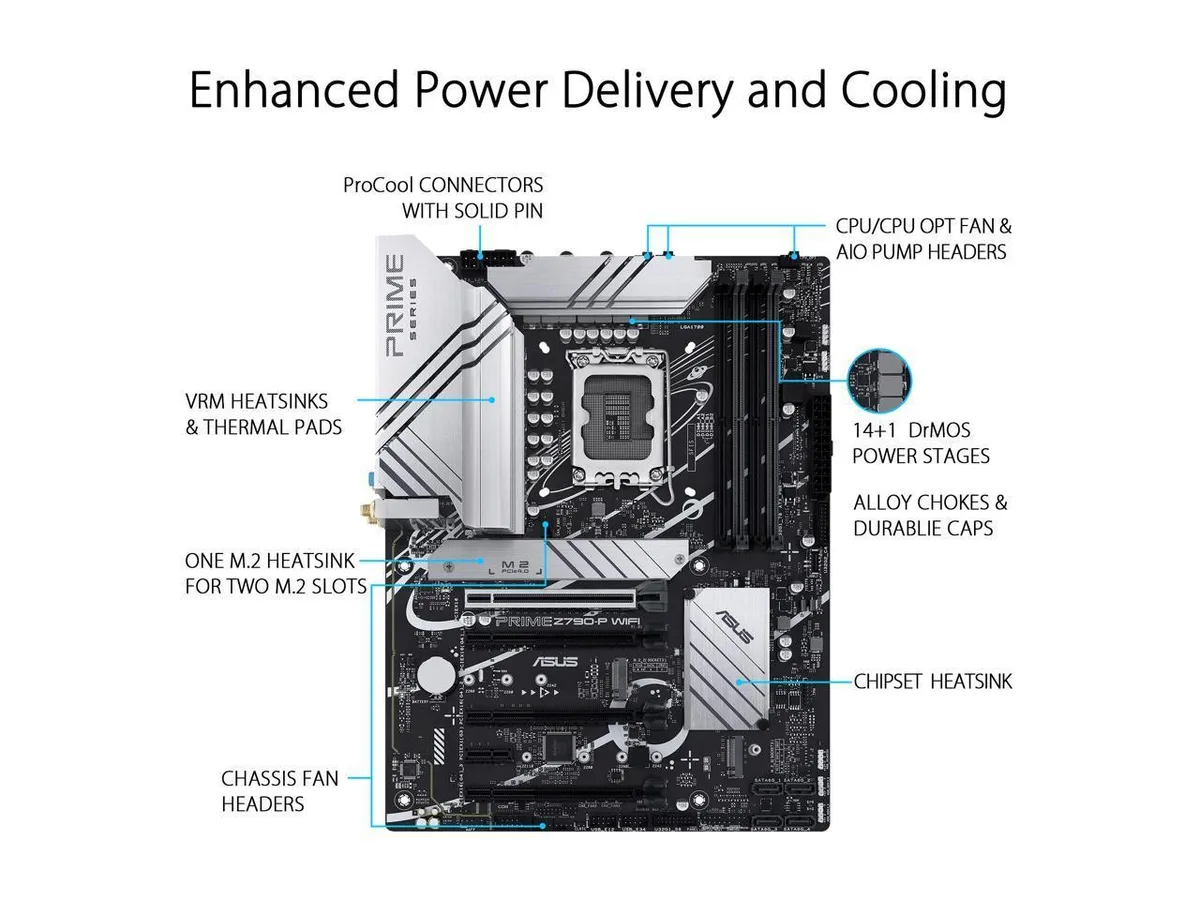

The 14+1 DrMOS power stages, ProCool connector, alloy chokes and durable capacitors deliver stable power delivery during extended workloads. Large VRM and M.2 heatsinks plus a PCH heatsink work with hybrid fan headers and Fan Xpert 4 to keep temperatures controlled over long sessions.

Memory ceiling

Four 288-pin DDR5 slots support up to 192 GB in dual-channel mode with speeds from 4800 up to 7200 MT/s when overclocked. OptiMem II trace layout helps kits run at higher frequencies with lower voltages, making this the deciding specification for high-capacity memory builds.

Highlights

  • Ready for 12th & 13th Gen Intel Core processors with LGA 1700 socket
  • Stable power delivery via 14+1 DrMOS, ProCool connector, alloy chokes and durable capacitors
  • Comprehensive cooling with large VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • Higher memory frequencies at lower voltages through ASUS OptiMem II proprietary trace layout
  • Ultrafast connectivity with PCIe 5.0, DDR5, WiFi 6, 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 2 Type-C.

Specifications

BrandASUS
SeriesPrime
ModelPRIME Z790-P WIFI
Part Number90MB1CJ0-M0AAY0
CPU Socket TypeLGA 1700
CPU TypeSupports 13th Gen Intel Core & 12th Gen Intel Core Processors, Pentium Gold , Celeron Processors*
* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported192GB
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCIe 5.0 x16 slot*
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
PCI Express 4.0 x163 x PCIe 4.0 x16 slots (support x4 mode)
PCI Express x11 x PCIe 3.0 x1 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
SATA RAID0/1/5/10
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
LAN Chipset1 x Realtek 2.5Gb Ethernet
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
BluetoothBluetooth v5.2
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Onboard USB1 x USB 3.2 Gen 2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt header
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB headers
- Addressable Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
Documentation
1 x User guide

Questions about this item

How hot and noisy does the 14+1 DrMOS power stage and VRM heatsink run during all-day loads?

The 14+1 DrMOS stages, alloy chokes and large VRM heatsink are designed for stable delivery; hybrid fan headers and Fan Xpert 4 let you tune airflow for quiet operation.

Which DDR5 memory kits and CPU cooler mounting hardware must I already own to install this LGA 1700 board?

You need DDR5 DIMMs — up to 192 GB across four slots — and a cooler with LGA 1700 mounting holes or an adapter kit.

Will my PCIe 4.0 graphics card and SATA SSDs work in the PCIe 5.0 x16 slot and four SATA 6Gb/s ports?

Yes, the PCIe 5.0 x16 slot is backward compatible with PCIe 4.0 cards, and the four SATA 6Gb/s ports accept standard SATA drives.
