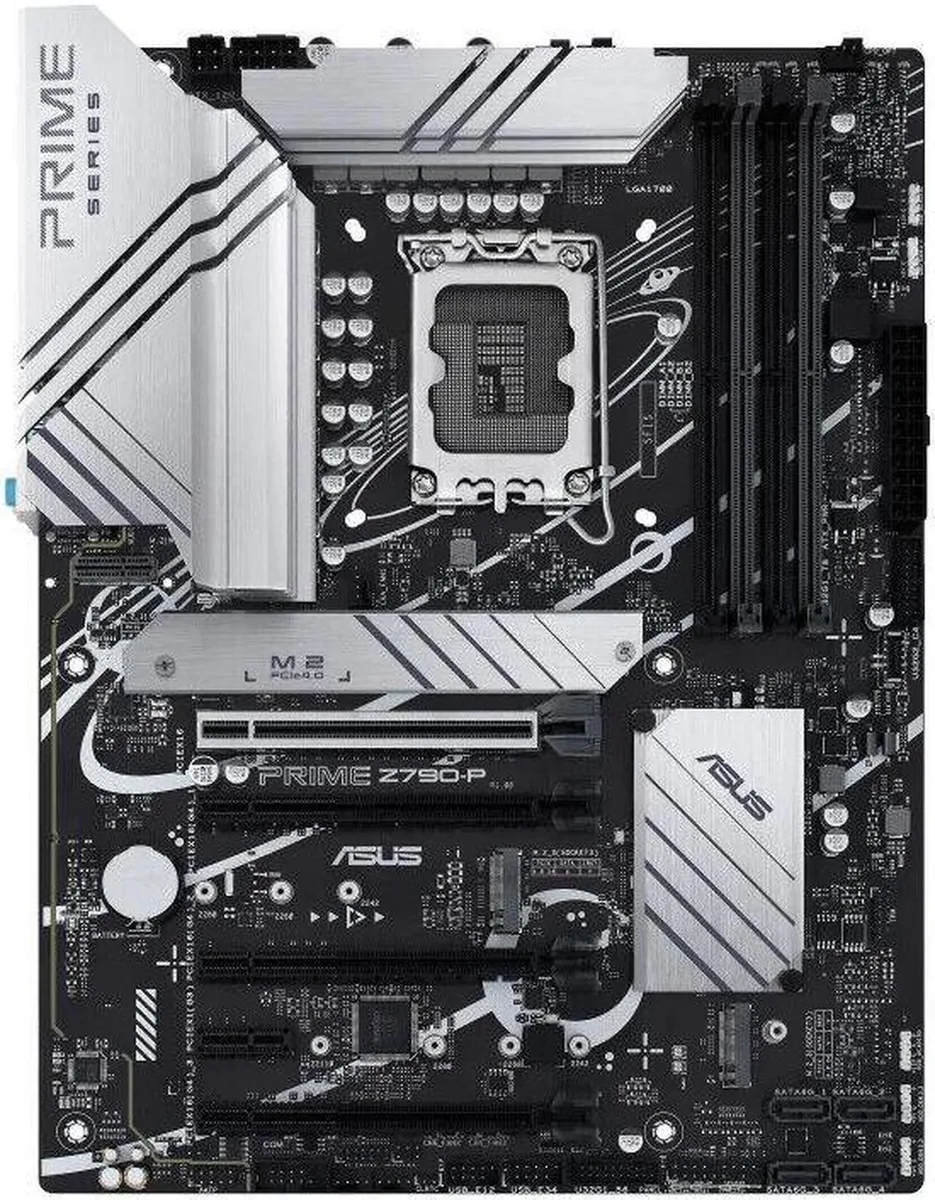

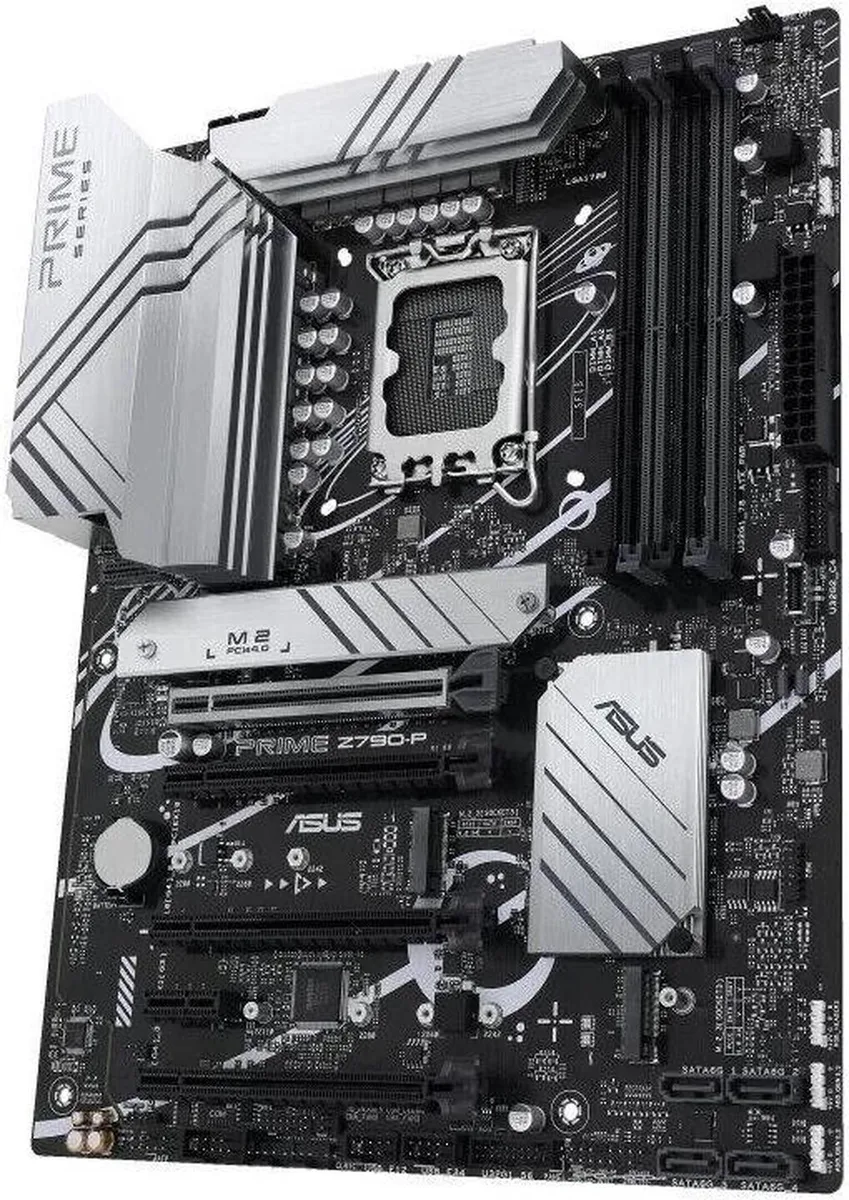

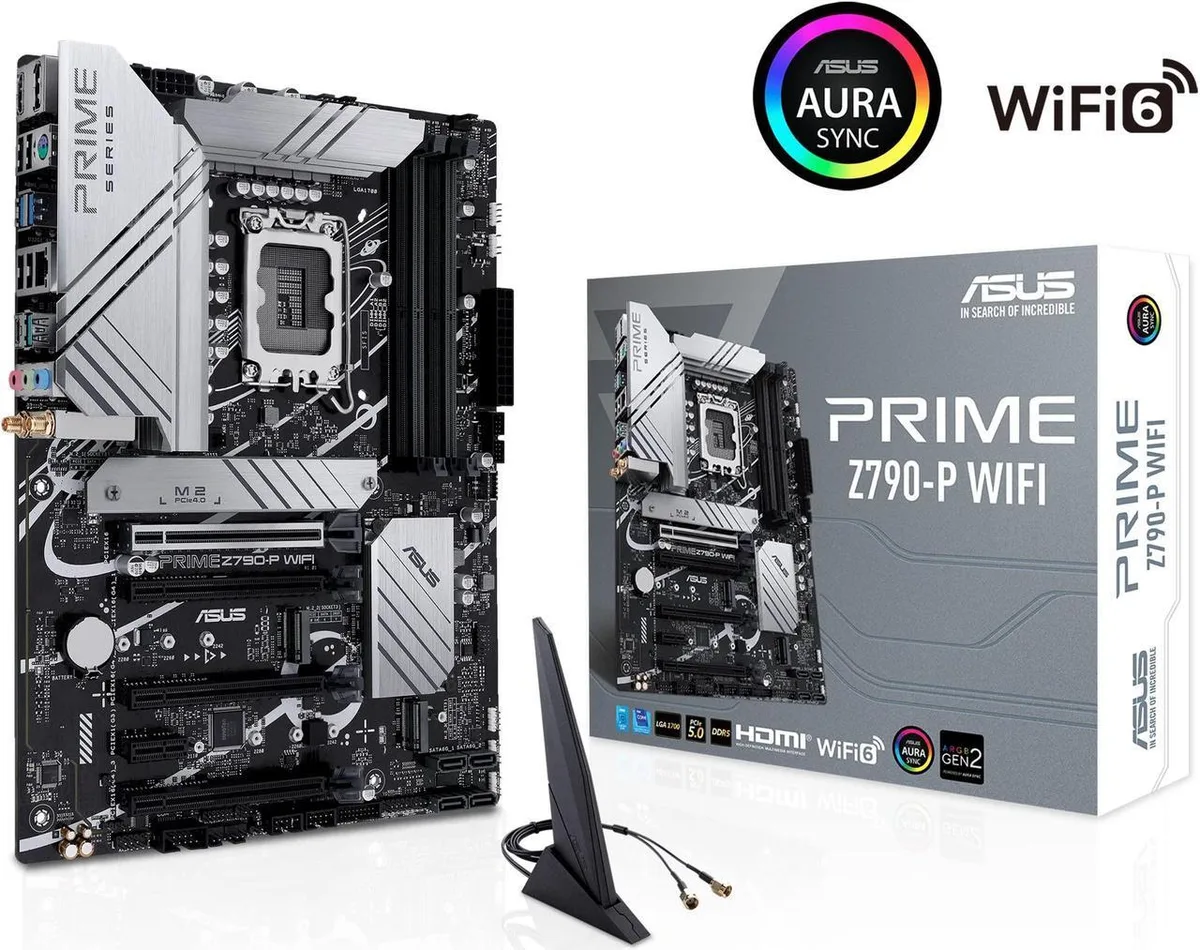

ATX motherboard in dark finish with large VRM heatsinks, three M.2 slots and rear I/O shield

ASUS

ASUS Prime Z790-P WiFi LGA 1700 ATX Intel motherboard

SKU CH-2NY2-4D8J6

LGA 1700 ATX board with 14+1 DrMOS power stages, DDR5 to 7200 OC, three M.2 slots, WiFi 6, 2.5 Gb LAN and front USB 3.2 Gen 2 Type-C

  • Ready for 14th, 13th & 12th Gen Intel Core via LGA 1700 socket
  • Stable power delivery with 14+1 DrMOS stages and ProCool connectors
  • Comprehensive cooling via large VRM heatsink, M.2 heatsink and Fan Xpert 4
  • DDR5 memory up to 7200+ MHz OC with OptiMem II and AEMP II
  • Ultrafast connectivity: PCIe 5.0, WiFi 6, 2.5Gb LAN, USB 3.2 Gen 2x2 Type-C, Thunderbolt 4 header

Socket & platform

This ATX motherboard uses the Intel LGA 1700 socket and the Z790 chipset to support 12th, 13th and 14th generation Core, Pentium Gold and Celeron processors. It delivers PCIe 5.0 and DDR5 readiness out of the box for Windows 11 systems.

Build profile

The 14+1 DrMOS power stage design with ProCool connectors suits builders who want stable delivery for high-core-count CPUs. Three M.2 slots and four SATA ports give ample room for fast storage. Buyers who need more than three M.2 drives or more than four SATA devices should look elsewhere.

Deciding spec

Four DDR5 slots accept up to 192 GB of memory with AEMP II and OptiMem II support for speeds beyond 7200 MT/s when overclocked. This capacity ceiling determines whether the board fits the planned workload.

Highlights

  • Ready for 14th, 13th & 12th Gen Intel Core via LGA 1700 socket
  • Stable power delivery with 14+1 DrMOS stages and ProCool connectors
  • Comprehensive cooling via large VRM heatsink, M.2 heatsink and Fan Xpert 4
  • DDR5 memory up to 7200+ MHz OC with OptiMem II and AEMP II
  • Ultrafast connectivity: PCIe 5.0, WiFi 6, 2.5Gb LAN, USB 3.2 Gen 2x2 Type-C, Thunderbolt 4 header

Specifications

No published specifications for this item yet.

Questions about this item

Will my existing DDR5 memory kits run at their rated speeds with the OptiMem II layout on this Z790 board?

The board's OptiMem II trace layout and AEMP II technology are designed to help memory kits operate at higher frequencies with lower voltages, supporting DDR5 speeds up to 7200+(OC) across four slots for up to 192GB total capacity.

What do the on-board Q-LED codes tell me during first boot after assembling the system?

The Q-LED indicators light up in sequence for CPU, DRAM, VGA and boot devices; a solid light on any one shows where the POST process has stopped, letting you verify each stage completes successfully.

Which cables or modules must I buy separately to use the front-panel USB 3.2 Gen 2 Type-C and Thunderbolt 4 header?

The motherboard provides the front-panel USB 3.2 Gen 2 Type-C header and a Thunderbolt 4 (USB4) header; you will need a compatible case with a matching front-panel Type-C cable and a certified Thunderbolt 4 add-in card for the second header.
