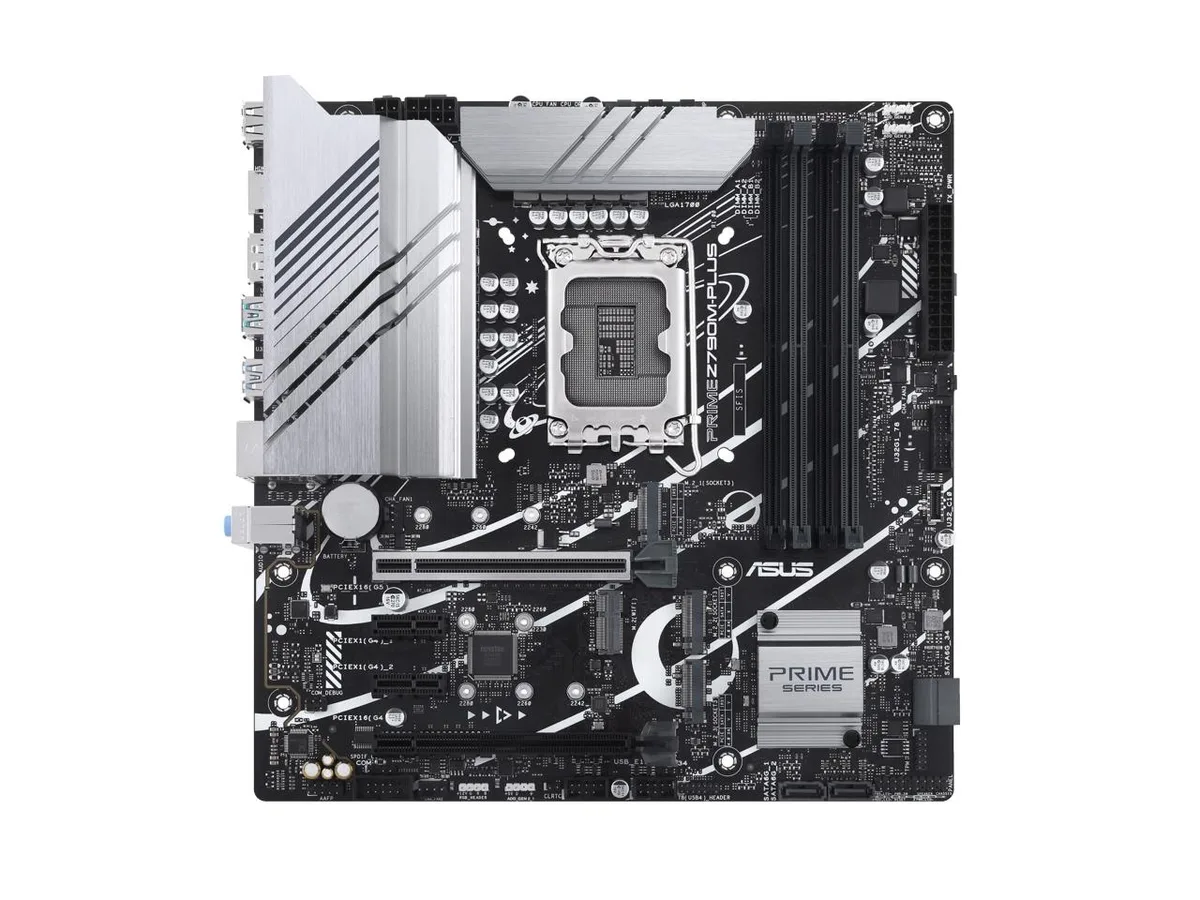

Micro-ATX motherboard with black PCB, silver VRM heatsinks, four DDR5 slots and three M.2 covers

ASUS

ASUS PRIME Z790M-PLUS Intel motherboard

SKU CH-WA3P-DKJC3

Micro-ATX Intel Z790 board with LGA 1700 socket, DDR5 memory up to 7200 MT/s, PCIe 5.0 x16, three M.2 slots and 1 Gb LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12t
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)
  • Supports 14th, 13th and 12th Gen Intel Core processors via LGA 1700 socket
  • 10+1 DrMOS power stages with 6-layer PCB deliver stable power for overclocking
  • PCIe 5.0 x16 slot and DDR5 up to 7200 MT/s enable next-gen GPU and memory speed
  • Three M.2 slots (2242/2260/2280) plus four SATA 6Gb/s ports give flexible storage options
  • Intel 1 Gb LAN, USB 3.2 Gen 2x2 Type-C and Thunderbolt header provide fast wired connectivity

Socket LGA 1700 microATX motherboard

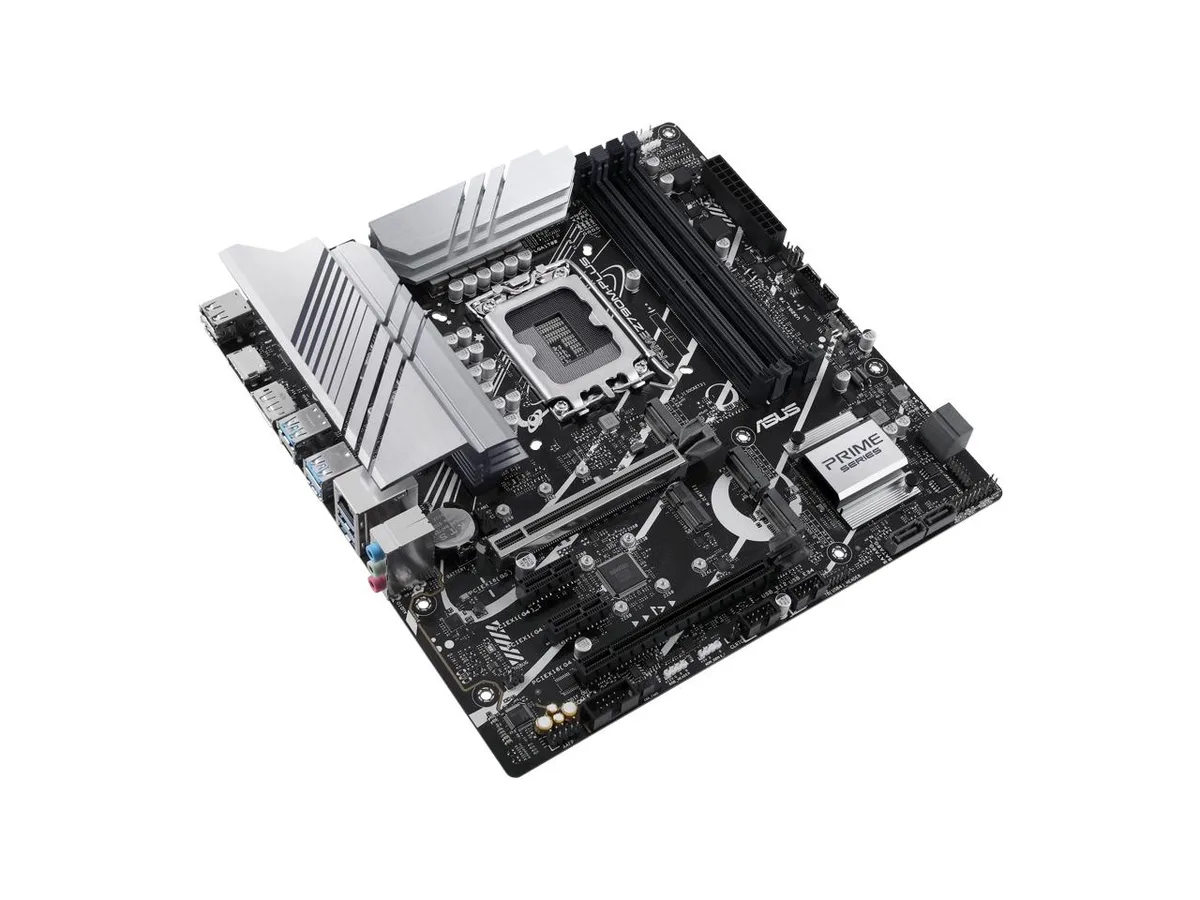

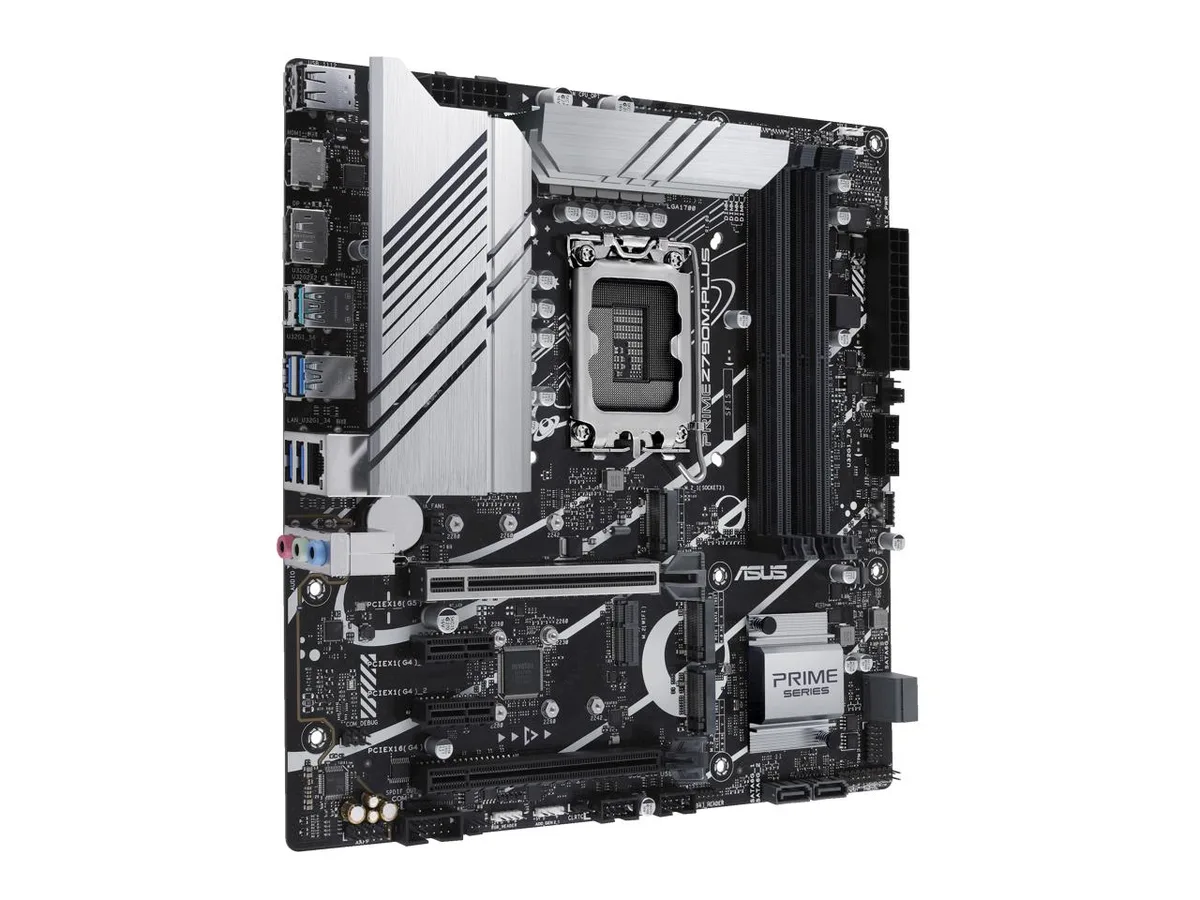

The ASUS PRIME Z790M-PLUS is a microATX board built around the Intel Z790 chipset for LGA 1700 processors. It accepts 12th, 13th and 14th generation Intel Core, Pentium Gold and Celeron CPUs. The board provides four DDR5 slots, three M.2 sockets and a PCIe 5.0 x16 slot for modern graphics cards.

Builders who need compact DDR5 platform

This board suits builders who want a small-form-factor system with DDR5 memory and PCIe 5.0 graphics support. It is not intended for users requiring more than four SATA ports, more than three M.2 slots, or a full-size ATX layout with additional expansion slots.

256 GB maximum DDR5 capacity

The four 288-pin slots support up to 256 GB of non-ECC DDR5 memory running at speeds from 4800 up to 7200 MT/s when overclocked. This ceiling determines whether the board can meet your planned memory configuration.

Highlights

  • Supports 14th, 13th and 12th Gen Intel Core processors via LGA 1700 socket
  • 10+1 DrMOS power stages with 6-layer PCB deliver stable power for overclocking
  • PCIe 5.0 x16 slot and DDR5 up to 7200 MT/s enable next-gen GPU and memory speed
  • Three M.2 slots (2242/2260/2280) plus four SATA 6Gb/s ports give flexible storage options
  • Intel 1 Gb LAN, USB 3.2 Gen 2x2 Type-C and Thunderbolt header provide fast wired connectivity

Specifications

BrandASUS
ModelPRIME Z790M-PLUS
Part Number90MB1E70-M0AAY0
CPU Socket TypeLGA 1700
CPU TypeIntel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16Intel® 14th, 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x12 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Serial ATA (SATA)4 x SATA 6Gb/s ports
M.2Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 14th, 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAIDIntel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
LAN Chipset1 x Intel 1Gb Ethernet
Max LAN Speed1Gbps
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Intel 1Gb Ethernet port
3 x Audio jacks
Onboard USB1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin + 12V Power connector
1 x 4-pin + 12V Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
-
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
2 x Screw packages for M.2 SSD
Documentation
1 x User guide
