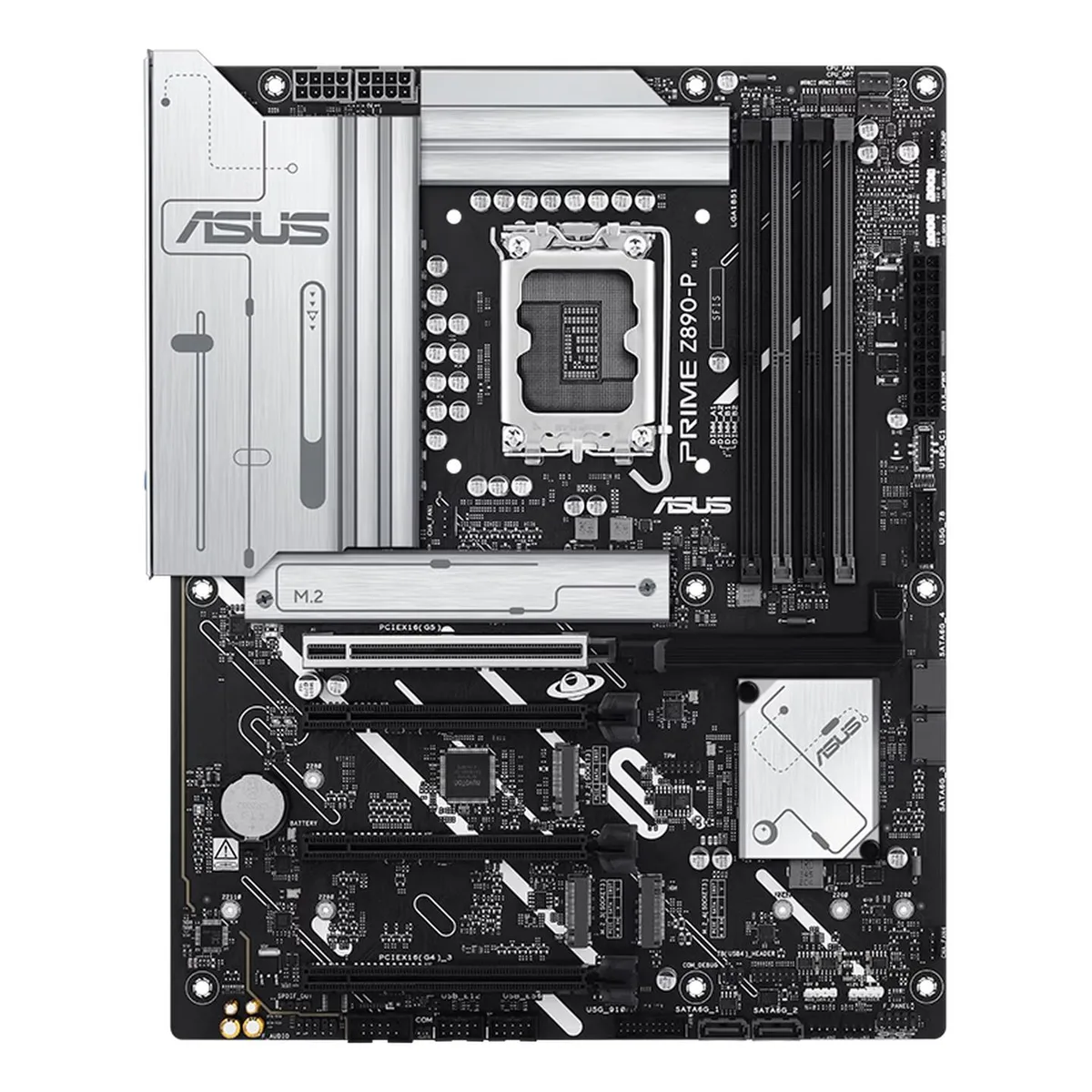

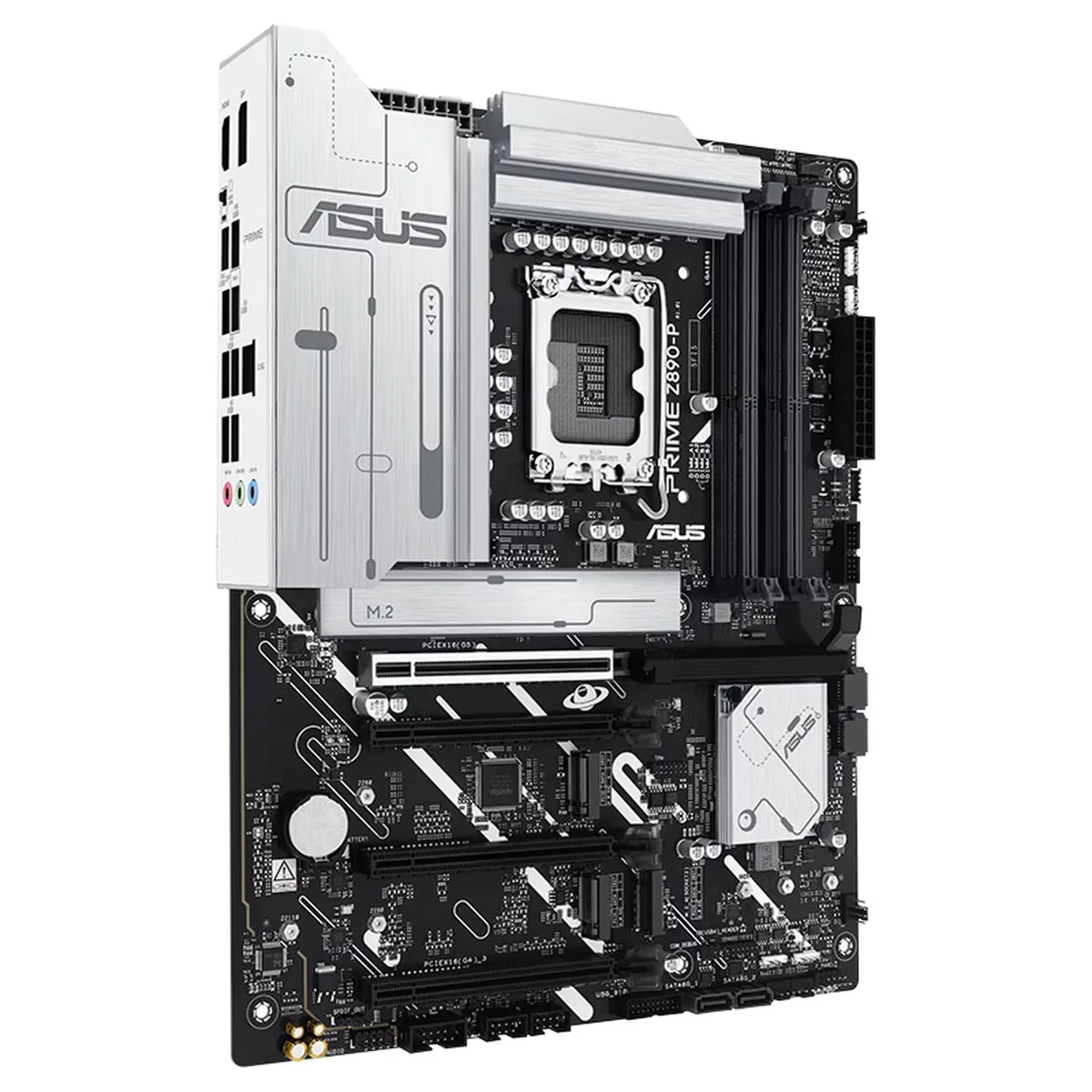

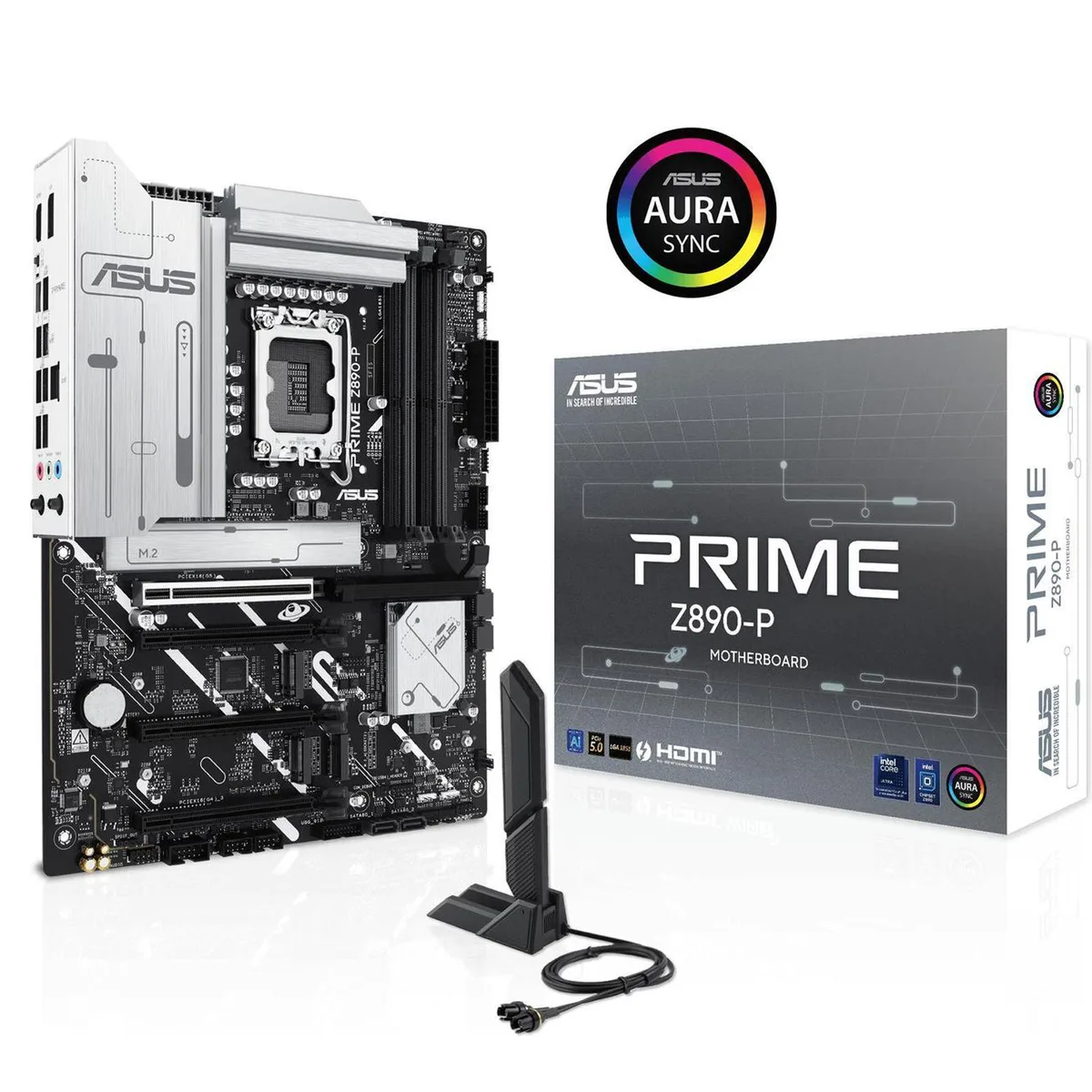

ATX motherboard in matte black with silver heatsinks and four DDR5 slots

ASUS

ASUS PRIME Z890-P D5 Intel motherboard

SKU CH-71R1-R4S9F

Supports Intel Core Ultra processors on LGA 1851 with DDR5, 20 Gbps USB, PCIe 5.0, 2.5 Gb Ethernet and four M.2 slots

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 14 plus 4 power stages rated at 80A each with 6-layer PCB
  • VRM heatsink, M.2 heatsink and Fan Xpert 4 software for thermal control
  • PCIe 5.0 slot plus USB 20Gbps Type-C with DP Alt Mode
  • Four M.2 slots, Realtek 2.5 Gb Ethernet and pre-mounted I/O shield

ASUS PRIME Z890-P D5 Intel Motherboard

This ATX motherboard uses the Intel Z890 chipset and LGA 1851 socket for Intel Core Ultra Processors (Series 2). It provides DDR5 memory slots, a PCIe 5.0 expansion slot, four M.2 sockets with heatsinks, DisplayPort and HDMI video outputs, and a USB 20Gbps Type-C port with DP Alt Mode. Realtek 2.5 Gb Ethernet and a pre-mounted I/O shield complete the feature set.

Power Delivery and Thermal Design

The 14 plus 1 plus 2 plus 1 phase power design uses 80A modules on a 6-layer PCB with Digi+ VRM control and ProCool connectors. VRM heatsinks, thermal pads, an M.2 heatsink, a dedicated water-pump header, and Fan Xpert 4 software manage thermals. Builders who need a higher phase count or integrated wireless networking should consider other models.

PCIe 5.0 Slot and USB 20Gbps

The board includes a PCIe 5.0 slot for next-generation graphics or storage and a USB 20Gbps Type-C port that supports DisplayPort Alt Mode. This combination decides whether the platform can use the fastest available add-in cards and high-speed video-capable USB peripherals.

Highlights

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 14 plus 4 power stages rated at 80A each with 6-layer PCB
  • VRM heatsink, M.2 heatsink and Fan Xpert 4 software for thermal control
  • PCIe 5.0 slot plus USB 20Gbps Type-C with DP Alt Mode
  • Four M.2 slots, Realtek 2.5 Gb Ethernet and pre-mounted I/O shield

Specifications

BrandASUS
SeriesPRIME Z890-P D5
ModelPRIME Z890-P D5
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890

Questions about this item

What comes in the box and what must I buy separately for the ASUS PRIME Z890-P D5?

The board ships with a pre-mounted I/O shield and the standard accessory kit; you must supply an LGA 1851 Intel Core Ultra Series 2 processor, DDR5 memory modules, storage drives and a power supply.

Which DDR5 capacity should I choose for the PRIME Z890-P D5?

Pick a DDR5 kit that matches the AEMP 3.0 profile you want to run — higher-capacity kits fill more slots but the board supports the same unlocked DDR5 performance across all supported densities.

What does the 24 % AI performance figure mean once the board is in a working PC?

The 24 % uplift comes from the NPU acceleration engine in the Intel Core Ultra Series 2 processor when the motherboard's power delivery and thermal design keep the CPU at its rated operating points.
