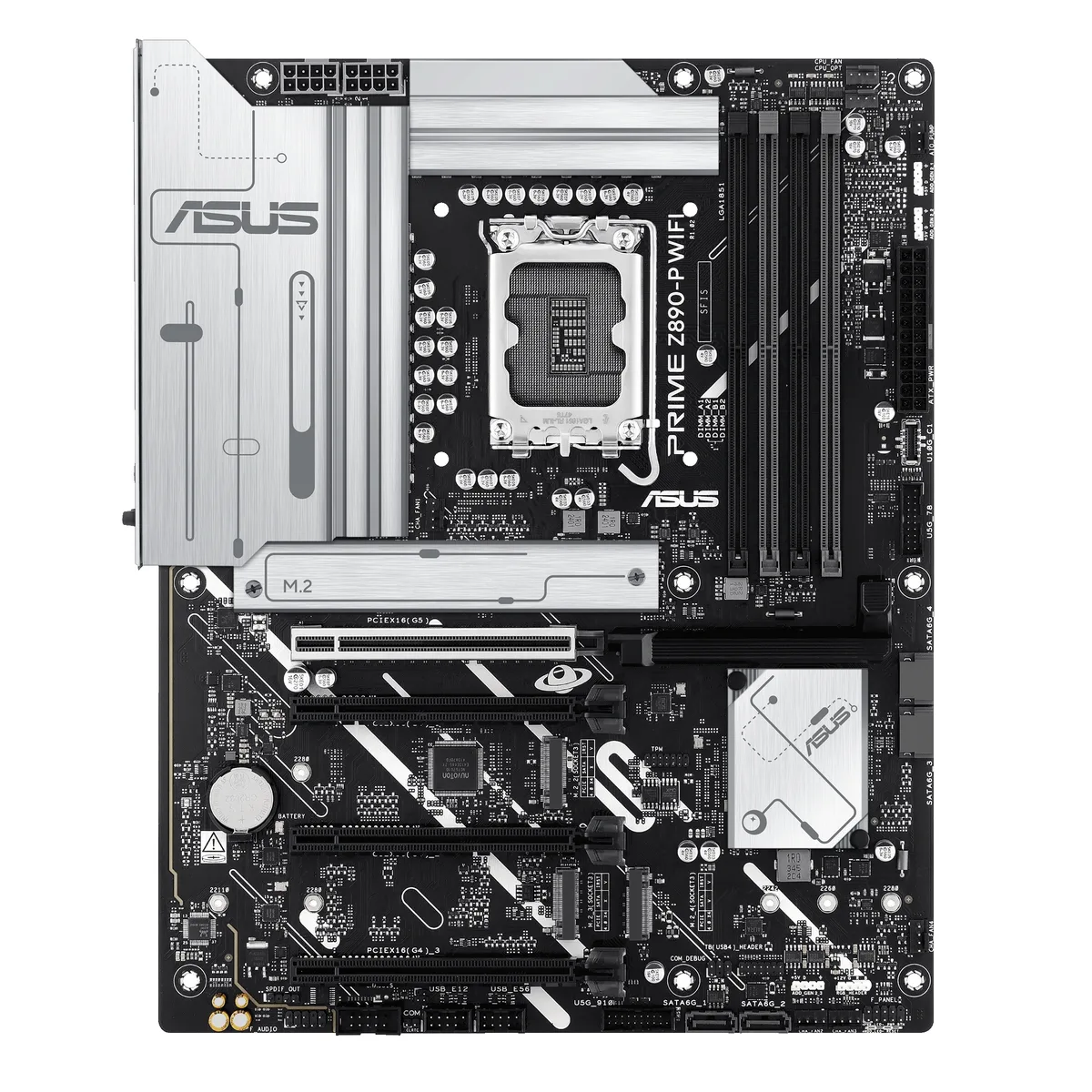

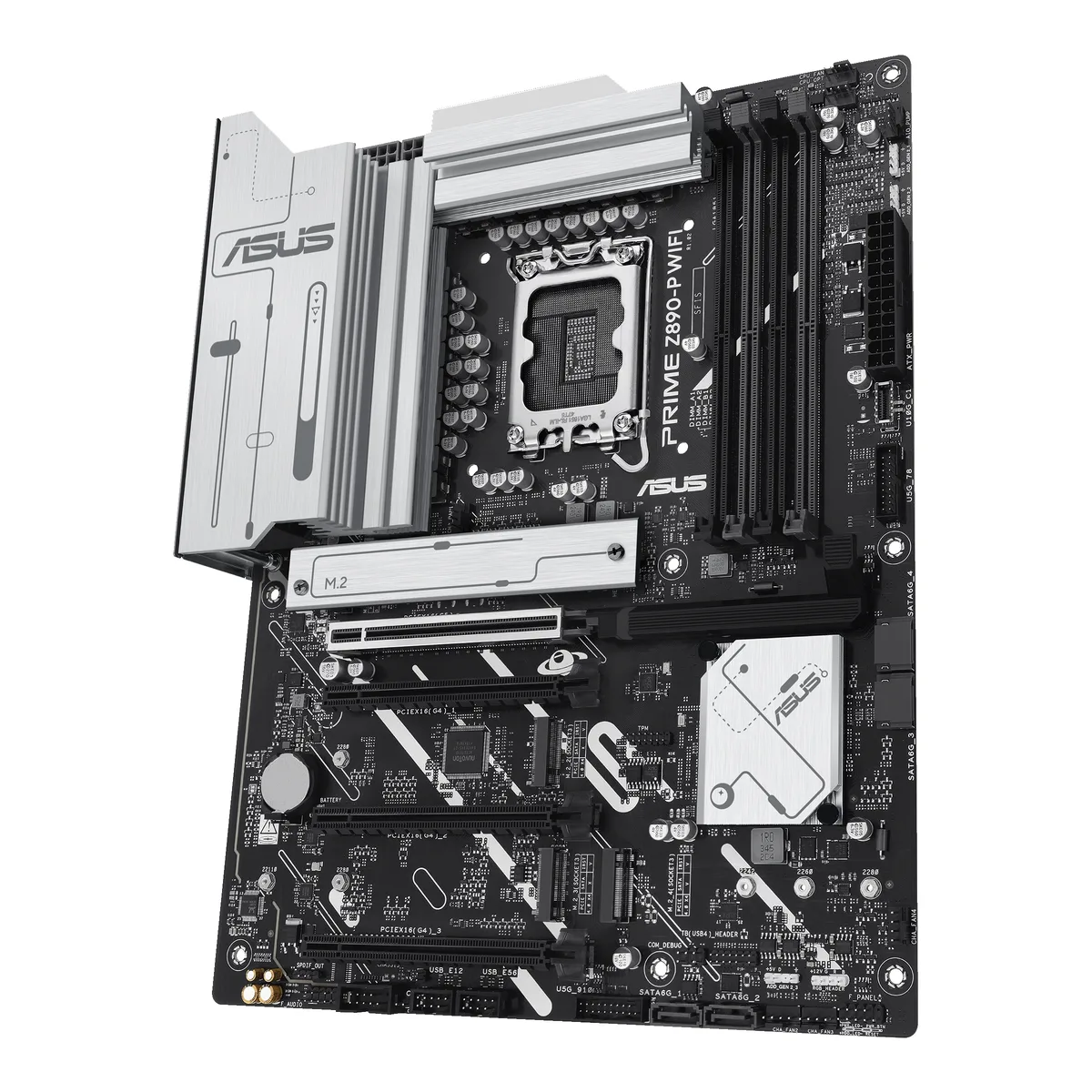

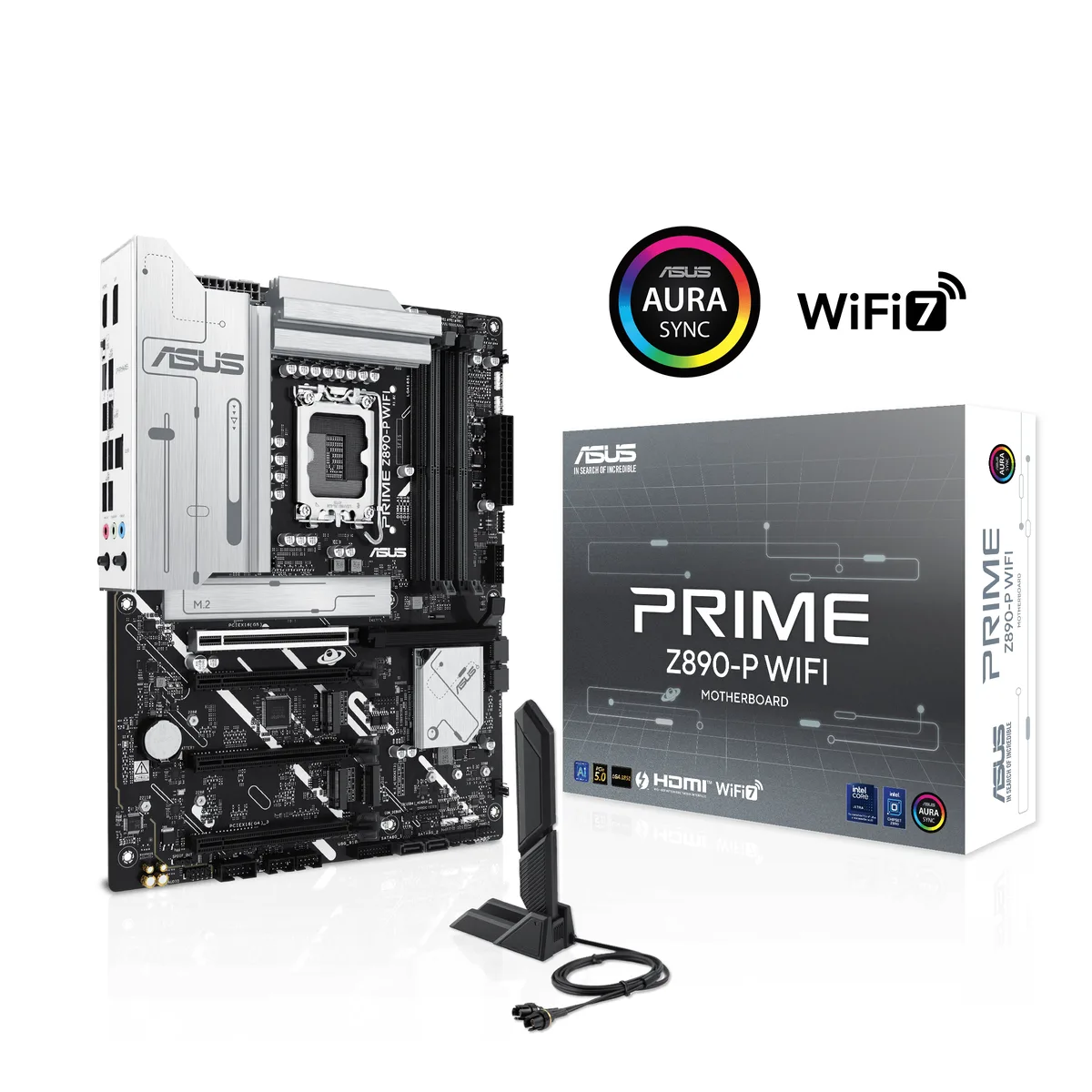

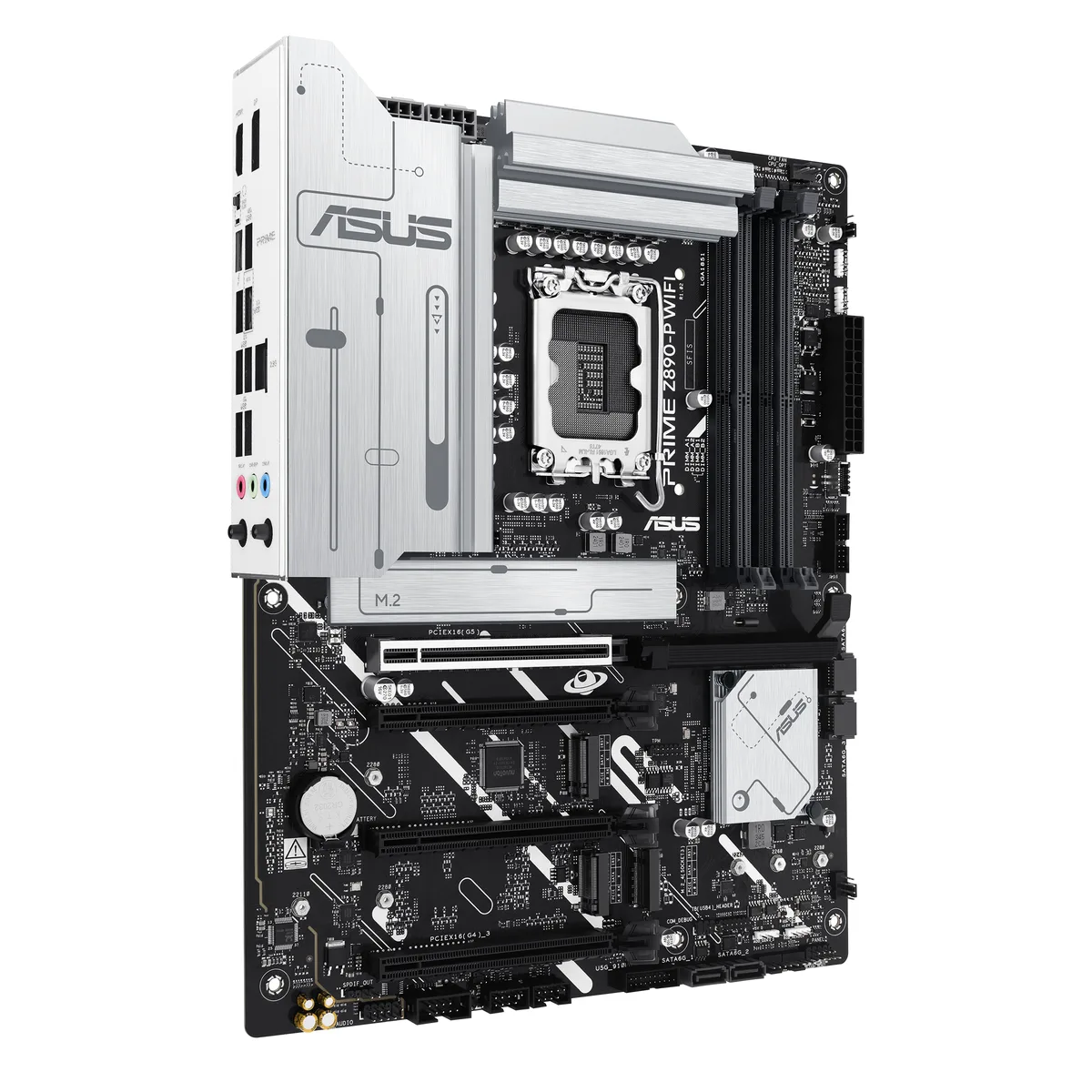

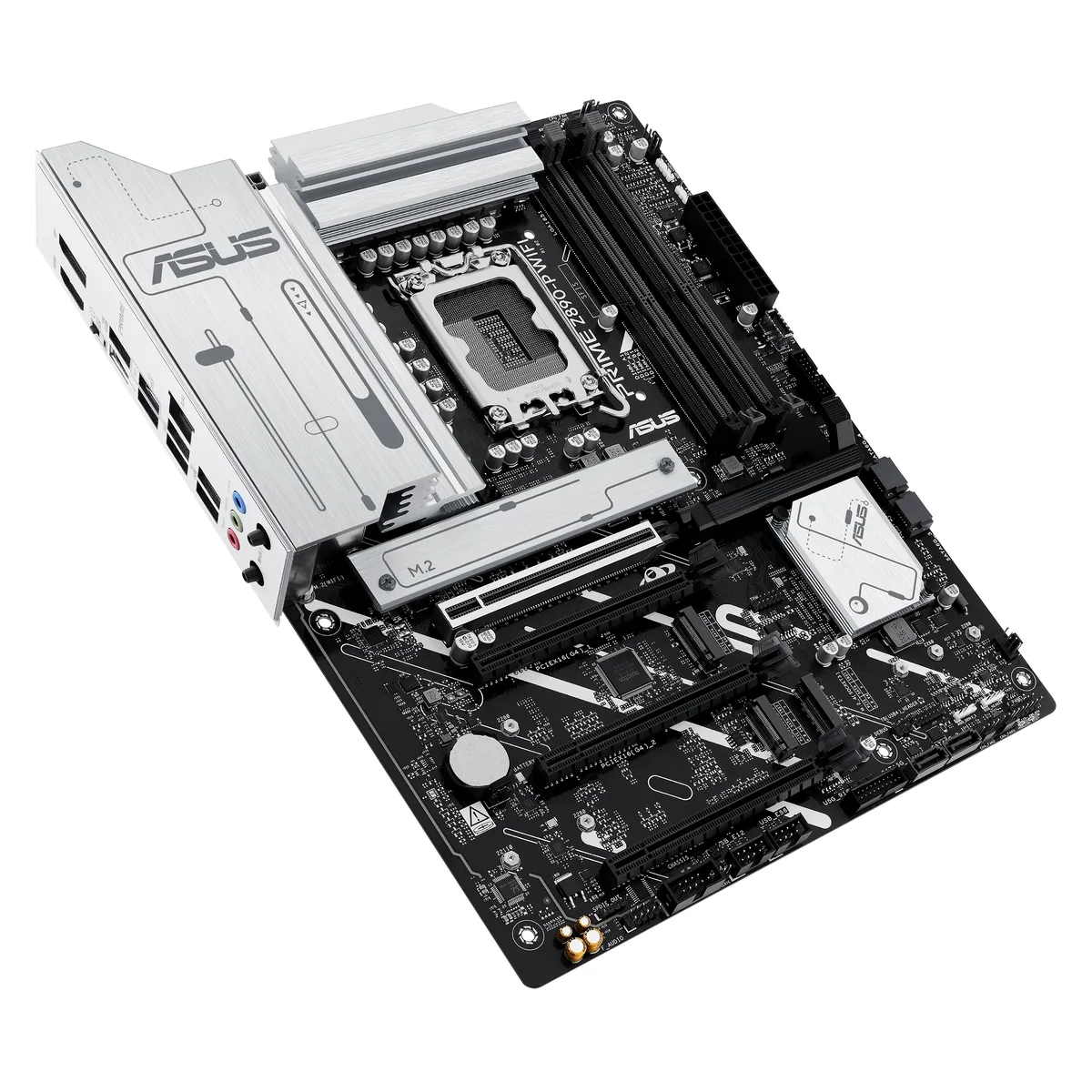

ATX motherboard, dark PCB with silver heatsinks and rear I/O shield

ASUS

ASUS PRIME Z890-P WIFI Z890 LGA 1851 ATX Intel motherboard

SKU CH-A60Q-5T50Y MPN PRIME Z890-P WIFI

ATX board for Intel Core Ultra Series 2 with 14+1+1+2 80A power stages, DDR5 to 8666 MT/s, PCIe 5.0 x16, four M.2 slots, Wi-Fi 7 and 2.5 Gb Ethernet

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 /
  • Maximum Memory Supported256GB
  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • Robust 14+1+1+2 80A DrMOS power stages with ProCool connectors for stable delivery
  • One PCIe 5.0 M.2 slot plus three PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 7 and 2.5Gb Ethernet with Bluetooth 5.4 for high-speed networking
  • Thunderbolt 4 USB Type-C and front USB 10Gbps Type-C for versatile connectivity

Ready for Intel Core Ultra Series 2

This ATX motherboard uses the LGA 1851 socket and Z890 chipset to support Intel Core Ultra Series 2 processors. It targets builders who want a modern platform for AI workloads, high-speed storage and fast networking in a standard form factor.

DDR5 up to 256GB and PCIe 5.0 storage

Four 288-pin slots accept DDR5 from 4400 to 8666+ MT/s in dual-channel mode, with XMP 3.0 and AEMP III profiles. One M.2 slot runs at PCIe 5.0 x4 for 2280 or 22110 drives, while three additional M.2 slots provide PCIe 4.0 x4 bandwidth. Four SATA 6Gb/s ports remain available for bulk drives.

14+1+1+2 80A power stages with Thunderbolt 4

The VRM uses 80A DrMOS stages, ProCool connectors, alloy chokes and durable capacitors on a six-layer PCB. Large VRM heatsinks, M.2 heatsinks and a PCH heatsink handle thermal load. Rear I/O includes a Thunderbolt 4 USB Type-C port, Wi-Fi 7 with Q-Antenna, 2.5Gb Ethernet and Bluetooth 5.4. Realtek 7.1 audio reaches 24-bit/192kHz playback.

Highlights

  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • Robust 14+1+1+2 80A DrMOS power stages with ProCool connectors for stable delivery
  • One PCIe 5.0 M.2 slot plus three PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 7 and 2.5Gb Ethernet with Bluetooth 5.4 for high-speed networking
  • Thunderbolt 4 USB Type-C and front USB 10Gbps Type-C for versatile connectivity

Specifications

BrandASUS
ModelPRIME Z890-P WIFI
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel Z890 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(series 2)*
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x Thunderbolt 4 USB Type-C port
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header
BIOS Feature256 (128+128) Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
TurboV Core
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Windows 11 (22H2 & later)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Shipping weight1.81 kg
Package size356 × 279 × 76 mm

Questions about this item

Will my existing DDR5 memory kits work at their rated speeds on this board?

The board supports DDR5 speeds from 4400 up to 8666 MT/s through Intel XMP 3.0 profiles and ASUS Enhanced Memory Profile III, so most modern kits will run at their rated frequencies.

Can I install a full-size graphics card and still use all four M.2 slots?

Yes, the single PCIe 5.0 x16 slot is wired from the CPU and the four M.2 slots are positioned away from it, so a double-slot GPU does not block any M.2 slot.

What wireless standard does the on-board Wi-Fi use and what Bluetooth version is included?

The motherboard includes Wi-Fi 7 (802.11be) with an ASUS Q-Antenna and Bluetooth 5.4 for high-speed, low-latency wireless connectivity.
