Green mATX motherboard with silver heatsinks, black PCB, LGA1700 socket, four DDR5 slots, PCIe x16 slot, two M.2 slots

ASUS

ASUS Pro B760M-CT-CSM Intel motherboard

SKU CH-234A-M3BPX MPN Pro B760M-CT-CSM

mATX board for 12th and 13th Gen Intel CPUs with DDR5 memory, PCIe 4.0 slots and dual M.2 storage

  • CPU Socket TypeLGA 1700
  • CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th G
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4800
  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR5 memory up to 128 GB with XMP 3.0 profiles
  • Two M.2 slots running PCIe 4.0 x4 for fast storage
  • Front-panel USB 3.2 Gen 1 Type-C for quick device access
  • ASUS CSM programme plus Control Center Express for stable supply and IT management

LGA 1700 business mATX

The ASUS Pro B760M-CT-CSM is a micro-ATX motherboard built for Intel Core 12th and 13th Gen processors on the LGA 1700 socket. It targets commercial and IT-managed deployments that require long-term supply stability and remote administration tools. The Intel B760 chipset provides a mainstream feature set without overclocking the CPU. Four DDR5 slots and dual-channel architecture support up to 128 GB of memory.

Build integration: DDR5, PCIe 4.0, dual M.2

The board accepts DDR5 modules at 4800 MT/s natively and offers XMP 3.0 profiles up to 6200 MT/s when paired with compatible kits. A single PCIe 4.0 x16 slot connects the graphics card directly to the CPU, while two chipset-linked PCIe 3.0 x1 slots handle add-in cards. Two M.2 Key M slots (2242/2260/2280) both run at PCIe 4.0 x4 for fast storage, and four SATA 6 Gb/s ports with RAID 0/1/5/10 provide additional drive flexibility. Front-panel USB 3.2 Gen 1 Type-C is wired to the header for modern case connectivity.

CSM software and security tools

ASUS Control Center Express centralises hardware monitoring, BIOS updates and asset tracking across a fleet, reducing manual IT workload. Boot Defender follows NIST SP800-193 guidelines and works with the onboard TPM to protect the boot process, while a self-recovering BIOS adds resilience against corruption. Q-LED Core diagnostics and a COM debug header speed up bring-up and troubleshooting in the field. The commercial BIOS kit and event log simplify standardised deployment and ongoing maintenance.

Highlights

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR5 memory up to 128 GB with XMP 3.0 profiles
  • Two M.2 slots running PCIe 4.0 x4 for fast storage
  • Front-panel USB 3.2 Gen 1 Type-C for quick device access
  • ASUS CSM programme plus Control Center Express for stable supply and IT management

Specifications

BrandASUS
ModelPro B760M-CT-CSM
Part Number90MB1DY0-MVAAYC
CPU Socket TypeLGA 1700
CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureDDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Optimem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
PCI Express 4.0 x16Intel 13th & 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
PCI Express x1Intel B760 Chipset
2 x PCIe 3.0 x1 slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
Max LAN Speed1 x Intel 1Gb Ethernet
ASUS LANGuard
Wireless LANWi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Supports Intel® Double Connect Technology
BluetoothBluetooth v5.3
Back I/O Ports2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
2 x DisplayPorts
1 x HDMI® port
1 x VGA port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
Onboard USB1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Mono-out header (with Amp IC)
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x 10-1 pin System Panel header
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
FeaturesASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- ASUS Boot Defender
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit*
- Anti-Moisture Coating
- 24/7 Reliability
- Overcurrent Protection
* Please contact with local FAE for commercial BIOS kit.
TPM 2.0 IC onboard

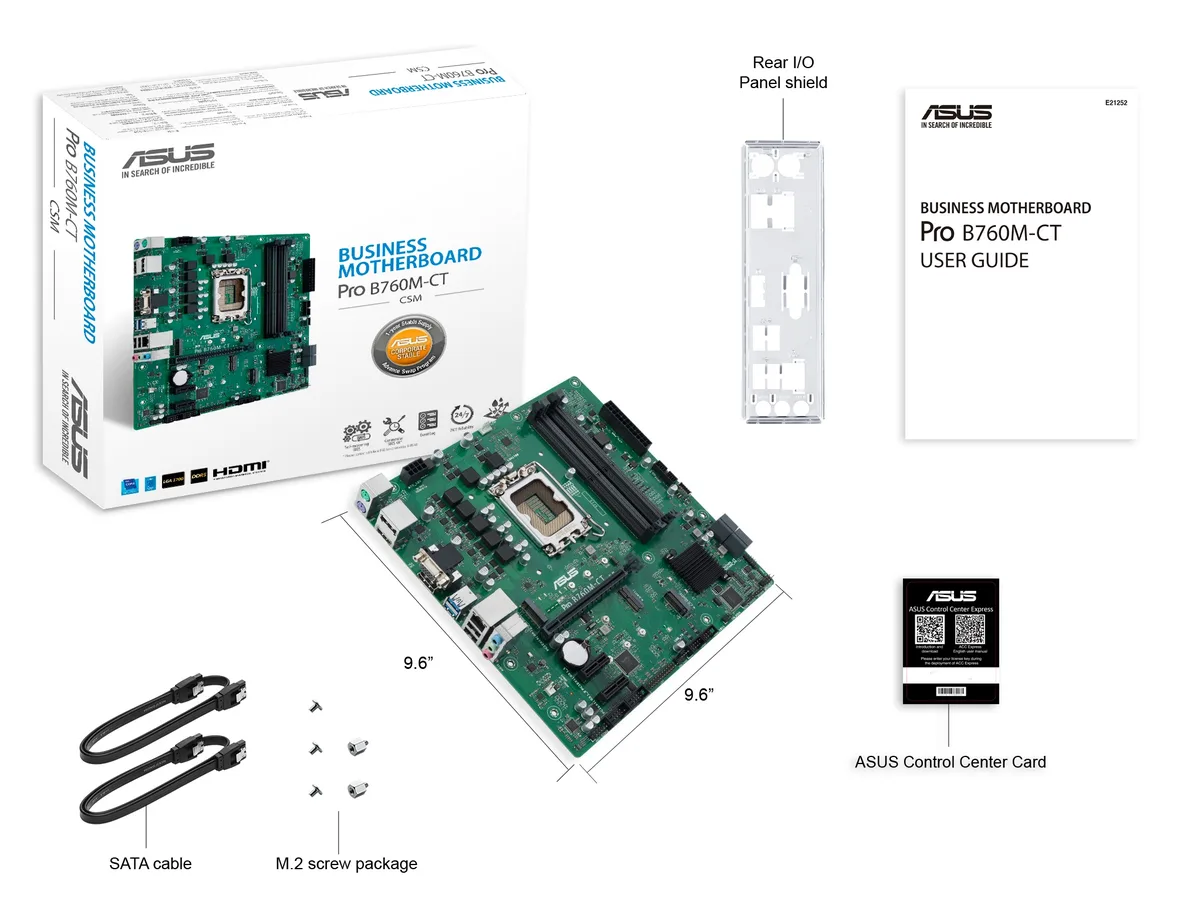

Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x Screw package for M.2 Key E
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Shipping weight0.91 kg
Package size274 × 264 × 53 mm

Questions about this item

What maximum memory capacity does the four DDR5 slots support?

The board accepts up to 128GB across its four 288-pin DDR5 slots running in dual-channel mode.

How loud or hot does the VRM area get during all-day workloads?

Passive heatsinks on the power phases keep temperatures in check without adding fan noise.

Which processor must already be owned to fit the LGA 1700 socket?

Any 12th or 13th Gen Intel Core, Pentium Gold or Celeron CPU with an LGA 1700 package will install directly.
