ASUS
ASUS Pro WS TRX50-SAGE WIFI AMD motherboard
Supports up to 96-core Threadripper 7000 CPUs with 1TB ECC DDR5, 36 power stages, three PCIe 5.0 x16 slots, WiFi 7, 10 Gb and 2.5 Gb LAN, three M.2 slots and USB 20Gbps Type-C
- CPU Socket TypesTR5
- CPU TypeAMD Socket sTR5 for RYZEN™ Threadripper™ PRO 7000 WX-Series
- ChipsetAMD TRX50
- Number of Memory Slots4 x DIMM slots, DDR5, ECC Registered Memory* 4 Channel Memor
- Memory StandardDDR5, ECC Registered Memory
- Maximum Memory Supported1TB
- Supports up to 96-core Threadripper PRO 7000 WX-Series processors
- 1TB ECC Registered DDR5 capacity across four DIMM slots
- 36 power stages with dual 8-pin CPU connectors and massive VRM cooling
- Three PCIe 5.0 x16 slots plus WiFi 7 and 10 Gb Ethernet
- ASUS IPMI expansion-card support with Control Center Express remote management

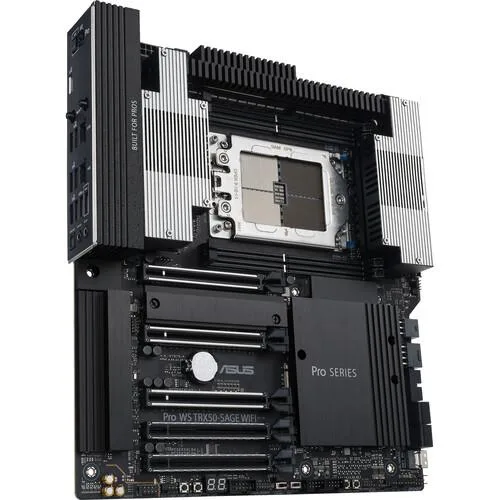

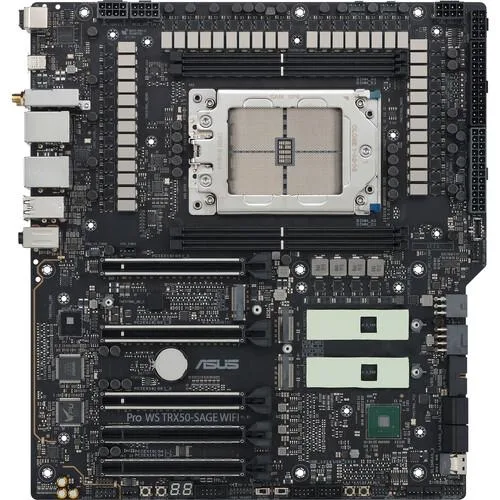

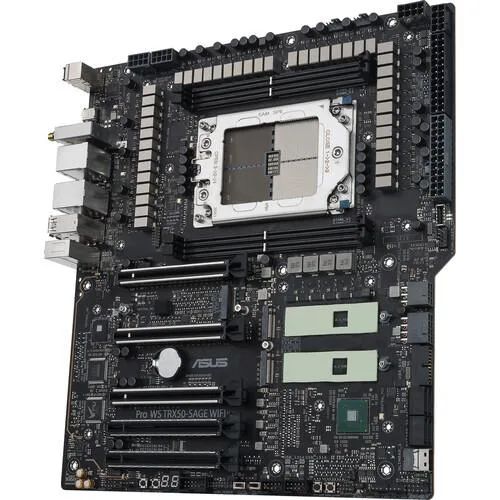

ASUS Pro WS TRX50-SAGE WIFI sTR5 workstation
This CEB-form-factor board uses the AMD TRX50 chipset and the sTR5 socket for Ryzen Threadripper PRO 7000 WX-Series and Ryzen Threadripper 7000 Series processors. It targets professional workstations that need high core counts, large ECC memory capacity and server-grade remote management. The 36-stage VRM with dual 8-pin CPU power connectors is built for sustained 24/7 loads.
Suits multi-GPU compute.
Three PCIe 5.0 x16 slots plus one PCIe 4.0 x16 and one x4 give room for multiple accelerators or high-speed add-in cards. Four DIMM slots support up to 1 TB of ECC R-DIMM DDR5 in a four-channel layout. Integrated Wi-Fi 7, 10 Gb and 2.5 Gb Ethernet plus rear USB 20 Gbps Type-C cover fast data movement. Builders needing more than four memory channels or a different socket should evaluate other platforms.
Maximum 1 TB ECC R-DIMM DDR5 capacity
The four-slot, 1 DIMM-per-channel design caps total system memory at 1 TB. Workloads that require more memory per socket must choose a platform with eight or more DIMM slots. This limit is the single specification that decides whether the board fits the target application.
Highlights
- Supports up to 96-core Threadripper PRO 7000 WX-Series processors
- 1TB ECC Registered DDR5 capacity across four DIMM slots
- 36 power stages with dual 8-pin CPU connectors and massive VRM cooling
- Three PCIe 5.0 x16 slots plus WiFi 7 and 10 Gb Ethernet
- ASUS IPMI expansion-card support with Control Center Express remote management
Specifications
| Brand | ASUS |
|---|---|
| Series | PRO |
| Model | PRO WS TRX50-SAGE WIFI |
| Part Number | 90MB1FZ0-M0AAY0 |
| CPU Socket Type | sTR5 |
| CPU Type | AMD Socket sTR5 for RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors * * Refer to www.asus.com for CPU support list. |
| Chipset | AMD TRX50 |
| Number of Memory Slots | 4 x DIMM slots, DDR5, ECC Registered Memory* 4 Channel Memory Architecture * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. |
| Memory Standard | DDR5, ECC Registered Memory |
| Maximum Memory Supported | 1TB |
| PCI Express 5.0 x16 | 2 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot(x8 mode) |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot 1 x PCIe 4.0 x16 slot(x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | AMD RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD TRX50 Chipset M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports 1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. |
| SATA RAID | 0/1/5/10 |
| Audio Channels | Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Dedicated audio PCB layers - Unique de-pop circuit * A chassis with an HD audio module in the front panel is requi |
| Max LAN Speed | 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® I226-LM 2.5Gb Ethernet |
| Wireless LAN | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 160MHz bandwidth, up to 2.8Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Bluetooth | Yes |
| Back I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 2 x USB 2.0 port (2 x Type-A) 1 x Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet port 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 4 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) Power related 2 x 24-pin Main Power connectors 2 x 8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 1 x 6-pin PCIe Power connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C® 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 p |
| Form Factor | CEB Form Factor 12 inch x 11 inch (30.5 cm x 28.0 cm) |
| Dimensions (W x L) | 12 inch x 11 inch (30.5 cm x 28.0 cm) |
| Windows 11 | Windows® 11 Windows® 10 64-bit |
| Features | ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink and onboard thermal pads - VRM heatsink design with active fans ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection ASUS Exclusive Software Armoury Crate - Fan Xpert 4 ASUS CPU-Z IT Management software supported - ASUS Con |
Questions about this item
What comes in the box and what must I source separately?
The motherboard includes the I/O shield, Wi-Fi 7 antenna, SATA cables, M.2 screws and thermal pads, and documentation. You must buy an sTR5 Threadripper CPU, ECC R-DIMM DDR5 modules, storage drives and a CEB-compatible chassis with two 8-pin CPU power connectors.
Which memory capacity should I choose for this board?
The board supports up to 1 TB across four DIMM slots in a 4-channel layout. Populate all four slots with identical ECC R-DIMM DDR5 modules for full bandwidth; capacity per module depends on your workload and budget.
What does the 36 power-stage design mean for daily operation?
Thirty-six power stages fed by dual 8-pin connectors deliver stable current to high-core-count CPUs, while the large VRM heatsinks and M.2 cooling keep temperatures low during sustained 24/7 workloads.
