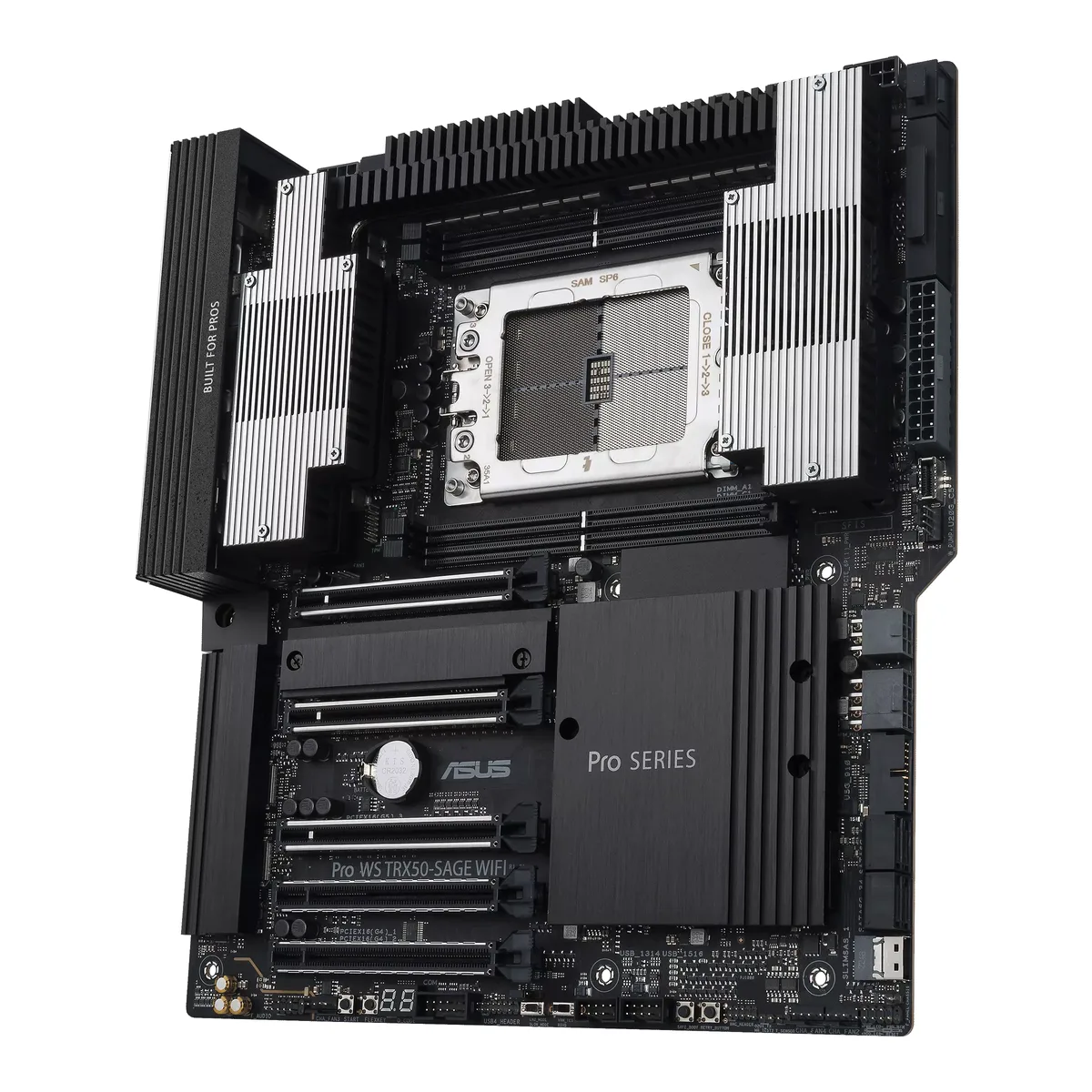

ASUS workstation motherboard, CEB form factor, dark PCB with large VRM heatsinks and multiple PCIe slots

ASUS

ASUS PRO WS TRX50-SAGE WIFI-SI WIFI6E AMD motherboard

SKU CH-M4D9-QFW0P MPN PRO WS TRX50-SAGE WIFI-SI WIFI6E

Supports up to 96-core Threadripper CPUs with 36 power stages, three PCIe 5.0 x16 slots, 10 Gb and 2.5 Gb LAN, WIFI6E, and up to 1 TB DDR5 ECC memory for 24/7 workstation stability

  • Supports up to 96-core Threadripper 7000 WX CPUs via sTR5 socket
  • 36 power stages with dual 8-pin CPU connectors deliver stable overclocking headroom
  • Three PCIe 5.0 x16 slots enable multi-GPU and high-bandwidth add-in cards
  • 10 Gb and 2.5 Gb LAN plus WIFI6E provide fast wired and wireless networking
  • ASUS IPMI expansion card support and Control Center Express allow remote server-grade management

AMD sTR5 Workstation Motherboard

The ASUS PRO WS TRX50-SAGE WIFI-SI WIFI6E is a CEB form-factor board built for AMD Ryzen Threadripper PRO 7000 WX-Series and Threadripper 7000 Series processors. It targets professionals who need multi-threaded compute density for rendering, simulation, or virtualization workloads. The 36-stage power delivery and dual 8-pin CPU connectors support sustained high-wattage operation.

Suited for ECC Memory and Remote Management

This board suits users who require up to 1TB of ECC R-DIMM DDR5 memory and hardware IPMI remote management via ASUS expansion cards. It is less appropriate for builds that cannot accommodate a CEB chassis or do not need 10 Gb and 2.5 Gb LAN, three PCIe 5.0 x16 slots, or server-grade monitoring software.

36 Power Stages with Dual 8-Pin CPU Power

The defining specification is the 36 power-stage VRM fed by two 8-pin CPU power connectors, which enables stable CPU and memory overclocking on 96-core processors. Buyers should verify their power supply provides both connectors and that their chassis fits the CEB layout before ordering.

Highlights

  • Supports up to 96-core Threadripper 7000 WX CPUs via sTR5 socket
  • 36 power stages with dual 8-pin CPU connectors deliver stable overclocking headroom
  • Three PCIe 5.0 x16 slots enable multi-GPU and high-bandwidth add-in cards
  • 10 Gb and 2.5 Gb LAN plus WIFI6E provide fast wired and wireless networking
  • ASUS IPMI expansion card support and Control Center Express allow remote server-grade management

Specifications

BrandASUS
ModelPRO WS TRX50-SAGE WIFI-SI WIFI6E
Part NumberPRO WS TRX50-SAGE WIFI-SI WIFI6E
Shipping weight3.88 kg
Package size376 × 320 × 102 mm

Questions about this item

Will this board fit a standard E-ATX workstation case?

The CEB form factor is larger than E-ATX, so verify your case supports CEB mounting holes and clearance before ordering.

How many PCIe 5.0 x16 slots are available for GPUs or accelerators?

Three full-length PCIe 5.0 x16 slots are provided for multi-GPU or add-in card configurations.

What CPU power connectors are required for the 36-stage VRM?

Two 8-pin EPS connectors feed the 36 power stages for stable delivery to high-core-count Threadripper CPUs.
