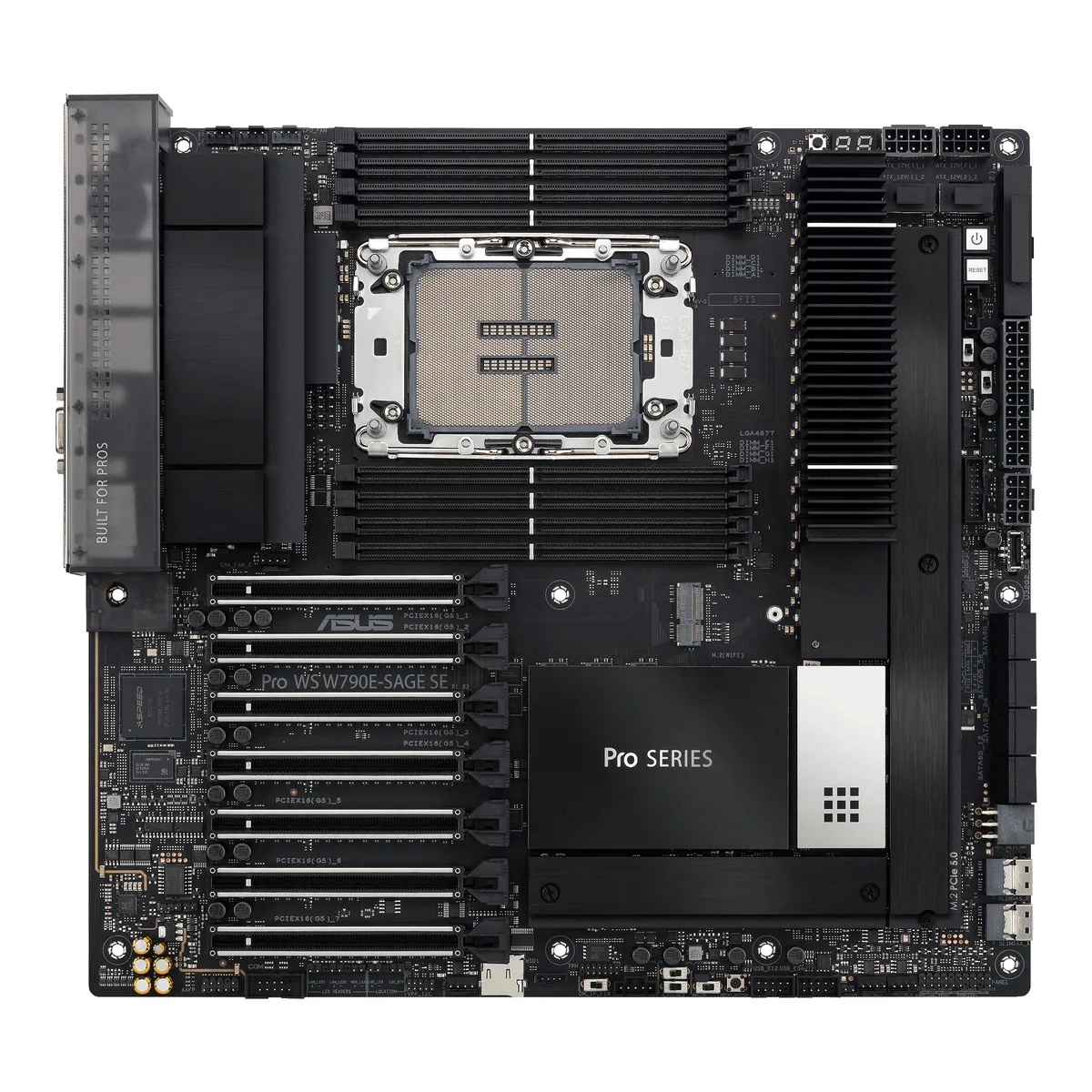

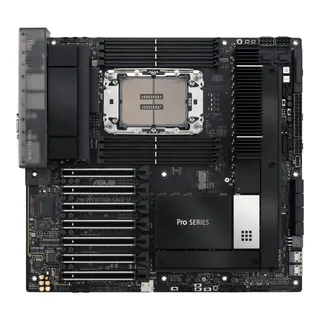

Large CEB motherboard with dark heatsinks, seven full-length PCIe slots and eight DDR5 slots

ASUS

ASUS Pro WS W790E-SAGE SE Intel motherboard

SKU CH-F3KH-YM5ZE MPN Pro WS W790E-SAGE SE

Supports Xeon W-3400 and W-2400 processors with up to 2TB DDR5 ECC memory, seven PCIe 5.0 x16 slots, dual 10Gb Ethernet and IPMI remote management

  • CPU Socket TypeLGA 4677
  • CPU TypeIntel Socket LGA4677 for Xeon W-3400 and W-2400 Series Proce
  • ChipsetIntel W790
  • Number of Memory Slots8x288pin (DDR5)
  • Memory StandardDDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5
  • Maximum Memory Supported2TB
  • Supports Intel Xeon W-3400 and W-2400 processors via LGA 4677 socket
  • Up to 2TB DDR5 ECC Registered memory across eight channels
  • Seven PCIe 5.0 x16 expansion slots for high-bandwidth add-in cards
  • Dual Intel 10Gb Ethernet plus dedicated BMC management LAN
  • 14+1+1 power stages with extensive VRM and M.2 heatsinks

CEB Motherboard for Xeon Workstations

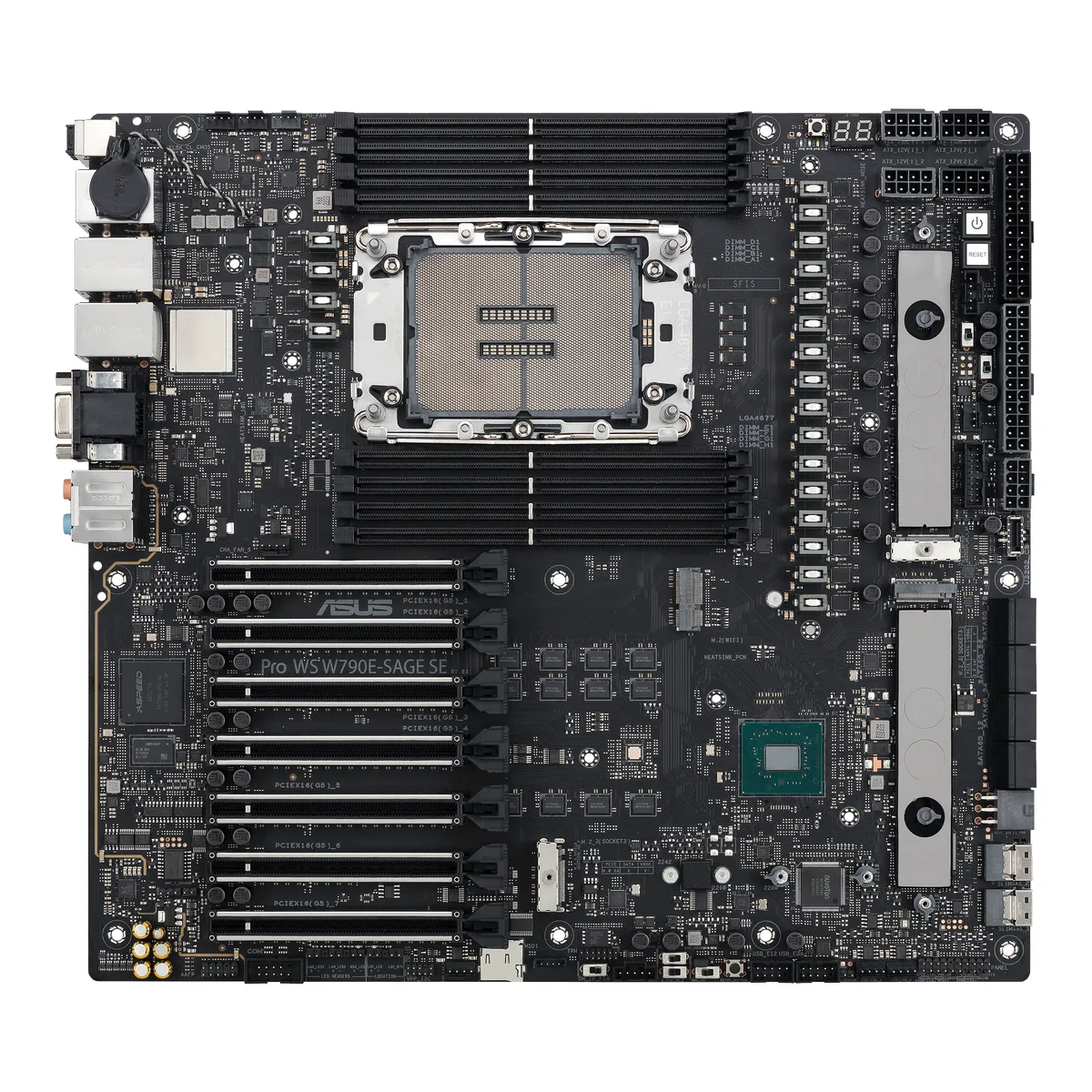

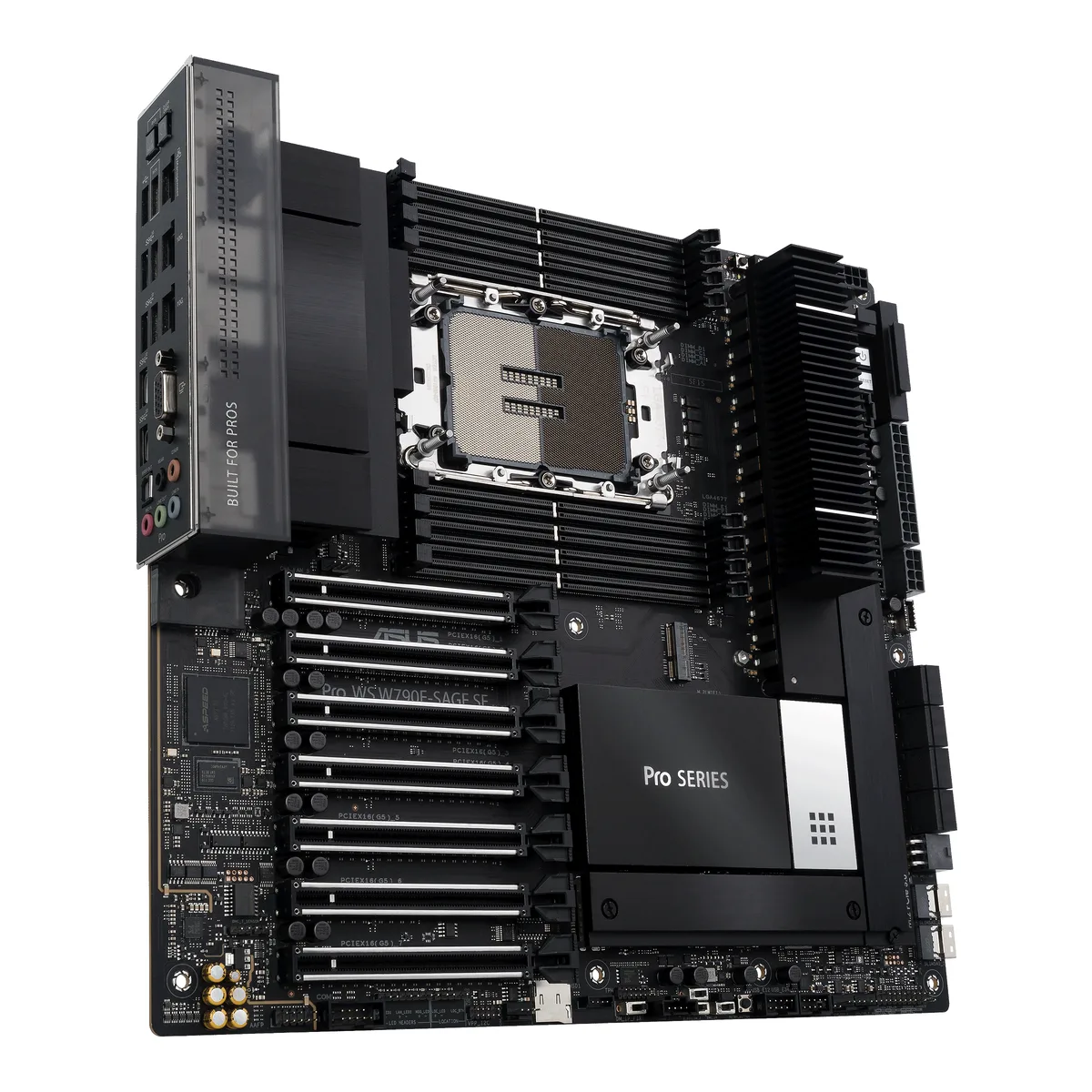

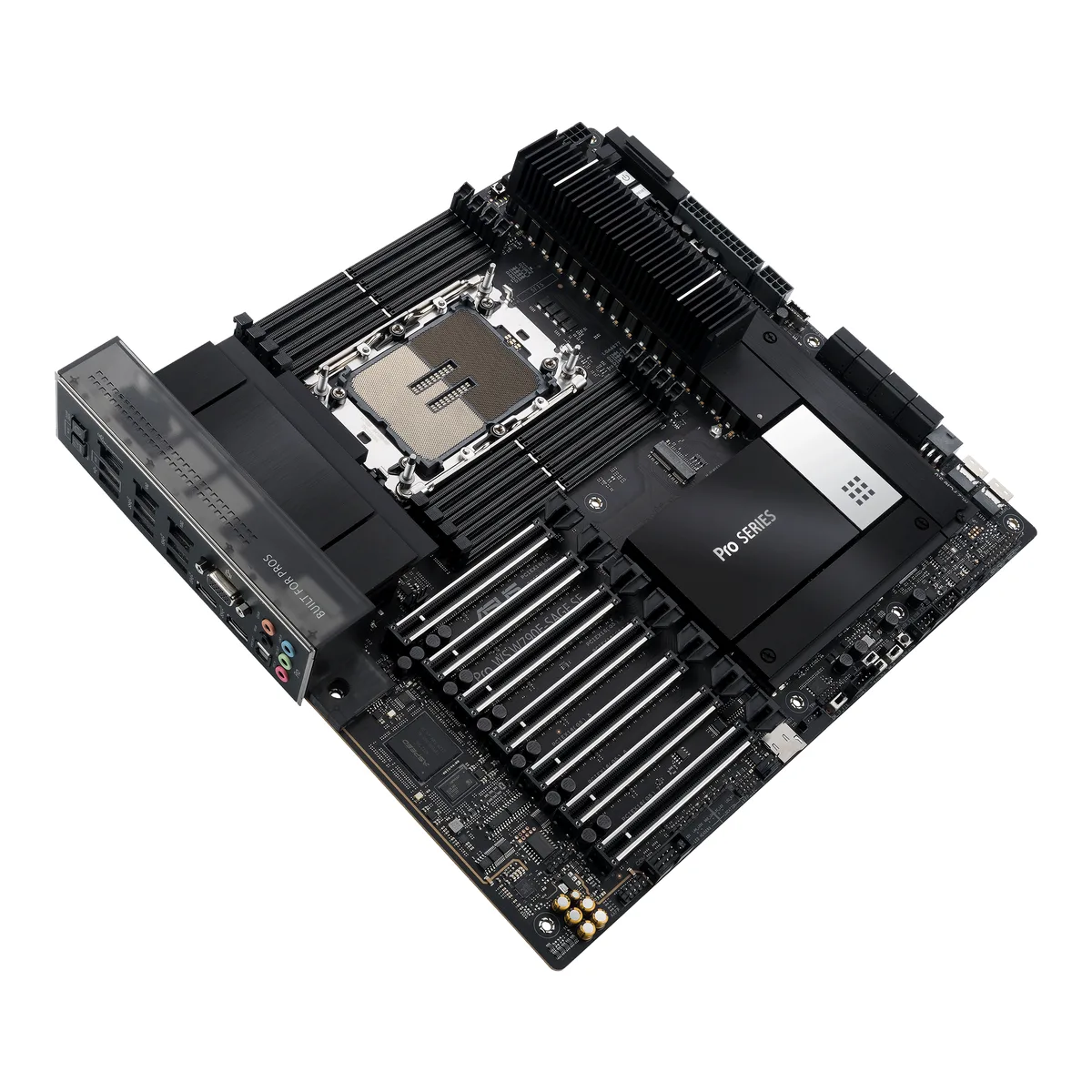

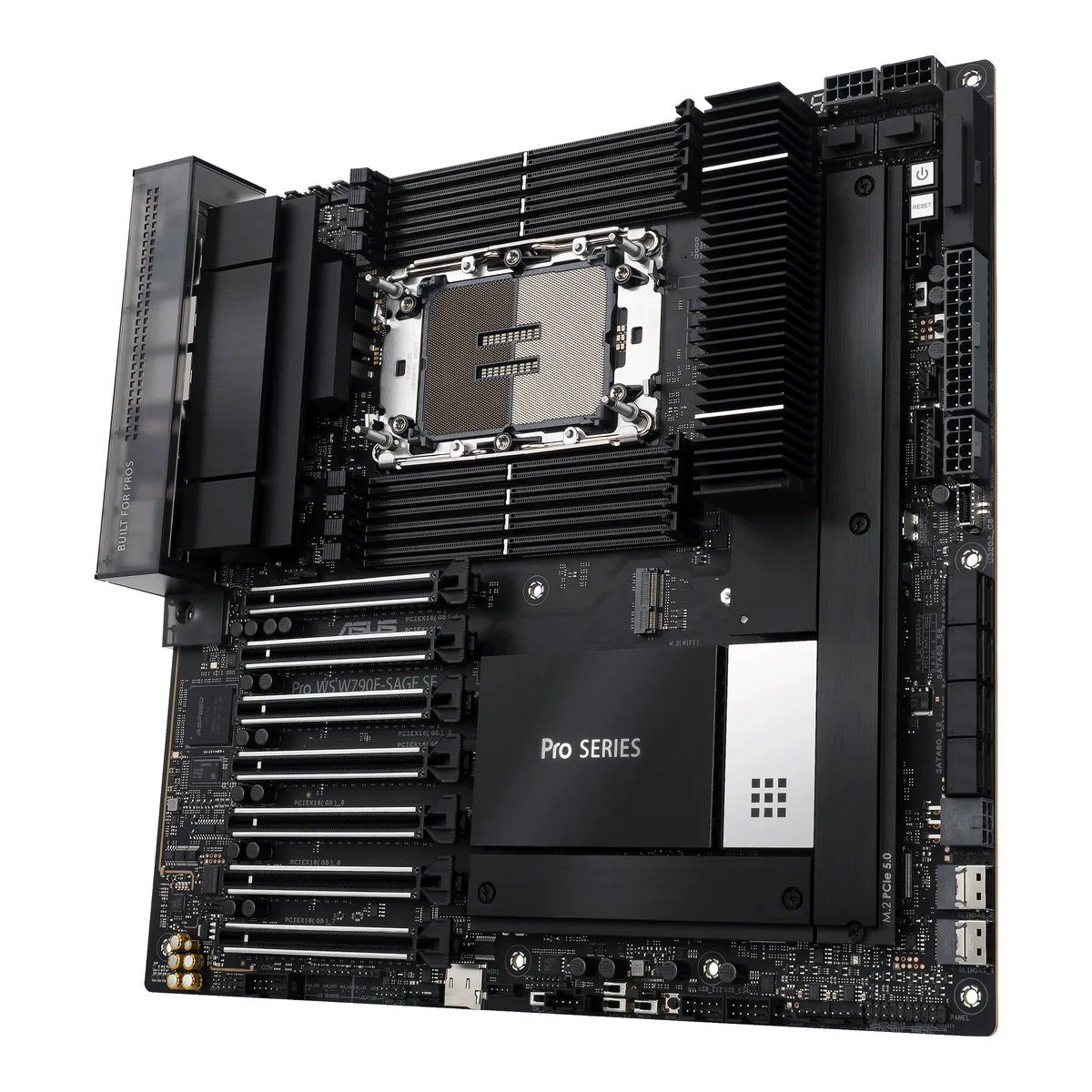

The ASUS Pro WS W790E-SAGE SE is a CEB form-factor motherboard built around the Intel W790 chipset and LGA 4677 socket. It targets professionals who need a stable platform for Intel Xeon W-3400 or W-2400 series processors in compute-heavy workloads. Eight DDR5 channels support up to 2TB of ECC Registered memory for data integrity.

Seven PCIe 5.0 x16 Slots and Dual 10G LAN

With a Xeon W-3400 CPU the board exposes seven PCIe 5.0 x16 slots running at x16/x16/x16/x16/x16/x8/x16, while a W-2400 CPU provides four full x16 links. Two M.2 sockets connect through the CPU at PCIe 5.0 x4 and a third runs from the chipset at PCIe 4.0 x4. Eight SATA 6Gb/s ports and dual Intel 10Gb Ethernet plus a 1Gb port complete the I/O.

14+1+1 DrMOS Stages and IPMI Remote Management

A 14+1+1 DrMOS power design with 8-pin and 6-pin auxiliary connectors feeds the CPU, while large VRM, chipset and M.2 heatsinks handle thermals. The ASMedia AST2600 BMC provides a dedicated IPMI LAN port for out-of-band management via ASUS Control Center Express. Installers must verify CPU cooler clearance against the tall VRM heatsinks and confirm memory population rules for the target Xeon SKU.

Highlights

  • Supports Intel Xeon W-3400 and W-2400 processors via LGA 4677 socket
  • Up to 2TB DDR5 ECC Registered memory across eight channels
  • Seven PCIe 5.0 x16 expansion slots for high-bandwidth add-in cards
  • Dual Intel 10Gb Ethernet plus dedicated BMC management LAN
  • 14+1+1 power stages with extensive VRM and M.2 heatsinks

Specifications

BrandASUS
ModelPRO WS W790E-SAGE SE
Part Number90MB1C20-M0AAY0
CPU Socket TypeLGA 4677
CPU TypeIntel Socket LGA4677 for Xeon W-3400 and W-2400 Series Processors*
Supports Intel Turbo Boost Max Technology 3.0
* Refer to www.asus.com for CPU support list.
ChipsetIntel W790
Number of Memory Slots8x288pin (DDR5)
Memory StandardDDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered Memory*
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
Maximum Memory Supported2TB
Channel SupportedEight Channel
Memory Performance ProfileIntel XMP 3.0
ECC SupportedYes
PCI Express 5.0 x16Intel Xeon W-3400 Series Processors*
7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16)**
Intel Xeon W-2400 Series Processors*
4 x PCIe 5.0 slot(s) (Four at x16/x16/x16/x16)**
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Please refer to the block diagrams in the Appendix for more details.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Serial ATA (SATA)8 x SATA 6Gb/s
M.2Intel Xeon W-3400 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
Intel W790 Chipet**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
*** M.2_1 and M.2_2 slots will be disabled once an Intel Xeon W-2400 Series Processor is installed.
SATA RAIDIntel VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately.
Audio ChipsetRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB l
Audio Channels7.1 Channels
LAN Chipset1 x Intel dual 10Gb Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard
Max LAN Speed2 x 10Gbps + 1Gbps

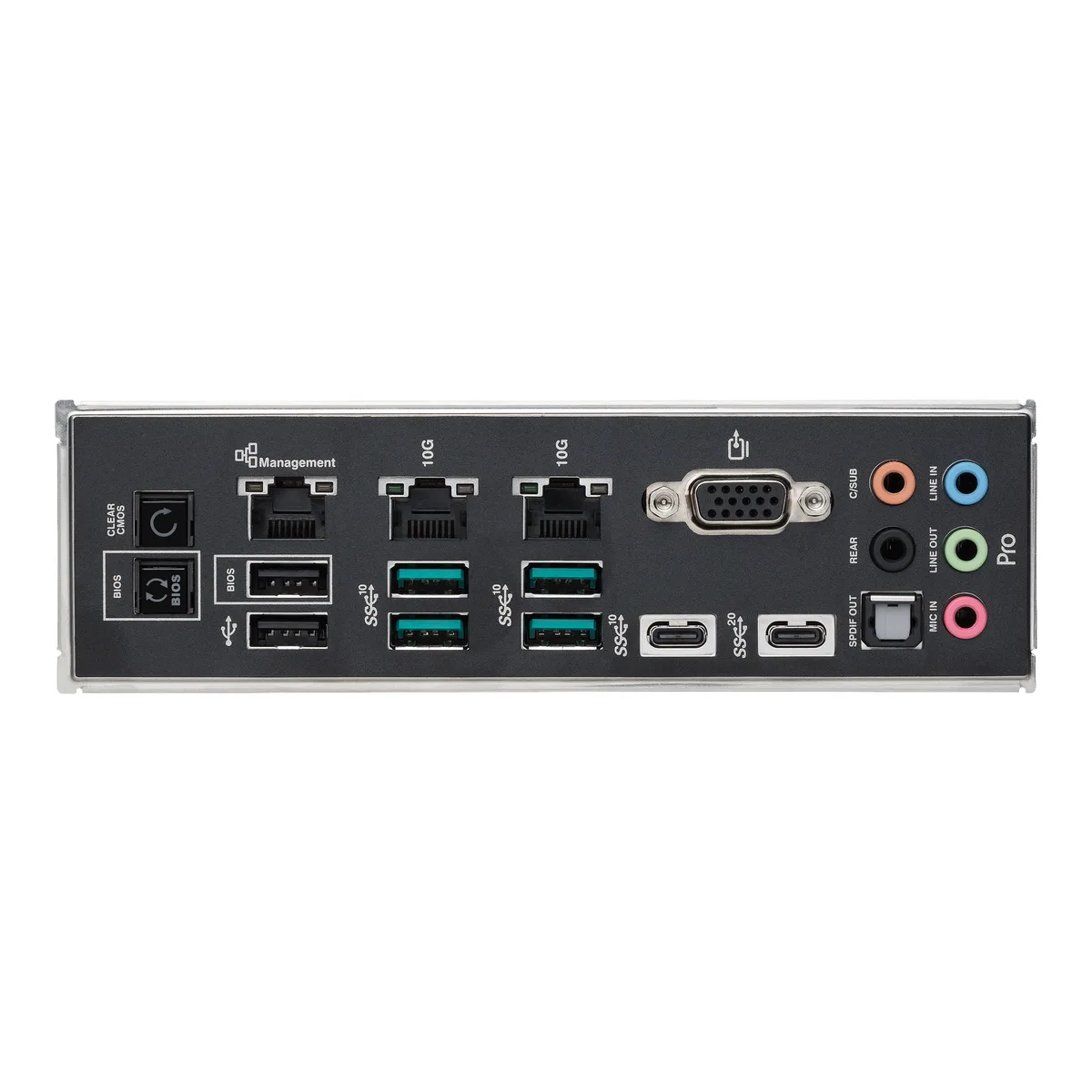

Back I/O Ports1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C)
2 x USB 2.0 port(s) (2 x Type-A)
1 x VGA port
2 x Intel dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USBUSB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C )
1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
5 x 4-pin Chassis Fan header(s)
1 x W_PUMP+ header(s)
Storage related
3 x M.2 slots (Key M)
2 x SlimSAS connector(s)
8 x SATA 6Gb/s ports
1 x VROC Key connector
Miscellaneous
1 x COM Port header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x M.2 slot (Key E)
1 x ReTry button
1 x Safe Boot button
1 x SPI TPM header (14-1pin)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
BMC Related
1 x BMC switch
1 x VGA switch
Windows 11Supported
Form FactorEEB
Dimensions (W x L)12" x 13"
FeaturesExtreme OC Kit
- FlexKey button
- LN2 Mode
- ReTry button
- Safe boot button
- Start button
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Steel backplate
- VRM heatsink design
ASUS EZ DIY
- BI
Package ContentsCables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x VRM Fan holder
1 x Q-connector
1 x M.2 Rubber Package(s)
1 x M.2 backplate Rubber Package(s)
1 x Screw package for M.2 Key E
1 x CPU guard for LGA 4677 E1A
1 x CPU guard for LGA 4677 E1B
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Shipping weight4.04 kg
Package size378 × 362 × 80 mm
