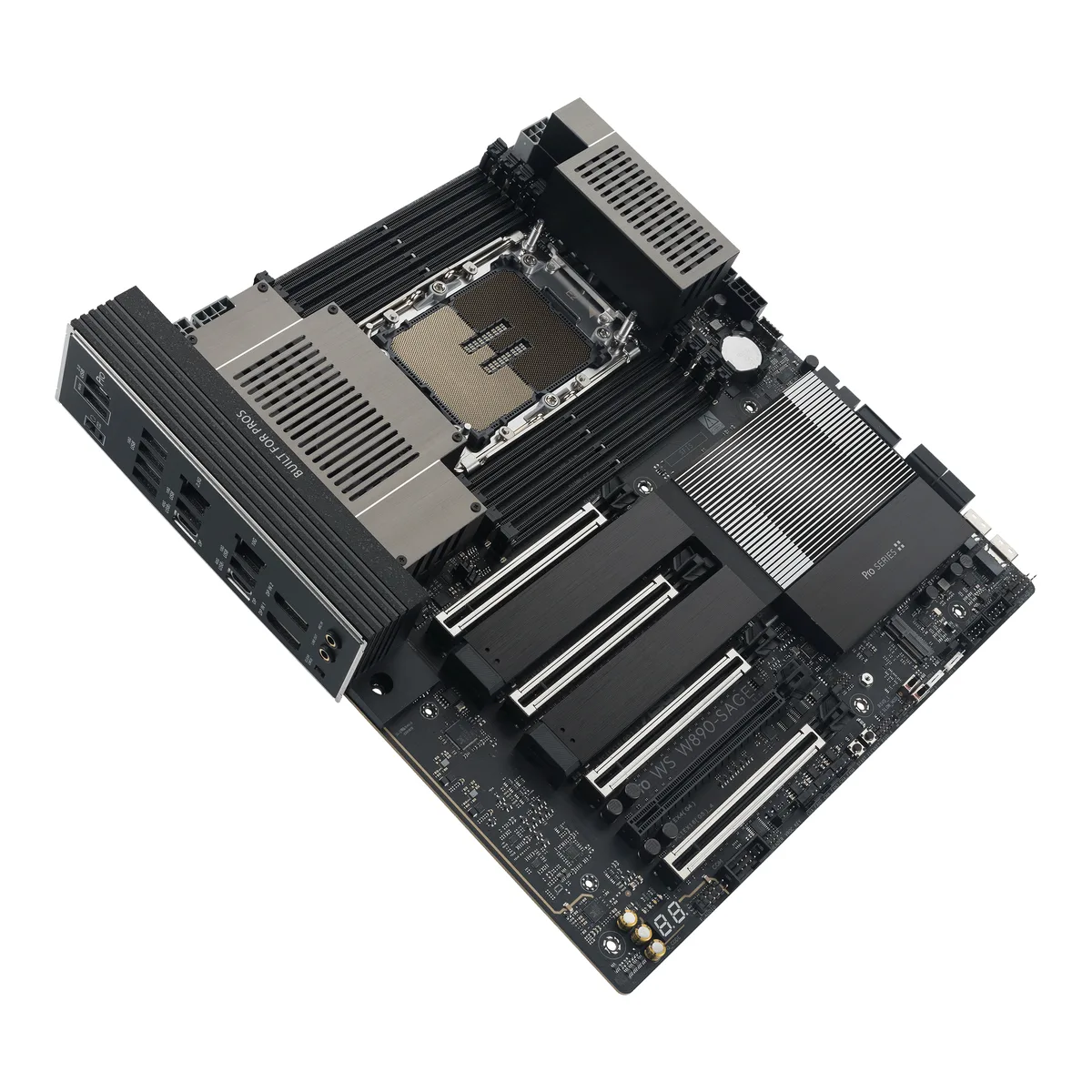

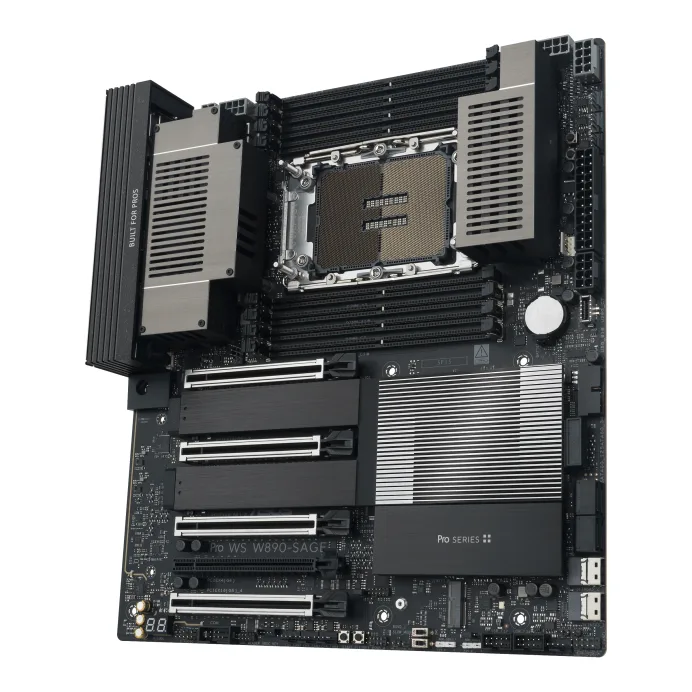

ASUS Pro WS W890-SAGE Intel motherboard
Intel Xeon 600 workstation board with LGA 4710 socket, quad-channel DDR5 ECC memory, four PCIe 5.0 x16 slots, four M.2 slots, 10Gb and 2.5Gb LAN, USB4 and USB 20Gbps Type-C.
- CPU Socket TypeLGA 4710
- CPU TypeXeon 600 (LGA4710)
- ChipsetIntel W890
- Number of Memory Slots8x288pin (DDR5)
- Channel SupportedQuad Channel
- Memory Performance ProfileIntel XMP 3.0
Option
- ASUS Pro WS W890-SAGE CEB workstation Motherboard
- ASUS Pro WS W890-SAGE CEB workstation Motherboard + TEAMGROUP CTCMD564G6000HC32AQC01 T-Create Master 64GB kits(16GBx4) DDR5 6000 (PC5-48000) Overclock
- ASUS Pro WS W890-SAGE CEB workstation Motherboard + TEAMGROUP CTCMD5128G6000HC30FQC01 T-Create Master 128GB kits(32GBx4) DDR5 6000 (PC5-48000) Overclo
Struck-through versions exist but are not stocked here.
- Ready for Intel Xeon 600 series processors with LGA 4710 socket
- 8 DDR5 memory slots support ECC RDIMM, 3DS-RDIMM and MRDIMM in quad-channel mode
- 4 PCIe 5.0 x16 slots plus CXL support for GPU and accelerator expansion
- Dual 10Gb and 2.5Gb Ethernet with USB4 40Gbps and USB 20Gbps Type-C connectivity
- 12+(2+2)+1+2 power stages with dual PSU support and comprehensive VRM, chipset and M.2 cooling
LGA 4710 workstation motherboard
The ASUS Pro WS W890-SAGE is a CEB form-factor board built for Intel Xeon 600 series processors in the LGA 4710 socket. It targets professional workstations that need quad-channel DDR5 memory with ECC support and extensive PCIe 5.0 connectivity for compute-intensive workloads.
CPU and power requirements
Verify that the selected Xeon 690, 670, 650 or 630 processor matches the LGA 4710 socket and that the power supply provides the required 8-pin connectors for the 12+(2+2)+1+2 stage VRM. The board also supports dual PSU operation through additional CPU and PCIe power headers.
Build integration
Four PCIe 5.0 x16 slots and one PCIe 4.0 x16 slot running at x4 give room for multiple GPUs or accelerators, while CXL support on the four primary slots adds memory-expansion options. Two SlimSAS connectors and four SATA 6Gb/s ports handle high-density storage, and dual 10Gbps plus 2.5Gbps LAN with IPMI-ready headers simplify remote management in rack or tower deployments.
Highlights
- Ready for Intel Xeon 600 series processors with LGA 4710 socket
- 8 DDR5 memory slots support ECC RDIMM, 3DS-RDIMM and MRDIMM in quad-channel mode
- 4 PCIe 5.0 x16 slots plus CXL support for GPU and accelerator expansion
- Dual 10Gb and 2.5Gb Ethernet with USB4 40Gbps and USB 20Gbps Type-C connectivity
- 12+(2+2)+1+2 power stages with dual PSU support and comprehensive VRM, chipset and M.2 cooling
Specifications
| Brand | ASUS |
|---|---|
| Model | Pro WS W890-SAGE |
| Part Number | 90MB1MW0-M0AAY0 |
| CPU Socket Type | LGA 4710 |
| CPU Type | Xeon 600 (LGA4710) |
| Chipset | Intel W890 |
| Number of Memory Slots | 8x288pin (DDR5) |
| Channel Supported | Quad Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| ECC Supported | Yes |
| Memory Feature | DDR5, ECC Registered DIMM (RDIMM), 3DS-RDIMM, and Multiplexed Combined Rank DIMM (MRDIMM) |
| PCI Express 5.0 x16 | Intel Xeon 690/670/650/630 Series Processors* 4 x PCIe 5.0 x16 slots (supports x16 mode) ** CXL (Compute Express Link) is supported in PCIEX16(G5)_1, PCIEX16(G5)_2, PCIEX16(G5)_3, and PCIEX16(G5)_4 |
| PCI Express 4.0 x16 | Intel W890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | Intel Xeon 690/670/650/630 Series Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| SAS | SlimSAS_1 connector supports PCIe 4.0 x4 mode SlimSAS_2 connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an SFF-8654 adapter cable. The cable is purchased separately. |
| Audio Channels | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not s |
| Max LAN Speed | 10Gbps + 2.5Gbps |
| Back I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x Realtek 10Gb Ethernet 1 x Intel 2.5Gb Ethernet 2 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button 2 x DP IN ports |
| Onboard USB | 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 5 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 4-pin VRM Fan header (with VRM fan onboard) Power Related 1 x 24-pin Main Power connector 1 x 4-pin to 24-pin Main Power connectors 2 x 8-pin +12V CPU Power connector 2 x 8-pin PCIe to CPU power connectors 1 x 8-pin PCIe Power connector Miscellaneous 2 x Addressable RGB Gen 2 header(s) 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over voltage jumper 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x M.2 slot (Key E) 1 x ReTry button |
| BIOS Feature | 512 Mb Flash ROM, UEFI AMI BIOS(text-based) |
| Form Factor | CEB |
| Dimensions (W x L) | 12.0" x 11.0" |
| Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Code - Q-Connector - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Steel backplate - VRM heatsink design - Fan-based active cooling design for VRM heatsink ASUS EZ DIY - Backplate - BIOS FlashBack button - BIOS FlashBack |
| Package Contents | Cables 2 x SATA 6Gb/s cables 1 x Thermistor cable pack 1 x DisplayPort cable 1 x 4-pin to 24-pin adapter cable for ATX power connector Additional Cooling Kit 1 x detachable VRM/memory fan bracket kit Miscellaneous 1 x Q-connector 2 x M.2 Q-Slide package 2 x M.2 backplate rubber packages 1 x Screw package for M.2 Key E 1 x E2A CPU carrier (for Intel Xeon 690 Series Processors) 1 x E2B CPU carrier (for Intel Xeon 670/650/630 Series Processors) Documentation 1 x ACC Express activation key card 1 x Quick start guide |
| Shipping weight | 3.63 kg |
| Package size | 381 × 320 × 102 mm |
Questions about this item
Will this board accept a Xeon 600 series processor in an LGA 4710 socket?
Yes, the LGA 4710 socket is built for Xeon 600 series workstation CPUs including the 690, 670, 650 and 630 models.
How many DDR5 RDIMM slots are available and what memory channels does the chipset provide?
Eight 288-pin slots run in quad-channel mode and support ECC RDIMM, 3DS-RDIMM and MRDIMM with Intel XMP 3.0 profiles.
Which high-speed expansion slots are wired for PCIe 5.0 x16 and do they support CXL?
Four full-length PCIe 5.0 x16 slots operate at x16 electrical and all four support Compute Express Link.
