Large rectangular EATX motherboard with silver aluminium VRM heatsinks, black PCB and multiple PCIe slots

ASUS

ASUS Pro WS WRX80E-SAGE SE WIFI AMD motherboard

SKU CH-6PYS-M7V6V

EATX workstation board for AMD Ryzen Threadripper Pro CPUs with eight-channel DDR4 up to 2048 GB, seven PCIe 4.0 x16 slots, triple M.2, dual 10 Gb Ethernet, Wi-Fi 6 and ASMB9-iKVM remote management

  • CPU Socket TypesWRX8
  • CPU TypeAMD Ryzen Threadripper Pro Processors
  • ChipsetAMD WRX80
  • Number of Memory Slots8x288pin (DDR4)
  • Memory StandardDDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz ECC
  • Maximum Memory Supported2048GB
  • Supports AMD Ryzen Threadripper PRO processors with sWRX8 socket
  • 16 power stages, ProCool II and 6-pin connectors with aluminium VRM and M.2 heatsinks
  • 11 USB 3.2 Gen 2 ports, USB 3.2 Gen 2x2 Type-C, triple M.2 PCIe 4.0 and dual 10Gb Ethernet
  • ASMB9-iKVM BMC enables out-of-band IPMI remote management
  • Validated for 24/7 dependability with SafeSlot reinforcement

Threadripper Pro workstation motherboard

The ASUS Pro WS WRX80E-SAGE SE WIFI is an EATX board built for AMD Ryzen Threadripper Pro processors on the sWRX8 socket. It delivers eight-channel DDR4 memory support up to 2048 GB and seven PCIe 4.0 x16 slots for multi-GPU or accelerator deployments. Dual 10 Gb Ethernet, Wi-Fi 6 and eleven USB 3.2 Gen 2 ports handle high-throughput I/O. Onboard ASMB9-iKVM provides out-of-band remote management.

Suits multi-GPU compute and storage-heavy workflows

This board targets users who need seven full-length PCIe 4.0 x16 slots, eight memory channels and dual 10 Gb LAN for rendering, simulation or large-scale storage arrays. The integrated BMC and IPMI stack benefits IT teams managing headless nodes. Builds requiring a smaller form factor, fewer expansion slots or consumer-grade CPUs should consider a different platform.

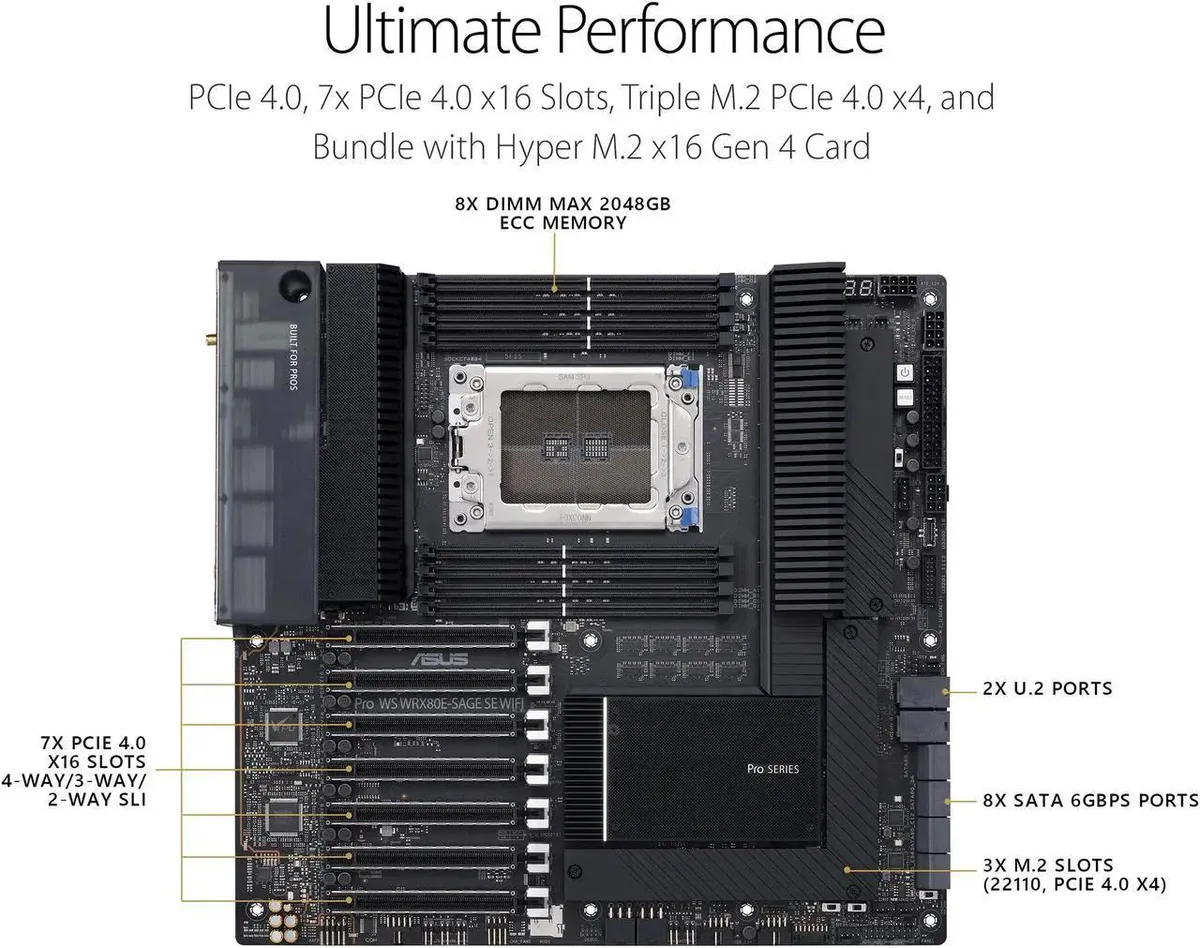

Seven PCIe 4.0 x16 slots dictate expansion capacity

The defining specification is the seven PCIe 4.0 x16 slots wired from the CPU, each capable of bifurcation for NVMe RAID. That density determines how many graphics cards, compute accelerators or HYPER M.2 add-in cards the system can host. If the workload needs fewer than four such slots, a less expansive WRX80 or TRX50 board will be more appropriate.

Highlights

  • Supports AMD Ryzen Threadripper PRO processors with sWRX8 socket
  • 16 power stages, ProCool II and 6-pin connectors with aluminium VRM and M.2 heatsinks
  • 11 USB 3.2 Gen 2 ports, USB 3.2 Gen 2x2 Type-C, triple M.2 PCIe 4.0 and dual 10Gb Ethernet
  • ASMB9-iKVM BMC enables out-of-band IPMI remote management
  • Validated for 24/7 dependability with SafeSlot reinforcement

Specifications

BrandASUS
ModelPro WS WRX80E-SAGE SE WIFI
CPU Socket TypesWRX8
CPU TypeAMD Ryzen Threadripper Pro Processors
ChipsetAMD WRX80
Number of Memory Slots8x288pin (DDR4)
Memory StandardDDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory
Maximum Memory Supported2048GB
Channel SupportedEight Channel
PCI Express 4.0 x16AMD Ryzen Threadripper PRO Series Processors
7 x PCIe 4.0/3.0 x16 slot(s)*
* Support PCIe bandwidth bifurcation for RAID on CPU function.
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x16None
Serial ATA (SATA)AMD WRX80 Chipset:
4 x SATA 6Gb/s ports
ASMedia ASM1061 Controller:
4 x SATA 6Gb/s ports
M.2AMD Ryzen Threadripper PRO Series Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
U.2_1 slot supports U.2 NVMe device and up to 2 SATA devices*
AMD WRX80 Chipset:
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
U.2_2 slot supports U.2 NVMe device and up to 2 SATA devices*
*The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When
SATA RAIDSupports NVMe RAID configurations via M.2 storages
Audio ChipsetRelatek ALC4080 7.1 Surround Sound High Definition Audio CODEC
Audio Channels7.1
LAN Chipset1 x Intel X550-AT2 dual 10Gb Ethernet
ASUS LANGuard
Max LAN Speed2 x 1Gbps
Wireless LANIntel Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports 2.4/5GHz Dual-Band
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface
BluetoothBluetooth v5.1
Back I/O Ports1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C)
1 x ASUS Wi-Fi Module
2 x Intel X550-AT2 dual 10Gb Ethernet ports
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
HDMI1 x HDMI
USB 3.02 x USB 3.0
Onboard USB1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
6 x 4-pin Chassis Fan header(s)
1 x VRM heatsink Fan header
1 x Chipset Fan header
Storage related
3 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
2 x U.2 slots
BMC Related
1 x BMC switch
1 x IPMI switch
1 x Messange LED header
1 x Micro SD card socket
2 x LAN LED header(s)
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header
1 x VPP_I2C header
Miscellaneous
1 x COM Port header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x SPI
Form FactorExtended ATX
LED LightingNone RGB
Dimensions (W x L)12.20" x 13"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
2 x 6-pin PCIe Graphics Card connector
1 x 8-pin PCIe Power connector
FeaturesMulti-GPU Support:
Supports NVIDIA 4-Way/3-Way/2-Way SLI Technology
Audio
Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB la
Package ContentsCables:
6 x SATA 6Gb/s cables
1 x VGA cable
Miscellaneous:
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
1 x Hyper M.2 X16 Gen 4 Card
3 x M.2 Rubber Package(s)
3 x M.2 SSD screw package(s)
1 x Q-connector
Installation Media:
1 x Support DVD
Documentation:
1 x User manual

Questions about this item

Will this board fit in a standard EATX case?

The board uses the EATX form factor, so it requires a case that explicitly supports EATX dimensions. Check your case specifications for EATX clearance before purchasing.

Which AMD processors are compatible with the sWRX8 socket?

The sWRX8 socket supports AMD Ryzen Threadripper PRO Series Processors only. Standard Threadripper or Ryzen CPUs are not compatible with this platform.

What memory configurations does the eight-channel architecture support?

Eight 288-pin DDR4 slots support ECC and non-ECC U-DIMM, R-DIMM and 3DS R-DIMM modules up to 2048 GB total. Supported speeds are 3200, 3000, 2933, 2800, 2666, 2400 and 2133 MHz.
