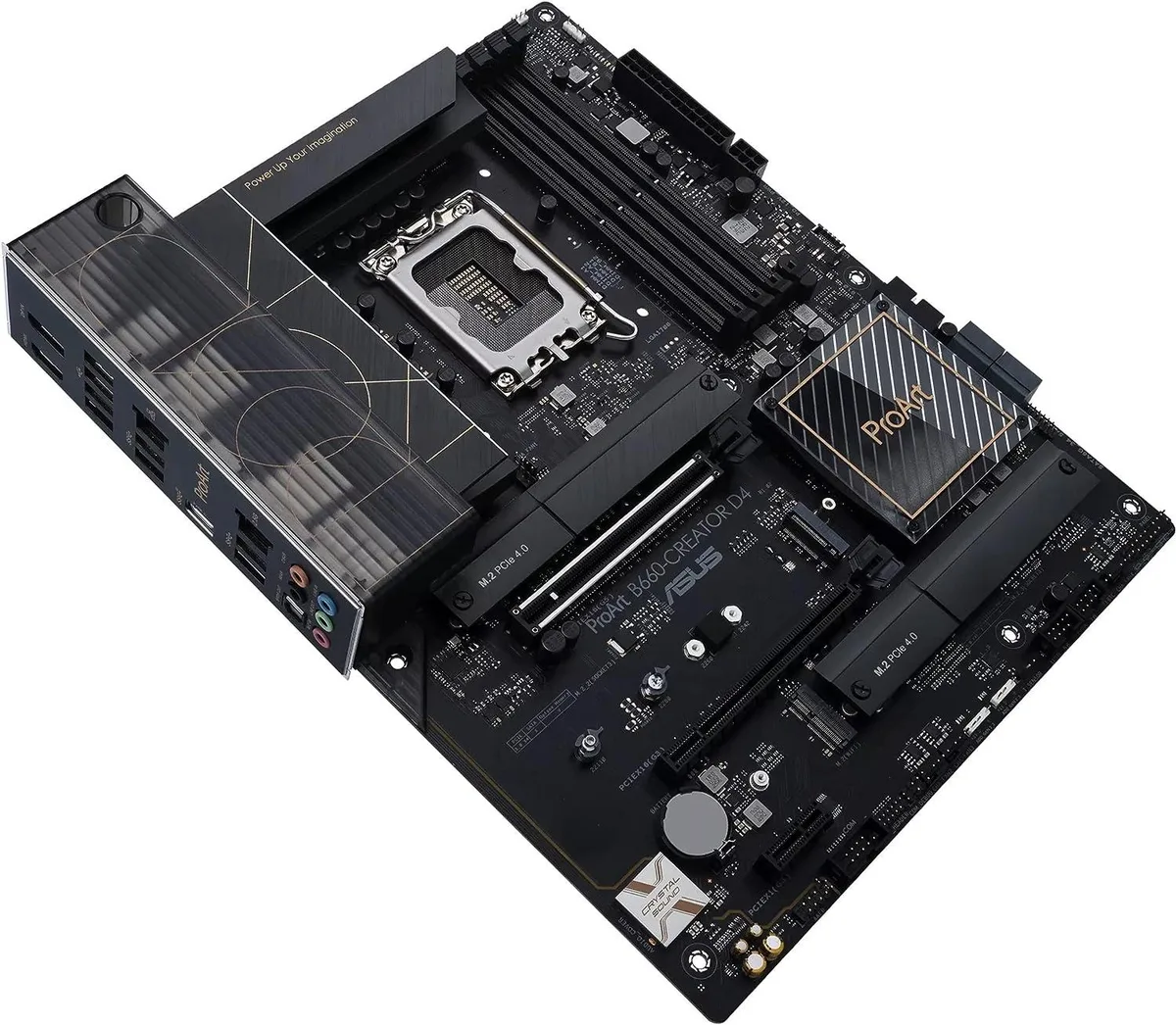

ATX motherboard dark grey finish silver heatsinks LGA 1700 socket four DDR4 slots

ASUS

ASUS ProArt B660-Creator D4 Intel motherboard

SKU CH-Q8AM-86JAJ

LGA 1700 ATX board for 12th and 13th Gen Intel Core CPUs with DDR4 support, PCIe 5.0 x16, three M.2 slots, 2.5G and 1G LAN, and front USB 3.2 Gen2x2 Type-C with 60W charging

  • CPU Socket TypeLGA 1700 * Dedicated LGA1700 mounting bracket is required.
  • CPU TypeSupports 13th / 12th Gen Intel Core Processors, Pentium Gold
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel B660
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 12th & 13th Gen Intel Core CPUs via LGA 1700 socket
  • PCIe 5.0 x16 slot enables high-speed graphics and storage bandwidth
  • Dual 2.5Gb & 1Gb LAN plus 3 M.2 slots for fast connectivity
  • Front USB 3.2 Gen2x2 Type-C delivers 60W charging for creator gear
  • AI noise cancellation and Creator Hub streamline content-creation workflows

Creator platform for Intel 12th and 13th Gen

The ASUS ProArt B660-Creator D4 is an ATX motherboard built around the Intel B660 chipset and the LGA 1700 socket. It accepts 12th and 13th Generation Intel Core, Pentium Gold and Celeron processors. Four DDR4 slots support up to 128 GB of memory in dual-channel mode. The board targets content creators who need reliable connectivity and expansion for professional workloads.

Sustained 24/7 operation with PCIe 5.0 graphics

Validated for continuous 24/7 operation, the platform delivers stable throughput for long rendering or encoding sessions. A single PCI Express 5.0 x16 slot provides high-bandwidth graphics attachment, while a second x16 slot runs at PCIe 3.0 x4 for additional cards. Three M.2 slots accept 2242, 2260, 2280 and 22110 drives, with the primary slot operating at PCIe 4.0 x4 when paired with a 12th Gen CPU. Dual Ethernet at 2.5 Gb and 1 Gb maintains consistent network throughput.

Upgrade from older DDR4 or B-series boards

Moving from an earlier B-series or DDR4 platform adds PCIe 5.0 graphics support, 2.5 Gb Ethernet and front-panel USB 3.2 Gen2x2 Type-C with 60 W charging. The jump is worthwhile when projects demand faster storage lanes, higher memory capacity or the management features of ASUS Control Center Express. BIOS FlashBack allows updates without a CPU installed, simplifying the transition to 13th Gen processors.

Highlights

  • Supports 12th & 13th Gen Intel Core CPUs via LGA 1700 socket
  • PCIe 5.0 x16 slot enables high-speed graphics and storage bandwidth
  • Dual 2.5Gb & 1Gb LAN plus 3 M.2 slots for fast connectivity
  • Front USB 3.2 Gen2x2 Type-C delivers 60W charging for creator gear
  • AI noise cancellation and Creator Hub streamline content-creation workflows

Specifications

BrandASUS
ModelProArt B660-CREATOR D4
CPU Socket TypeLGA 1700
* Dedicated LGA1700 mounting bracket is required.
CPU TypeSupports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/
* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel B660
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5333(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*
* Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
* Actual support may vary by CPU.
PCI Express 3.0 x161 x PCI Express 3.0 x16
* Supports x4 mode.
PCI Express x11 x PCIe 3.0 x1 slot*
* PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel B660 Chipset*:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
* Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5Gb Ethernet
Second LAN ChipsetIntel 1Gb Ethernet
Max LAN Speed2.5Gbps + 1Gbps
Back I/O Ports1 x USB Type-C port supports USB 3.2 Gen2 and DisplayPort output
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
1 x Intel 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Onboard USB1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with 60W PD/QC4.0)
1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Windows 11Ready
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
FeaturesSpecial Features:
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Software Features:
ASUS Exclusive Software
Armoury Crate
- AURA Crea
Package ContentsAccessories:
Cables
1 x DisplayPort cable
2 x SATA 6Gb/s cables
Miscellaneous
3 x M.2 Rubber Packages
1 x Q-connector
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide

Questions about this item

How loud and hot does the ProArt B660-Creator D4 get when running 24/7?

The board is tested for 24/7 operation and uses SafeSlot reinforcement. Active cooling comes from your CPU cooler and case fans; the motherboard itself adds no extra noise or heat beyond standard VRM warmth.

What DDR4 memory must I already own to use the four 288-pin slots?

You need DDR4 modules up to 5333(OC) MT/s; the board supports 128 GB maximum in dual-channel mode across the four slots.

Can I keep my PCIe 3.0 x4 NVMe drive in the second M.2 slot while using the PCIe 3.0 x1 slot?

No — the PCIe 3.0 x1 slot shares bandwidth with M.2_2; enabling M.2_2 at PCIe 3.0 x4 disables the x1 slot.
