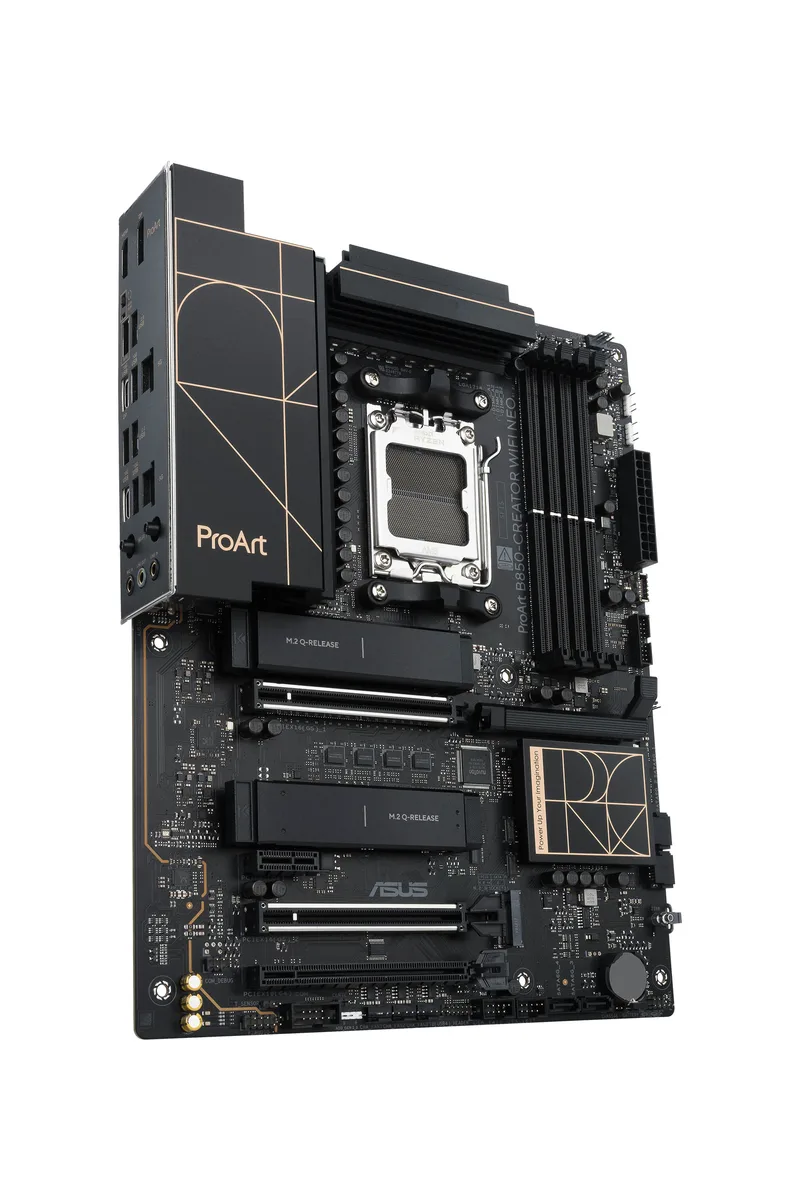

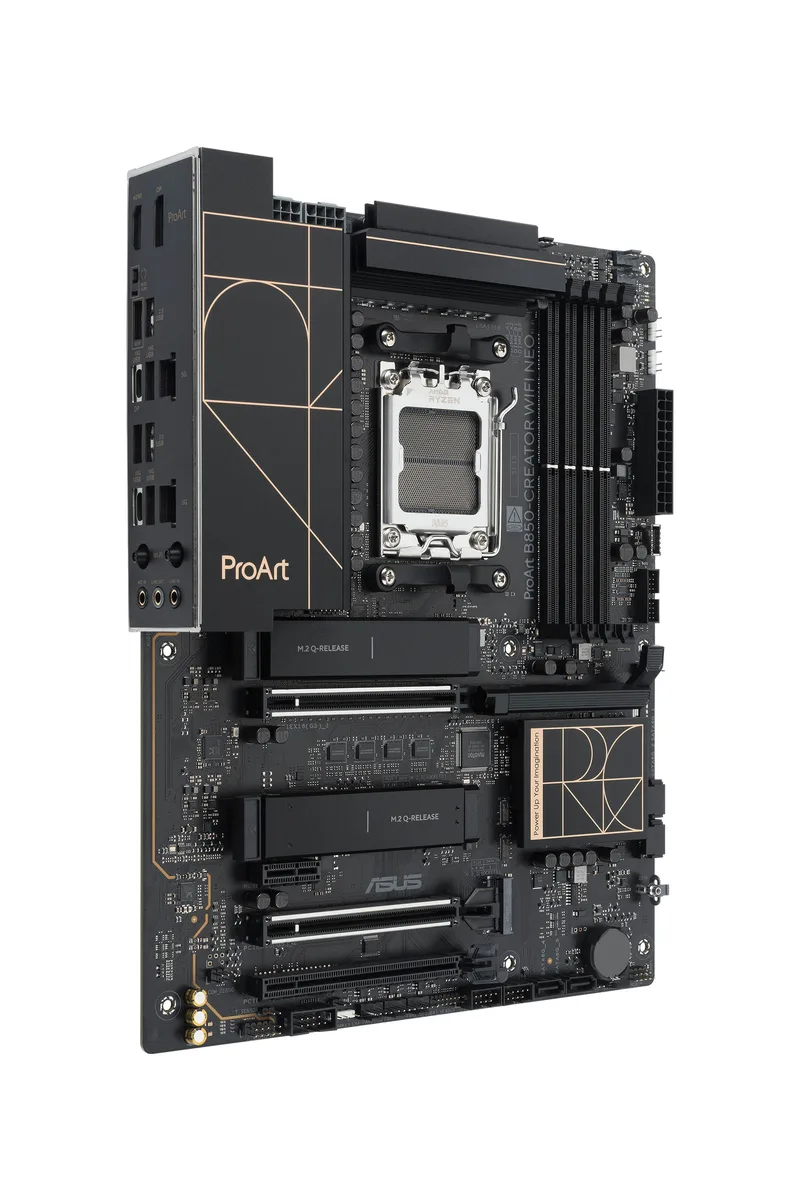

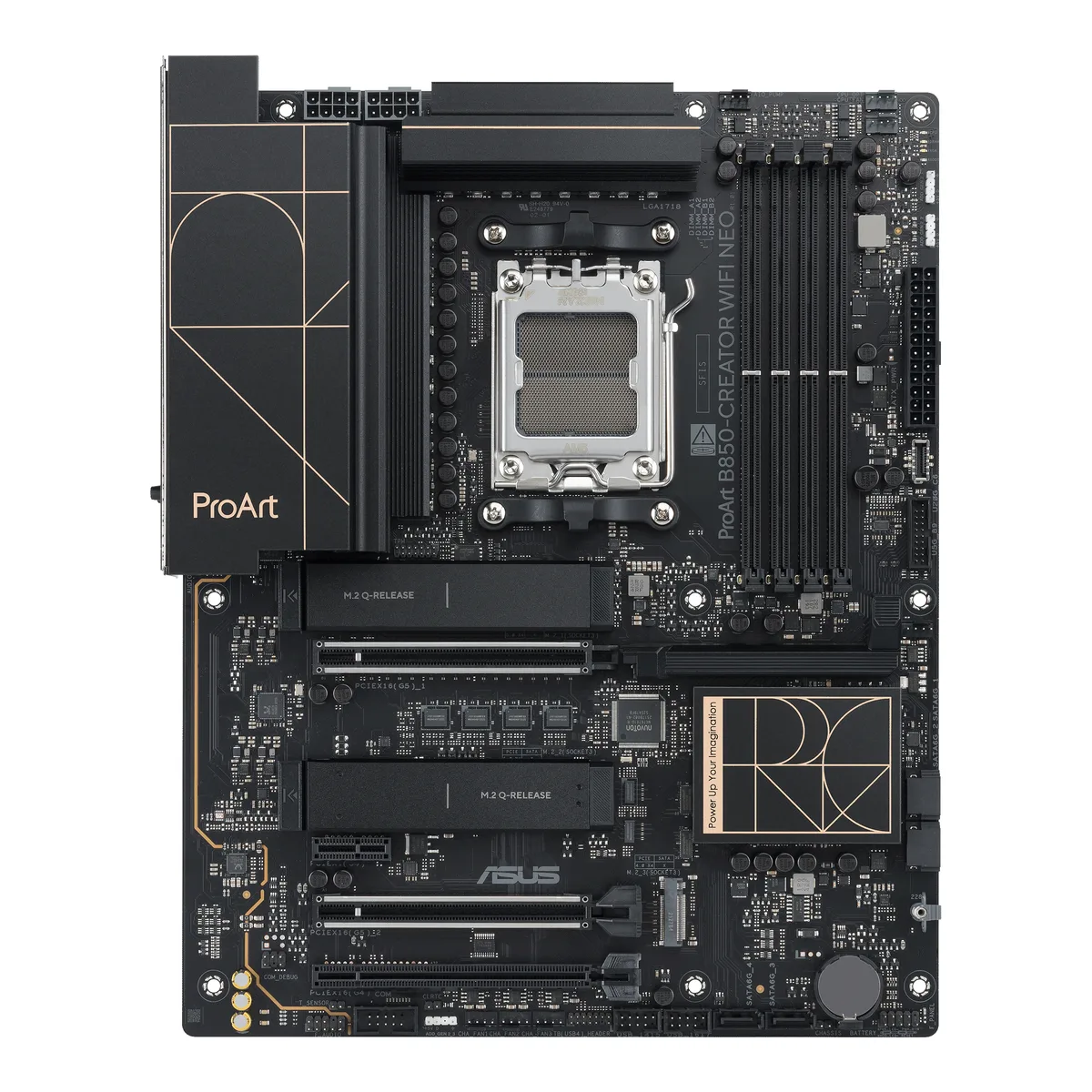

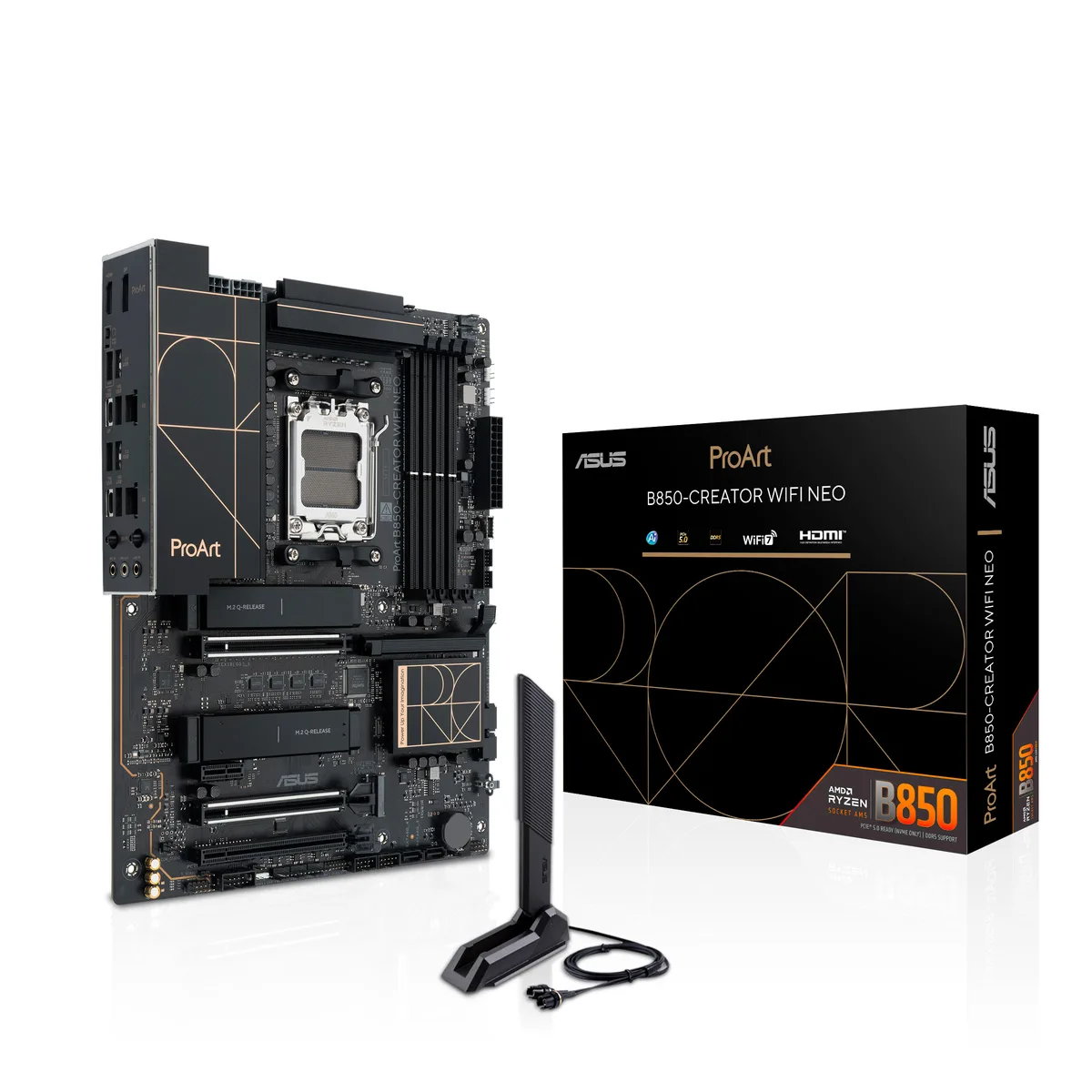

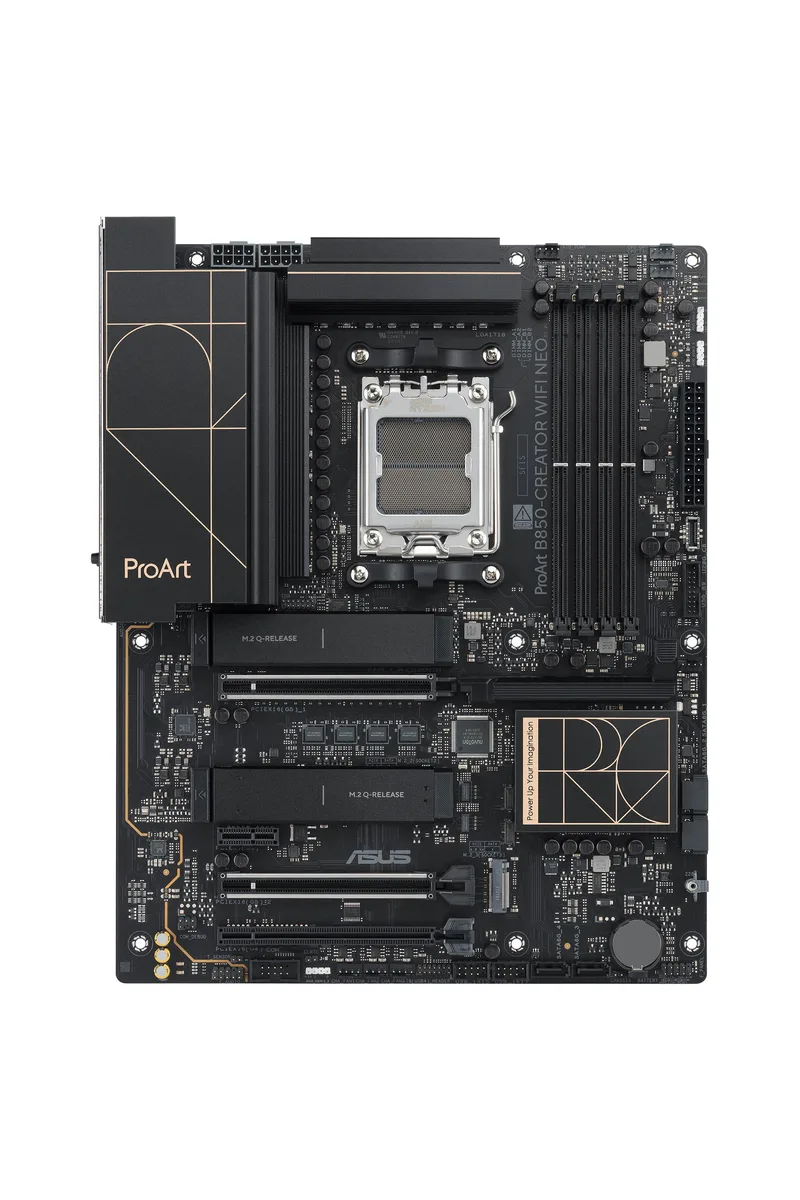

ATX motherboard with black PCB, silver heatsinks and ProArt branding

ASUS

ASUS ProArt B850-CREATOR WIFI AMD motherboard

SKU CH-0ERW-NFGW2 MPN ProArt B850-CREATOR WIFI

ATX motherboard for AM5 Ryzen 7000, 8000 and 9000 series with 14+2+1 80A power stages, four DDR5 slots up to 256GB, two PCIe 5.0 x16 slots, two PCIe 5.0 M.2 slots, dual 5Gb LAN, Wi-Fi 7 and USB

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8400+(OC)/8200+(OC) MT/s with Ryzen 9000 Seri
  • Maximum Memory Supported256GB
  • Robust 14+2+1 power stages rated at 80A each for stable multi-core performance
  • Dual Realtek 5Gb Ethernet plus Wi-Fi 7 for high-speed wired and wireless networking
  • Two PCIe 5.0 x16 slots and two PCIe 5.0 M.2 slots ready for next-gen GPUs and storage
  • DDR5 memory support up to 256GB with AMD EXPO profiles for simplified high-speed tuning
  • ProArt Creator Hub and ASUS Control Center Express unify monitoring, presets and security controls

AM5 creator motherboard with 14+2+1 80A power

This ASUS ProArt B850-CREATOR WIFI targets professionals building AMD Ryzen 7000, 8000 or 9000 series workstations. The 14+2+1 power stage design rated for 80A per stage feeds multi-core CPUs while dual 5Gb Ethernet and Wi-Fi 7 keep data moving. Four DDR5 slots accept up to 256GB at speeds reaching 9000+(OC) MT/s with Ryzen 8000 processors.

Suited for AI workloads and multi-GPU render nodes

Creators who need two full-length PCIe 5.0 x16 slots and two PCIe 5.0 M.2 drives will benefit from the CPU-linked bandwidth. Builders using Ryzen 8000 series APUs lose one PCIe 5.0 x16 slot and one PCIe 5.0 M.2 slot, so they should check CPU compatibility first. Users needing ECC memory or more than four SATA ports must look elsewhere.

Dual PCIe 5.0 x16 slots from the CPU

With Ryzen 9000 or 7000 series processors the board exposes two PCIe 5.0 x16 slots that can run at x16 or x8/x8, a decisive factor for dual-GPU compute or high-speed capture cards. Ryzen 8000 series CPUs provide only one PCIe 4.0 x16 slot at x8/x4, changing the expansion ceiling entirely.

Highlights

  • Robust 14+2+1 power stages rated at 80A each for stable multi-core performance
  • Dual Realtek 5Gb Ethernet plus Wi-Fi 7 for high-speed wired and wireless networking
  • Two PCIe 5.0 x16 slots and two PCIe 5.0 M.2 slots ready for next-gen GPUs and storage
  • DDR5 memory support up to 256GB with AMD EXPO profiles for simplified high-speed tuning
  • ProArt Creator Hub and ASUS Control Center Express unify monitoring, presets and security controls

Specifications

BrandASUS
ModelPROART B850-CREATOR WIFI
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to
8400+(OC)/8200+(OC) MT/s with Ryzen 9000 Series Processors,
9000+(OC)/8600+(OC) MT/s with Ryzen 8000 Series Processors,
8000+(OC)/8000+(OC) MT/s Ryzen 7000 Series Processors
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)***
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
*** When you use both PCIEX16(G5)_1 and PCIE16(G5)_2, they will run at x8 each.
**** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
PCI Express 4.0 x16AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)****
PCI Express x11 x PCIe 4.0 x1 slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
* The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220P
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 S
Max LAN Speed2 x 5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB 10Gbps ports (1 x Type-C + 1 x Type-C with Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
2 x Realtek 5Gb Ethernet ports
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable RGB Gen2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
1 x Thunderbolt (USB4) header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature64 MB (512Mb) Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- MLO Wizard
ASUS DriverHub
- ASUS MB Manager
- ASUS AI Advisor
- ASUS CPU-Z
-ASUS GlideX
-ProArt Creator Hub
-CreatonFirst
-USB Wattage Watcher
-TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
Integrated WiFi Driver Support
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable RGB

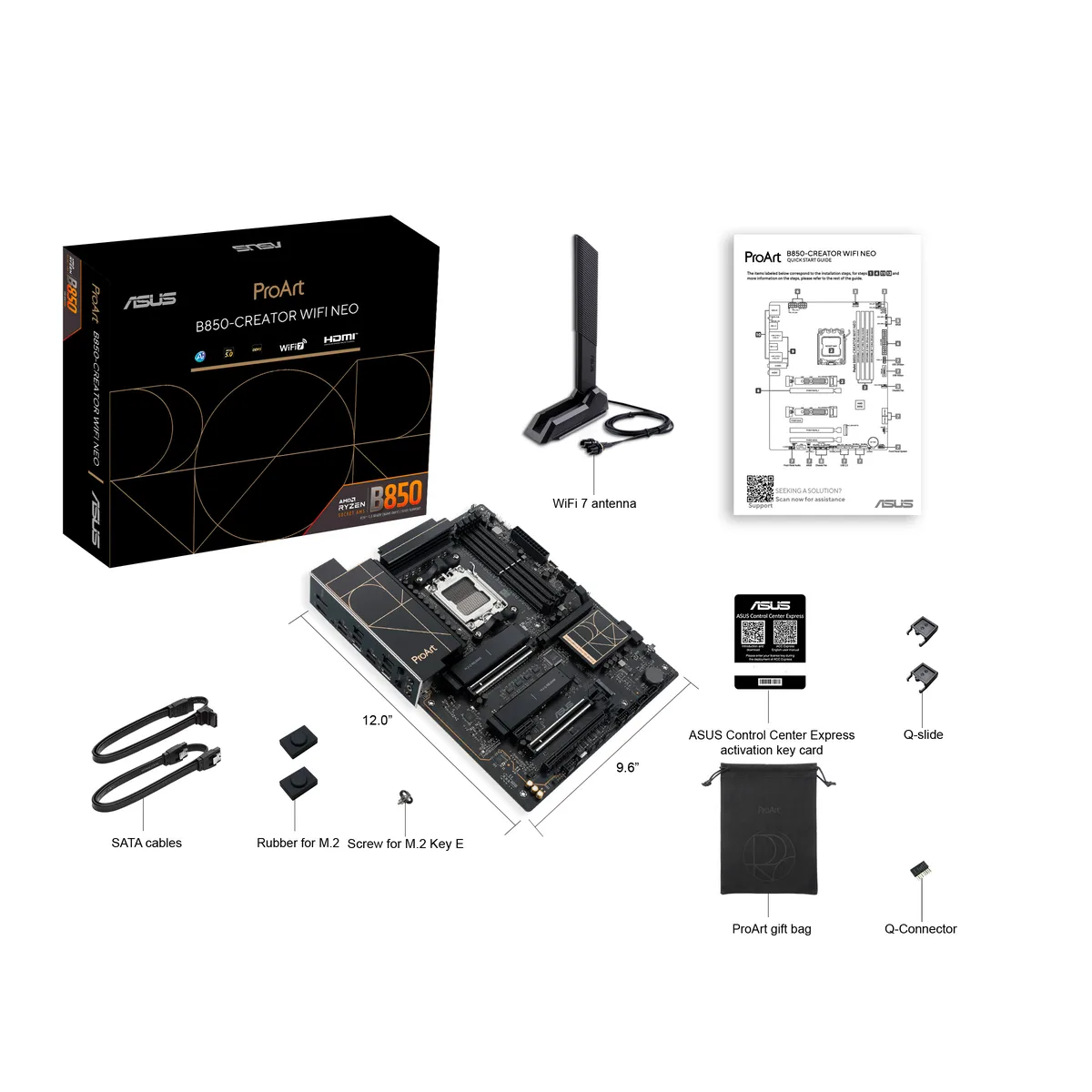

Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Slide package (2IN1)
1 x Rubber package for M.2 (2IN1)
1 x Screw for M.2 Q-Latch(1IN1)
1 x ProArt accessory bag
Documentation
1 x ACC Express activation key card
1 x Quick start guide
Shipping weight1.95 kg
Package size356 × 279 × 70 mm

Questions about this item

Which Ryzen processors are supported by the AM5 socket?

The board supports Ryzen 7000, 8000 and 9000 Series desktop processors, plus AMD EPYC 4005 Series CPUs.

What is the maximum DDR5 memory capacity and speed?

Up to 256 GB across four slots; speeds reach 8400 MT/s with Ryzen 9000, 9000 MT/s with Ryzen 8000, and 8000 MT/s with Ryzen 7000 when using EXPO profiles.

How many PCIe 5.0 M.2 slots are available and what drive sizes do they accept?

Two M.2 slots from the CPU run at PCIe 5.0 x4 and accept 2242, 2260 and 2280 form factors.
