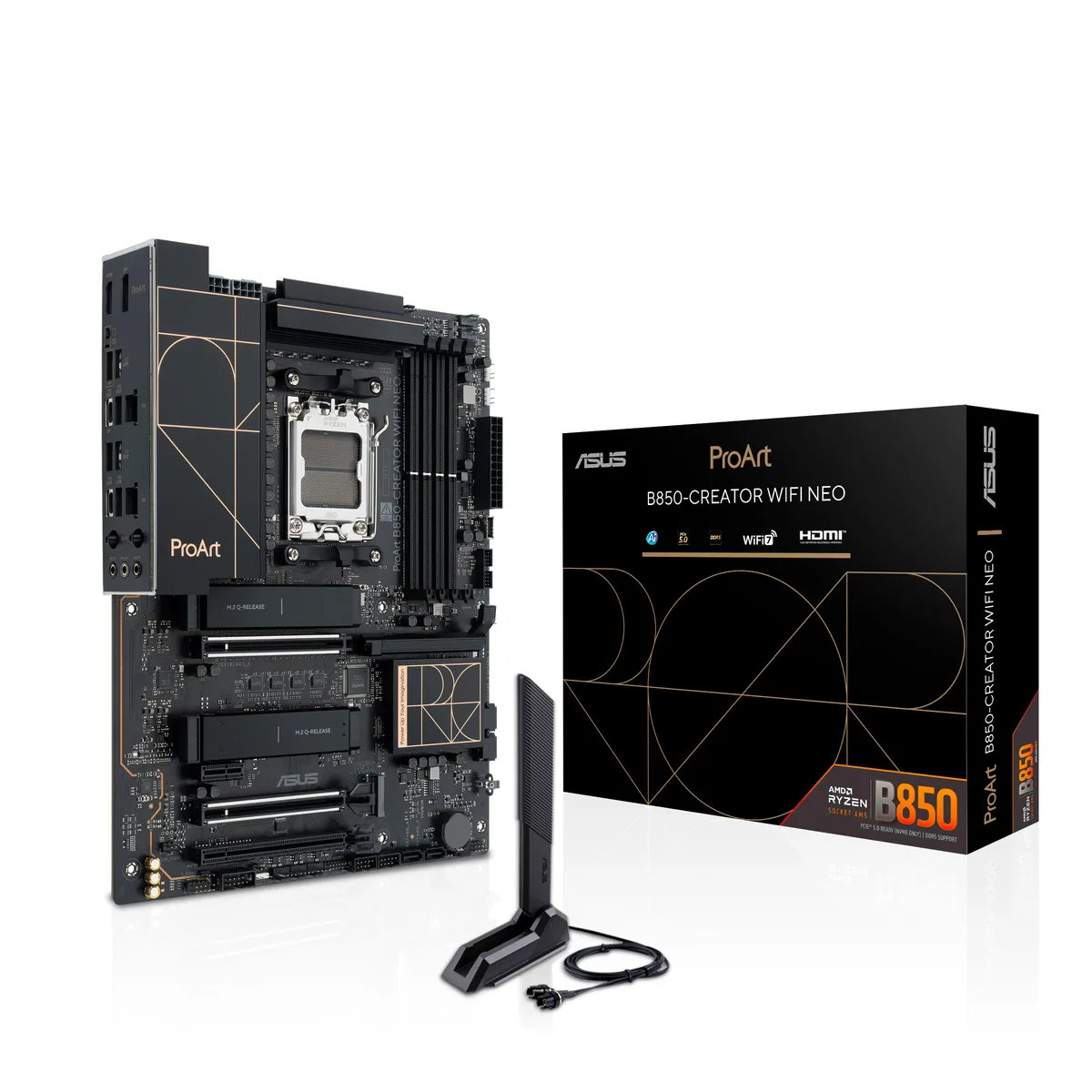

ATX motherboard with dark heatsinks and silver accents

ASUS

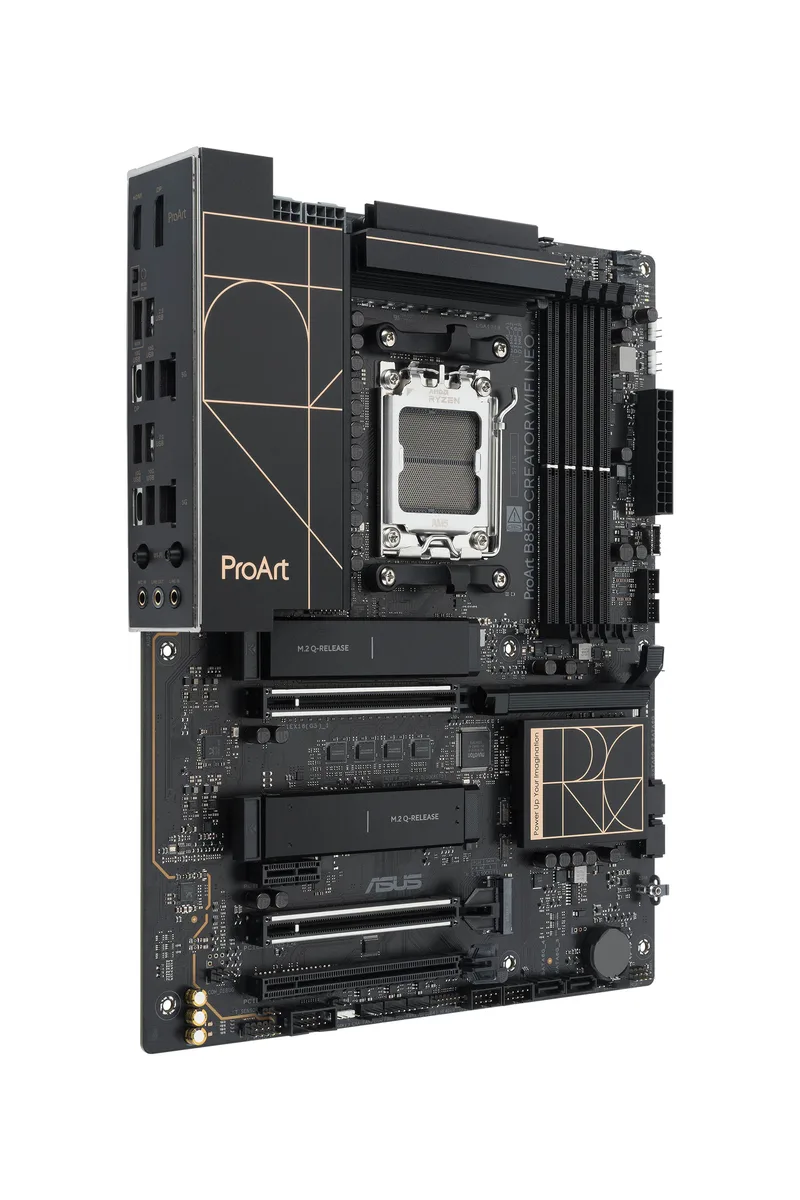

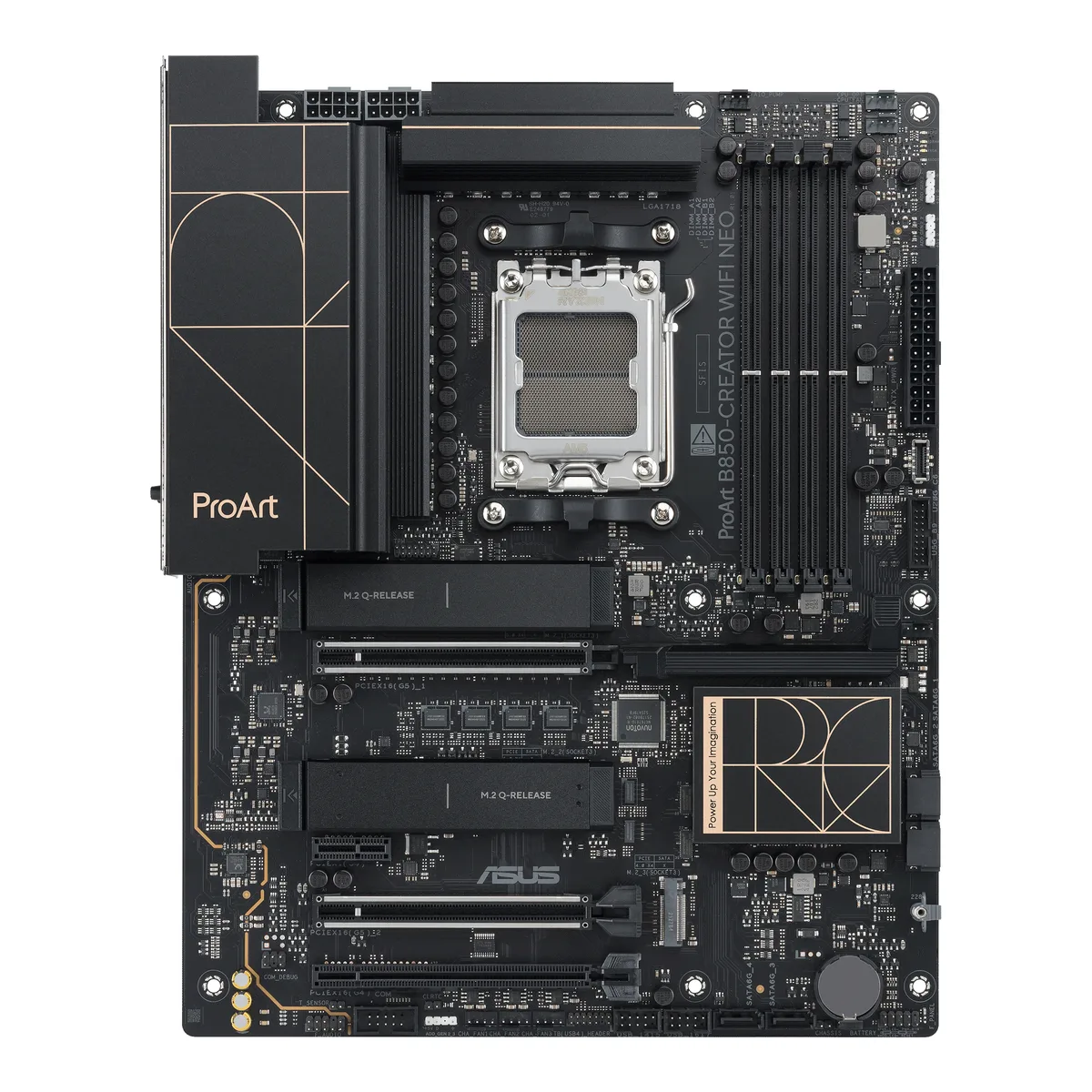

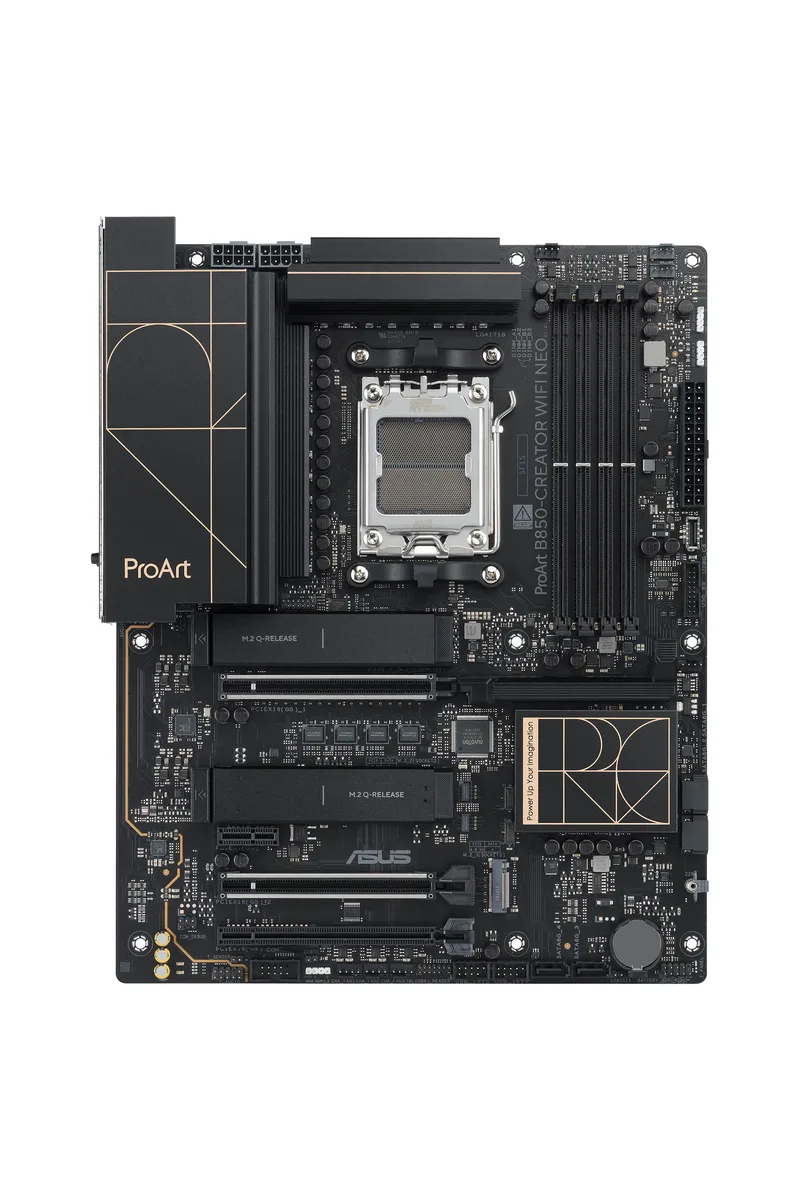

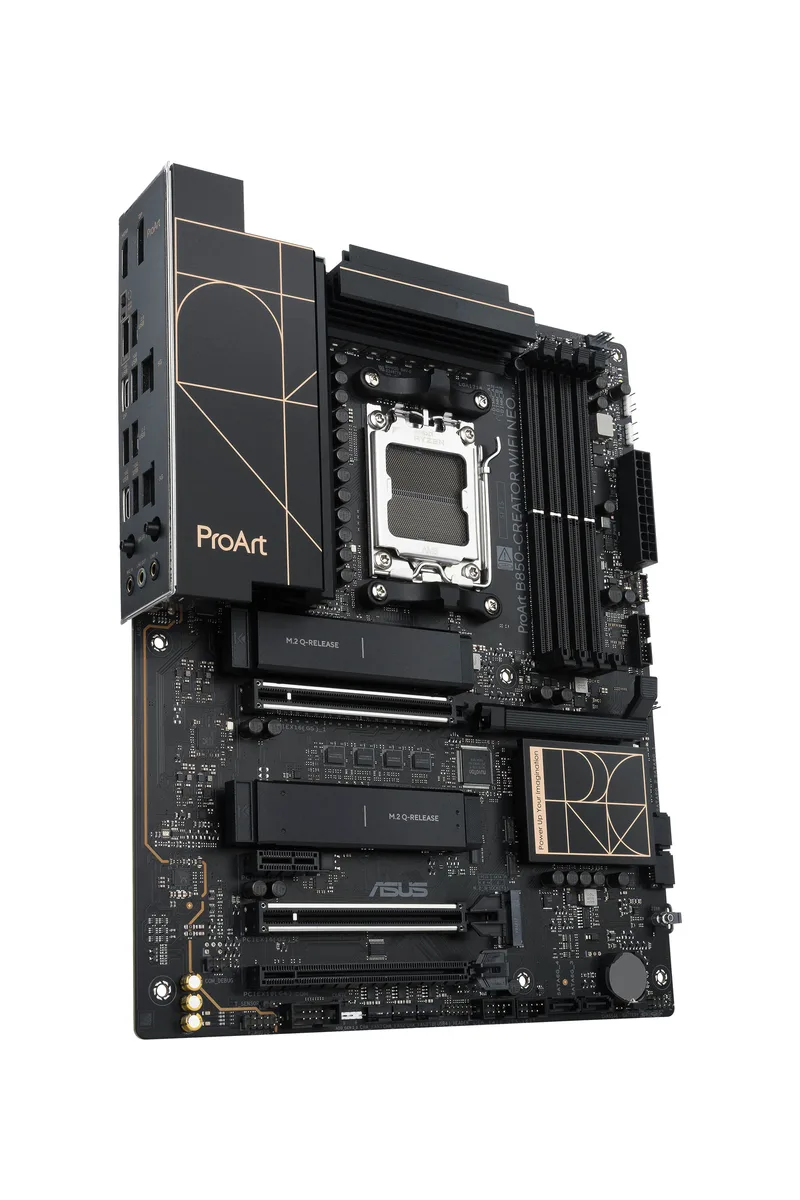

ASUS ProArt B850-CREATOR WIFI NEO AMD motherboard

SKU CH-5S0K-FWN1K MPN ProArt B850-CREATOR WIFI

ATX board for Ryzen 7000, 8000 and 9000 CPUs with 14+2+1 80A power stages, four DDR5 slots up to 256 GB, two PCIe 5.0 x16 slots, two PCIe 5.0 M.2 sockets, dual 5G LAN, Wi-Fi 7 and USB 20Gbps Type-C

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8400+(OC)/8200+(OC) MT/s with Ryzen 9000 Seri
  • Maximum Memory Supported256GB
  • Robust 14+2+1 power stages rated at 80A each for stable multi-core performance
  • Dual PCIe 5.0 x16 slots plus two PCIe 5.0 M.2 slots for maximum bandwidth
  • Wi-Fi 7 and dual Realtek 5Gb Ethernet for fast, reliable networking
  • Up to 256GB DDR5 memory with AMD EXPO profiles for high-speed capacity
  • ProArt Creator Hub and ASUS Control Center Express simplify monitoring and security

ProArt B850 Creator for AMD AM5

The ProArt B850-CREATOR WIFI is an ATX motherboard built for AMD Ryzen 7000, 8000 and 9000 Series processors on the AM5 socket. It targets content creators and developers who need stable multi-core performance and extensive I/O for professional workloads. The board includes AI Cache Boost, AI Cooling II and AEMP to simplify tuning and improve efficiency.

256 GB DDR5 capacity with EXPO profiles

Four DDR5 slots support up to 256 GB in dual-channel mode with AMD EXPO memory profiles. With Ryzen 9000 series the board reaches 8400+(OC)/8200+(OC) MT/s, with Ryzen 8000 series 9000+(OC)/8600+(OC) MT/s, and with Ryzen 7000 series 8000+(OC) MT/s. Non-ECC unbuffered modules are supported; memory headroom scales with the processor generation installed.

ProArt Creator Hub and Control Center Express

ProArt Creator Hub adds unified system monitoring, quick fan and performance presets, and one-click workflow launching for creative applications. ASUS Control Center Express provides IT-grade controls including USB port management, software blacklisting and registry editing toggles. Together they turn the board into a managed workstation platform rather than a standard consumer motherboard.

Highlights

  • Robust 14+2+1 power stages rated at 80A each for stable multi-core performance
  • Dual PCIe 5.0 x16 slots plus two PCIe 5.0 M.2 slots for maximum bandwidth
  • Wi-Fi 7 and dual Realtek 5Gb Ethernet for fast, reliable networking
  • Up to 256GB DDR5 memory with AMD EXPO profiles for high-speed capacity
  • ProArt Creator Hub and ASUS Control Center Express simplify monitoring and security

Specifications

BrandASUS
ModelPROART B850-CREATOR WIFI
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to
8400+(OC)/8200+(OC) MT/s with Ryzen 9000 Series Processors,
9000+(OC)/8600+(OC) MT/s with Ryzen 8000 Series Processors,
8000+(OC)/8000+(OC) MT/s Ryzen 7000 Series Processors
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)***
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
*** When you use both PCIEX16(G5)_1 and PCIE16(G5)_2, they will run at x8 each.
**** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
PCI Express 4.0 x16AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)****
PCI Express x11 x PCIe 4.0 x1 slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
* The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220P
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 S
Max LAN Speed2 x 5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB 10Gbps ports (1 x Type-C + 1 x Type-C with Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
2 x Realtek 5Gb Ethernet ports
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable RGB Gen2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
1 x Thunderbolt (USB4) header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature64 MB (512Mb) Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- MLO Wizard
ASUS DriverHub
- ASUS MB Manager
- ASUS AI Advisor
- ASUS CPU-Z
-ASUS GlideX
-ProArt Creator Hub
-CreatonFirst
-USB Wattage Watcher
-TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
Integrated WiFi Driver Support
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable RGB
Shipping weight1.95 kg
Package size356 × 279 × 70 mm

Questions about this item

Can I keep my current DDR5 modules when moving to this ProArt B850-CREATOR WIFI board?

The board has four 288-pin DDR5 slots supporting up to 256 GB in dual-channel mode. With a Ryzen 9000 CPU it runs EXPO kits up to 8400 MT/s, with Ryzen 8000 up to 9000 MT/s, and with Ryzen 7000 up to 8000 MT/s.

How do I verify the ProArt B850-CREATOR WIFI is running its 14+2+1 80 A power stages correctly after assembly?

Open ProArt Creator Hub or enter the UEFI; both show real-time VRM current, temperature and phase activity so you can confirm the 80 A stages are delivering power to the CPU.

What ships with the ProArt B850-CREATOR WIFI and which items must be purchased separately?

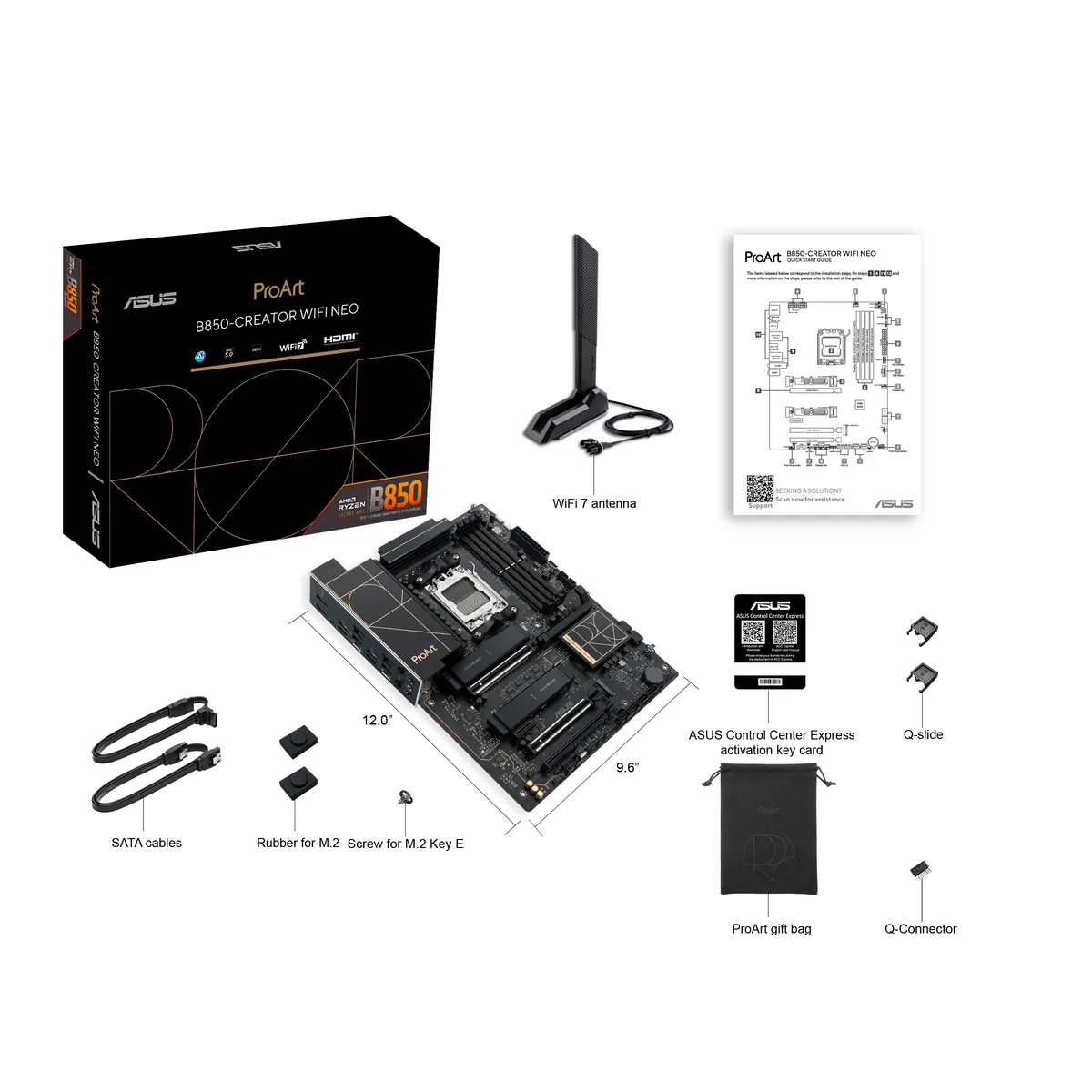

The motherboard, Wi-Fi 7 antenna, SATA cables, Q-Connector, M.2 Q-Latch and Q-Slide hardware, and documentation are included. CPU, DDR5 memory, M.2 SSDs, graphics card and chassis are not included.
