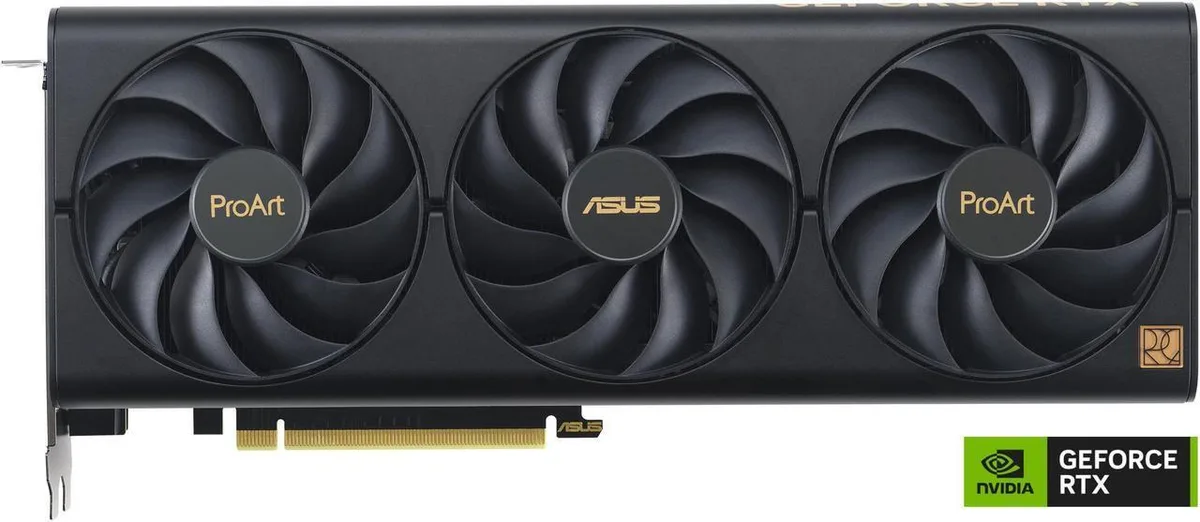

ASUS ProArt GeForce RTX 4060 Ti 16GB graphics card

ProArt RTX 4060 Ti 16GB for creative workflows

The ASUS ProArt GeForce RTX 4060 Ti 16GB graphics card targets creators who need more frame-buffer space than the 8 GB variant provides. It uses the NVIDIA Ada Lovelace architecture with 4352 CUDA cores and a 128-bit memory interface. The 16 GB GDDR6 memory runs at 18 Gbps effective clock. PCI Express 4.0 x8 connects the card to the platform.

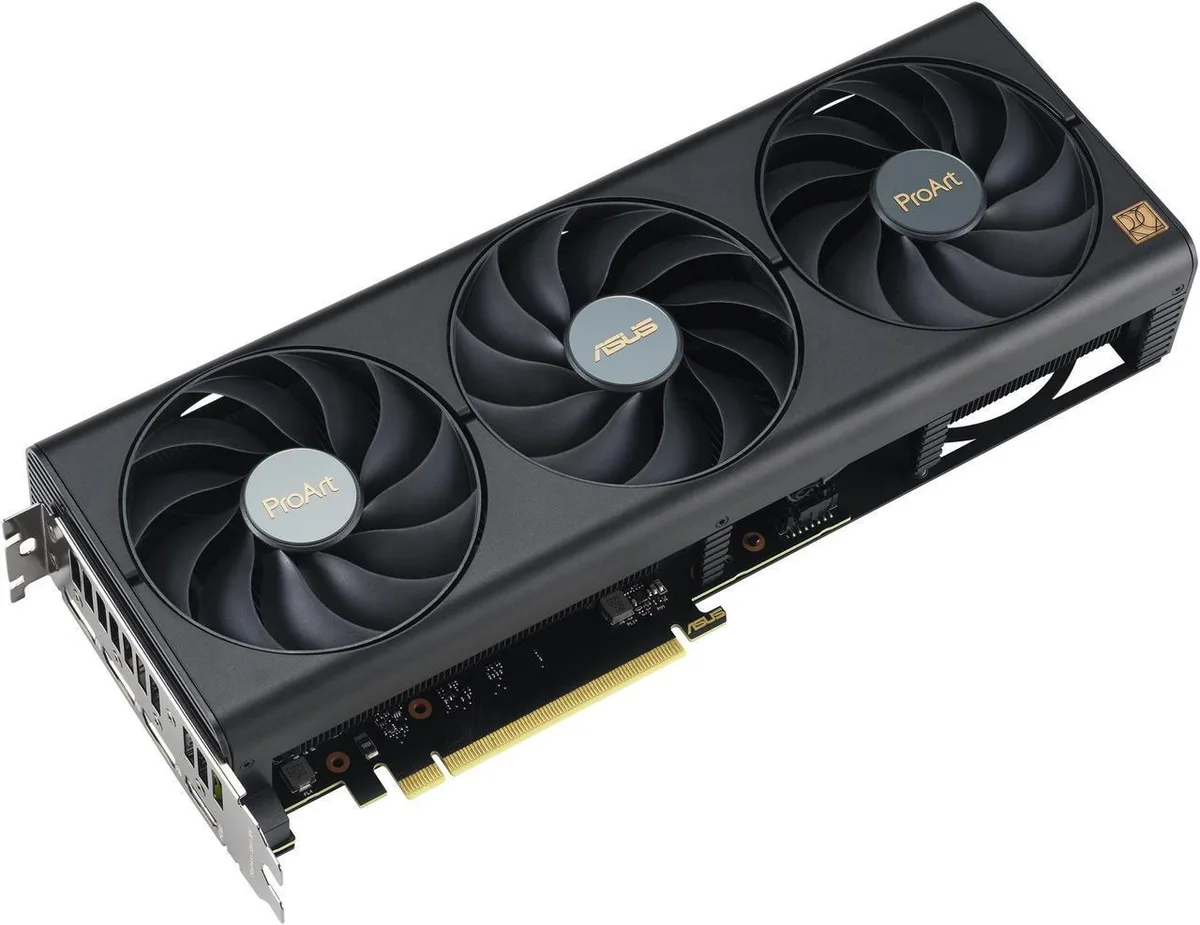

2.5-slot cooler fits most builds

The card occupies 2.5 slots and uses three axial-tech fans with dual ball bearings. The design moves 21 percent more air than the previous axial-tech layout. A 0 dB stop mode keeps the fans off during light loads. The 165 W TDP means a single 8-pin power connector is sufficient for most power supplies. Ensure the case has enough length clearance for the triple-fan shroud.

16 GB GDDR6 handles 4K multi-app timelines

The 16 GB frame buffer gives comfortable headroom for 4K video timelines, large texture sets and multi-monitor setups up to 7680 x 4320. One HDMI 2.1a and three DisplayPort 1.4a outputs drive four displays. The 128-bit bus limits raw bandwidth, so 8K gaming or heavy compute workloads will saturate the interface before the memory capacity runs out.
