ASUS
ASUS ProArt PA602 Wood Art & Iron Rhythm Edition PC case
E-ATX compatible steel chassis with wood-grain front grille, infrared dust sensor, and pre-installed 200×38 mm fans
- Motherboard CompatibilityEATX (12"x10.9") ATX Micro-ATX Mini-ITX
- ColorBlack
- Case MaterialAluminum / Tempered Glass
- With Power SupplyNo
- Front Ports2 x USB 2.0 2 x USB 3.0 5 Gbps 1 x USB 3.2 Gen 2x2 Type-C 20
- Supports E-ATX, ATX, Micro-ATX and Mini-ITX boards
- Front USB 3.2 Gen 2x2 Type-C delivers 20 Gbps data speed
- Infrared dust sensor automatically adjusts fan speed to buildup
- 200×38 mm custom fans move high airflow at low noise
- 30 mm rear clearance eases cable routing behind the motherboard tray
ProArt PA602 Wood & Iron Edition

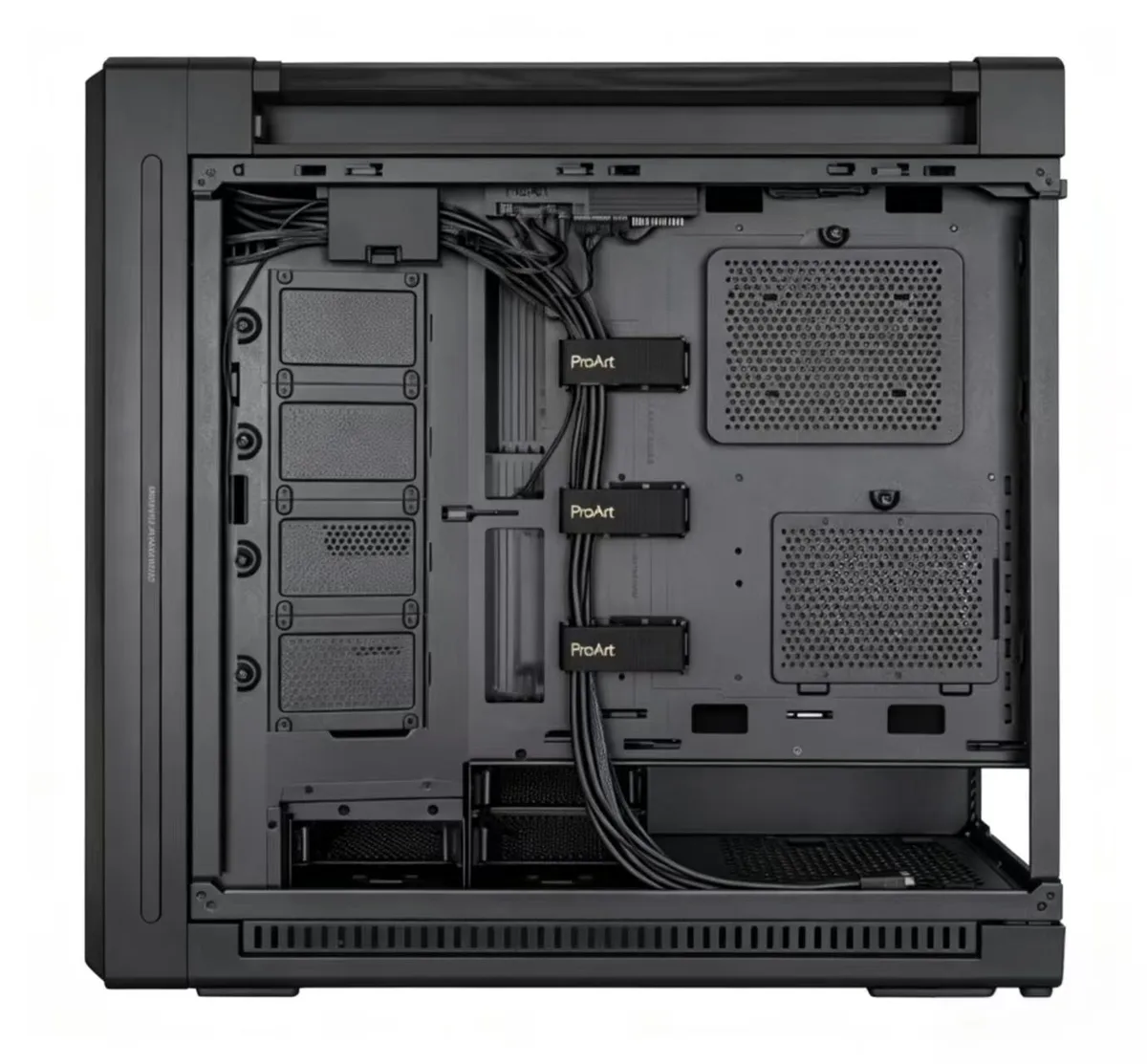

The ProArt PA602 Wood Art & Iron Rhythm Edition is a full-tower chassis built for creative workstations. Its steel frame, tempered-glass panels and wood-grain front grille suit builders who value a distinctive look alongside broad motherboard support. The case accepts E-ATX boards up to 12 by 10.9 inches plus ATX, Micro-ATX and Mini-ITX. It is not for buyers who need a compact footprint or a lightweight case for frequent moves.
450 mm GPU clearance
The single specification that decides fit is the maximum graphics-card length of 450 millimetres. This dimension determines whether a long workstation or high-end gaming GPU can be installed without modification. No other clearance figure in the data overrides this limit. Builders with longer cards must choose a different enclosure.
Pre-installed 200×38 mm fans and six-channel PWM hub
Two custom 200 by 38 millimetre fans come fitted at the front and a 140 millimetre fan at the rear. A six-channel PWM hub lets all fans be controlled from a single motherboard header, simplifying cable routing behind the 30 millimetre management space. The bundle adds no extra software; fan curves are managed through the motherboard BIOS or preferred utility.
Highlights
- Supports E-ATX, ATX, Micro-ATX and Mini-ITX boards
- Front USB 3.2 Gen 2x2 Type-C delivers 20 Gbps data speed
- Infrared dust sensor automatically adjusts fan speed to buildup
- 200×38 mm custom fans move high airflow at low noise
- 30 mm rear clearance eases cable routing behind the motherboard tray
Specifications
| Motherboard Compatibility | EATX (12"x10.9") ATX Micro-ATX Mini-ITX |
|---|---|
| Color | Black |
| Case Material | Aluminum / Tempered Glass |
| With Power Supply | No |
| Front Ports | 2 x USB 2.0 2 x USB 3.0 5 Gbps 1 x USB 3.2 Gen 2x2 Type-C 20 Gbps 1 x Headphone/Microphone Combo Jack |
| Brand | ASUS |
Questions about this item
How much room does the 450 mm GPU limit leave for a triple-slot card and its power cables?
The 450 mm maximum GPU length measures from the rear bracket to the front panel, so a triple-slot card up to that length will fit with the 30 mm rear cable management space for power connectors.
What does the USB 3.2 Gen 2x2 Type-C 20 Gbps port actually deliver when connected to a 10 Gbps motherboard header?
The front-panel Type-C port is wired for 20 Gbps; if your motherboard only provides a 10 Gbps USB 3.2 Gen 2 header the link will negotiate down to 10 Gbps automatically.
Will the 200 mm front fans and 140 mm rear fan clear a 190 mm CPU cooler in a standard ATX build?
Yes, the 190 mm maximum CPU cooler height is measured with the 200 mm front fans and 140 mm rear fan installed, so any cooler up to that height clears both intake and exhaust airflow paths.
