ASUS
ASUS ProArt PX13 HN7306EA 13.3" 3K OLED Touch Ryzen AI Max+ 395 64GB 1TB gaming laptop
13.3 inch 3K OLED touch display runs on a 16 core Ryzen AI Max+ 395 with 64GB LPDDR5X and 1TB NVMe storage
- ColorNano Black
- Operating SystemWindows 11 Pro
- CPUAMD Ryzen™ Al Max+ 395
- Screen13.3" 3K
- Memory64GB
- Storage1 TB M.2 2230 PCIe NVMe Gen4 SSD

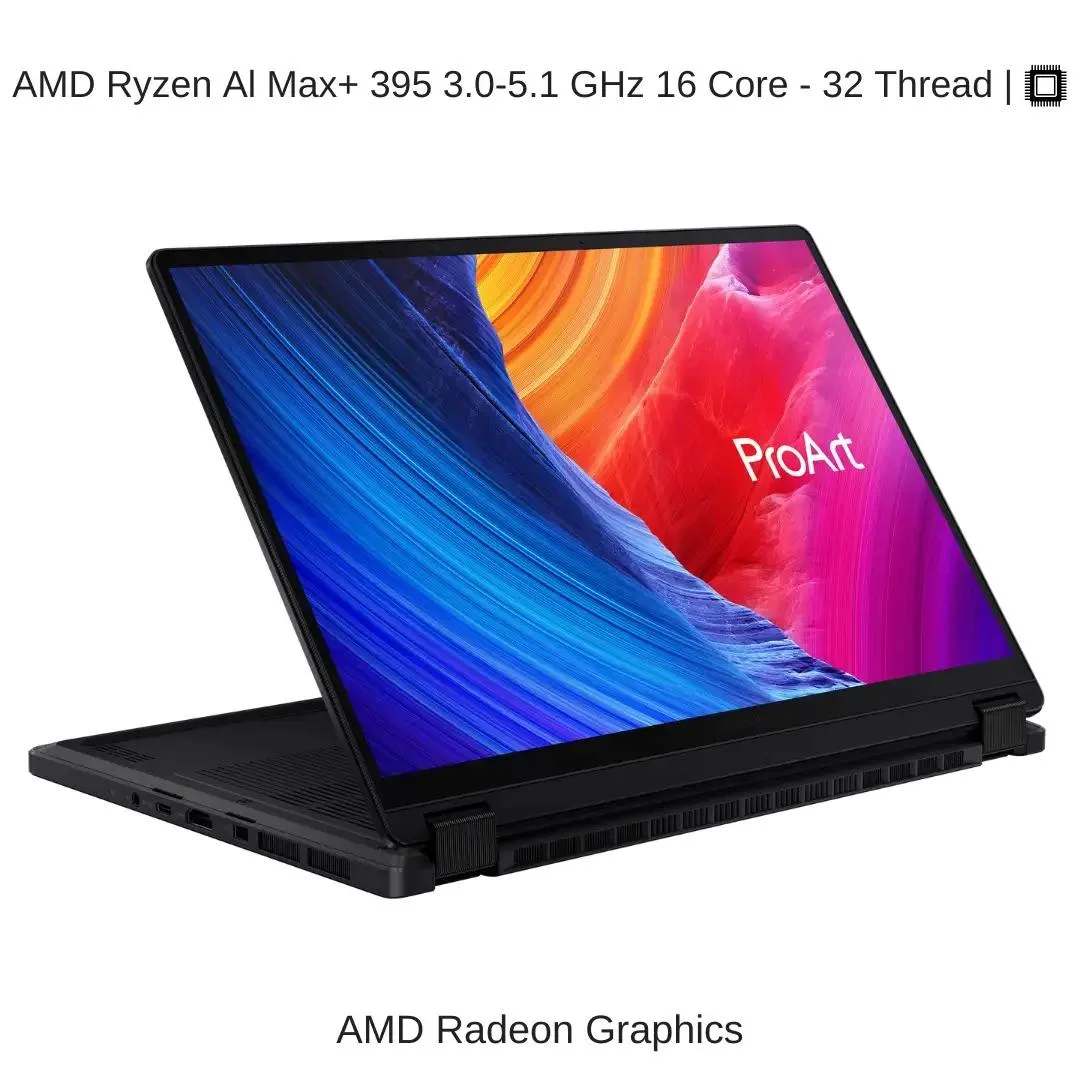

- 16-core Ryzen AI Max+ 395 hits 5.1 GHz turbo for heavy workloads
- 3-inch 3K OLED touch at 2880 x 1800 shows vivid detail
- 64 GB LPDDR5X memory keeps 32-thread multitasking smooth
- 1 TB PCIe NVMe Gen4 SSD loads projects in seconds
- Gelid GC Extreme on GPU plus Conductonaut on CPU lowers thermals
ProArt PX13 13.3" 3K OLED Touch

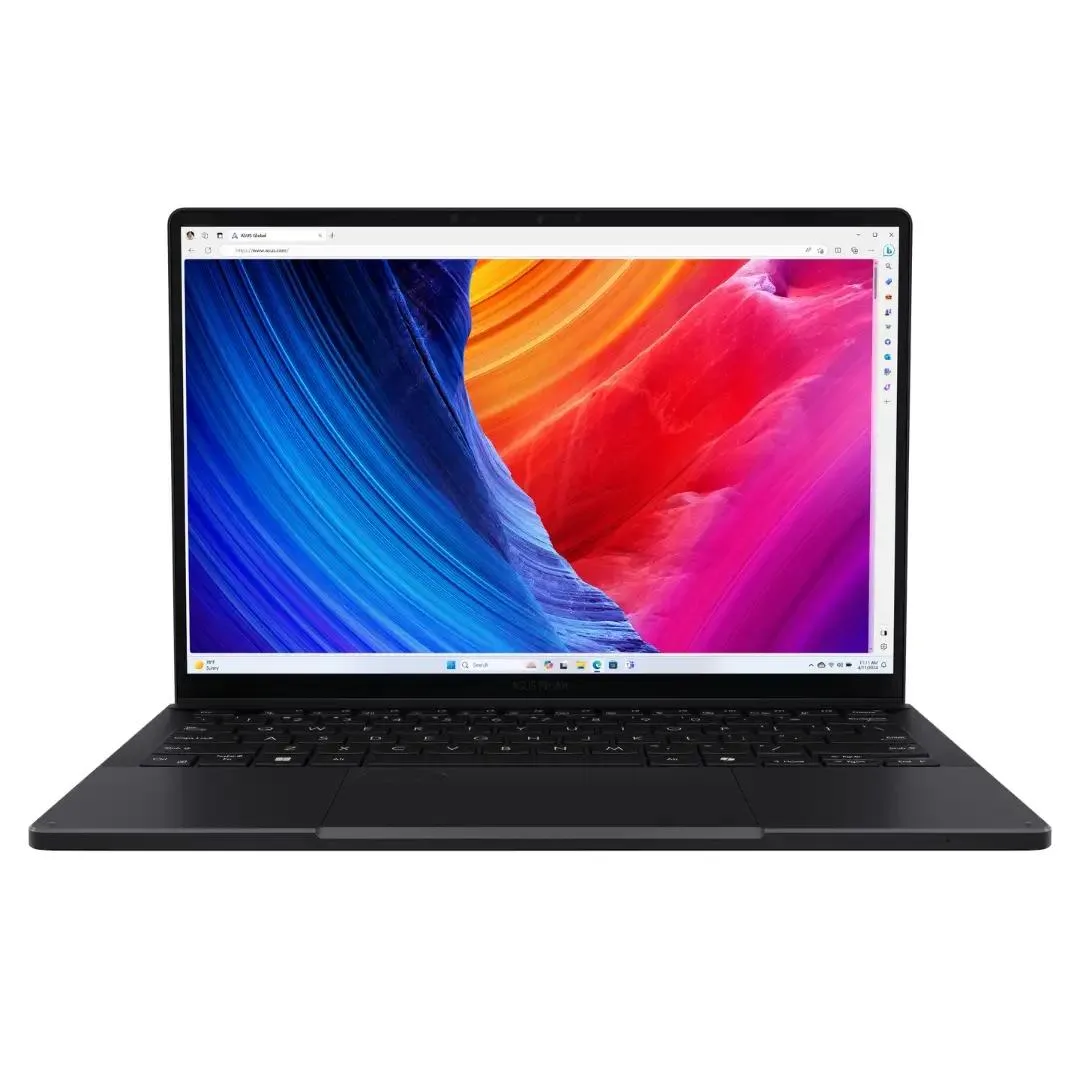

The ASUS ProArt PX13 HN7306EA is a 13.3-inch mobile workstation with a 3K OLED touchscreen. It targets creators and engineers who need colour-accurate visuals and on-device AI acceleration in a compact chassis. The 16-core Ryzen AI Max+ 395 processor reaches 5.1 GHz max turbo with 80 MB cache. Windows 11 Pro ships pre-installed.
Build integration: memory, storage, thermals

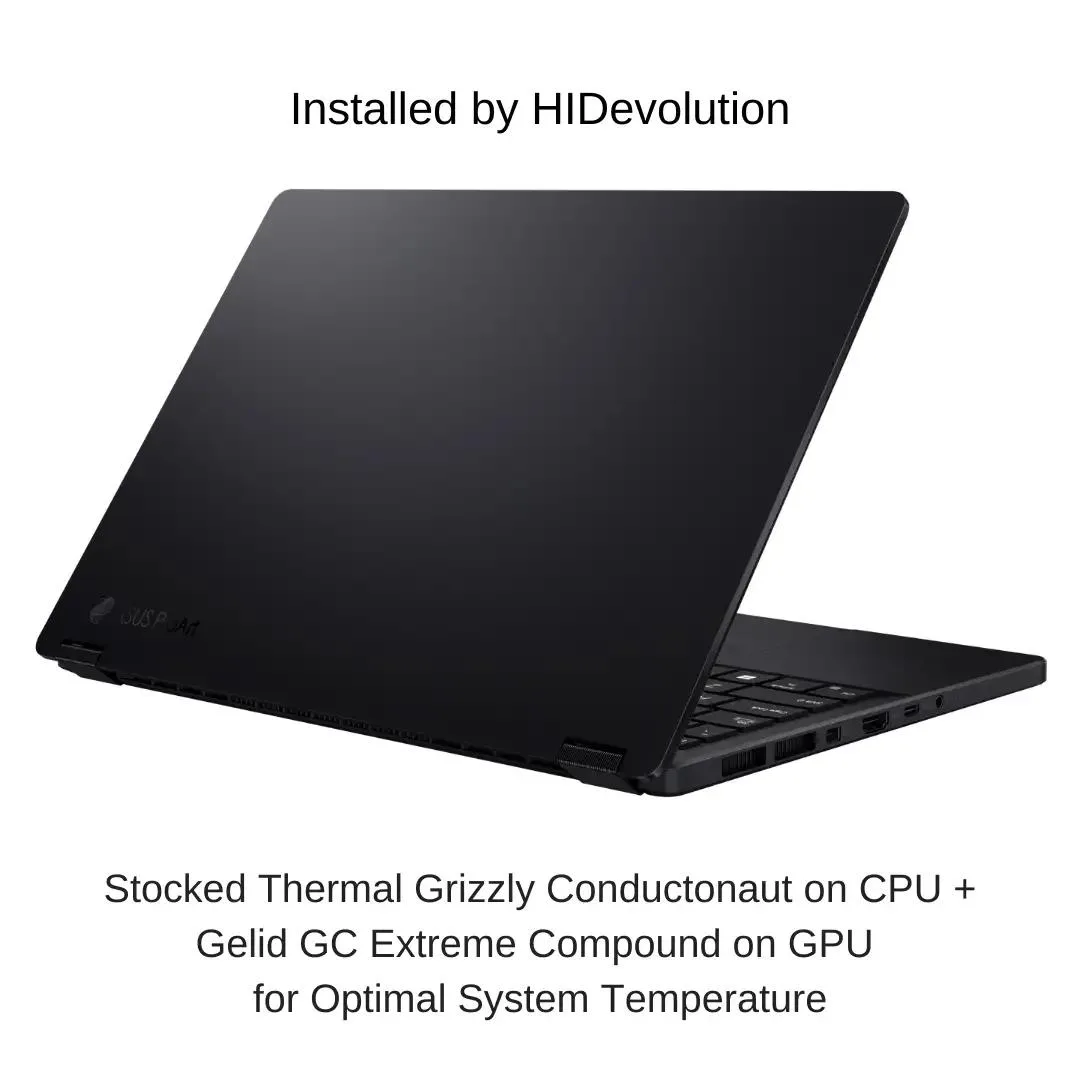

Sixty-four gigabytes of LPDDR5X are soldered to the board, so no SO-DIMM slots are required and the full capacity is available immediately. A single 1 TB M.2 2230 PCIe NVMe Gen4 drive handles the operating system and active projects. The supplier applies Gelid GC Extreme on the GPU and Conductonaut on the CPU to lower core temperatures under sustained load.
Capacity and headroom: 64 GB RAM, 1 TB SSD
The 64 GB LPDDR5X pool keeps large 3D scenes, video timelines and local LLM inference resident without paging. One terabyte of Gen4 storage holds current assets and cache files; archival libraries will need external or network volumes. The 60 Hz 2880 x 1800 OLED panel covers DCI-P3 for proofing, though HDR peak brightness is limited by the panel spec.
Highlights
- 16-core Ryzen AI Max+ 395 hits 5.1 GHz turbo for heavy workloads
- 3-inch 3K OLED touch at 2880 x 1800 shows vivid detail
- 64 GB LPDDR5X memory keeps 32-thread multitasking smooth
- 1 TB PCIe NVMe Gen4 SSD loads projects in seconds
- Gelid GC Extreme on GPU plus Conductonaut on CPU lowers thermals
Specifications
| Brand | ASUS |
|---|---|
| Series | ProArt PX13 |
| Model | HN7306EA-XS99T |
| Part Number | 90NB17X1-M008S0 |
| Color | Nano Black |
| Operating System | Windows 11 Pro |
| CPU | AMD Ryzen™ Al Max+ 395 |
| Screen | 13.3" 3K |
| Memory | 64GB |
| Storage | 1 TB M.2 2230 PCIe NVMe Gen4 SSD |
| Graphics Card | AMD Radeon™ Graphics |
| Dimensions (W x D x H) | 11.74" x 8.26" x 0.62" ~ 0.70" |
| Weight | 3.06 lbs |
| CPU Type | AMD Ryzen AI Max |
| Processor Name | AMD Ryzen Al Max+ 395 |
| Number of Cores | 16-core Processor |
| Turbo Frequency | Max Turbo Frequency 5.1 GHz |
| CPU L3 Cache | 80 MB |
| Screen Size | 13.3" |
| Touchscreen | Touch Screen |
| Display Type | 3K |
| Resolution | 2880 x 1800 |
| Panel | OLED |
| Refresh Rate | 60 Hz |
| Color Gamut | 100% DCI-P3 |
| Display Features | 60Hz OLED |
| GPU/VPU | AMD Radeon Graphics |
| Video Memory | Shared system memory |
| Graphic Type | Dedicated Card |
| SSD | 1 TB |
| HDD | No |
| Storage Spec | 1x 1 TB M.2 2230 PCIe NVMe Gen4 SSD |
| Memory Speed | LPDDR5X |
| Memory Spec | 64 GB on board |
| Memory Slot (Total) | Memory soldered to system board, no slots |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 64GB |
| WLAN | Wi-Fi 7(802.11be) (Triple band) 2*2 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Bluetooth® 5.4 Wireless Card |
| USB | 1x USB 3.2 Gen 2 Type-A, 2x USB 4.0 Gen 3 Type-C with support for display / power delivery (data speed up to 40Gbps) |
| Audio Ports | 3.5mm Combo Audio Jack |
| Audio | Smart Amp Technology |
| Speaker | Built-in speaker |
| Touchpad | Precision touchpad, support DialPad |
| Keyboard | Backlit Chiclet Keyboard, 1.7mm Key-travel |
| Backlit Keyboard | Backlit |
| Webcam | FHD camera with IR function to support Windows Hello |
| Card Reader | Micro SD 4.0 card reader |
| Style | Thin and Light |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Rectangle Conn, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100~240V AC, 50/60Hz universal |
| Battery | 73WHrs, 4S1P, 4-cell Li-ion |
Questions about this item
How long can the Ryzen AI Max+ 395 sustain its 5.1 GHz turbo before thermal limits cut in?
The 16-core processor runs at 3.0 GHz base and can boost to 5.1 GHz; HIDevolution applies Thermal Grizzly Conductonaut on the CPU and Gelid GC Extreme on the GPU to extend high-frequency operation under load.
What are the fan noise and surface temperatures during all-day workloads?
The custom thermal interface materials target lower CPU and GPU temperatures, which typically reduces fan speed and keeps the Nano Black chassis cooler during sustained use.
Which peripherals or docks are required to use the 2880 x 1800 60 Hz OLED touch display externally?
The 13.3" 3K OLED touch panel is built-in; no external display or dock is needed for the primary screen to function.
