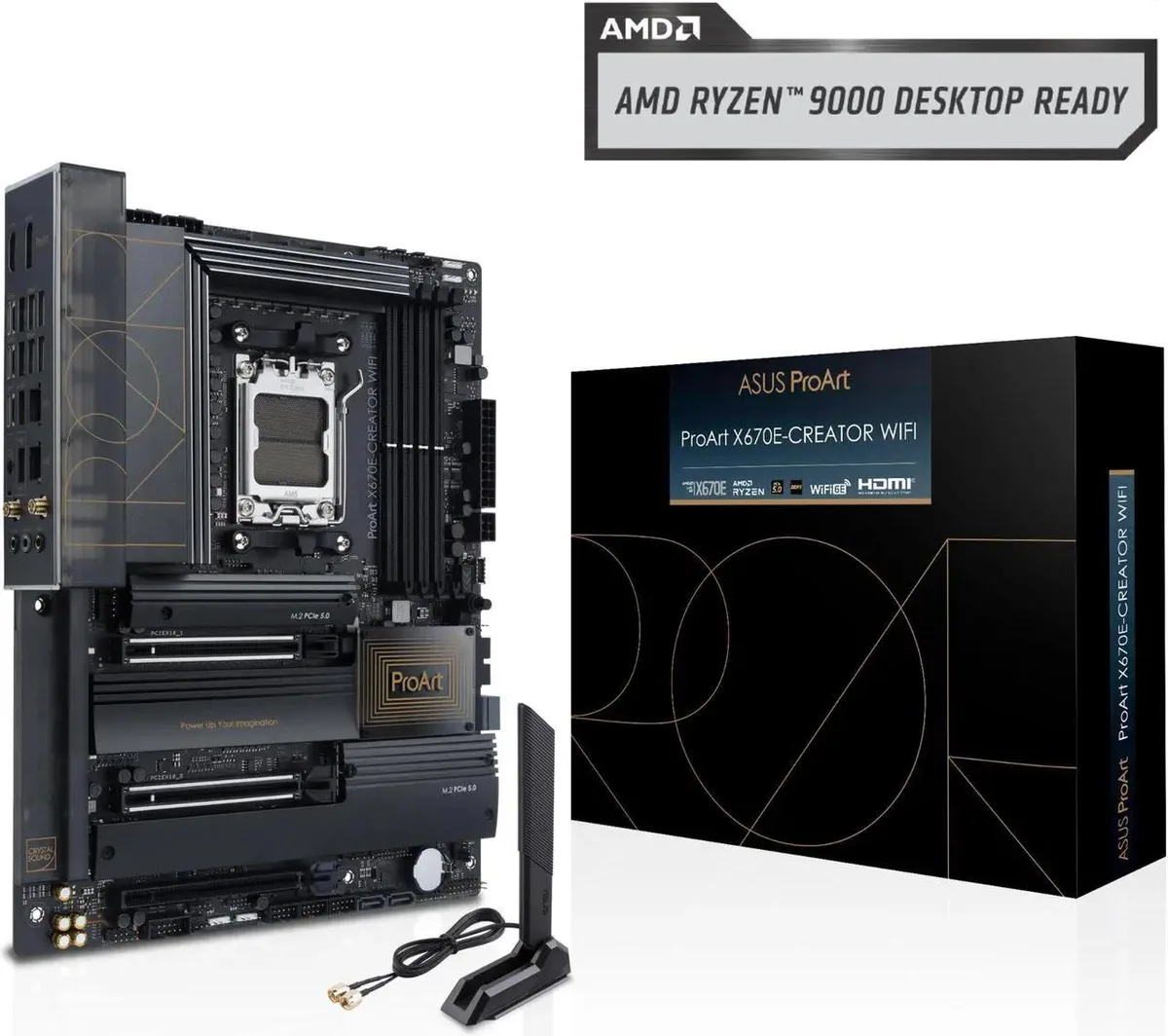

ATX motherboard, dark grey board with silver heatsinks and white ProArt branding

ASUS

ASUS ProArt X670E-CREATOR WIFI AMD motherboard

SKU CH-1QK7-YTAJ5

ATX board for Ryzen 7000, 8000 and 9000 CPUs with 16+2 power stages, dual USB4, 10 Gb and 2.5 Gb Ethernet, WiFi 6E, four M.2 slots and 256 GB DDR5 capacity

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket AM5 for AMD Ryzen 7000 / 8000 / 9000 Series Deskt
  • ChipsetAMD X670E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/
  • Maximum Memory Supported256GB
  • Ready for Ryzen 7000, 8000 and 9000 series CPUs via AM5 socket
  • 16+2 teamed power stages with ProCool connectors for stable delivery
  • Dual USB4 ports, 10 Gb and 2.5 Gb Ethernet plus WiFi 6E connectivity
  • Four M.2 slots including two PCIe 5.0 x4 and two PCIe 4.0 x4 for fast storage
  • AI Overclocking, Dynamic OC Switcher and Ryzen Core Flex for performance tuning

AM5 Socket For Ryzen 7000 8000 9000

This ATX motherboard uses the AMD X670E chipset and an AM5 socket. It supports AMD Ryzen 7000, 8000 and 9000 series desktop processors. A BIOS update may be required for the newest CPUs. The board delivers 16 plus 2 teamed power stages with ProCool connectors, alloy chokes and durable capacitors for stable operation.

Content Creators And Multi-Taskers

The platform suits professionals who need dual USB4 ports, 10 Gb and 2.5 Gb Ethernet, WiFi 6E and four M.2 slots for fast storage. It also provides AI Overclocking, Dynamic OC Switcher and Ryzen Core Flex for advanced tuning. Users building a compact system or using older AM4 processors should choose a different board.

Four M.2 Slots With PCIe 5.0 Support

Two CPU-linked M.2 slots run at PCIe 5.0 x4 while two chipset-linked slots run at PCIe 4.0 x4. All slots accept 2242, 2260 and 2280 form factors. This layout decides whether the board matches your storage expansion plans.

Highlights

  • Ready for Ryzen 7000, 8000 and 9000 series CPUs via AM5 socket
  • 16+2 teamed power stages with ProCool connectors for stable delivery
  • Dual USB4 ports, 10 Gb and 2.5 Gb Ethernet plus WiFi 6E connectivity
  • Four M.2 slots including two PCIe 5.0 x4 and two PCIe 4.0 x4 for fast storage
  • AI Overclocking, Dynamic OC Switcher and Ryzen Core Flex for performance tuning

Specifications

BrandASUS
ModelPROART X670E-CREATOR WIFI
Part Number90MB1B90-M0AAY0
CPU Socket TypeAM5
CPU TypeAMD Socket AM5 for AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
ChipsetAMD X670E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
PCI Express 5.0 x162 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
* Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x2 mode)**
** PCIEX16_3 shares bandwidth with M.2_3 slot. Please adjust in BIOS setting to enable PCIEX16_3.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 is in operation after adjusting in BIOS settings, M.2_3 slot will only run at PCIe x2 mode.
SATA RAID0/1/10
Audio ChipsetRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Power pre-regulator reduces power input noise to ensure consistent performance
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de
Audio Channels7.1 Channels
LAN Chipset1 x Marvell AQtion 10Gb Ethernet
Second LAN Chipset1 x Intel 2.5Gb Ethernet
Max LAN Speed10Gbps + 2.5Gbps
Wireless LANWi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
* WiFi 6E 6GHz regulatory may vary between countries.
BluetoothBluetooth v5.2

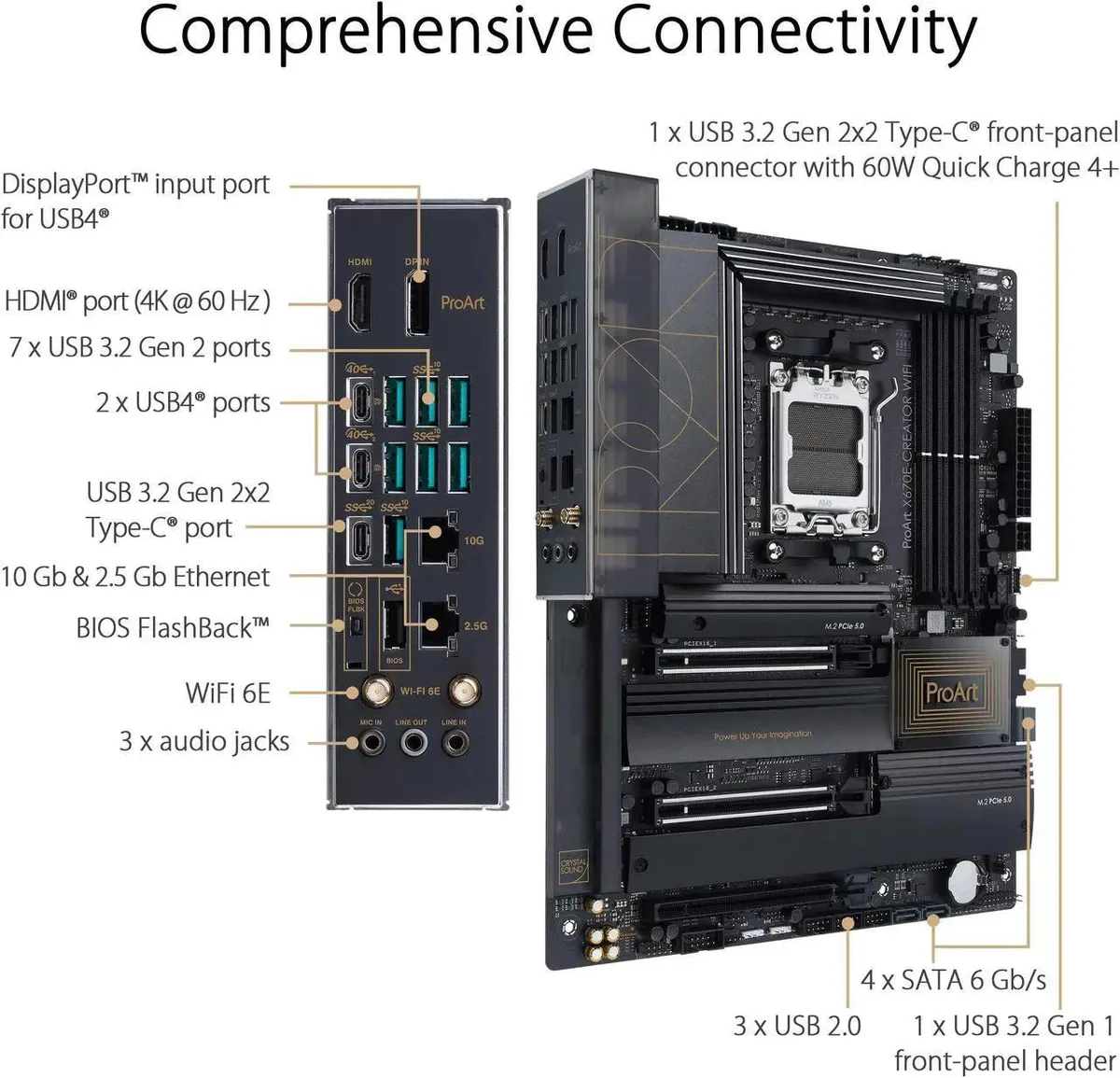

Back I/O Ports2 x USB4 with Intel JHL8540 USB4 controller ports (2 x USB Type-C)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
7 x USB 3.2 Gen 2 ports (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
1 x 6-pin PCIe Power connector
Windows 11Supported
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

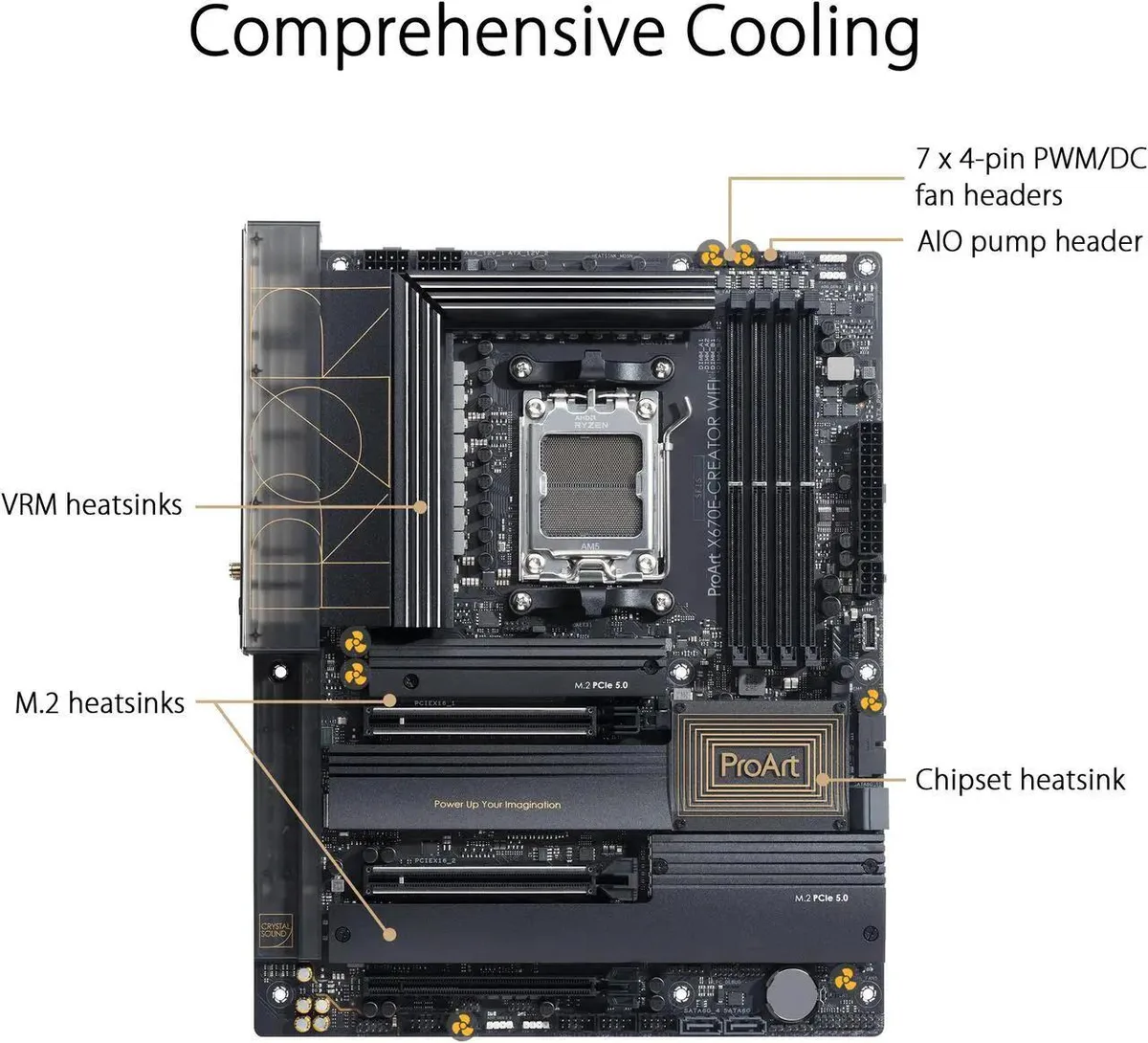

ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2
Package ContentsCables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package for M.2 backplate
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
1 x Screw packages for M.2 SSD
1 x ProArt ruler
Documentation
1 x ACC Express Activation Key Card
1 x User guide

Questions about this item

What case clearance and mounting holes does the ATX board need?

The board follows standard ATX dimensions, so any ATX-compatible chassis with the usual nine mounting holes and rear I/O cut-out will fit.

Which BIOS update step is required before installing a Ryzen 9000 or 8000 series CPU?

Use the rear-panel BIOS FlashBack button with a USB stick containing the latest UEFI file; the board updates without a CPU or memory installed.

Which components on the board are most likely to need replacement over time?

The audio amplifier and Realtek S1220A codec are soldered, so only the CMOS battery socket and fan headers are serviceable.
