Small silver anodized aluminum barebone mini PC, slim square chassis

ASUS

ASUS RNUC14RVSU900000I barebone mini PC Core Ultra 9 185H DDR5 96GB

SKU CH-B320-14YHN MPN RNUC14RVSU900000I

Barebone mini PC with Core Ultra 9 185H, Intel Arc graphics, dual DDR5-5600 slots up to 96 GB, dual Thunderbolt 4, HDMI 2.1, 2.5 GbE, Wi-Fi 6E and Bluetooth 5.3 in a VESA-mount aluminium chassis

  • Form FactorSlim
  • AI FeaturesAI Ready
  • Integrated GraphicsIntel Arc Graphics
  • Wireless LAN802.11ax
  • BluetoothBluetooth 5.3
  • LANIntel i226V

Group Barebone

  • Core Ultra 9 185H processor handles heavy workloads
  • Intel Arc graphics drives up to 4K@60Hz over dual HDMI 2.1
  • Two DDR5 5600 SO-DIMM slots support up to 96GB
  • Twin Thunderbolt 4 ports deliver 40Gbps with DP 1.4 and 5V/3A
  • Wi-Fi 6E and Bluetooth 5.3 plus Intel 2.5GbE LAN for fast wireless and wired links

Target users

The ASUS NUC 14 Pro+ barebone mini PC is built around an Intel Core Ultra 9 185H processor with Intel ARC graphics and supports up to 96GB of DDR5-5600 memory in dual-channel configuration. It suits developers and content creators who want a compact, AI-ready system they can populate with their own RAM and storage.

Build and connectivity

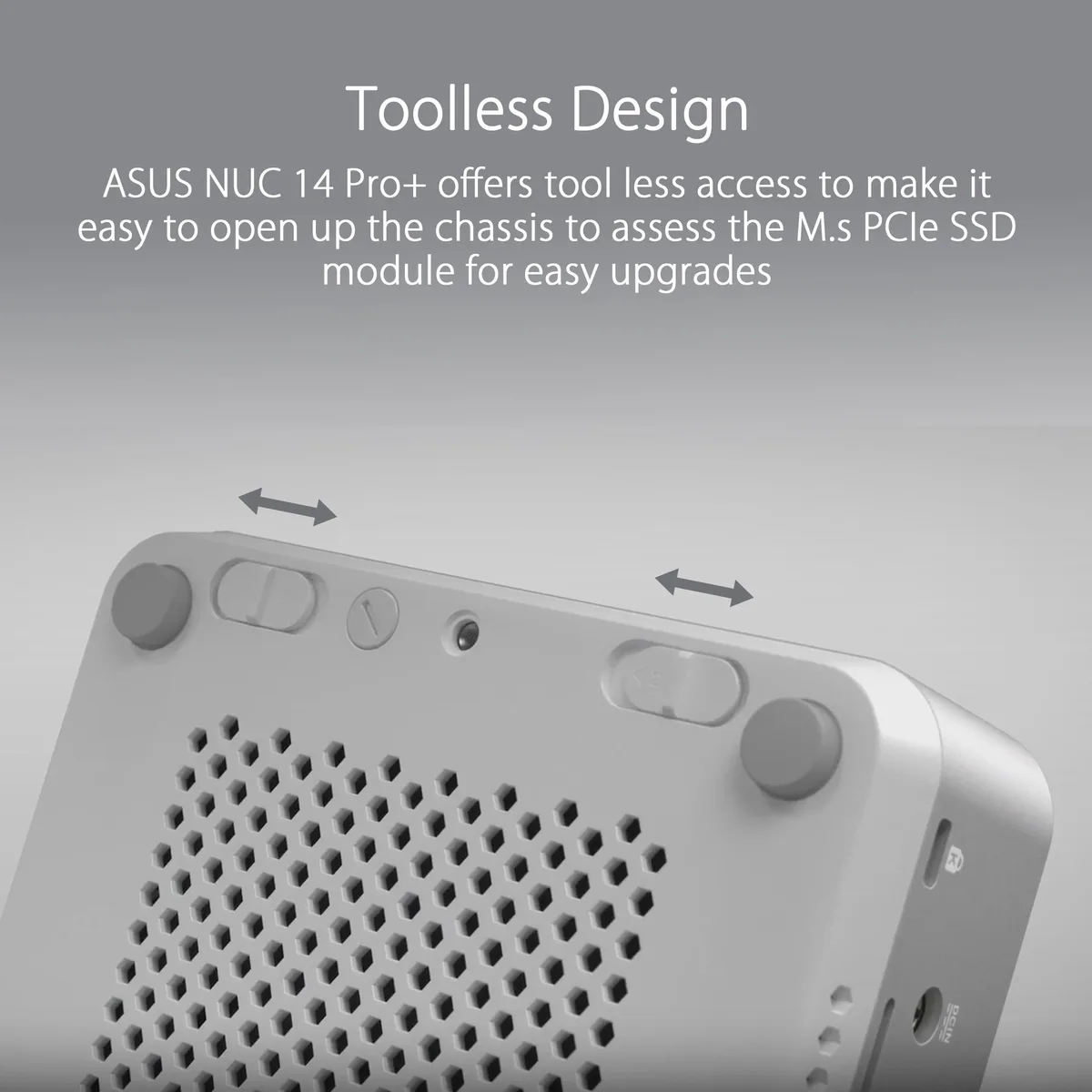

The 5 x 4-inch anodized aluminum chassis includes a VESA mount and toolless access for quick upgrades. Rear I/O provides two HDMI 2.1 ports for 4K at 60Hz, two Thunderbolt 4 ports with DP1.4 and 5V/3A power delivery, one USB 3.2 Gen2 Type-A at 10Gbps, one USB 2.0 Type-A, a 2.5Gbps Intel i226V LAN jack, a Kensington lock slot and the DC-in connector. Wireless uses Wi-Fi 6E and Bluetooth 5.3.

Compatibility check

Verify that your SO-DIMM modules are DDR5-5600 262-pin and that you have two sticks for dual-channel operation up to the 96GB limit. Ensure your displays accept HDMI 2.1 or DisplayPort 1.4 via Thunderbolt 4, and that your power adapter matches the DC-in requirement. The board offers two M.2 slots for storage; confirm the keying and length you need before purchase.

Highlights

  • Core Ultra 9 185H processor handles heavy workloads
  • Intel Arc graphics drives up to 4K@60Hz over dual HDMI 2.1
  • Two DDR5 5600 SO-DIMM slots support up to 96GB
  • Twin Thunderbolt 4 ports deliver 40Gbps with DP 1.4 and 5V/3A
  • Wi-Fi 6E and Bluetooth 5.3 plus Intel 2.5GbE LAN for fast wireless and wired links

Specifications

BrandASUS
SeriesNUC 14 PRO+
ModelRNUC14RVSU900000I
Form FactorSlim
AI FeaturesAI Ready
Integrated GraphicsIntel Arc Graphics
Wireless LAN802.11ax
BluetoothBluetooth 5.3
LANIntel i226V
Max LAN Speed2.5Gbps
WiFi GenerationWi-Fi 6E
HDMI2 x HDMI 2.1 (up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x Kensington
1 x DC-in
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Memory installedNo Memory
CPU TypeIntel Core Ultra 9 185H
Onboard AudioIntegrated
Channel7.1 Channel
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 NVMe PCIe G4x4 SSD
1 x M.2 2242 NVMe PCIe x4 SSD

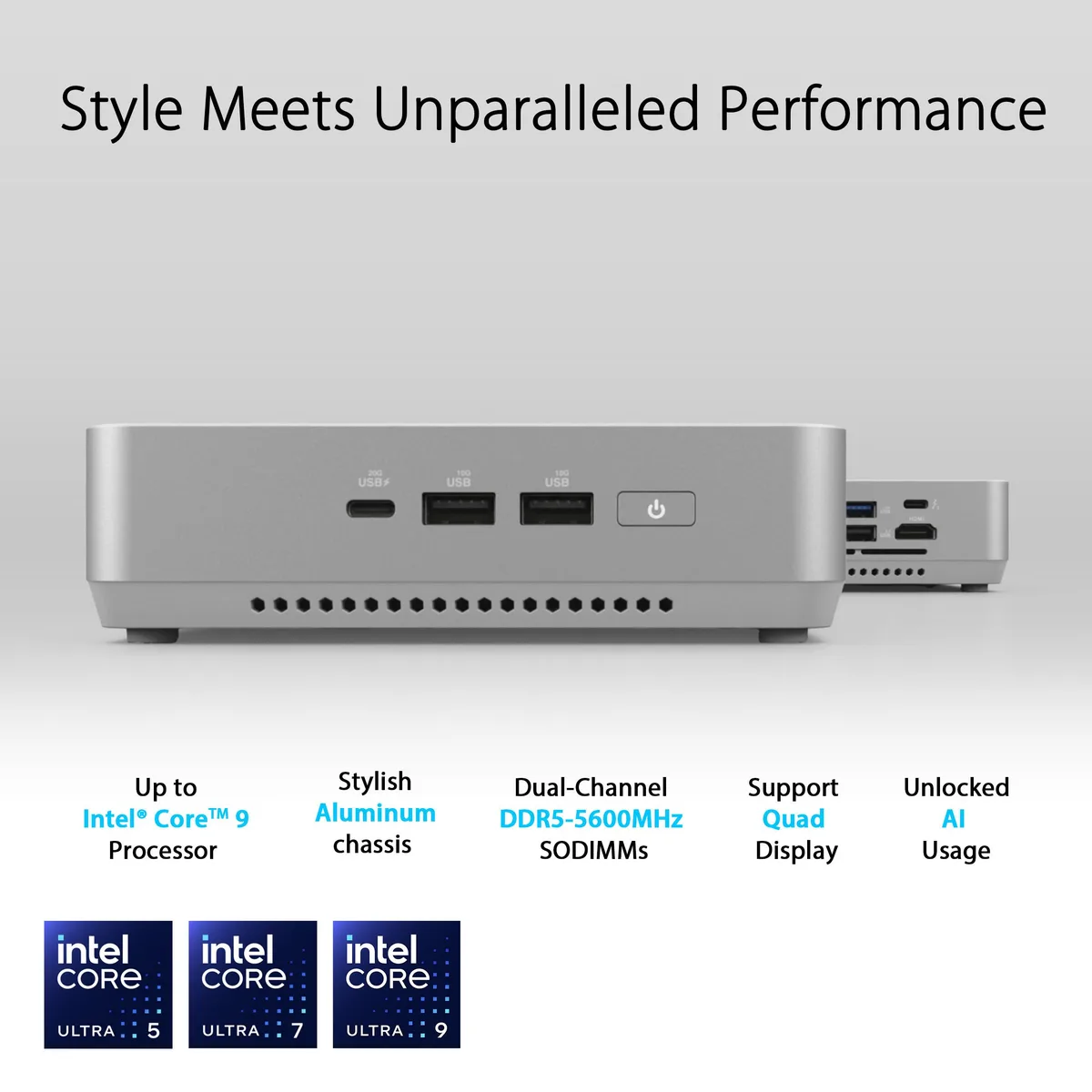

Front USB1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
Input19.5VDC, 7.69A
Power Supply150W
Dimensions144mm x 112mm x 41mm
Weight600g
PackagingVESA Mount & Screws / AC Power Adapter/ Power Cord

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the Thunderbolt 4 interface cap at in practice?

Each Thunderbolt 4 port delivers up to 40Gbps bandwidth and supports DisplayPort 1.4 video output plus 5V/3A power delivery for charging accessories.

What physical mounting does the 5 x 4-inch aluminum chassis require?

The slim anodized chassis includes a VESA mount for attaching to monitor backs or wall brackets without extra brackets.

How is the barebone assembled, and which step do builders often miss?

Open the toolless chassis, insert two DDR5-5600 SO-DIMMs up to 48GB each and add M.2 storage, then close the cover before first boot.
