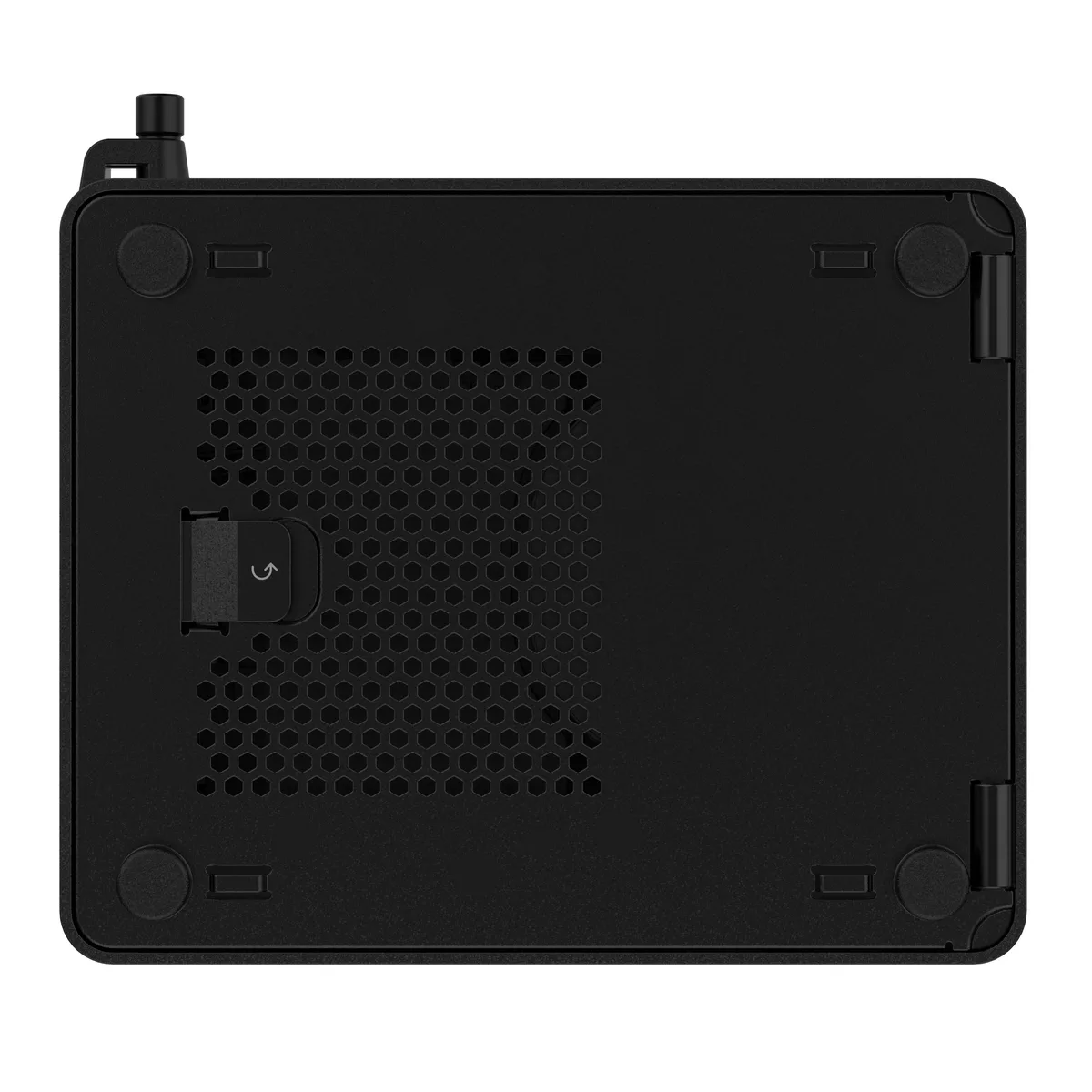

Compact black mini PC barebone with VESA mount holes visible

ASUS

ASUS RNUC16GDKX76C00U barebone mini PC Intel Core Ultra X7 358H 32GB LPDDR5x

SKU CH-AQT3-A27K7 MPN RNUC16GDKX76C00U

Barebone mini PC with 16-core Intel Core Ultra X7 358H, 32 GB LPDDR5x, dual M.2 slots, Wi-Fi 7, Bluetooth 6.0, dual 2.5 Gbps LAN and Thunderbolt 4

  • ColorBlack
  • CPU TypeIntel Core Ultra X7 358H
  • CPU Cores16-Core (4P+8E+4LP)
  • Memory installed32GB
  • Memory Type SupportedLPDDR5X 8533
  • M.2 Slot1 x M.2 2280 PCIe Gen5x4 NVMe SSD Slot (supports 128GB ~ 8TB

Type Intel Core Ultra X7 358H(Panther lake CPU )

  • Intel Core Ultra X7 358H with 16 cores drives demanding AI workloads
  • 32GB LPDDR5x 8533 memory enables fast multitasking and large datasets
  • Dual M.2 slots Gen5 and Gen4 support up to 8TB NVMe storage each

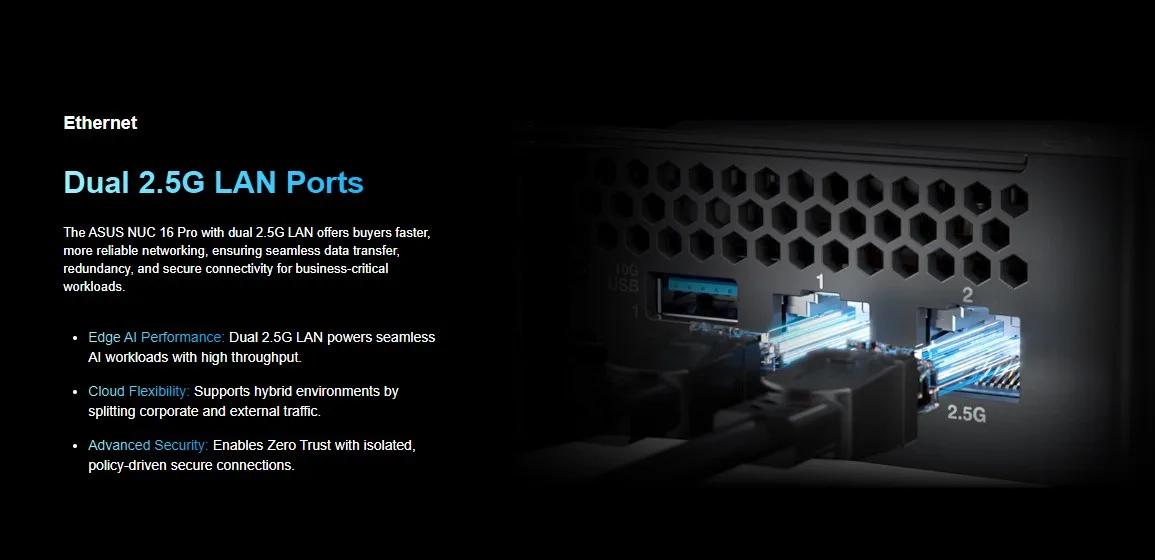

  • Dual 2.5Gbps LAN plus Wi-Fi 7 and Bluetooth 6.0 ensure high-speed connectivity
  • Two Thunderbolt 4 and two HDMI 2.1 ports drive multiple 4K displays

Compact AI-Ready Barebone

The ASUS NUC 16 Pro barebone packs an Intel Core Ultra X7 358H processor with 16 cores and 32GB of onboard LPDDR5x memory. It targets businesses that need a small footprint system for AI inference, digital signage or industrial automation. The 144 x 117 x 42 mm chassis includes dual 2.5Gbps LAN, Wi-Fi 7 and Bluetooth 6.0 for high-speed wired and wireless connectivity. Tool-less access simplifies storage upgrades in deployed environments.

Ideal for Edge AI and Signage

This unit suits IT teams deploying compact workstations, kiosks or edge servers that benefit from the integrated Arc B390 graphics and NPU acceleration. Dual Thunderbolt 4 and two HDMI 2.1 ports drive multiple 4K displays at 60 Hz. Buyers who require user-replaceable system memory or discrete graphics cards should look at larger form-factor platforms instead.

Dual M.2 Storage Headroom

Two M.2 2280 slots accept NVMe SSDs from 128 GB up to 8 TB each, one wired for PCIe Gen5 x4 and the other for Gen4 x4. The 32 GB LPDDR5x is soldered, so total system memory cannot be expanded beyond the factory configuration. The 180 TOPS platform rating indicates headroom for concurrent AI workloads, while the fixed memory capacity sets a hard ceiling for memory-intensive virtualisation or large dataset caching.

Highlights

  • Intel Core Ultra X7 358H with 16 cores drives demanding AI workloads
  • 32GB LPDDR5x 8533 memory enables fast multitasking and large datasets
  • Dual M.2 slots Gen5 and Gen4 support up to 8TB NVMe storage each
  • Dual 2.5Gbps LAN plus Wi-Fi 7 and Bluetooth 6.0 ensure high-speed connectivity
  • Two Thunderbolt 4 and two HDMI 2.1 ports drive multiple 4K displays

Specifications

BrandASUS
SeriesNUC 16 Pro
ModelRNUC16GDKX76C00U
Part Number90AR00W2-M00170
ColorBlack
CPU TypeIntel Core Ultra X7 358H
CPU Cores16-Core (4P+8E+4LP)
Memory installed32GB
Memory Type SupportedLPDDR5X 8533
M.2 Slot1 x M.2 2280 PCIe Gen5x4 NVMe SSD Slot (supports 128GB ~ 8TB)
1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot (supports 128GB ~ 8TB)
Integrated GraphicsIntel Arc B390 GPU
LANIntel i226V
Max LAN SpeedDual 2.5Gbps
Wireless LAN802.11be
WiFi GenerationWi-Fi 7
BluetoothBluetooth 6.0

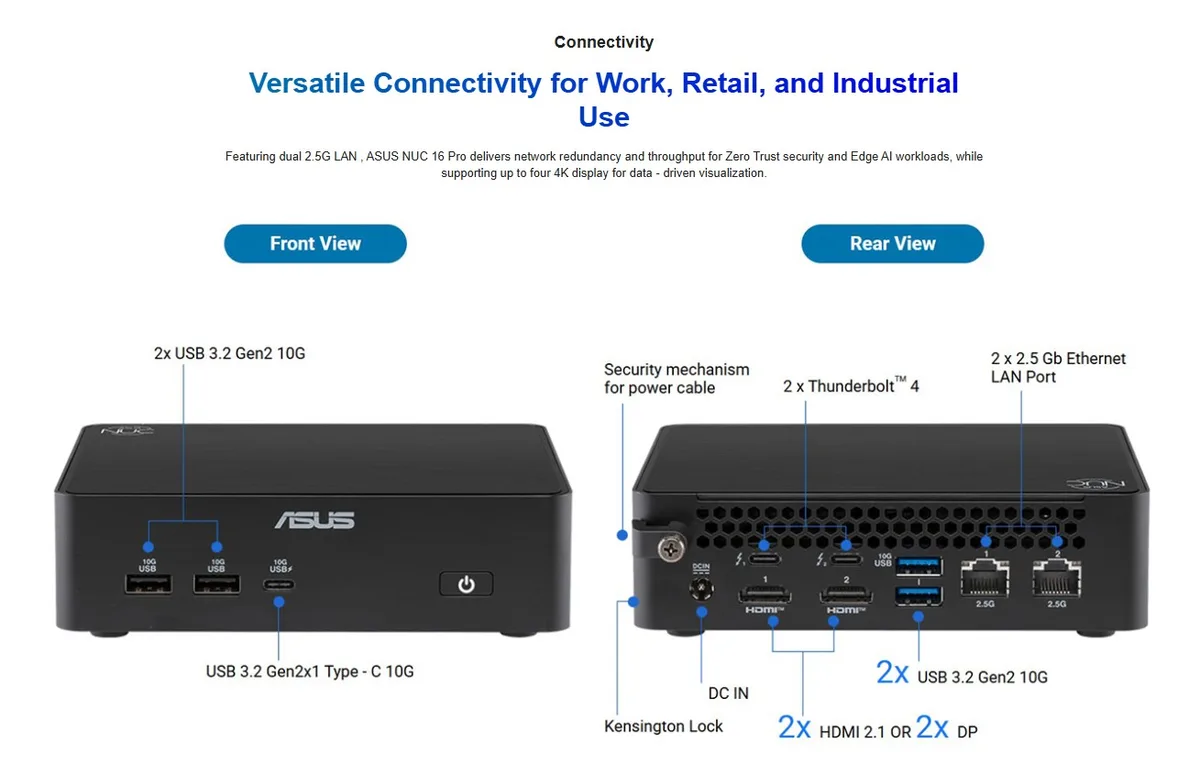

Front USB1 x USB 3.2 Gen2x1 Type-C (10Gbps)
2 x USB 3.2 Gen2 Type-A (10Gbps)
HDMI2 x HDMI 2.1 (up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (DP2.1 & USB4)

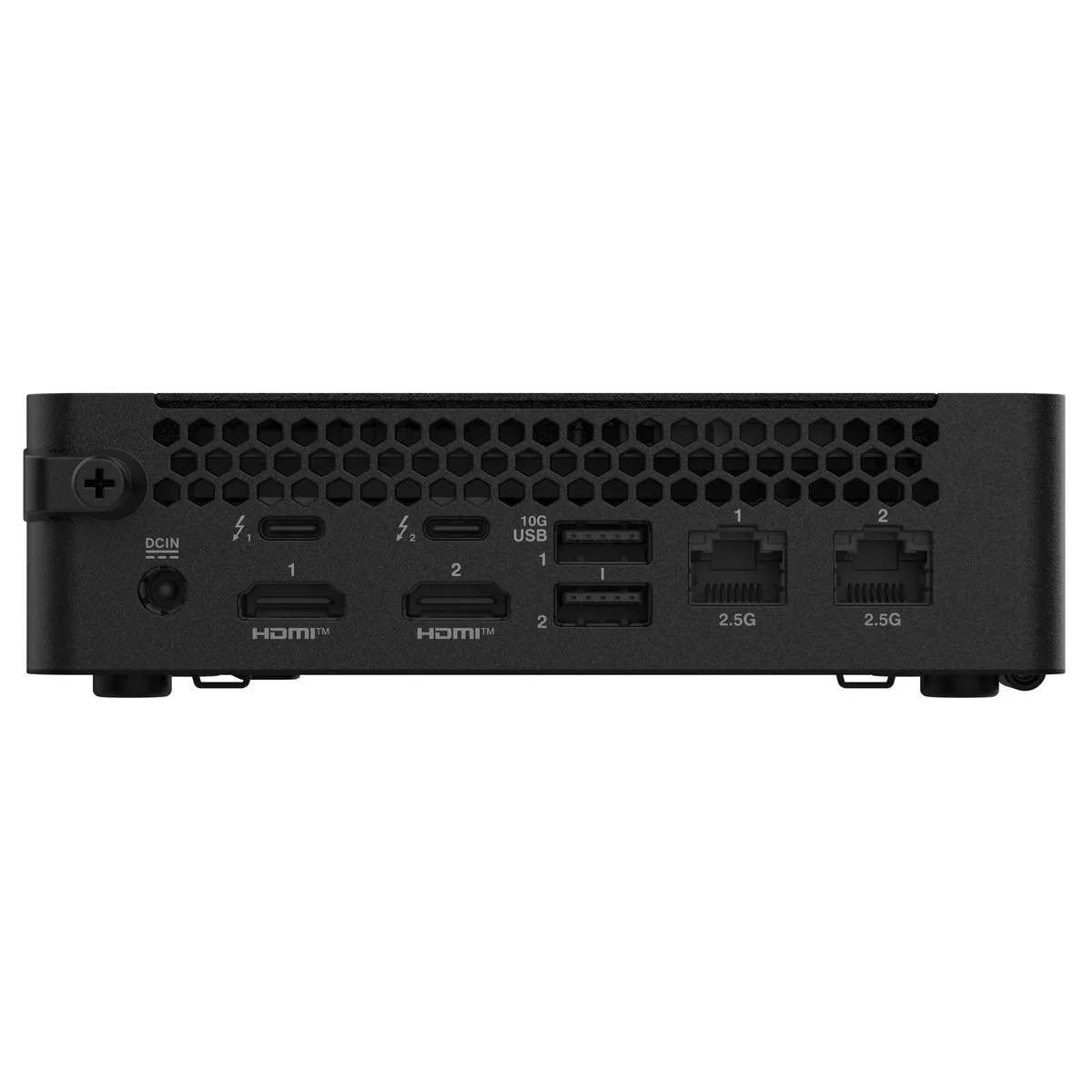

Rear USB2 x USB 3.2 Gen2 Type-A (10Gbps)
RJ452 x Intel 2.5G LAN (RJ45)
Internal Connectors1 x Cable Locking Arm
1 x DC-in
Dimensions5.67" x 4.61" x 1.65"
Weight1.51 lbs.
PackagingVESA Mount & Screws / Power Adapter / US Power Cord
Shipping weight1.54 kg
Package size213 × 171 × 108 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What storage drives must I supply to complete this barebone?

You need to add one M.2 2280 PCIe Gen5x4 NVMe SSD and one M.2 2280 PCIe Gen4x4 NVMe SSD; each slot accepts 128 GB to 8 TB.

Will my existing 2.5 Gbps network switch work with the dual LAN ports?

Yes, both Intel i226V ports run at 2.5 Gbps and are backward compatible with slower Ethernet gear.

How can I verify the Intel Arc B390 graphics are active after assembly?

Open Device Manager or the Intel Graphics Command Center; the B390 GPU should appear with driver version details.
