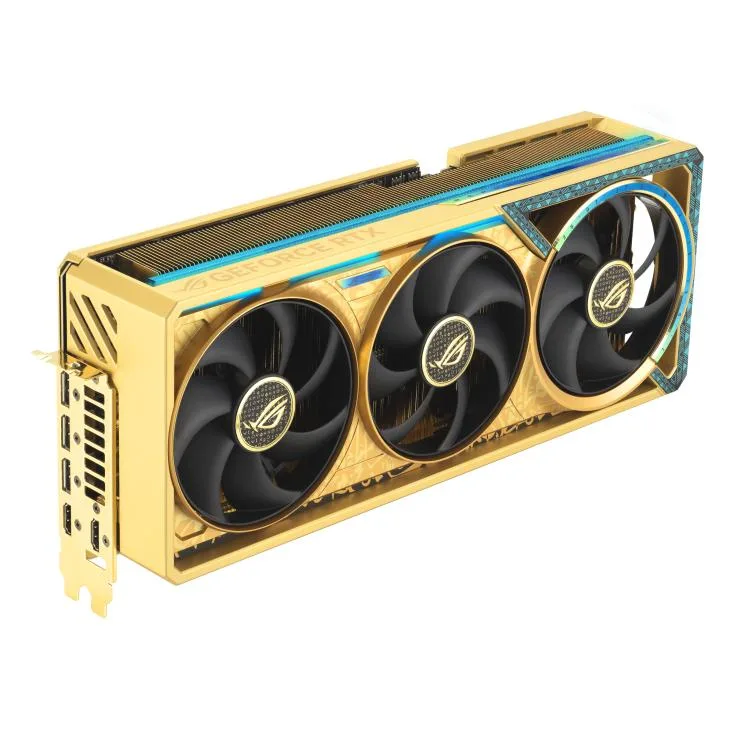

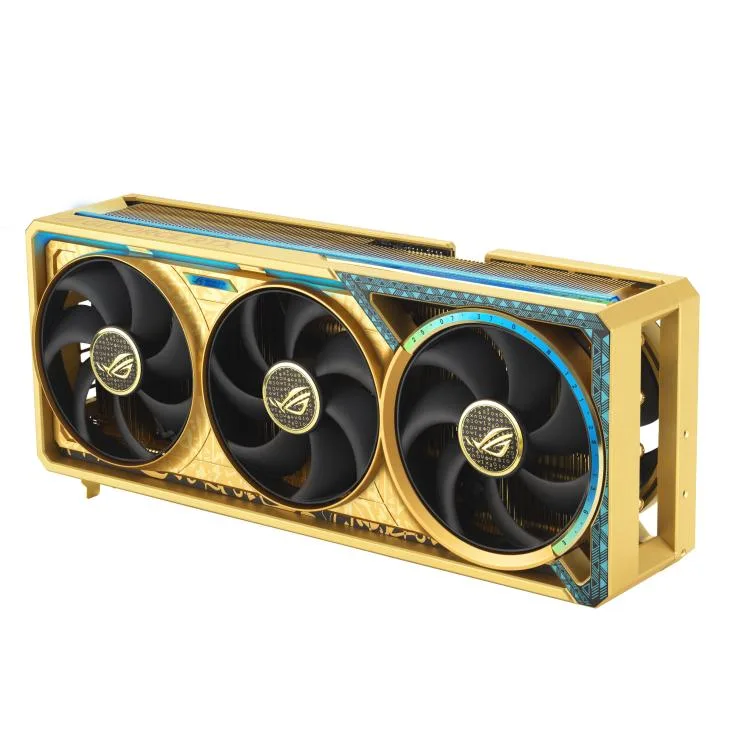

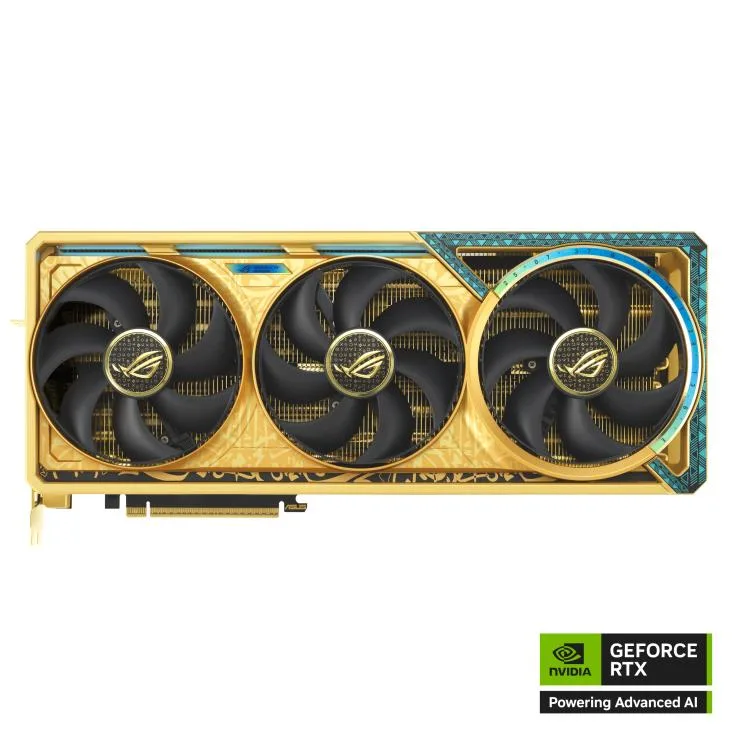

Gold-finished triple-fan graphics card with ROG Astral branding

ASUS

ASUS ROG Astral GeForce RTX 5080 16GB GDDR7 DHAHAB-CORE OC Edition graphics card

SKU CH-WDGM-SN6PJ

A 16 GB GDDR7 graphics card with 10752 CUDA cores, PCI Express 5.0, DLSS 4.0 and four-display output

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5080
  • ArchitectureBlackwell
  • CUDA Cores10752
  • 16GB GDDR7 memory at 30 Gbps delivers high bandwidth for 4K and AI workloads
  • 10752 CUDA cores provide compute density for ray tracing and creative rendering
  • DLSS 4.0 upscaling boosts frame rates while preserving image detail
  • PCI Express 5.0 x16 interface doubles host bandwidth versus the prior generation
  • HDMI 2.1b and DisplayPort 2.1a outputs drive four 8K displays simultaneously

ROG Astral RTX 5080 16GB GDDR7

The ASUS ROG Astral GeForce RTX 5080 is a graphics card built on the NVIDIA Blackwell architecture. It delivers 10752 CUDA cores and 16GB of GDDR7 memory on a 256-bit interface running at 30 Gbps. The card connects via PCI Express 5.0 x16 and supports DirectX 12 Ultimate with DLSS 4.0 for AI-enhanced rendering.

4K creators and high-refresh competitive players

This card suits users who need 16GB of high-bandwidth memory for 4K gaming, 3D rendering or video editing workloads. The four-display output configuration with HDMI 2.1b and DisplayPort 2.1a handles multi-monitor setups at 7680 x 4320 resolution. Buyers targeting 8K gaming or compute tasks requiring more than 16GB VRAM should consider higher-capacity alternatives.

16GB GDDR7 on 256-bit bus

The 16GB GDDR7 frame buffer paired with a 256-bit memory bus determines whether this model fits your workload. At 30 Gbps effective clock the memory subsystem delivers the bandwidth needed for 4K textures and high frame rates. If your applications consistently exceed 16GB VRAM allocation you will need a card with a larger memory buffer.

Highlights

  • 16GB GDDR7 memory at 30 Gbps delivers high bandwidth for 4K and AI workloads
  • 10752 CUDA cores provide compute density for ray tracing and creative rendering
  • DLSS 4.0 upscaling boosts frame rates while preserving image detail
  • PCI Express 5.0 x16 interface doubles host bandwidth versus the prior generation
  • HDMI 2.1b and DisplayPort 2.1a outputs drive four 8K displays simultaneously

Specifications

BrandASUS
SeriesROG Astral
ModelROG-ASTRAL-RTX5080-O16G-DHAHAB-CORE
InterfacePCI Express 5.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5080
ArchitectureBlackwell
CUDA Cores10752
Effective Memory Clock30 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI2 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1a
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Thermal Design Power360W
Recommended PSU Wattage850W
Power Connector1 x 16-Pin
HDCP ReadyYes
Max GPU Length358 mm
Card Dimensions (L x H)14.1 x 5.9 x 3 inch
Slot Width3.8 Slots
Package Contents1 x Speedsetup Manual
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x ROG Magnet
1 x ROG Graphics Card Keycap
1 x ROG PCB Ruler
1 x Thank You Card
1 x Adapter Cable (1 to 3)?

Questions about this item

What PCI Express slot width does the ROG-ASTRAL-RTX5080-O16G-DHAHAB-CORE require?

The card uses a PCI Express 5.0 x16 slot, so a full-length x16 lane is needed on the motherboard.

Which power connectors must be attached before the first boot?

Connect all required 12VHPWR or 8-pin PCIe cables to the card's power inputs; missing a connector will prevent the GPU from posting.

How often should the thermal paste and pads be inspected on this RTX 5080 model?

Plan to check the thermal interface material every two to three years, or sooner if temperatures rise under load.
