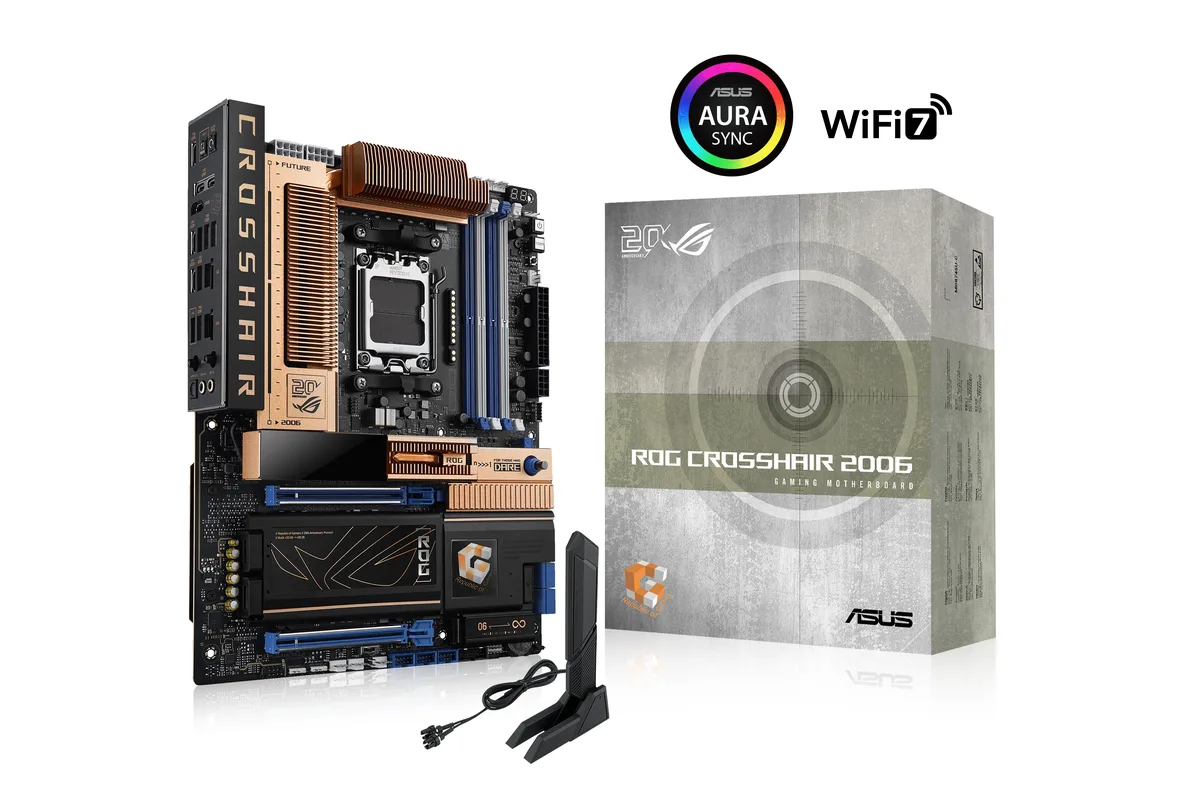

ATX motherboard with copper finish and small OLED display

ASUS

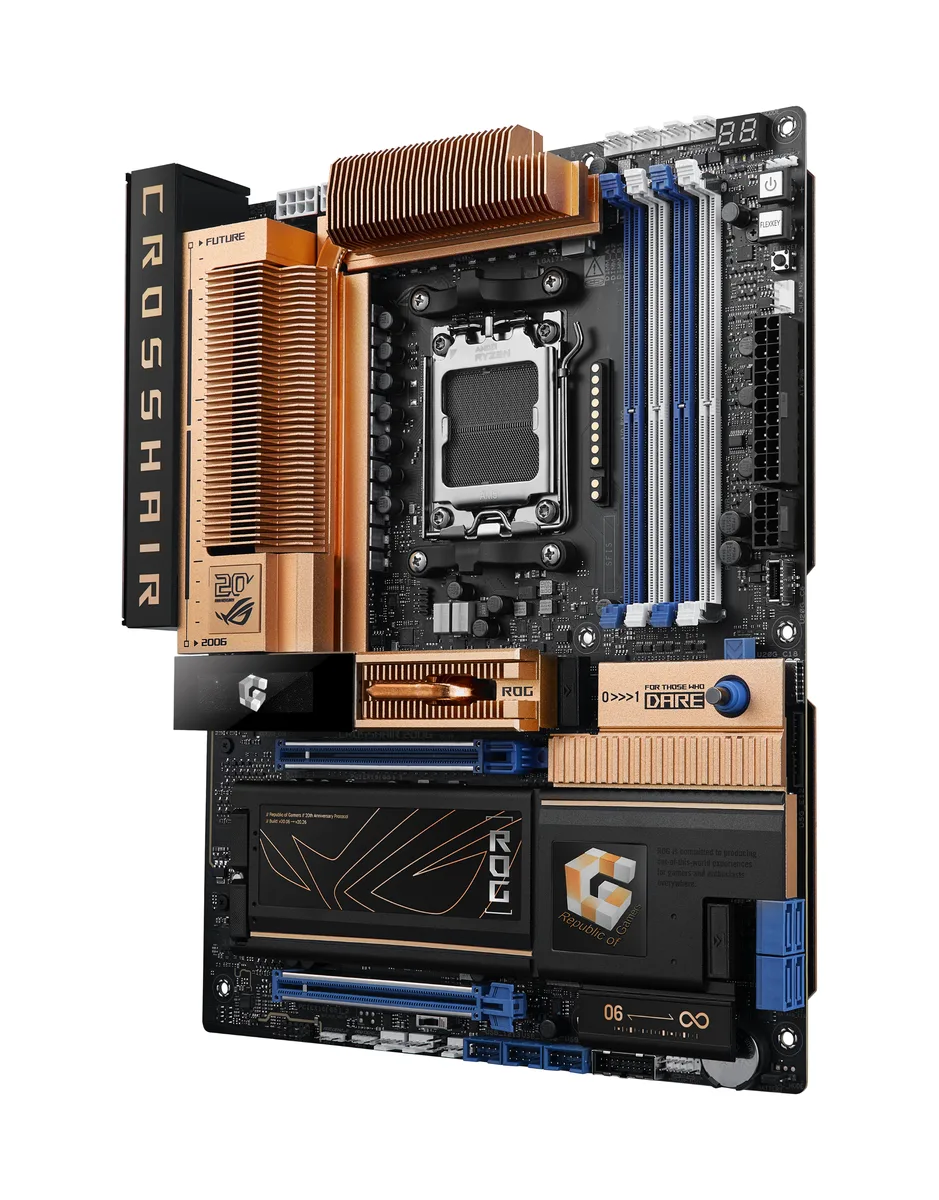

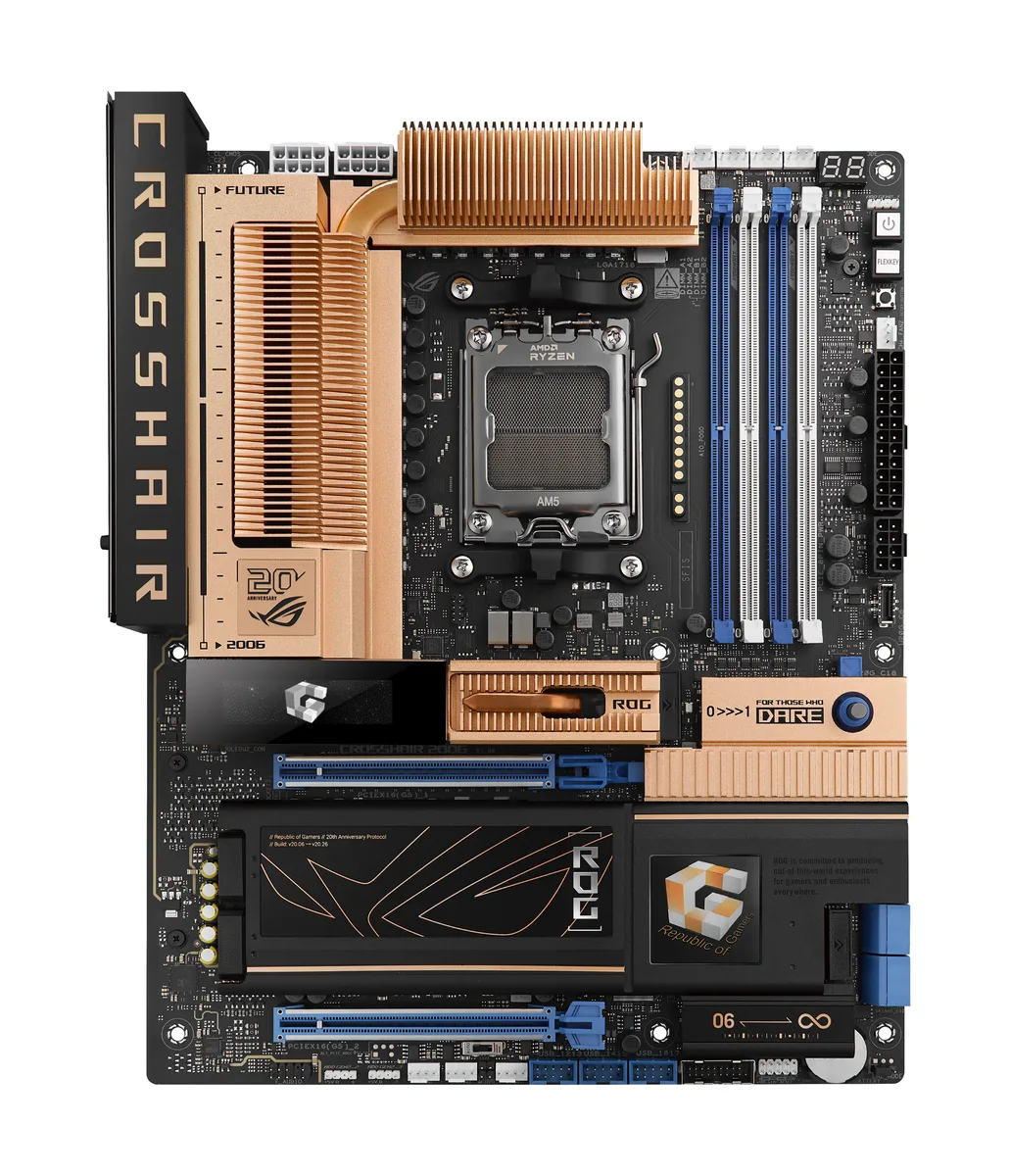

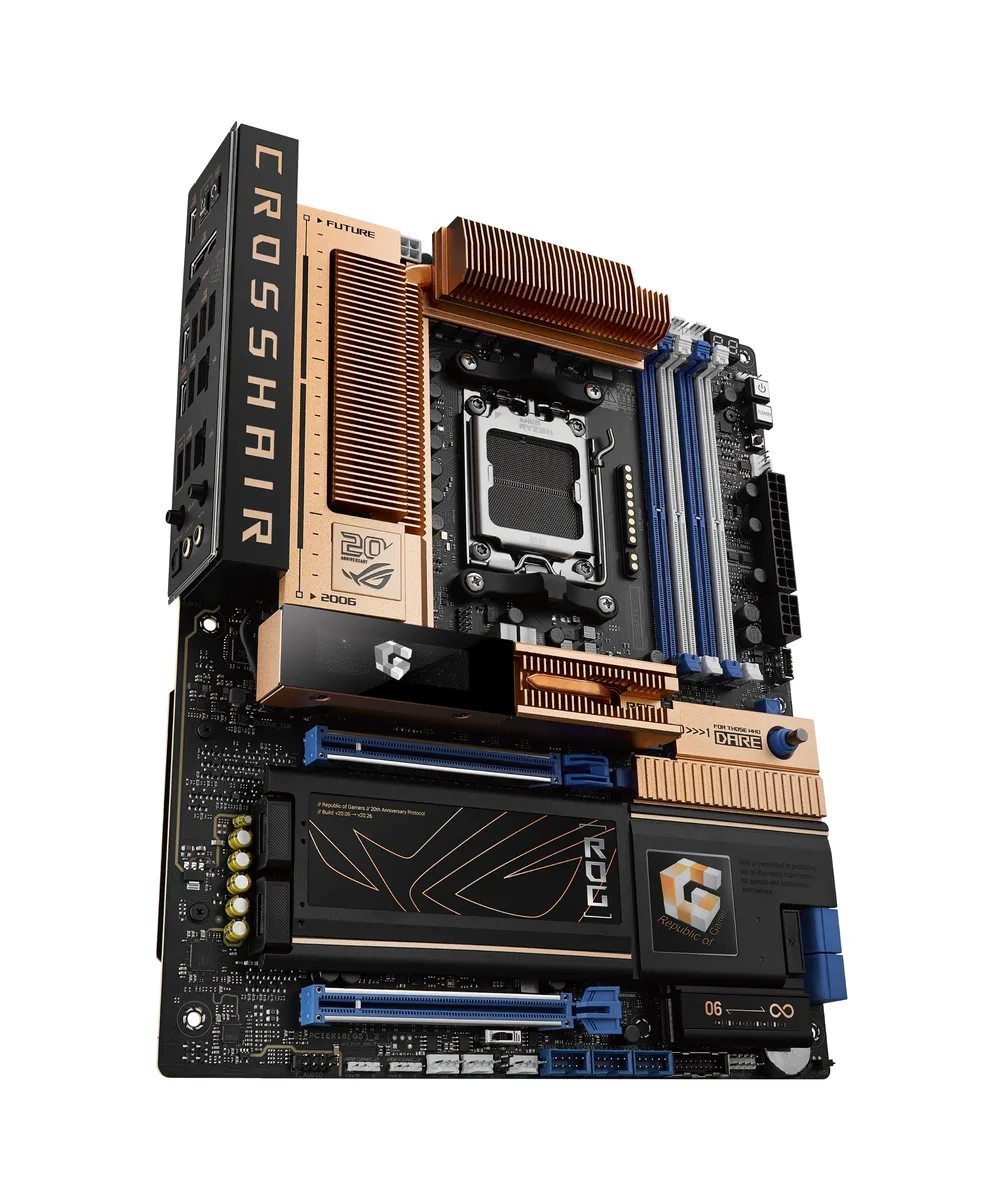

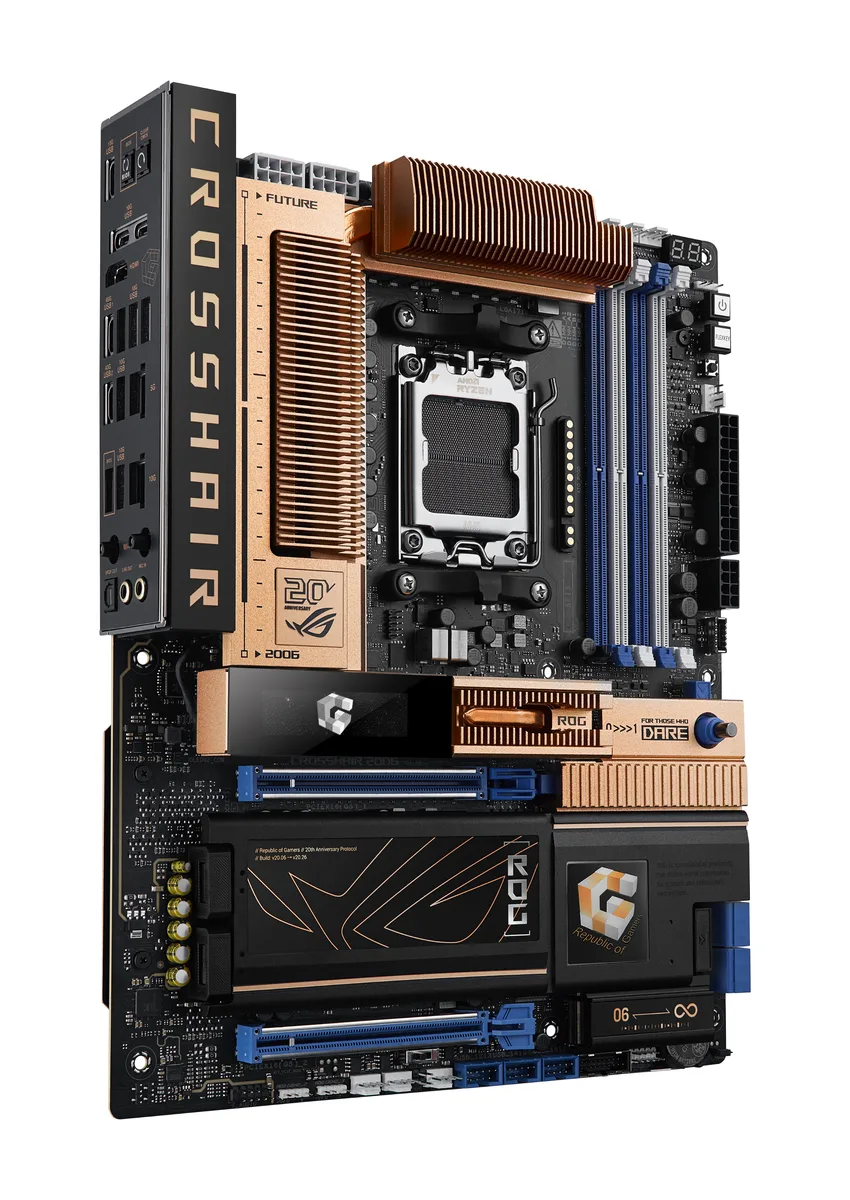

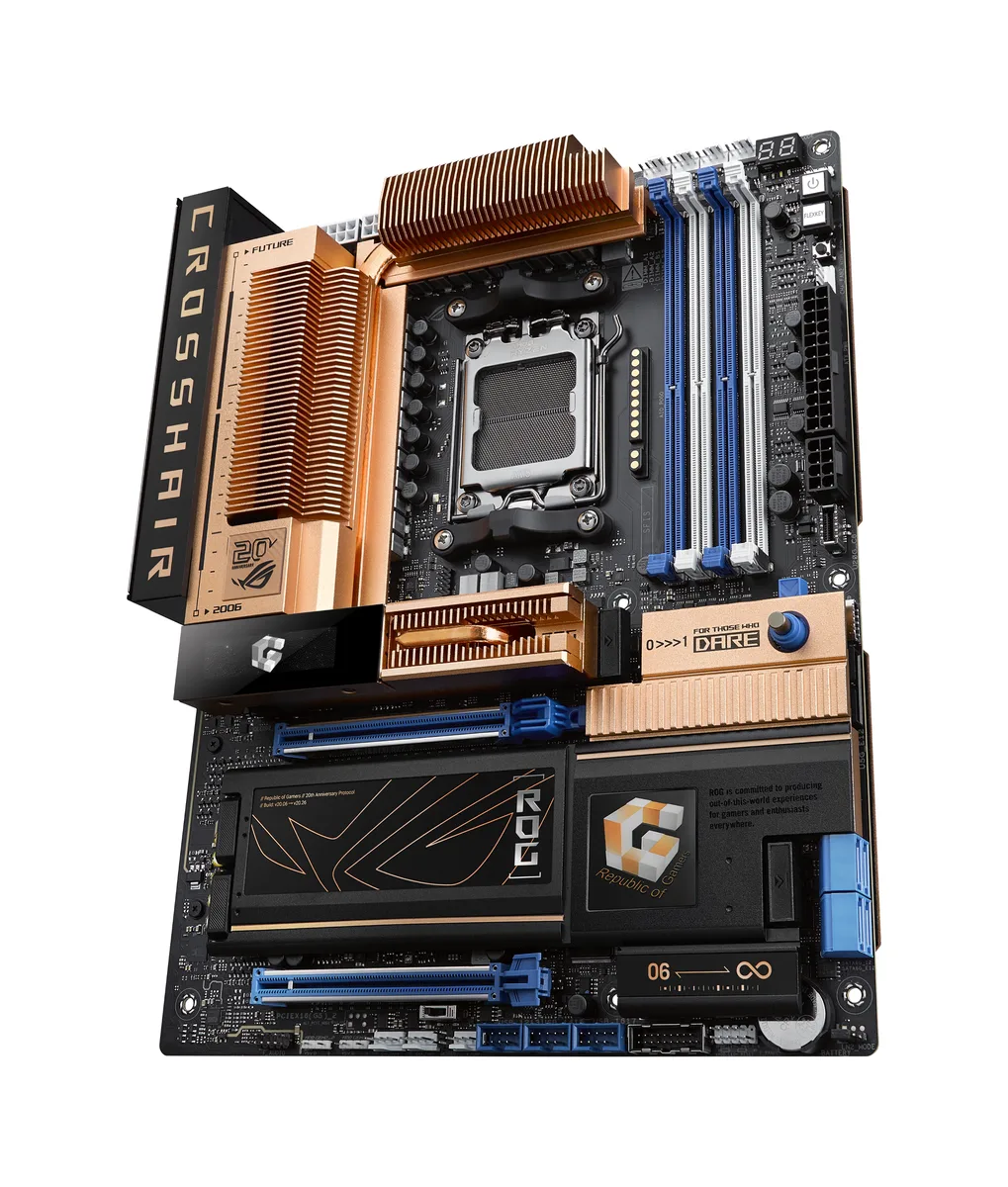

ASUS ROG Crosshair 2006 X870E AM5 ATX AMD motherboard

SKU CH-D711-ZMP00 MPN ROG Crosshair 2006 AM5 ATX

Supports Ryzen 7000, 8000 and 9000 series CPUs with DDR5 up to 256GB, dual PCIe 5.0 x16 slots, five M.2 sockets, dual USB4 and a built-in 2" OLED display

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 /
  • Maximum Memory Supported256GB
  • DDR5 up to 9600 MT/s with AMD EXPO for high memory bandwidth
  • 20 plus 2 plus 2 power stages at 110 A each for stable CPU delivery
  • Dual 10 Gbps and 5 Gbps Ethernet plus WiFi 7 for fast networking
  • Two USB4 40 Gbps ports and five M.2 slots for versatile expansion
  • Two-inch OLED display and AIO Q-Connector for easy system monitoring and build

AM5 DDR5 ATX motherboard for Ryzen 9000 8000 7000

The ASUS ROG Crosshair 2006 X870E AM5 ATX motherboard targets enthusiasts building high-performance AMD systems. It accepts Ryzen 9000, 8000 and 7000 series processors in the AM5 socket. Four 288-pin DDR5 slots support up to 256GB in dual-channel mode with AMD EXPO profiles and ECC capability. The board also provides 10Gb and 5Gb Ethernet, WiFi 7, two USB4 ports and five M.2 slots.

Installation ease and common pitfalls

ATX dimensions fit standard cases and the 24-pin plus dual 8-pin ProCool II power connectors are clearly keyed. The AIO Q-Connector bundles front-panel and pump headers into one plug, reducing cable clutter. Builders must match the CPU generation to the correct PCIe 5.0 or 4.0 x16 slots and verify M.2 keying lengths 2242 2260 2280 22110 before mounting drives. The two-inch OLED display requires a free internal USB header for firmware updates.

X870E interface practical limits

The AMD X870E chipset delivers 20 PCIe 5.0 lanes from Ryzen 9000 and 7000 CPUs, enabling two x16 slots that run at x16 or x8/x8 and two CPU-attached M.2 slots at PCIe 5.0 x4. Ryzen 8000 series processors drop the x16 slots to PCIe 4.0 and reduce M.2 speeds accordingly. Two SATA 6Gb/s ports come from the ASM1162 controller and cannot join RAID arrays. Rear I/O tops out at USB4 40Gbps and 10Gb Ethernet throughput.

Highlights

  • DDR5 up to 9600 MT/s with AMD EXPO for high memory bandwidth
  • 20 plus 2 plus 2 power stages at 110 A each for stable CPU delivery
  • Dual 10 Gbps and 5 Gbps Ethernet plus WiFi 7 for fast networking
  • Two USB4 40 Gbps ports and five M.2 slots for versatile expansion
  • Two-inch OLED display and AIO Q-Connector for easy system monitoring and build

Specifications

BrandASUS
ModelROG Crosshair 2006 AM5 ATX
Part Number90MB1PP0-M0AAY0
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6666 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8333 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066 / DDR5 9200 / DDR5 9333 / DDR5 9466 / DDR5 9500 / DDR5 9600
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedYes
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
AMD Ryzen 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
** When PCIEX16_1 runs at PCIe 5.0 x16, PCIEX16_2 will run at PCIe 3.0 x4. The bandwidth can be altered in the BIOS.
Serial ATA (SATA)2 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
AMD Ryzen 8500 & 8300 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_3
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10*
* SATA ports from ASM1162 cannot support RAID
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound a
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 10Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB2 x USB 20Gbps connectors (support USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x AIO Q-Connector
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x LN2 Mode jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
BIOS Feature64 MB (512Mb)
Flash ROM, UEFI AMI BIOS
FeaturesReady for AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors
Retro-Inspired Design: Predominantly copper aesthetic with touches of blue and white pays tribute to the very first ROG motherboard
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intelligent Control: ASUS-exclusive AI Cache Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II, and AEMP to simplify setup and improve performance
ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and
Package ContentsCables
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Slide package
5 x M.2 backplate rubber packages
1 x ROG stickers
1 x ROG screwdriver
Documentation
1 x Quick start guide
Shipping weight5.17 kg
Package size409 × 333 × 132 mm

Questions about this item

How can I verify the 2-inch OLED display is working after I install the board?

The OLED panel lights up during POST and shows real-time CPU temperature, fan speeds and error codes; if it stays dark, check the USB 2.0 header connection that powers it.

What ships with the ROG Crosshair 2006 and which items must I source separately?

The box contains the motherboard, I/O shield, AIO Q-Connector, Wi-Fi 7 antennas, SATA cables and manuals; you still need a Ryzen 7000/8000/9000 CPU, DDR5 DIMMs, M.2 SSDs, GPU and PSU.

Which memory speed from the supported DDR5 list should I pick for this X870E board?

Any kit on the qualified-vendor list up to DDR5 9600 will run at its rated speed via AMD EXPO; choose a capacity that stays within the 256 GB maximum across the four 288-pin slots.
