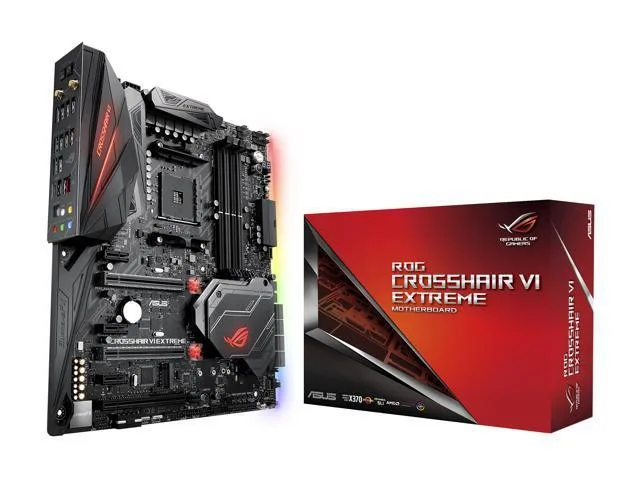

Black extended ATX motherboard with metal-reinforced PCIe slots, dual M.2 heatsinks and RGB lighting zones

ASUS

ASUS ROG Crosshair VI Extreme X370 AM4 AMD Motherboard

SKU CH-S7T8-WFTRN

Extended ATX board for AM4 Ryzen CPUs with dual M.2 slots, eight SATA ports and reinforced PCIe slots

  • CPU Socket TypeAM4
  • CPU TypeRyzen / Athlon / A-Series
  • ChipsetAMD X370
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 2666
  • Maximum Memory Supported64GB
  • Dual M.2 slots enable fast NVMe storage
  • Eight SATA 6Gb/s ports support large drive arrays
  • Reinforced Safe Slots hold heavyweight GPUs securely
  • SupremeFX S1220 codec delivers 8-channel high-definition audio
  • Intel I211AT controller provides Gigabit LAN connectivity

AM4 platform for Ryzen builds

This extended ATX motherboard uses the AMD X370 chipset and AM4 socket to support Ryzen, Athlon and A-Series processors. Four DDR4 slots accept up to 64 GB of memory running at 2666 in dual-channel mode. Two M.2 sockets and eight SATA 6Gb/s ports provide flexible storage options for high-performance desktops.

5-Way Optimization and cooling headers

The on-board 5-Way Optimization suite includes Auto-Tuning and Fanpert 4 for automatic overclocking profiles and fan control. Dedicated AIO and water-cooling headers allow liquid-cooling loops to be managed directly from the board, helping keep temperatures and noise in check during everyday workloads.

Reinforced Safe Slots and sustained I/O

Two Safe Slots use an injection-moulded metal frame to anchor heavy graphics cards securely under long-term stress. The Intel i211AT Gigabit LAN controller, SupremeFX S1220 8-channel audio and dual M.2 drives maintain consistent throughput during extended sessions, while AURA Sync RGB headers enable lighting personalisation.

Highlights

  • Dual M.2 slots enable fast NVMe storage
  • Eight SATA 6Gb/s ports support large drive arrays
  • Reinforced Safe Slots hold heavyweight GPUs securely
  • SupremeFX S1220 codec delivers 8-channel high-definition audio
  • Intel I211AT controller provides Gigabit LAN connectivity

Specifications

BrandASUS
SeriesROG
ModelCROSSHAIR VI EXTREME
CPU Socket TypeAM4
CPU TypeRyzen / Athlon / A-Series
ChipsetAMD X370
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2666
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCI Express 3.0 x16
PCI Express 2.0 x161 x PCI Express 2.0 x16
PCI Express x13 x PCI Express x1
Serial ATA (SATA)8 x SATA 6Gb/s
M.22 x M.2
SATA RAID0/1/10
Audio ChipsetROG SupremeFX High Definition Audio CODEC S1220
Audio Channels8 Channels
LAN ChipsetIntel i211AT
Max LAN Speed1Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac
BluetoothYes
RJ451 x RJ45
USB 3.17 x USB 3.1
USB 1.1/2.04 x USB 2.0
USB Type-C1 x USB 3.1
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB5 x USB 3.1 + 1 x USB 2.0
Other Connectors1 x Aura Addressable Strip Header(s)2 x Aura RGB Strip Headers1 x TPM header1 x CPU Fan connector(s) (1 x 4-pin)1 x CPU OPT Fan connector(s) (1 x 4-pin)1 x Chassis Fan connector(s) (1 x 4-pin)1 x W_PUMP+ connector (1 x 4-pin)1 x Front panel audio connector(s) (AAFP)1 x Internal speaker connector(s)1 x System panel(s) (Q-Connector)1 x Slow Mode switch(es)7 x ProbeIt Measurement Points1 x EZ Plug connector(s) (4-pin Molex power connector)1 x Reset button(s)1 x 5-pin EXT_FAN (Extension Fan) connector1 x LN2 Mode jumper(s)1 x ROG extension (ROG_EXT) header(s)1 x Safe Boot button1 x ReTry
Form FactorExtended ATX
LED LightingRGB
Dimensions (W x L)12.0" x 10.6"
Power Pin24 Pin
FeaturesMulti-GPU Support:Supports NVIDIA 2-Way SLI Technology*Supports AMD 3-Way CrossFireX Technology** Due to CPU limitation, AMD 7th Generation A-series/Athlon Processors support AMD 2-Way CrossFireX Technology only.ROG Exclusive Features:Clear CMOS buttonROG RAMCache IIROG CPU-ZROG CloneDrivePre-mounted I/O ShieldSlow ModeOverwolfReTry ButtonSafe Boot ButtonStart ButtonReset ButtonLN2 ModeGameFirst IVExtreme Engine Digi+:- MicroFine Alloy Chokes- NexFET Power Block MOSFET- 10K Black Metallic CapacitorsMem TweakItKeyBot II- One-click Overclocking- DirectKey- ClrCMOS- Power OnUEFI BIOS fe
Package ContentsAccessories:User's manual1 x ROG logo plate sticker8 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x Fan Extension Card (3 x 4-pin fan out)1 x Fan Extension card screw pack1 x Fan Extension card cable1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)1 x SLI HB BRIDGE (2-WAY-M)1 x ROG big sticker1 x Q-Connector1 x 10-in-1 ROG cable label1 x Extension Cable for RGB strips (80cm)1 x Extension cable for Addressable LED3 x Thermistor cable(s)1 x ROG coaster(s)

Questions about this item

How do I install the CPU on the AM4 socket and what step is often missed?

Align the triangle on the Ryzen processor with the socket corner, lower the retention arm fully until it clicks, then attach the cooler — many builders forget to remove the protective plastic cover on the socket before seating the CPU.

What maintenance will the ROG SupremeFX S1220 audio codec need over time?

The onboard audio codec itself requires no scheduled maintenance; keep the rear-panel jacks dust-free with compressed air and update the Realtek driver from ASUS support when a new version appears.

What limit appears first when running all eight SATA 6Gb/s ports under sustained heavy I/O?

The chipset-linked SATA controller shares bandwidth with the two M.2 slots and PCIe x1 lanes, so simultaneous maximum throughput on every SATA port will hit the X370 upstream PCIe 3.0 x4 bottleneck before any individual drive saturates.
