Compact SFX-L power supply, dark metal casing, 120mm ARGB fan visible, modular cable ports on one side, ATX-to-SFX bracket included

ASUS

ASUS ROG-LOKI-1000P-SFX-L-GAMING 1000W Platinum power supply

SKU CH-NGJV-XPHA8 MPN ROG-LOKI-1000P-SFX-L-GAMING

A fully modular SFX-L 1000 W power supply with 80 PLUS Platinum efficiency, ATX 3.0 compliance and a 16-pin PCIe Gen 5 cable for modern graphics cards

  • TypeATX 12V
  • Maximum Power1000 W
  • Main Connector24Pin
  • PCI-Express Connector3 x 6+2-Pin
  • SATA Power Connector6
  • Max PSU Length125 mm

Options SFX 80+ Platinum (1000W) Black

  • 1000 W output powers high-end builds with headroom
  • 80 PLUS Platinum efficiency up to 92 % reduces heat and noise
  • ATX 3.0 compliant with 16-pin PCIe cable delivers up to 600 W to Gen 5.0 graphics cards
  • 120 mm PWM ARGB fan with axial-tech cooling keeps thermals low and acoustics quiet
  • Fully modular SFX-L design at 125 mm length fits compact cases and simplifies cable routing

Compact high-output SFX-L power supply

The ASUS ROG Loki SFX-L unit delivers 1000 W from a 125 mm long enclosure that fits many small-form-factor cases. Its fully modular cable set lets builders connect only what the system requires. The 80 PLUS Platinum rating confirms up to 92 % efficiency at typical loads. It targets enthusiasts who need maximum wattage in a reduced footprint.

ATX 3.0 and PCIe 5.0 power delivery limits

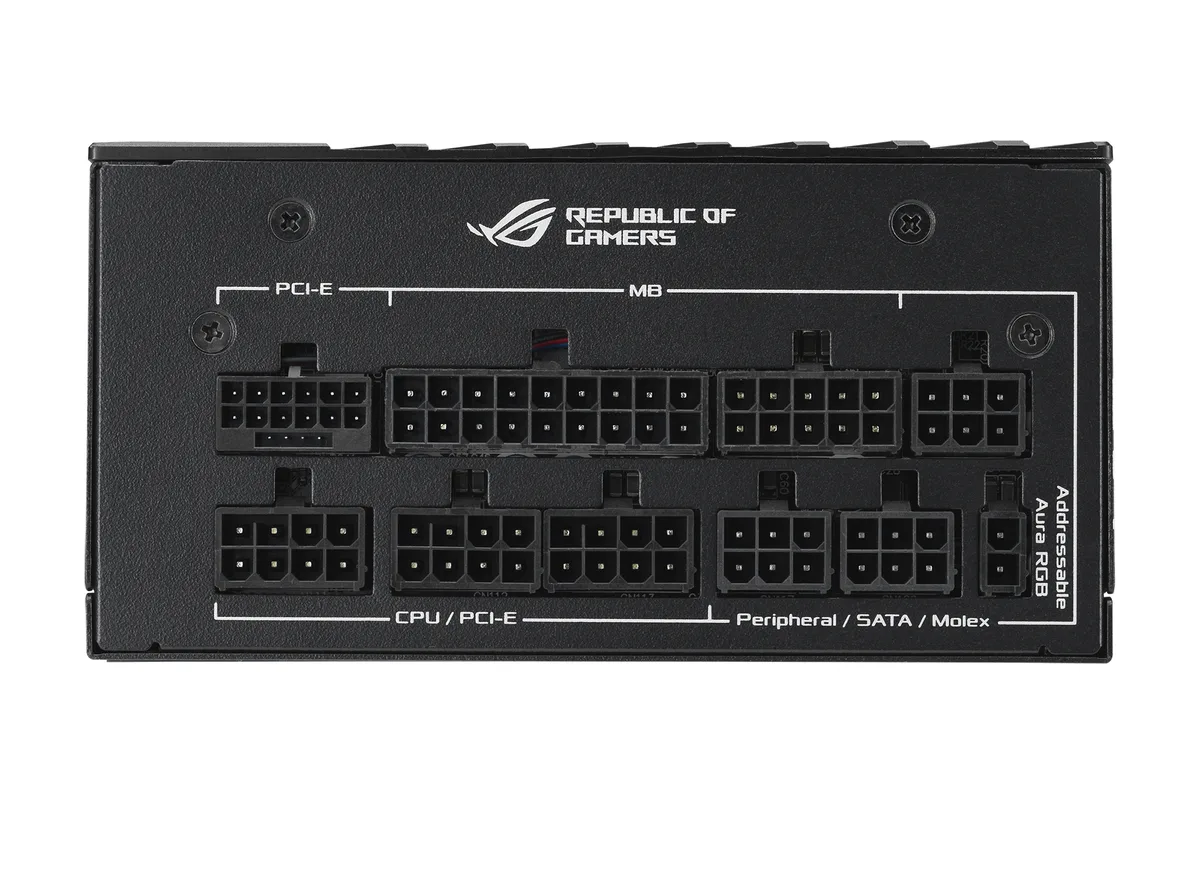

The included 16-pin PCIe Gen 5 cable can supply up to 600 W to a compatible graphics card under the ATX 3.0 guideline. Three additional 8-pin PCIe connectors support further expansion. The 24-pin motherboard cable and two 4+4-pin CPU cables cover standard board layouts. Six SATA and four peripheral connectors handle drives and accessories.

Clearance and connector checks before ordering

Verify that the case accepts a 125 mm deep SFX-L power supply and that the bundled ATX-to-SFX adapter bracket aligns with the mounting holes. Confirm the motherboard uses a 24-pin main connector and up to two 8-pin CPU headers. Ensure the graphics card requires no more than one 16-pin and three 8-pin PCIe plugs. The 120 mm ARGB fan needs a compatible header or controller for lighting synchronisation.

Highlights

  • 1000 W output powers high-end builds with headroom
  • 80 PLUS Platinum efficiency up to 92 % reduces heat and noise
  • ATX 3.0 compliant with 16-pin PCIe cable delivers up to 600 W to Gen 5.0 graphics cards
  • 120 mm PWM ARGB fan with axial-tech cooling keeps thermals low and acoustics quiet
  • Fully modular SFX-L design at 125 mm length fits compact cases and simplifies cable routing

Specifications

BrandASUS
SeriesROG LOKI
ModelROG-LOKI-1000P-SFX-L-GAMING
TypeATX 12V
Maximum Power1000 W
Main Connector24Pin
PCI-Express Connector3 x 6+2-Pin
SATA Power Connector6
Max PSU Length125 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
ProtectionOPP/OVP/UVP/SCP/OCP/OTP
Input Voltage100 - 240 V
Output+3.3V@20A, +5V@20A, [email protected] , [email protected] , [email protected]
ConnectorsMB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 4
Dimensions125 x 125 x 63.5 mm
Weight1.83kg (single PSU)
Package ContentPower Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5 16-pin Cable x 1 (450mm)
PCI-E 1-to-1 Cable x 1 (450mm)
PCI-E 1-to-2 Cable x 1 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1
Shipping weight2.47 kg
Package size284 × 191 × 102 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this 125 mm SFX-L unit fit in a standard ATX case?

Yes, the box includes an ATX-to-SFX adapter bracket so the 125 mm long PSU mounts in a regular ATX cut-out

Can the single 16-pin PCIe 5.0 cable deliver 600 W to a new graphics card?

The 16-pin connector is rated for up to 600 W and complies with ATX 3.0 guidelines for PCIe 5.0 cards

How many SATA drives can I power with the supplied cables?

Two 1-to-3 SATA cables are included, giving six SATA power plugs in total
