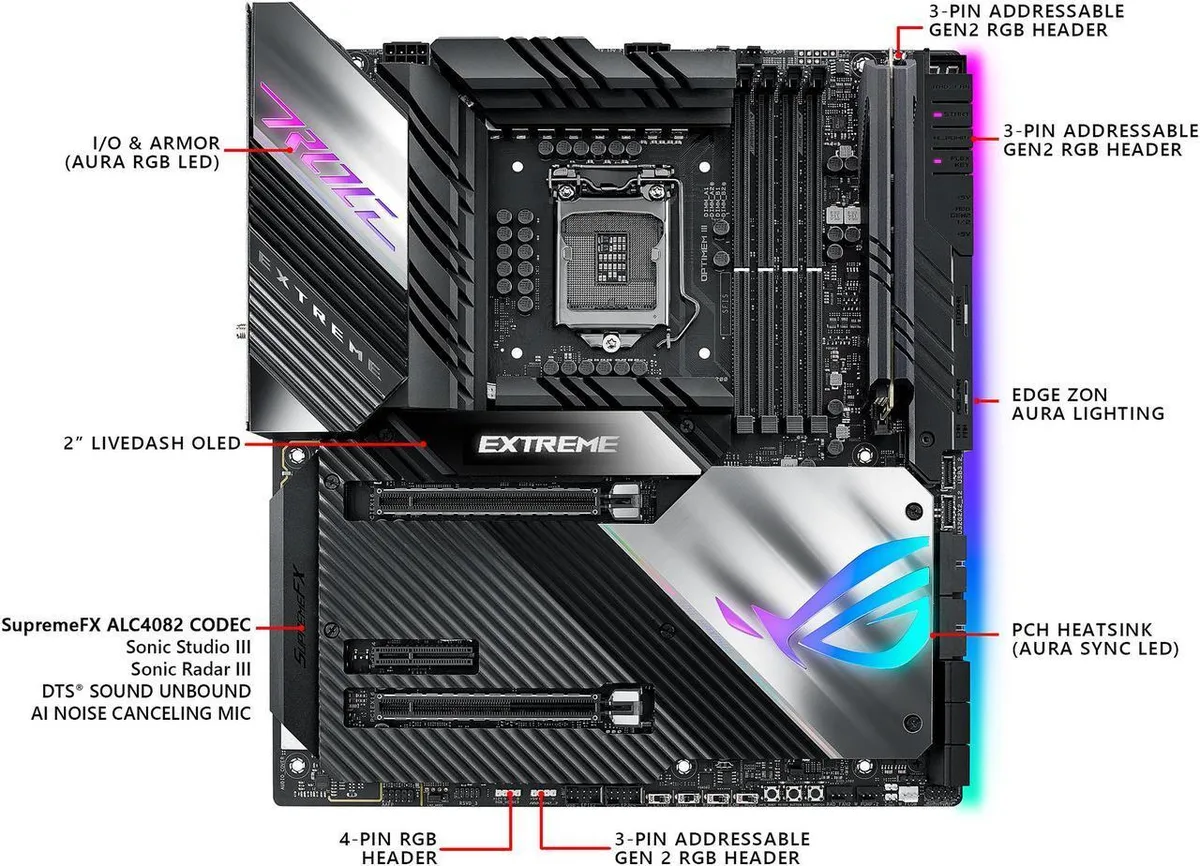

Extended ATX motherboard with black metal armour and integrated I/O shield

ASUS

ASUS ROG MAXIMUS XIII EXTREME LGA 1200 Intel motherboard

SKU CH-7CP9-8SVD4

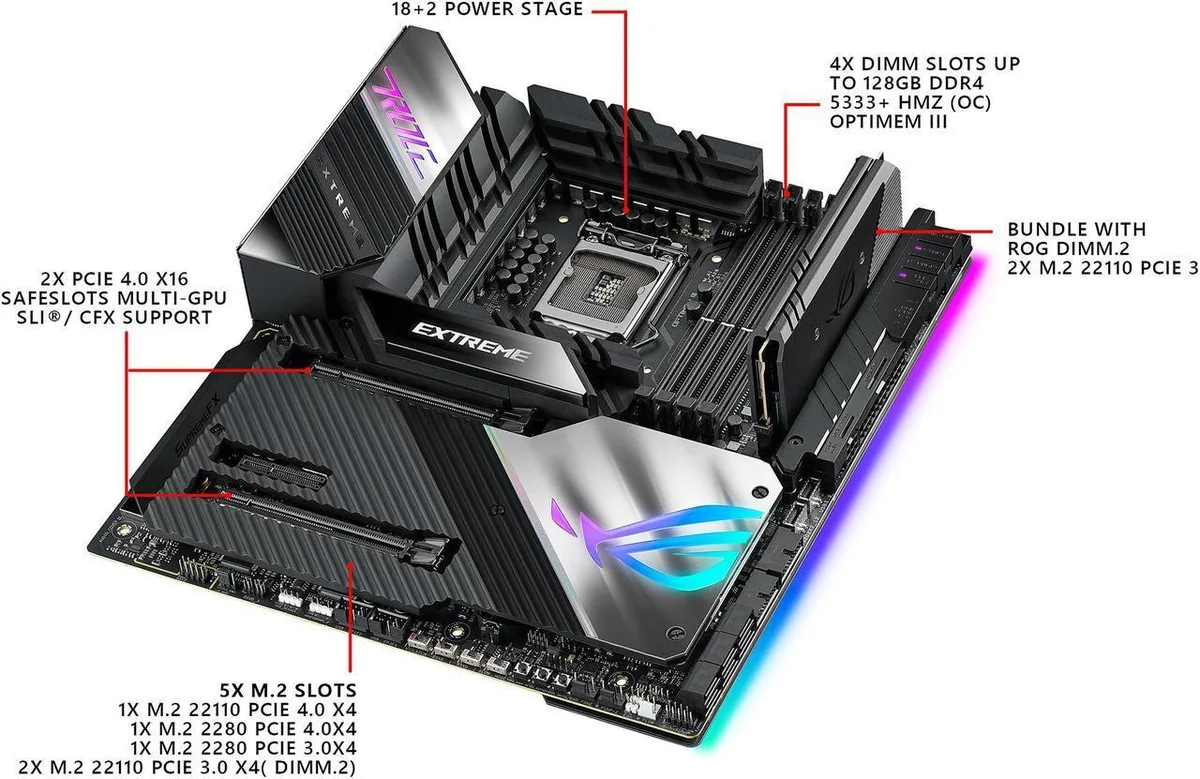

Intel Z590 motherboard for LGA 1200 CPUs with four DDR4 slots up to 128 GB, dual PCIe 4.0 x16 and six SATA ports

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th Gen Intel Core processors Supports 10th Gen In
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel Z590
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 11th and 10th Gen Intel Core CPUs on LGA 1200 socket
  • Intel Z590 chipset enables PCIe 4.0 x16 graphics and high-speed M.2 storage
  • Four DDR4 slots reach 5333 MT/s OC with 128 GB maximum capacity
  • SupremeFX ALC4082 codec delivers 7.1 channel high-definition audio
  • Marvell AQC113CS LAN provides 10 Gb Ethernet connectivity

LGA 1200 ROG Z590 platform

The ASUS ROG MAXIMUS XIII EXTREME is an Extended ATX motherboard built around the Intel Z590 chipset for LGA 1200 processors. It supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold and Celeron CPUs. Four 288-pin DDR4 slots accept up to 128 GB in dual-channel mode.

PCIe 4.0 and DDR4 OC upgrade path

With an 11th Gen CPU the board exposes PCI Express 4.0 on two x16 slots and on the first M.2 socket, while 10th Gen parts run those links at PCIe 3.0. Memory can be pushed to DDR4 5333 (OC) and a long list of lower OC steps down to 2133. The jump is worthwhile when moving to 11th Gen for full 4.0 bandwidth or when chasing high-frequency DDR4 kits.

Enthusiast overclockers and premium builders

SupremeFX ALC4082 7.1 audio, Marvell AQC113CS LAN and extensive M.2 support suit users who want every onboard feature in one board. Builders on tighter budgets or who only need basic connectivity should look at simpler Z590 models.

Highlights

  • Supports 11th and 10th Gen Intel Core CPUs on LGA 1200 socket
  • Intel Z590 chipset enables PCIe 4.0 x16 graphics and high-speed M.2 storage
  • Four DDR4 slots reach 5333 MT/s OC with 128 GB maximum capacity
  • SupremeFX ALC4082 codec delivers 7.1 channel high-definition audio
  • Marvell AQC113CS LAN provides 10 Gb Ethernet connectivity

Specifications

BrandASUS
SeriesROG
ModelMAXIMUS XIII EXTREME
CPU Socket TypeLGA 1200
CPU TypeSupports 11th Gen Intel Core processors
Supports 10th Gen Intel Core
Supports Intel Pentium Gold and Celeron Processors
* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z590
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*
* 11th Gen Intel Core processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.
* 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends o
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x162 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
PCI Express x41 x PCIe 3.0 x4*
* PCIEx4 slot shares bandwidth with SATA6G_12 and PCIEx4 slot is default set at x2 mode.
Serial ATA (SATA)6 x SATA 6Gb/s
M.2M.2_1 slot (Key M), type 2242/2260/2280
- Intel 11th Core processors support PCIe 4.0 x4 mode
- Intel 10th processors support PCIe 3.0 x4 mode
M.2_2 slot (Key M), type 2242/2260/2280
- Intel 11th Core processors support PCIe 4.0 x4 mode
- Intel 10th processors support PCIe 3.0 x4 mode
M.2_3 slot (Key M), type 2242/2260/2280
- Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/2211
Intel Optane ReadyTo enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
Audio ChipsetROG SupremeFX High Definition Audio CODEC ALC4082
Audio Channels7.1 Channels
LAN ChipsetMarvell AQtion AQC113CS
Second LAN ChipsetIntel I225-V
Max LAN Speed10Gbps + 2.5Gbps
Wireless LANIntel Wi-Fi 6E
802.11a/b/g/n/ac/ax
BluetoothBluetooth 5.2
Back I/O Ports2 x Thunderbolt 4 USB Type-C port(s)
8 x USB 3.2 Gen 2 port(s) (8 x Type-A)
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Marvell AQtion AQC113CS 10Gb Ethernet
1 x Intel I225-V 2.5Gb Ethernet port
5 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C)
1 x USB 3.2 Gen Gen 2 connector (support(s) USB Type-C)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
2 x 4-pin Chassis Fan header(s)
2 x 4-pin Radiator Fan header(s)
2 x W_PUMP+ header(s)
1 x WB_SENSOR header(s)
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Miscellaneous
3 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
8 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switch
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Speaker header
1
Windows 11Supported
Form FactorExtended ATX
LED LightingRGB
Dimensions (W x L)12.0" x 10.9"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card connector
FeaturesMulti-GPU Support:
NVIDIA 2-Way SLI Technology*
* Support varies with different graphics cards.
Special Features:
Extreme OC Kit
- FlexKey button
- LN2 Mode
- Probelt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Aluminum backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- Clear CMOS

Questions about this item

What case clearance does the Extended ATX form factor of this board require?

The board uses the Extended ATX layout, so the case must explicitly support E-ATX dimensions and provide matching standoff positions for the larger PCB.

How are the two PCIe 4.0 x16 slots configured when both are populated?

With an 11th Gen CPU the primary slot runs at x16 and the second at x8; with a 10th Gen CPU both slots operate at PCIe 3.0 speeds instead.

What is the maximum memory capacity and speed the four DDR4 slots can reach?

Four 288-pin DDR4 slots support up to 128 GB total and speeds up to DDR4 5333 (OC) in dual-channel mode.
