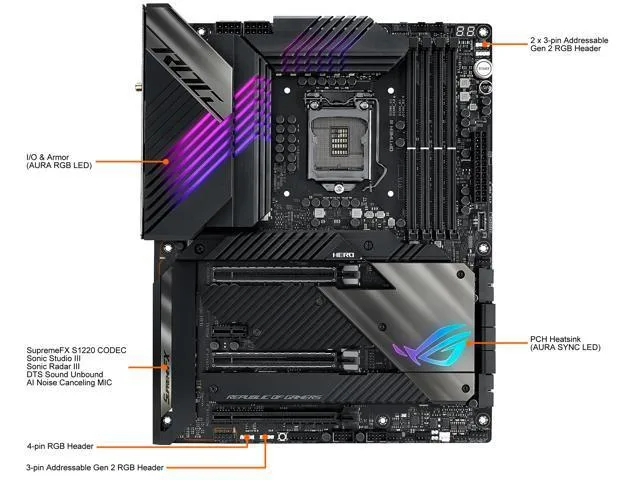

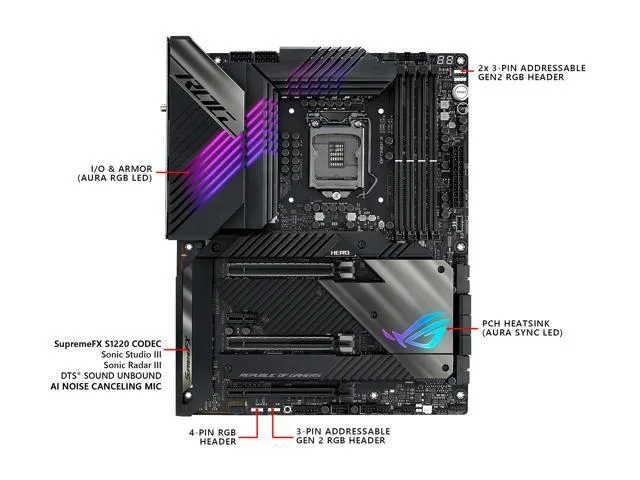

Black ATX motherboard with silver heatsinks and RGB lighting

ASUS

ASUS ROG Maximus XIII Hero (WiFi 6E) Intel motherboard

SKU CH-J0VC-3V19J

LGA 1200 board for 10th and 11th Gen Intel Core CPUs with Z590 chipset, 14+2 power stages, quad M.2 slots, WiFi 6E, dual 2.5Gb LAN and Thunderbolt 4

  • CPU Socket TypeLGA 1200
  • CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel Z590
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Ready for 10th and 11th Gen Intel Core CPUs with LGA 1200 socket
  • AI overclocking, cooling, networking and noise cancelation automate tuning
  • 14+2 power stages rated for 90 Amps deliver stable voltage

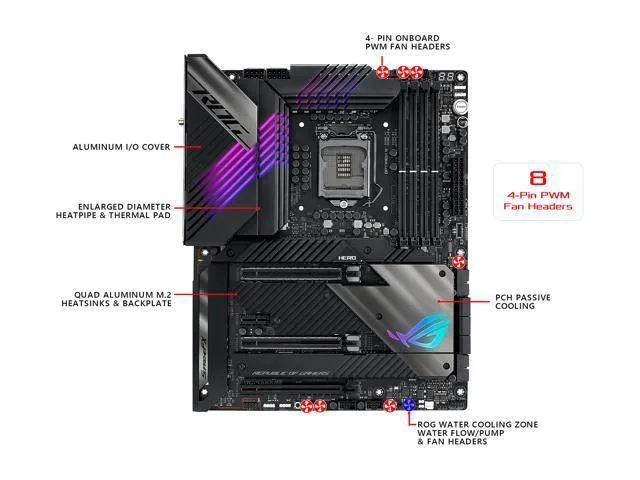

  • Quad M.2 heatsinks and enlarged VRM heatsinks keep temperatures low
  • WiFi 6E, dual 2.5Gb Ethernet and Thunderbolt 4 provide fast connectivity

Socket LGA 1200 platform for 10th and 11th Gen Core

The ASUS ROG Maximus XIII Hero is an ATX motherboard built on the Intel Z590 chipset for LGA 1200 processors. It targets enthusiasts who want strong overclocking headroom, extensive connectivity and high-fidelity audio in a single board. The 14+2 teamed power stages rated for 90 Amps and ProCool II connectors deliver stable current to 11th Gen Core i9, i7, i5 and i3 CPUs. AI overclocking, AI cooling, AI networking and AI noise cancellation automate tuning for less experienced builders.

Ideal for high-end air or liquid-cooled Intel builds

This board suits users planning a Core i9 or i7 with PCIe 4.0 graphics cards, multiple M.2 SSDs and 2.5 Gb Ethernet or WiFi 6E networking. The four M.2 slots with heatsinks, dual Thunderbolt 4 USB-C ports and USB 3.2 Gen 2x2 front-panel header support fast storage and peripherals. Builders using 10th Gen Comet Lake CPUs lose PCIe 4.0 support and should consider a different chipset. Users needing more than 128 GB DDR4 or ECC memory must look elsewhere.

Fits ATX cases with 24-pin and 8+4-pin EPS power

The board requires an ATX chassis, a PSU with 24-pin ATX plus 8+4-pin EPS connectors and DDR4 DIMMs up to 5333 MT/s. Four 288-pin slots run in dual channel for up to 128 GB capacity. Two PCIe 4.0 x16 slots and one PCIe 3.0 x16 slot handle graphics and add-in cards. Six SATA 6 Gb/s ports connect traditional drives. The ROG Water-Cooling Zone headers simplify custom loop integration. SupremeFX ALC4082 with ESS ES9018Q2C DAC drives 7.1-channel audio for headsets or speakers.

Highlights

  • Ready for 10th and 11th Gen Intel Core CPUs with LGA 1200 socket
  • AI overclocking, cooling, networking and noise cancelation automate tuning
  • 14+2 power stages rated for 90 Amps deliver stable voltage
  • Quad M.2 heatsinks and enlarged VRM heatsinks keep temperatures low
  • WiFi 6E, dual 2.5Gb Ethernet and Thunderbolt 4 provide fast connectivity

Specifications

BrandASUS
SeriesROG
ModelMAXIMUS XIII HERO
CPU Socket TypeLGA 1200
CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel Z590
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x11 x PCI Express x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.24 x M.2
Intel Optane ReadyYes
Audio ChipsetROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Audio Channels7.1 Channels
LAN Chipset2 x Intel I225-V 2.5Gb Ethernet
Max LAN Speed2 x 2.5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax / az
BluetoothYes
Onboard USB5 x USB 3.2 + 4 x USB 2.0
Other ConnectorsFan and Cooling related 1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)3 x 4-pin Chassis Fan header(s)1 x 4-pin H_AMP Fan header(s)1 x W_PUMP+ header(s)1 x 2-pin Water In header1 x 2-pin Water Out header1 x 3-pin Water Flow headerMiscellaneous3 x AURA Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x ReTry button1 x Speaker header1 x SPI TPM header (14-1-pin)1 x Start button1 x 10-1-pin System Panel header1 x Thermal Sensor header
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector2 x 8-pin +12V Power connector
FeaturesMulti-GPU Support:Supports NVIDIA 2-Way SLI Technology** Support varies with different graphics cardsSpecial Features:Extreme OC Kit- FlexKey button- ReTry button- Start buttonExtreme Engine Digi+- 10K Black Metallic Capacitors- MicroFine Alloy Choke ASUS Q-Design - Q-Code- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack button- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlotAURA Sync- AURA RGB header(s)- Add
Package ContentsAccessories:Cables:1 x ARGB RGB extension cable1 x RGB extension cable4 x SATA 6Gb/s cables Miscellaneous:1 x ASUS Wi-Fi moving antennas 1 x M.2 SSD screw package(s)1 x Q-connector1 x ROG key chain1 x ROG logo plate stickers1 x ROG Graphics card holder1 x ROG stickers1 x ROG thank you cardInstallation Media:1 x Support DVDDocumentation:1 x User manual

Questions about this item

What CPU and memory do I need to use this LGA 1200 board with its Z590 chipset?

You need a 10th or 11th Gen Intel Core i9, i7, i5 or i3 processor for the LGA 1200 socket and DDR4 modules running up to 3200 MT/s, expandable to 128 GB across the four 288-pin slots.

Will my existing PCIe 3.0 graphics card and SATA SSDs work at full speed on the PCIe 4.0 x16 and SATA 6Gb/s ports?

Yes, the two PCIe 4.0 x16 slots and the single PCIe 3.0 x16 slot are backward compatible, and the six SATA 6Gb/s ports run SATA drives at their rated throughput.

How do I verify the 14+2 power stages rated for 90 A are delivering clean power after build?

Enter the UEFI and check the hardware monitor for stable Vcore readings under load, then run a sustained CPU stress test while observing VRM temperatures via the ROG software suite.
