ASUS
ASUS ROG MAXIMUS Z690 APEX Intel LGA 1700 Z690 ATX Intel Motherboard A
ATX Z690 board with LGA 1700 socket, DDR5 support up to 128 GB, PCIe 5.0 x16 and two M.2 slots, sold as motherboard and I/O shield only
- CPU Socket TypeLGA 1700
- CPU TypeCore / Pentium / Celeron (12th Gen, LGA1700)
- ChipsetIntel Z690
- Memory StandardDDR5
- Maximum Memory Supported128GB
- PCI Express 5.0 x161 x PCI Express 5.0 x16
- LGA 1700 socket supports 12th Gen Intel Core, Pentium and Celeron CPUs
- DDR5 memory standard scales to 128 GB maximum capacity
- PCI Express 5.0 x16 slot delivers 5.0 bandwidth for latest graphics cards
- Two M.2 slots provide fast storage expansion options
- ATX form factor fits standard desktop chassis for straightforward builds
High-end ATX board for DDR5 overclocking

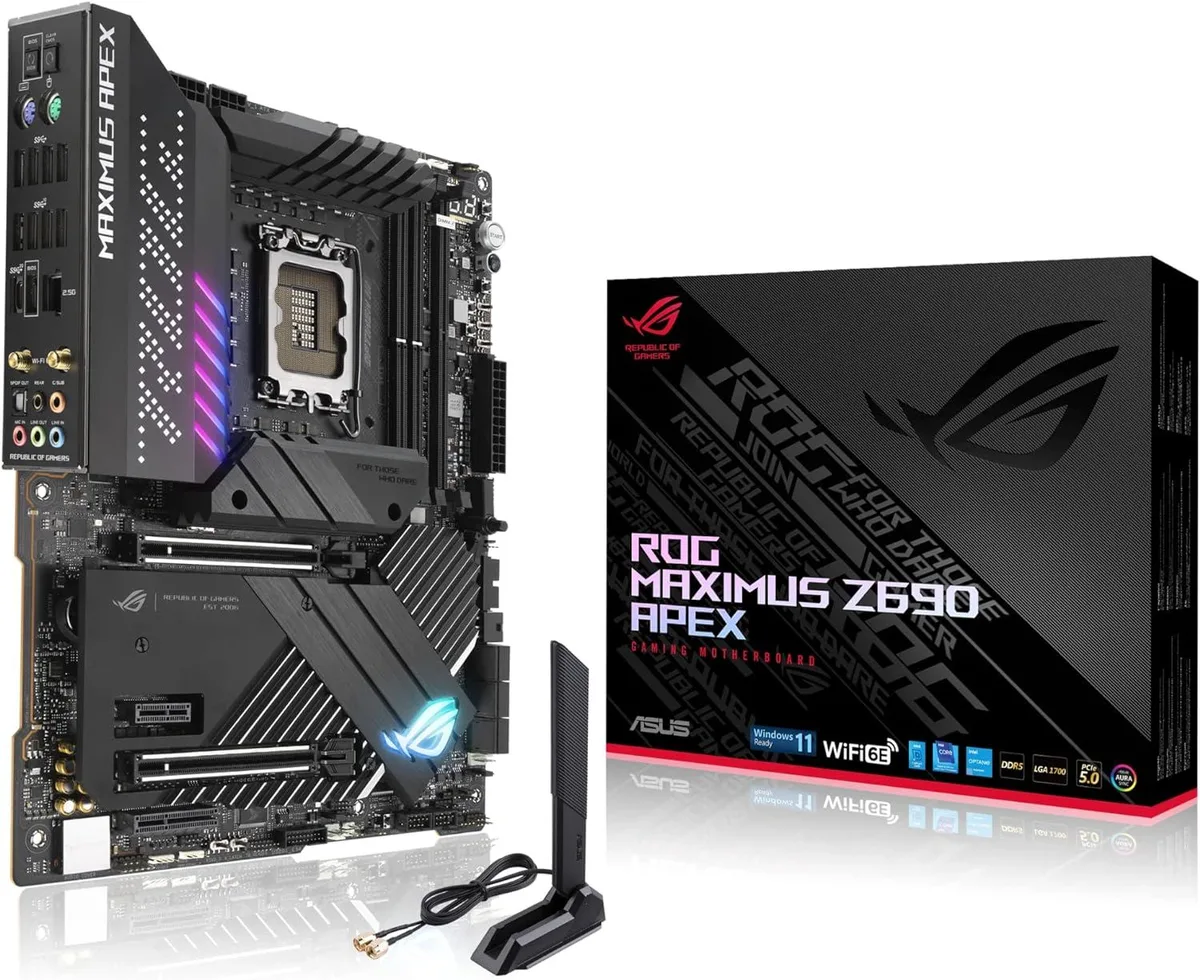

The ROG MAXIMUS Z690 APEX is an ATX motherboard built on the Intel Z690 chipset with an LGA 1700 socket. It targets enthusiasts who want to push DDR5 memory and run a single high-end graphics card on the sole PCI Express 5.0 x16 slot. Two M.2 sockets provide fast local storage, while the USB 3.1 and RJ45 ports cover basic I/O needs. The package includes only the board and I/O shield.
Straightforward install if the case fits ATX
Mounting follows standard ATX hole patterns, so any compatible chassis accepts the board without extra brackets. The single PCI Express 5.0 x16 slot leaves no room for a second graphics card or add-in card that needs full bandwidth. Only two M.2 standoffs and screws are supplied; additional drives need their own hardware. Refurbished units may show minor cosmetic marks that do not affect function.
Verify CPU, cooler clearance

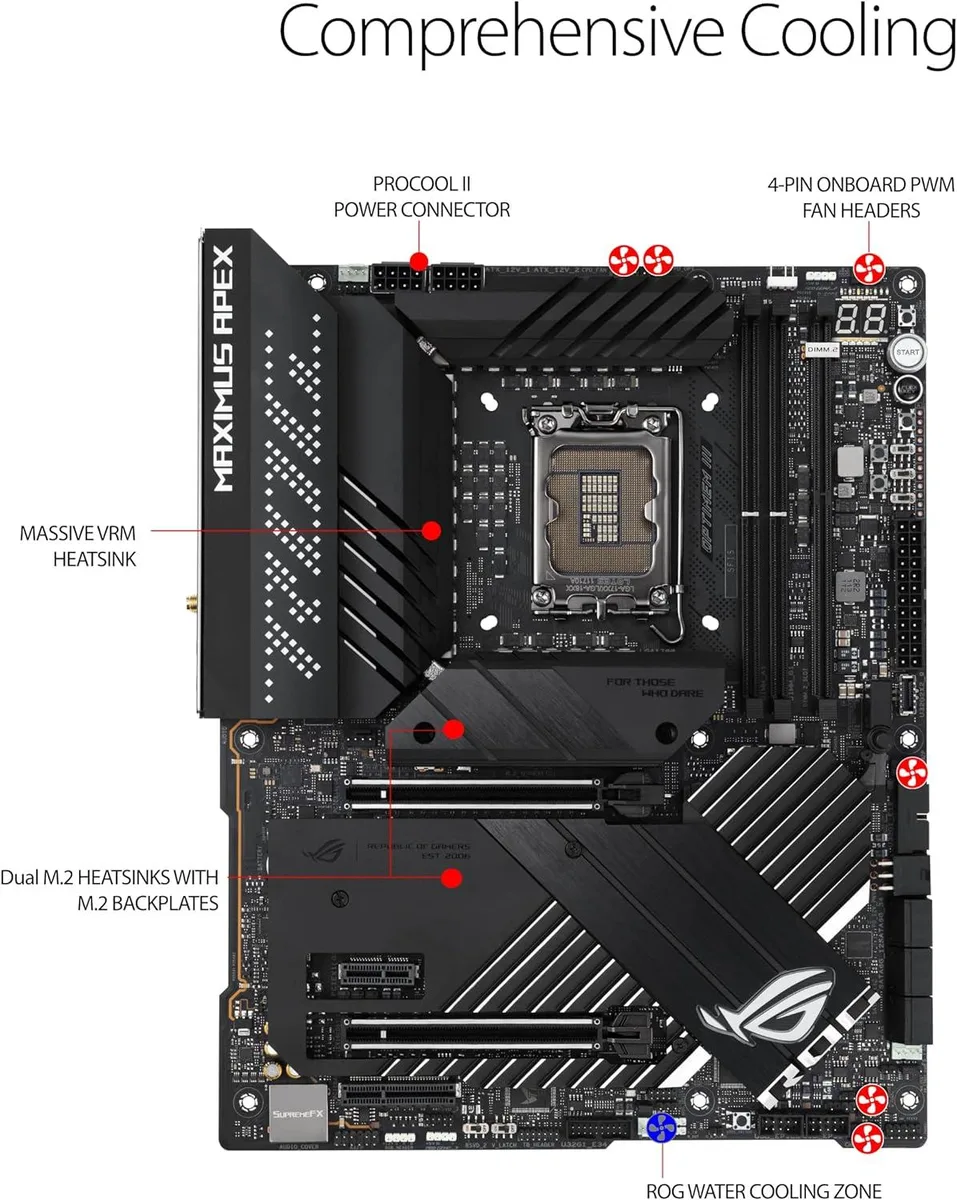

Check the manufacturer CPU compatibility list to confirm your 12th-generation processor works and whether a BIOS update is required. Ensure your CPU cooler clears the VRM heatsinks and memory slots on this dense layout. The board draws power through standard ATX and EPS connectors; confirm your supply has the necessary cables. No SATA cables or Wi-Fi antenna are included despite the supplier description.
Highlights
- LGA 1700 socket supports 12th Gen Intel Core, Pentium and Celeron CPUs
- DDR5 memory standard scales to 128 GB maximum capacity
- PCI Express 5.0 x16 slot delivers 5.0 bandwidth for latest graphics cards
- Two M.2 slots provide fast storage expansion options
- ATX form factor fits standard desktop chassis for straightforward builds
Specifications
| Brand | ASUS |
|---|---|
| Series | ROG |
| Model | ROG MAXIMUS Z690 APEX |
| CPU Socket Type | LGA 1700 |
| CPU Type | Core / Pentium / Celeron (12th Gen, LGA1700) |
| Chipset | Intel Z690 |
| Memory Standard | DDR5 |
| Maximum Memory Supported | 128GB |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express x16 | 1 |
| PCI Slots | 1 x PCI Slot |
| M.2 | 2 x M.2 |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 1 x USB 3.1 |
| Form Factor | ATX |
Questions about this item
How can I verify the ROG MAXIMUS Z690 APEX is working correctly after I install it?
Power on the system and confirm the motherboard posts to BIOS; the onboard LEDs and debug display will show a successful boot code once the CPU and DDR5 memory are detected.
What does the box contain and what must I source separately?
The package includes the motherboard and I/O shield only; CPU, DDR5 memory, storage, graphics card, power supply and any additional cables are not included.
Which version of this board should I choose for a build that needs two M.2 drives and a single PCIe 5.0 x16 slot?
This model provides exactly two M.2 slots and one PCI Express 5.0 x16 slot, matching that requirement.
