ATX motherboard with black heatsinks and a small rectangular OLED panel

ASUS

ASUS ROG Maximus Z690 Formula WiFi 6E Intel motherboard

SKU CH-R6PN-EKBRK

ATX motherboard for 12th Gen Intel Core processors with DDR5, PCIe 5.0, 20+1 power stages rated at 105 A, WiFi 6E, 10 Gb Ethernet, Thunderbolt 4 and SupremeFX audio

  • CPU TypeATOM
  • Ready for 12th Gen Intel Core processors with LGA 1700 socket and Windows 11 support

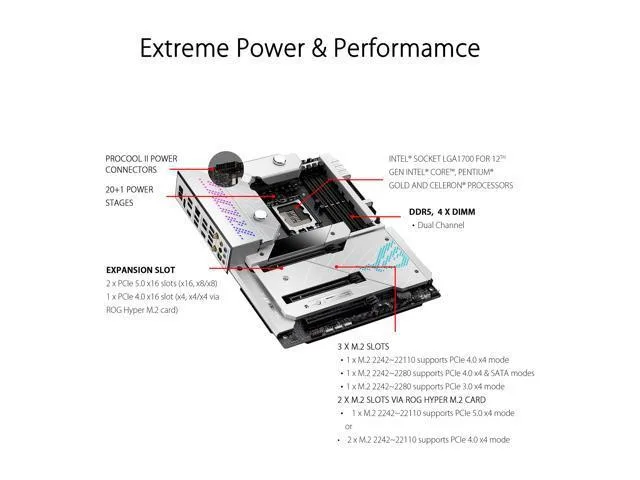

  • 20+1 teamed power stages rated for 105 A deliver robust power for overclocking
  • Onboard Wi-Fi 6E and Marvell AQtion 10Gb Ethernet provide high-performance networking
  • PCIe 5.0, dual Gen 4 M.2 and ROG Hyper M.2 card enable fastest connectivity

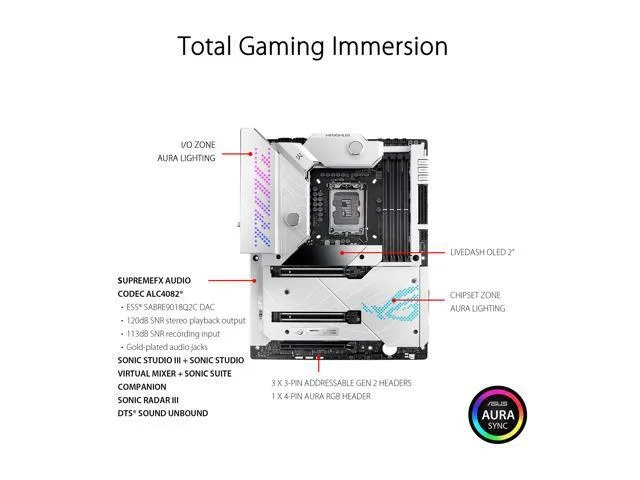

  • ROG SupremeFX ALC4082 codec with ESS ES9018Q2C DAC ensures industry-leading audio quality

LGA 1700 ATX board for 12th Gen Intel Core

The ASUS ROG Maximus Z690 Formula WiFi 6E uses the Intel LGA 1700 socket and supports 12th Gen Intel Core processors with Windows 11. It delivers PCIe 5.0 and DDR5 capability on an ATX form factor. The 20+1 teamed power stages rated for 105 A provide a robust power solution for demanding builds.

Bundled ROG Hyper M.2 card adds Gen 5 M.2 support

The package includes a ROG Hyper M.2 card that enables Gen 5 M.2 connectivity beyond the dual Gen 4 M.2 slots already on the board. This expands high-speed storage options for users who need additional fast drives. Thunderbolt 4 and USB 3.2 Gen 2x2 front-panel connectors with Quick Charge 4+ are also integrated.

Dual mounting holes fit LGA 1700

Installation follows standard ATX procedures and the board includes dual mounting holes compatible with both Intel LGA 1700 and LGA 1200 cooling brackets. This broadens cooler compatibility for builders reusing existing hardware. AI Overclocking, AI Cooling and AI Networking tools simplify initial configuration through intelligent automation.

Highlights

  • Ready for 12th Gen Intel Core processors with LGA 1700 socket and Windows 11 support
  • 20+1 teamed power stages rated for 105 A deliver robust power for overclocking
  • Onboard Wi-Fi 6E and Marvell AQtion 10Gb Ethernet provide high-performance networking
  • PCIe 5.0, dual Gen 4 M.2 and ROG Hyper M.2 card enable fastest connectivity
  • ROG SupremeFX ALC4082 codec with ESS ES9018Q2C DAC ensures industry-leading audio quality

Specifications

CPU TypeATOM

Questions about this item

Will the 20+1 power stages rated for 105 A need periodic replacement under heavy overclocking?

The 20+1 teamed power stages rated for 105 A use MicroFine alloy chokes and premium metallic capacitors designed for sustained high-current delivery without user-serviceable wear items.

What thermal limit appears first on the VRM when all 20+1 power stages run at 105 A continuously?

The VRM heatsink and MicroFine alloy chokes manage heat from the 20+1 power stages at 105 A, with AI Cooling adjusting fan curves to keep temperatures in check during prolonged loads.

How loud do the chassis fans get when AI Cooling manages thermals for the 105 A power stages all day?

AI Cooling monitors onboard sensors and automatically tunes fan speeds to balance acoustics and thermal performance for the 20+1 power stages running at 105 A continuously.
