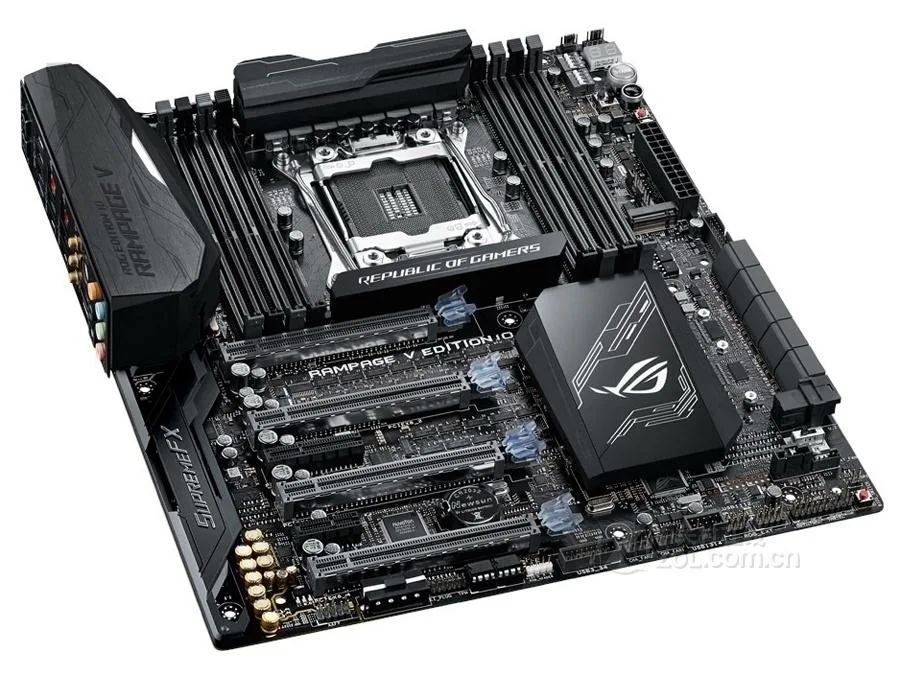

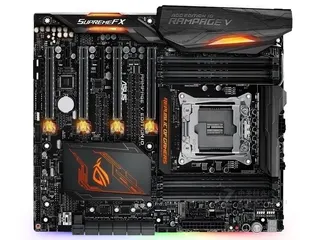

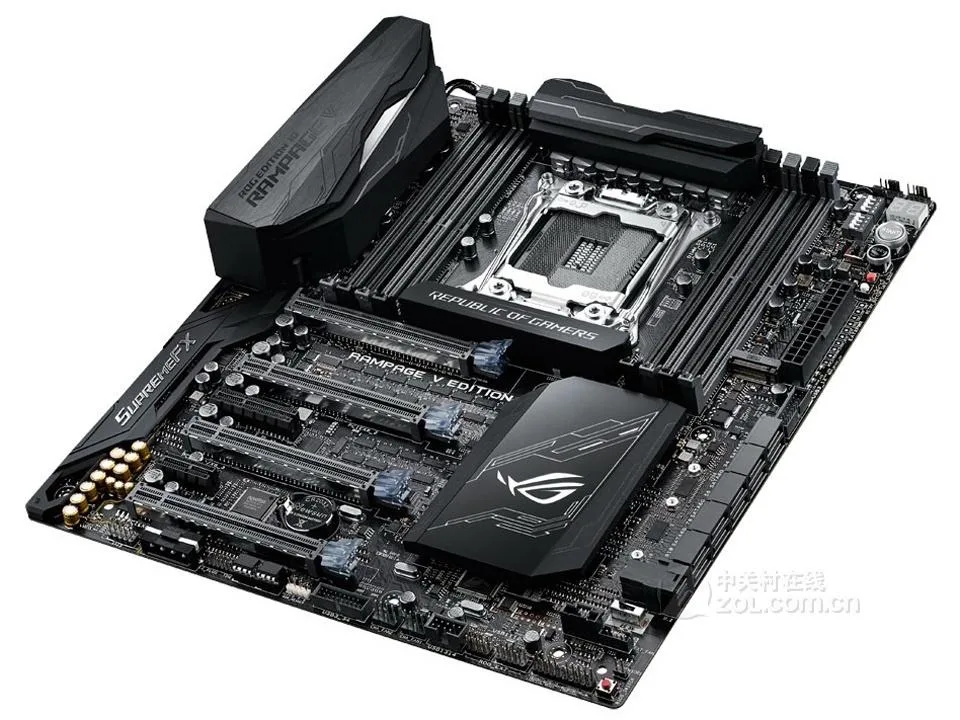

ASUS ROG Rampage V Edition 10 E-ATX motherboard, dark finish with heatsinks and PCIe slots

ASUS

ASUS ROG Rampage V Edition 10 Intel motherboard LGA 2011-v3 DDR4 128GB E-ATX

SKU CH-T9RW-13XT2

E-ATX X99 board with LGA 2011-v3 socket, four-channel DDR4 up to 3333 MHz and 128 GB capacity

  • CPU Socket TypeLGA 2011-v3
  • CPU TypeSupports Intel Core i7 X-series processors with LGA 2011-v3
  • ChipsetIntel X99
  • Memory StandardSupport four-channel DDR4 3333 (OC)/3300 (OC)/3200 (OC)/3000
  • Maximum Memory Supported128GB
  • PCI Slots4XPCIe 3.0 x16 plug (40-LANE CPU supports x16, x16/x16, x16/
  • Supports Intel Core i7 X-series processors with LGA 2011-v3 socket
  • Four-channel DDR4 memory up to 128GB capacity
  • Intel X99 chipset provides 40 PCIe 3.0 lanes for multi-GPU configurations
  • SupremeFX 8-channel high fidelity audio encoder delivers immersive sound
  • Wi-Fi 802.11 a/b/g/n/ac with 3x3 dual-channel 2.4/5 GHz connectivity

Socket LGA 2011-v3 workstation board

The ASUS ROG Rampage V Edition 10 is an E-ATX motherboard built around the Intel X99 chipset for Core i7 X-series processors. It measures 30.5 by 27.2 centimetres and provides eight DDR4 slots with a maximum capacity of 128 gigabytes. The board targets enthusiasts building high-core-count workstations or multi-GPU render nodes.

Suits legacy X99 builds not modern platforms

This board fits users who already own a compatible 14 nanometre LGA 2011-v3 CPU and need quad-channel memory with extensive PCIe 3.0 lane flexibility. Buyers with newer processor families, or those needing current storage interfaces, should look at something else because the chipset and socket are limited to the X99 generation.

Eight DDR4 slots enable 128GB quad-channel memory

The defining specification is the eight-slot DDR4 layout supporting up to 128 gigabytes across four channels at speeds up to 3333 megahertz when overclocked. This density decides whether the board can handle the large datasets and virtual-machine workloads typical of X99 workstation builds.

Highlights

  • Supports Intel Core i7 X-series processors with LGA 2011-v3 socket
  • Four-channel DDR4 memory up to 128GB capacity
  • Intel X99 chipset provides 40 PCIe 3.0 lanes for multi-GPU configurations
  • SupremeFX 8-channel high fidelity audio encoder delivers immersive sound
  • Wi-Fi 802.11 a/b/g/n/ac with 3x3 dual-channel 2.4/5 GHz connectivity

Specifications

BrandASUS
SeriesASUS ROG RAMPAGE V EDITION 10
ModelASUS ROG RAMPAGE V EDITION 10
CPU Socket TypeLGA 2011-v3
CPU TypeSupports Intel Core i7 X-series processors with LGA 2011-v3 specification slots
Support for 14nm processors
Supports Intel Turbo Boost Max 3.0 technology *
ChipsetIntel X99
Memory StandardSupport four-channel DDR4 3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2800 (OC)/2666 (OC)/2400 (OC)/2133MHz memory
Maximum Memory Supported128GB
PCI Slots4XPCIe 3.0 x16 plug (40-LANE CPU supports x16, x16/x16, x16/x8/x8, x16/x8/x8 or x8/x8/x8 mode) * [CPU]
1 xPCIe 2.0 x4 slot ** [PCH]
1 xPCIe 2.0 x1 slot [PCH] 40-Lane CPU
In the 4-Way setting, if PCIEX16/X8 1 runs in x16 mode, the M.2 and U.2 connection ports will close the 28-Lane CPU.
In the 3-Way settings, the U.2 connection port will be closed. The default U.2 connection port is closed for other settings. To start, please go to BIOS > Advanced > OnboardDevice Configuration > PCIEX8 2 PCIEX8 4 and U.2M2 settings
SATA RAID1XU.2 interface, 1xM.2 interface, 10xSATA III interface
Audio ChipsetSupremeFX8 channel high fidelity audio encoder:
LAN ChipsetWi-Fi 802.11 a/b/g/n/ac supports 3x3 dual-channel 2.4/5 GHz, up to 1300Mbit/s transfer speed Bluetooth v4.0
Onboard USBInte x99 chipset, supports ASUS USB 3.1 Boost.
-4xUSB 3.0 connection port (4 groups in the center of the main board) *
-6 xUSB 2.0 connection ports (4 groups in the center of the main board, 2 groups in the rear panel [black]) ** ASMedia USB 3.1 controller,
Support ASUS USB 3.1 Boost: -4xUSB 3.1 connection ports (2 groups of Type-A (red) and 2 groups of Type-C (black) on the rear panel) * ASMedia USB 3.0 controller,
Support ASUS USB 3.1 Boost: -4xUSB 3.0 connection port (on the main board rear panel [blue])

Questions about this item

How much heat and power does the ASUS ROG Rampage V Edition 10 draw when running an Intel Core i7 X-series processor all day?

The board uses the Intel X99 chipset and supports 14nm processors with Intel Turbo Boost Max 3.0 technology; actual heat and power depend on the specific CPU and workload.

What other components must I already own to make this motherboard function?

You need an LGA 2011-v3 Intel Core i7 X-series processor, DDR4 memory modules up to 128 GB total, a graphics card for the PCIe 3.0 x16 slots, storage drives for the SATA III or M.2 interfaces, and an E-ATX compatible chassis with suitable power supply.

Will my existing PCIe 2.0 expansion cards work in the PCIe 2.0 x4 or x1 slots on this board?

Yes, the motherboard provides one PCIe 2.0 x4 slot and one PCIe 2.0 x1 slot from the chipset, so older PCIe 2.0 cards will operate at their native speeds.
