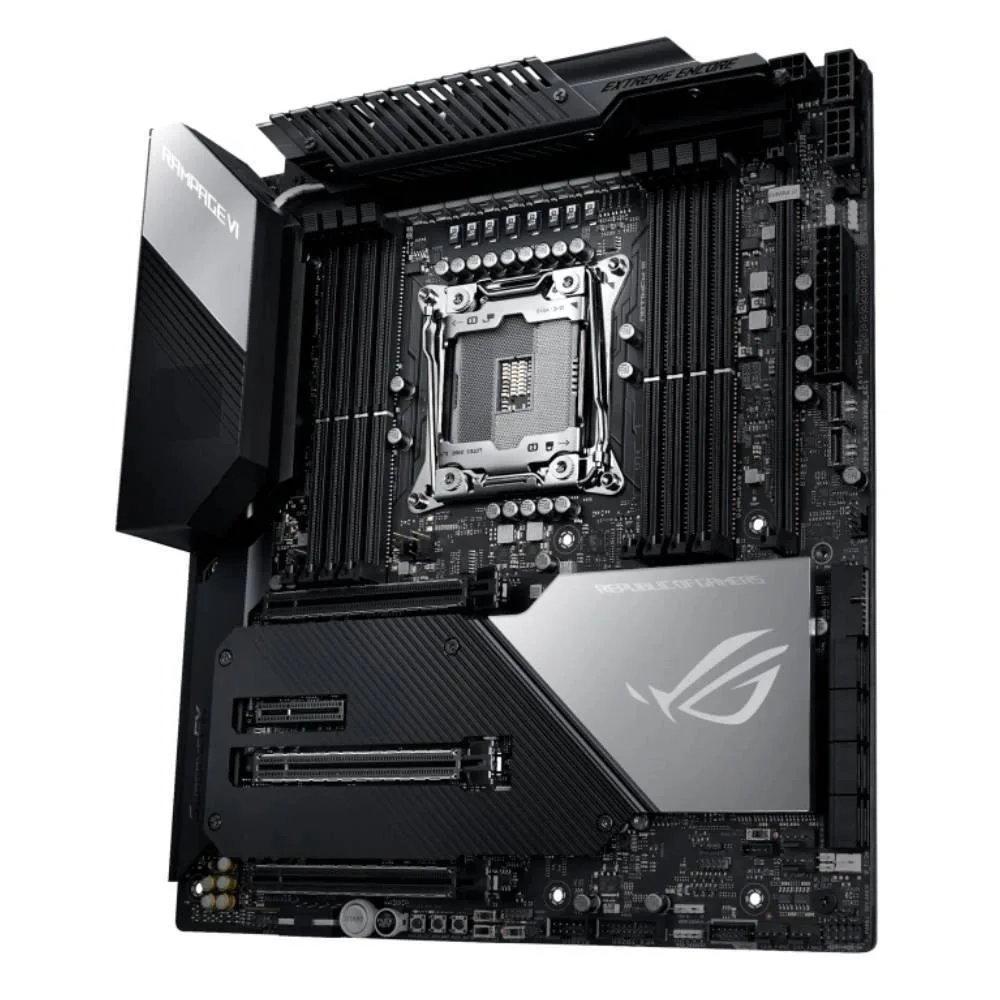

ATX motherboard with black PCB and silver heatsinks, LGA 2066 socket, eight DDR4 slots, multiple PCIe x16 slots

ASUS

ASUS ROG Rampage VI Extreme Encore Intel motherboard

SKU CH-NSJD-6531Q

ATX Intel X299 board with LGA 2066 socket, eight DDR4 slots for 256 GB and 10 GbE LAN

  • CPU Socket TypeLGA 2066
  • CPU TypeOptimized for Intel Core X-Series 10000 Processor Family Sup
  • ChipsetIntel X299
  • Memory Standard8 x DIMM, supports up to 256GB, DDR4 4266 (overclocking)/413
  • Maximum Memory Supported256GB
  • PCI Slots3 x PCIe 3.0 x16 (x16/x16/x4, x16/x16/x8 or x16/x8/x8 modes)
  • Supports up to 256GB DDR4 memory across eight DIMM slots
  • Intel X299 chipset enables multi-GPU configurations with three PCIe 3.0 x16 slots
  • Aquantia AQC-107 10G LAN plus Intel I219V delivers high-speed wired networking
  • ESS SABRE9018Q2C DAC with DTS Sound Unbound provides 32-bit 192kHz audio playback
  • Front-panel USB 3.2 Gen 2x2 port offers up to 20Gbps data transfer

Socket LGA 2066 ATX Motherboard

This ASUS ROG Rampage VI Extreme Encore motherboard uses the Intel X299 chipset and an LGA 2066 socket. It is built for Intel Core X-Series 10000 processors and supports DDR4 memory up to 256GB across eight DIMM slots. The board targets enthusiasts and workstation users who need high core counts and extensive connectivity.

Enthusiasts seeking maximum I/O and memory capacity

The board suits builders who need three PCIe 3.0 x16 slots with flexible lane configurations, a ROG DIMM.2 module for additional M.2 storage, and a 10G Aquantia AQC-107 LAN port alongside Intel I219V. It also provides extensive USB connectivity including a front-panel USB 3.2 Gen 2x2 20Gbps port. Users with mainstream CPUs or smaller budgets should consider a different platform.

Verify CPU, memory, cooler and case compatibility

Confirm your processor is an Intel Core X-Series 10000 family CPU that fits LGA 2066. Ensure DDR4 modules match the supported overclocked speeds up to 4266 and that total capacity does not exceed 256GB. Check that your CPU cooler mounting matches the socket and that your ATX case accommodates the board dimensions of 30.5 by 27.7.

Highlights

  • Supports up to 256GB DDR4 memory across eight DIMM slots
  • Intel X299 chipset enables multi-GPU configurations with three PCIe 3.0 x16 slots
  • Aquantia AQC-107 10G LAN plus Intel I219V delivers high-speed wired networking
  • ESS SABRE9018Q2C DAC with DTS Sound Unbound provides 32-bit 192kHz audio playback
  • Front-panel USB 3.2 Gen 2x2 port offers up to 20Gbps data transfer

Specifications

BrandASUS
SeriesASUS ROG Rampage VI Extreme Encore
ModelASUS ROG Rampage VI Extreme Encore
CPU Socket TypeLGA 2066
CPU TypeOptimized for Intel Core X-Series 10000 Processor Family
Support for Intel Virtual RAID on CPU (VROC)
Supports Intel Turbo Boost Max technology 3.0
Whether to support Intel Turbo Boost technology 3.0 depends on the processor type.
Supports Intel Socket 2066 Core X-series processors
Supports Intel 14nm processors
ChipsetIntel X299
Memory Standard8 x DIMM, supports up to 256GB, DDR4 4266 (overclocking)/4133 (overclocking)/4000 (overclocking)/3866 (overclocking)/3800 (overclocking)/3600 (overclocking)/3466 (overclocking)/3200 (overclocking)/3000 (overclocking)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory
8 x DIMM, supports up to 256GB, DDR4 4266 (overclocking)/4133 (overclocking)/4000 (overclocking)/3866 (overclocking)/3800 (overclocking)/3600 (overclocking)/3466 (overclocking)/3200 (overclocking)/3000 (overclocking)/2933 (overclocking)/2800 (overclocking)/2666/2400 MHz Non-ECC, Un-buffered memory
Maximum Memory Supported256GB
PCI Slots3 x PCIe 3.0 x16 (x16/x16/x4, x16/x16/x8 or x16/x8/x8 modes) *1
(Intel, Core ™ i7 7000 X Series CPU)
3 x PCIe 3.0 x16 (x16/x16/x4 or x16/x8/x4 modes) *2
3 x PCIe 3.0 x16 (x16/x8/x4 mode)
1 x PCIe 3.0 x4 expansion card slot * 3
48 channel CPU-
44 channel CPU-
28 channel CPU-
SATA RAID1 x ROG DIMM.2 module support (CPU_DIMM), support M key, 2242/2260/2280/22110 type storage devices (PCIE 3.0 x 4 mode) * 4
1 x 2_1 socket 3, supports M key, 2242/2260/2280 type storage devices (SATA & PCIE mode)
1 x 2_2 socket 3, supports M key, 2242/2260/2280 type storage devices (PCIE 3.0 x 4 mode) * 5
Support Intel, Fast Storage Technology Enterprise Edition
Intel X299 chipset:
Intel, Core X-series processor family:
Support Raid 0, 1, 5, 10
Intel, Fast Storage Technology
8 x SATA 6Gb/s interface
Intel, Optane, Memory Technology
Audio ChipsetSonic Studio III intelligent sound management software + Sonic Studio virtual audio mixer
- DTS Sound Unbound
- ESS SABRE9018Q2C DAC/AMP
- Supports up to 32-Bit/192kHz playback * 6
- LED personalized lighting effect design - audio divider supports breathing light effect
- Support: audio interface detection (Jack-detection), multi-source independent output (Multi-Streaming) technology, custom front-end panel audio jack function
- High quality 120dB stereo playback, output and 113dB SNR recording, input
- SupremeFX audio cable
Audio features:
- Rear panel with fiber S/PDIF digital outp
LAN ChipsetAquantia AQC-107 10G
Intel I219V
LANGuard cyber security
ROG GameFirst game low latency technology
Onboard USBRear USB Port
(1 x Type-A + USB Type-C)
Front USB Port
2 x USB 2.0 port(s)
1 x USB 3.2 Gen 2x2 (up to 20Gbps) port (s)
2 x USB 3.2 Gen 2 (up to 10Gbps) port (s)
8 x USB 3.2 Gen 1 (up to 5Gbps) port (s)
4 x USB 3.2 Gen 1 (up to 5Gbps) port (s)
(1 x Type-C)
(8 x Type-A)
1 x USB 2.0 port(s)
(1 x Type-A)

Questions about this item

What CPU socket and chipset must my processor match for this board?

The board uses an LGA 2066 socket and Intel X299 chipset, so the processor must be a Core X-Series 10000 family CPU.

Will my existing PCIe 3.0 add-in cards work in the three x16 slots?

Yes — the board provides three PCIe 3.0 x16 slots that operate in x16/x16/x4, x16/x8/x8 or x16/x8/x4 modes depending on the CPU installed.

How can I confirm the 10 GbE and USB 3.2 Gen 2x2 ports are active after build?

Check Device Manager for the Aquantia AQC-107 10G adapter and a 20 Gbps USB controller, then run a network throughput test and a USB 3.2 Gen 2x2 device benchmark.
