Black 360mm AIO cooler with three 120mm fans, copper block, 1.77" OLED display and sleeved tubing

ASUS

ASUS ROG Ryujin 360 liquid cooler 90RC0020-M0AAY0

SKU CH-XD95-1N4TN MPN 90RC0020-M0AAY0

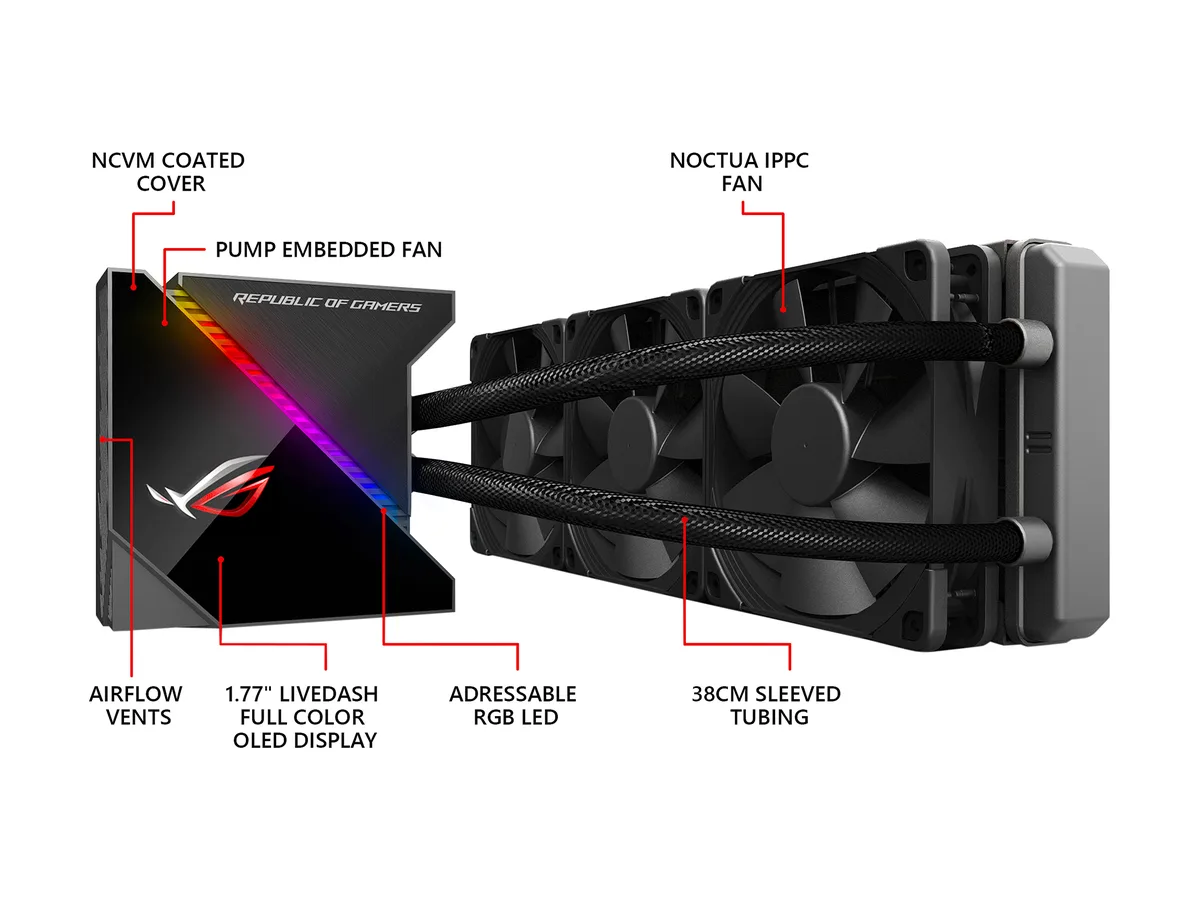

A 360 mm all-in-one liquid CPU cooler with three 120 mm Noctua iPPC PWM fans, a 1.77" OLED display and an embedded microfan for VRM and M.2 cooling

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1366 / 115x AMD AM4 / TR4*
  • Block Dim.100.00 x 100.00 x 70.00 mm
  • Block MaterialCopper
  • Radiator Size394.00 x 121.00 x 27.00 mm
  • Radiator MaterialAluminum

Fan Size 3 Fan Slots (120mm)

  • 2 Fan Slots (120mm)
  • 3 Fan Slots (120mm)

Struck-through versions exist but are not stocked here.

Model ROG RYUJIN 360

  • ROG RYUJIN 240
  • ROG RYUJIN 360

Struck-through versions exist but are not stocked here.

  • Monitors system stats on a 1.77" full-color OLED panel
  • Three 120 mm Noctua iPPC fans deliver 121.80 CFM at 2000 RPM
  • Embedded 60 mm microfan cools VRM and M.2 area by up to 20°C
  • Aura Sync addressable RGB lighting synchronises effects across compatible hardware
  • Reinforced sleeved rubber tubing and aluminium pump cover ensure high durability

High-End CPU Cooling Solution

The ASUS ROG Ryujin 360 is an all-in-one liquid cooler built for demanding multi-core processors. It targets enthusiasts who want factory-assembled water cooling with industrial-grade components and integrated monitoring.

Upgrade Path From Air Coolers

Moving from a tower air cooler becomes worthwhile when VRM and M.2 temperatures limit sustained boost clocks. The embedded 60 mm micro-fan inside the pump housing addresses that gap by directing airflow toward the socket area, lowering those zones by up to 20 °C compared with radiator-only designs.

Build Integration Requirements

The 394 mm radiator occupies three 120 mm fan slots, so the chassis must support a 360 mm mount. Three Noctua NF-F12 iPPC 2000 PWM fans are pre-installed and connect via standard 4-pin headers for FanXpert or motherboard control. The copper cold plate includes brackets for Intel LGA 2066, 2011-3, 2011, 1366 and 115x plus AMD AM4; a TR4 bracket is not included. Sleeved rubber tubes and pre-applied thermal compound simplify the installation.

Highlights

  • Monitors system stats on a 1.77" full-color OLED panel
  • Three 120 mm Noctua iPPC fans deliver 121.80 CFM at 2000 RPM
  • Embedded 60 mm microfan cools VRM and M.2 area by up to 20°C
  • Aura Sync addressable RGB lighting synchronises effects across compatible hardware
  • Reinforced sleeved rubber tubing and aluminium pump cover ensure high durability

Specifications

BrandASUS
SeriesROG Ryujin 360
Model90RC0020-M0AAY0
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1366 / 115x
AMD AM4 / TR4*
*The mounting bracket is bundled with TR4 CPU Package, not in the RYUJIN's package
Block Dim.100.00 x 100.00 x 70.00 mm
Block MaterialCopper
Radiator Size394.00 x 121.00 x 27.00 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120.00 x 120.00 x 25.00 mm
Fan RPM450 - 2,000 RPM +/- 10%
Fan Air Flow121.80 CFM
Fan Noise29.70 dBA
ColorBlack
LED ColorRGB
Tube MaterialSleeved Rubber tube
Features1.77" color OLED for real-time system stats and personalized logos or animations
Embedded microfan helps to cool VRM and M.2 area by up to 20°C
Quality Noctua Industrial PPC PWM fans deliver high airflow and minimal noise

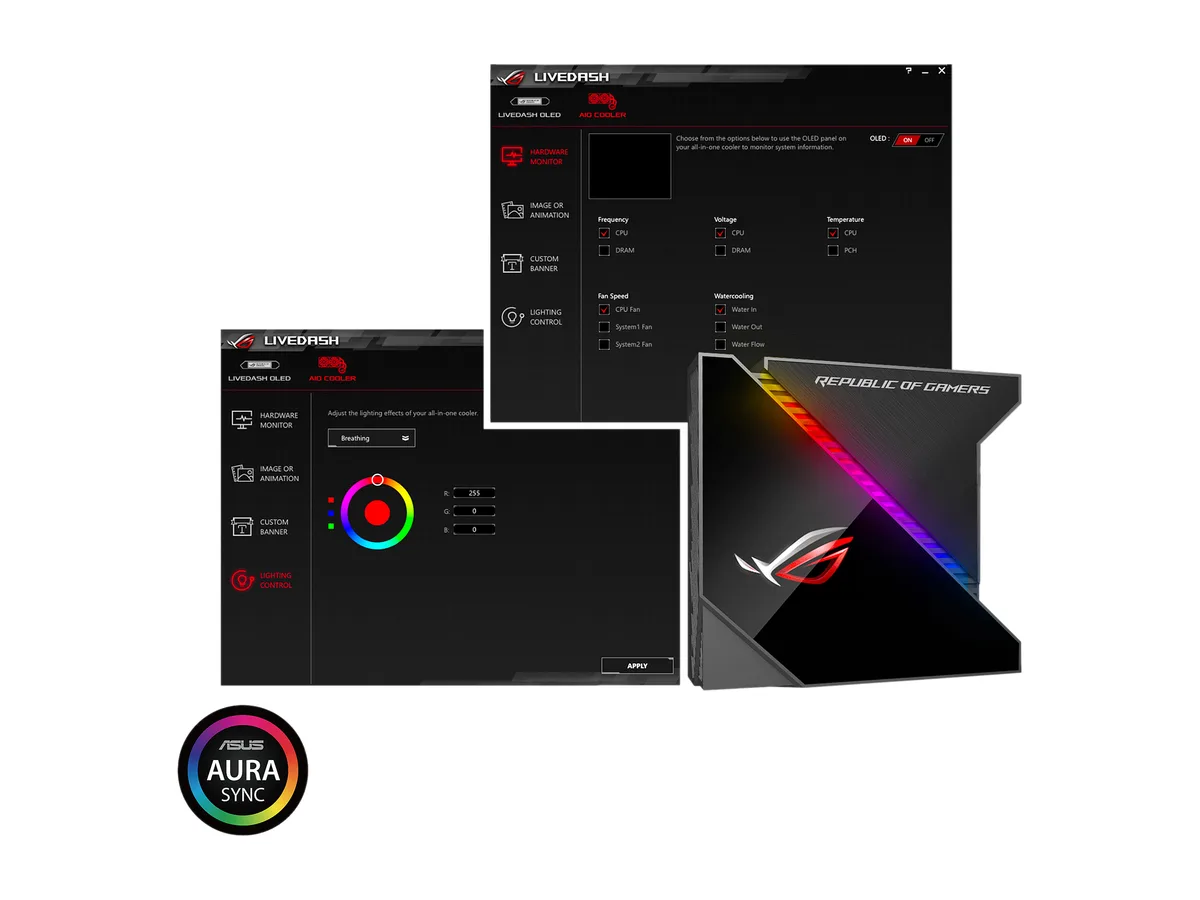

ROG Vortex one-stop control center for lighting, OLED display, and cooling
Individually addressable RGB and NCVM coating pump cover accentuates the sleek, modern aesthetics
Styled to complement ROG motherboards, at the center stage of your build
Reinforced, sleeved tubing for increased durability

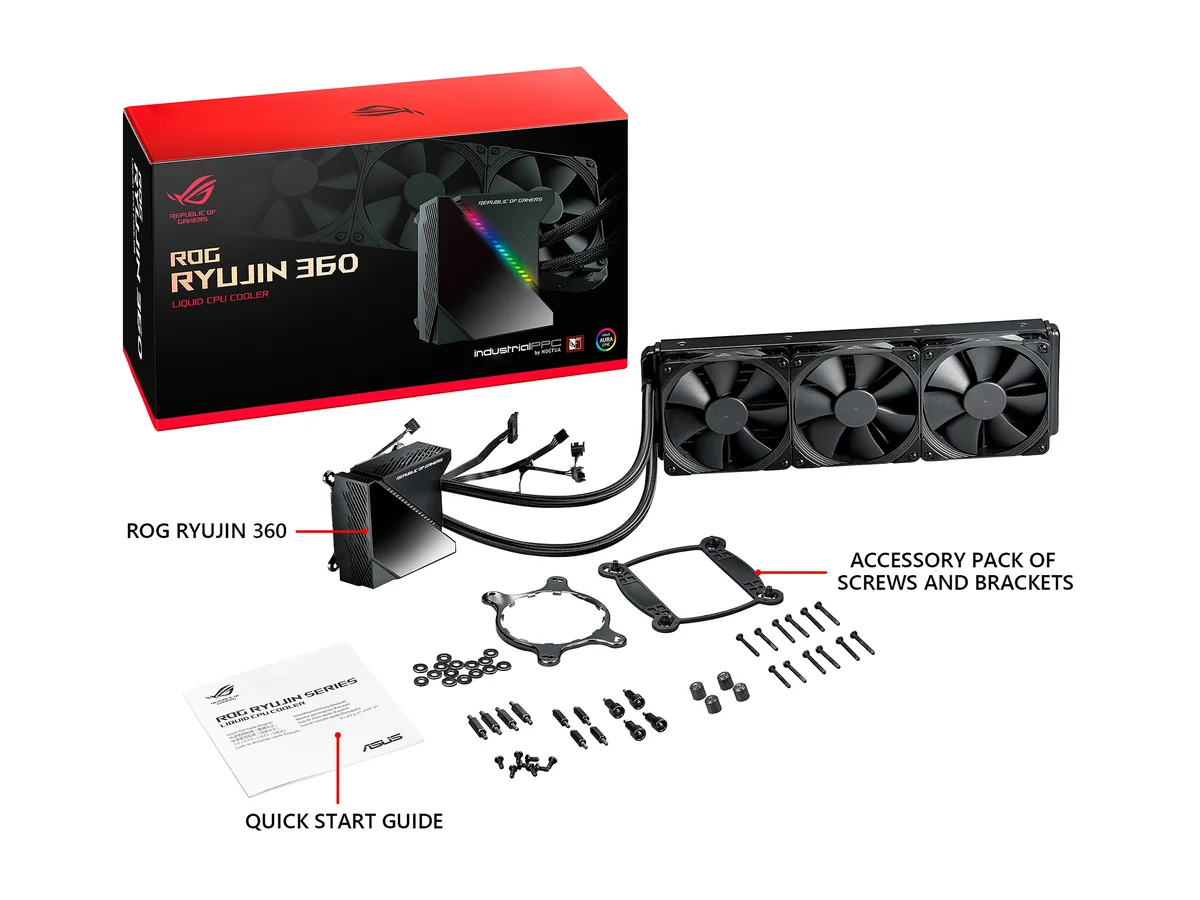

Package ContentsROG RYUJIN 360 Liquid Cooler
Accesory Pack of Scews and brackets

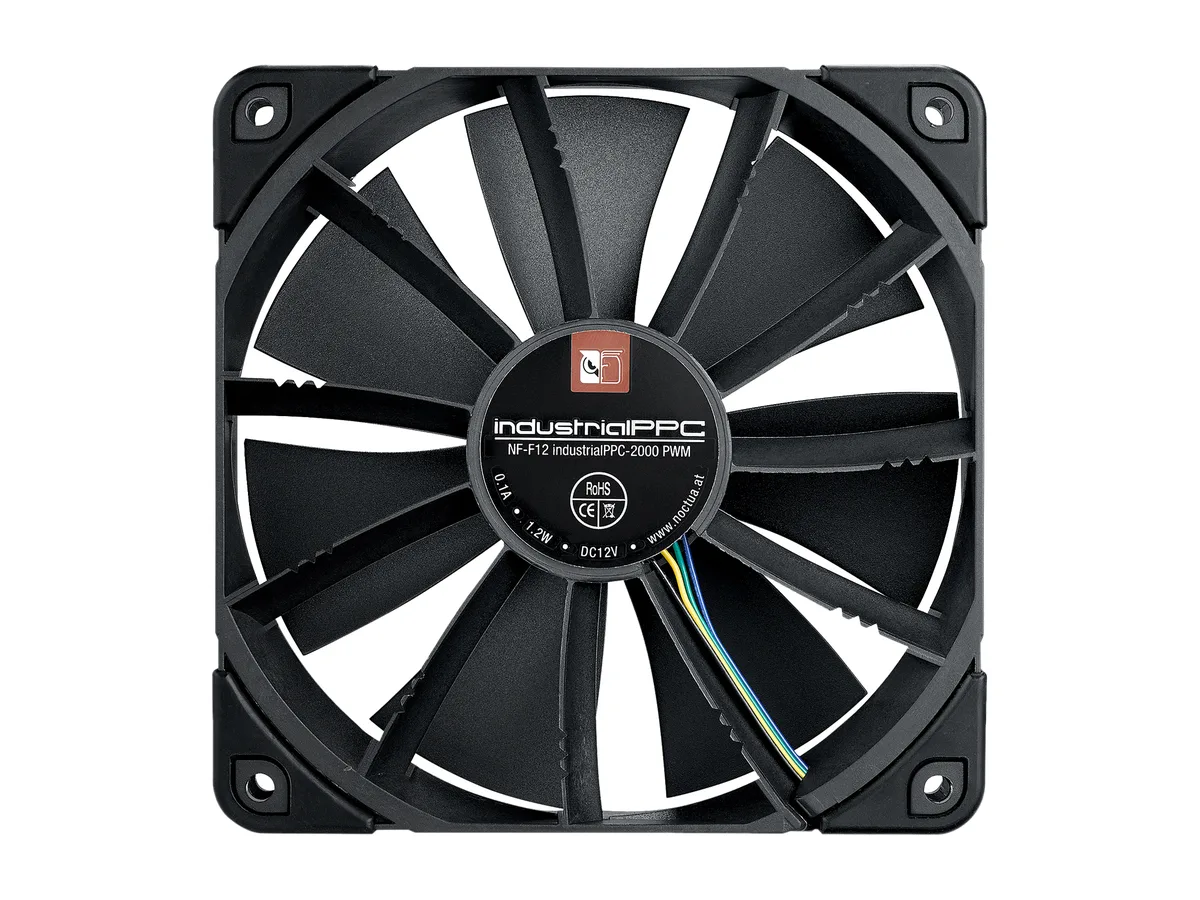

3 x 120mm Noctua NF-F12 iPPC 2000 PWM Fan
Thermal compound (pre-applied)
Quick Start Guide
Shipping weight2.84 kg
Package size483 × 229 × 152 mm

Questions about this item

Does the 394 mm radiator need a specific case clearance?

The radiator measures 394 by 121 by 27 mm and fits three 120 mm fan slots; verify your case supports a 360 mm radiator with 27 mm thickness plus 25 mm fan depth.

How do the three 4-pin Noctua iPPC fans connect, and what step is often missed?

Each 120 mm fan plugs into a 4-pin PWM header; the common mistake is forgetting to set the header to PWM mode in BIOS so the 450-2000 RPM range works correctly.

Is the thermal compound on the copper block enough for a future reinstall, or must I buy more?

Compound is pre-applied for the first mount; if you remount the block later, clean the old paste and apply a fresh pea-sized amount for proper coverage.
