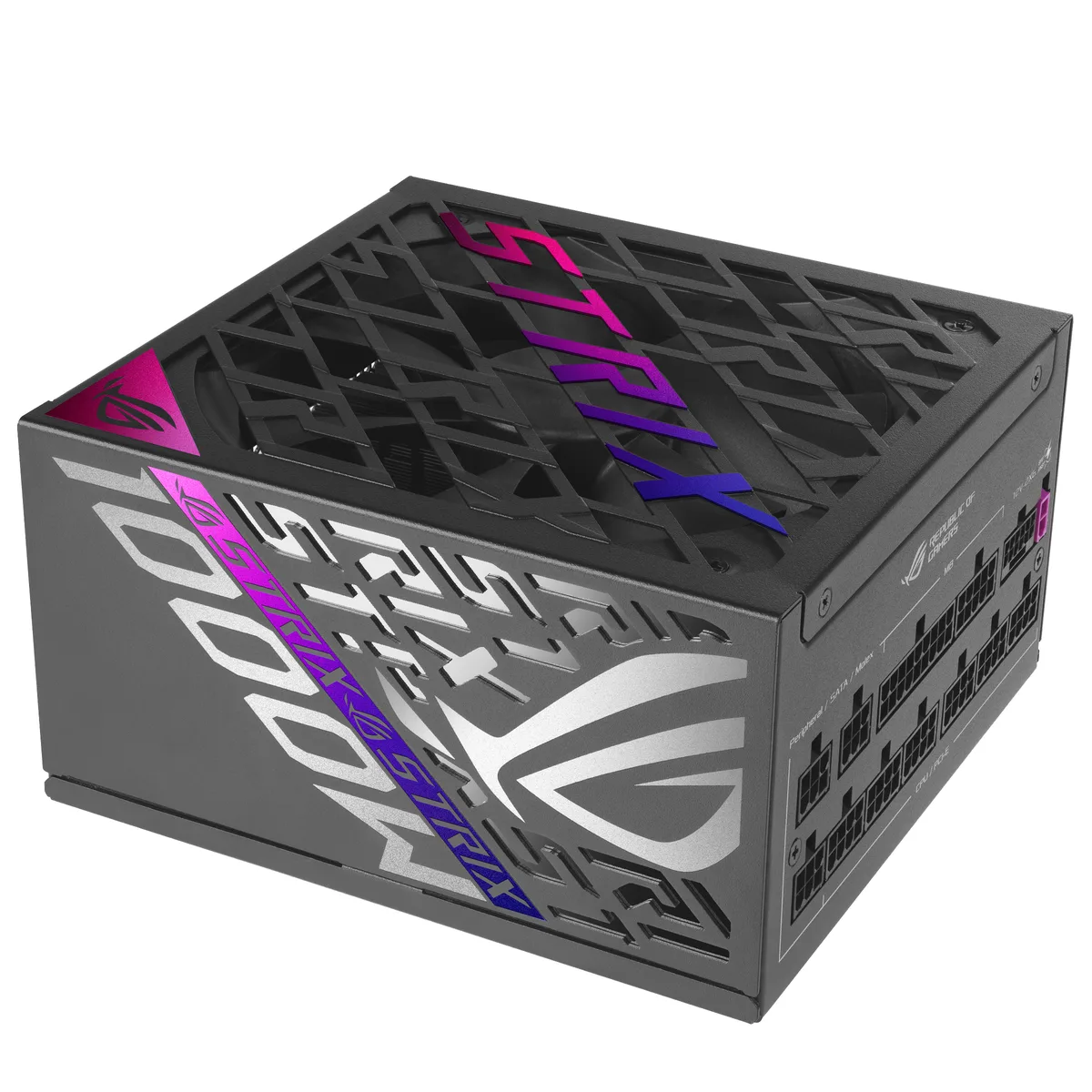

Black fully modular ATX power supply with single fan and 160 mm depth

ASUS

ASUS ROG-STRIX-1000P-GAMING-E 1000W Platinum power supply

SKU CH-J54T-4KMT7 MPN ROG-STRIX-1000P-GAMING-E

A fully modular ATX 3.1 unit delivers 1000 W with 80 PLUS and Cybenetics Platinum efficiency, GaN MOSFETs, a 16-pin 12V-2x6 cable with GPU-First stabilisation.

  • ColorBlack
  • TypeATX 3.1 / ATX12V
  • Maximum Power1000 W
  • Fans1
  • Main Connector20+4Pin
  • +12V RailsSingle
  • Up to 30% efficiency gain from GaN MOSFET design
  • Up to 45% better GPU voltage delivery with GPU-First IVS
  • ROG Equalizer cable reduces connector heat stress for GPU protection
  • Dual 80 PLUS and Cybenetics Platinum certification for top efficiency
  • Cybenetics Lambda A+ rating keeps noise below 20dB

Built for high-end systems

This ATX 3.1 power supply delivers 1000 W of fully modular power with 80 PLUS Platinum and Cybenetics Platinum efficiency ratings. GaN MOSFET components improve energy conversion while keeping the internal layout compact at 160 mm length. The unit includes a dedicated 12V-2x6 cable with GPU-First voltage stabilisation for modern graphics cards.

Ideal for compact flagship builds

The 160 mm depth fits many small-form-factor cases that cannot accept longer units. Builders who need more than four 6+2-pin PCIe connectors or additional EPS cables should check the included cable count before ordering. Silence-focused users benefit from the Cybenetics A+ noise rating and 0 dB fan mode at low loads.

The 160 mm length decides compatibility

Measure the available space behind your motherboard tray; this unit occupies exactly 160 mm and cannot be shortened. If your case specifies a shorter maximum PSU length, this model will not fit regardless of its wattage or feature set.

Highlights

  • Up to 30% efficiency gain from GaN MOSFET design
  • Up to 45% better GPU voltage delivery with GPU-First IVS
  • ROG Equalizer cable reduces connector heat stress for GPU protection
  • Dual 80 PLUS and Cybenetics Platinum certification for top efficiency
  • Cybenetics Lambda A+ rating keeps noise below 20dB

Specifications

BrandASUS
ModelROG-STRIX-1000P-GAMING-E
ColorBlack
TypeATX 3.1 / ATX12V
Maximum Power1000 W
Fans1
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector1 x 16-Pin, 4 x 6+2-Pin
SATA Power Connector6
Max PSU Length160 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
PSU Noise LevelCybenetics A+
ProtectionOPP/OVP/UVP/SCP/OCP/OTP
Input Voltage100 - 240 V
Output+3.3V@25A, +5V@25A, [email protected] , [email protected] , +5Vsb@3A
MTBF>120,000 hrs @ 25°C

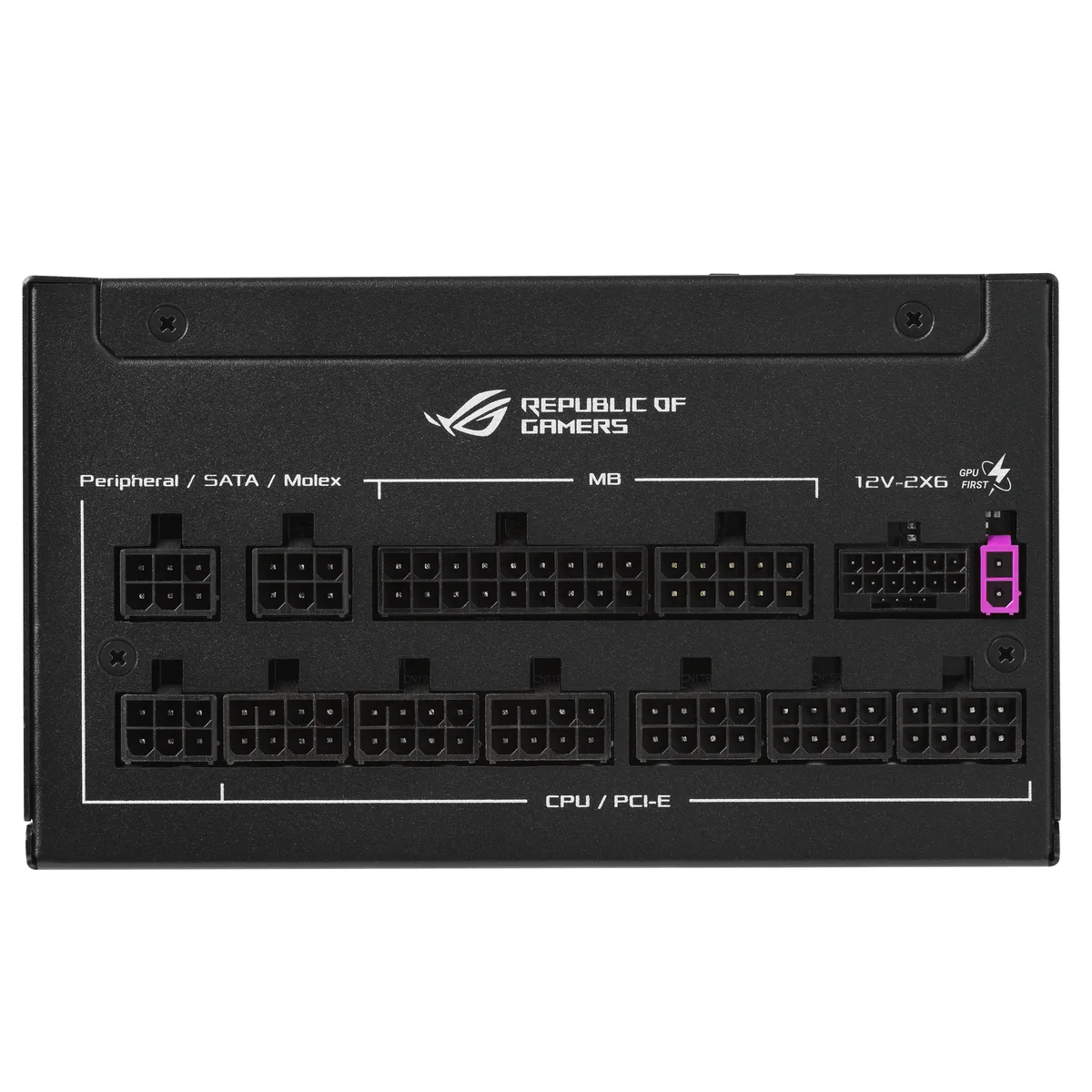

Connectors1 x MB 24/20-pin
2 x CPU 4+4-pin
1 x PCI-E 16-pin (12V-2x6)
4 x PCI-E 6+2-pin
6 x SATA
3 x Peripheral
Cable Spec1 x Motherboard Power Cable (610mm)
2 x CPU Cable (1000mm)
1 x ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First (750mm)
4 x PCI-E (8-pin-to-6+2-pin) Cable x 4 (750mm)
2 x SATA 1-to-3 Cable (400+120+120mm)
1 x Peripheral 1-to-3 Cabel (400+150+150mm)
Dimensions160 x 150 x 86 mm
Weight1.81 kg (single PSU)
Package Content1 x Power Cord
1 x ROG Strix DIY sticker
1 x User Manual
Shipping weight3.63 kg
Package size321 × 203 × 109 mm
