ASUS

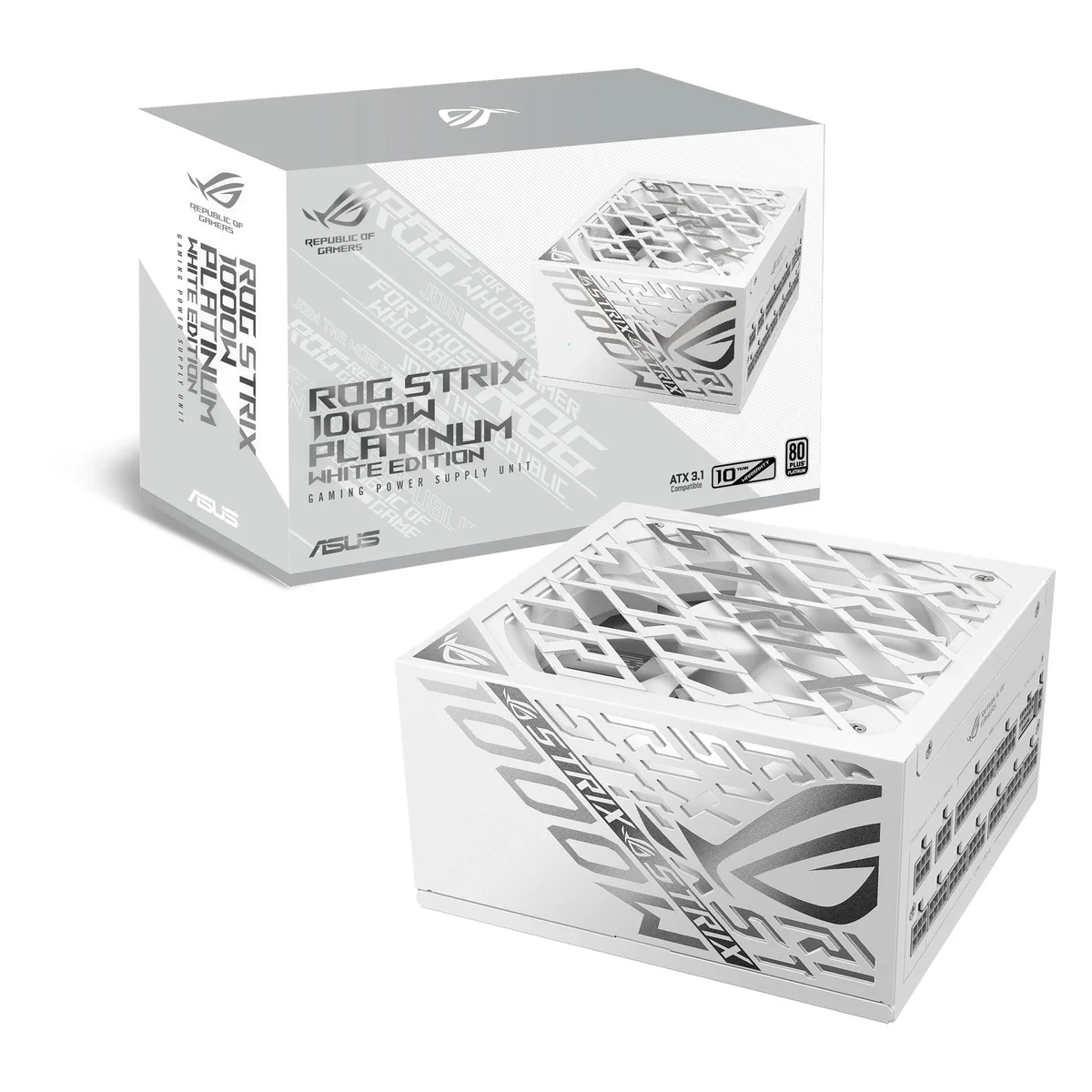

ASUS ROG Strix 1000W Platinum White power supply
A fully modular ATX 3.1 power supply delivering 1000 W with 80 PLUS Platinum efficiency, GaN MOSFETs and a native 12V-2x6 connector for PCIe 5.0 graphics cards
- ColorWhite
- TypeATX12V
- Maximum Power1000 W
- PFCActive
- Main Connector24Pin
- +12V RailsSingle
- 80 PLUS Platinum certification delivers up to 30% better efficiency with premium low-ESR capacitors
- GaN MOSFET design improves power efficiency by up to 30% while enabling a cooler internal layout

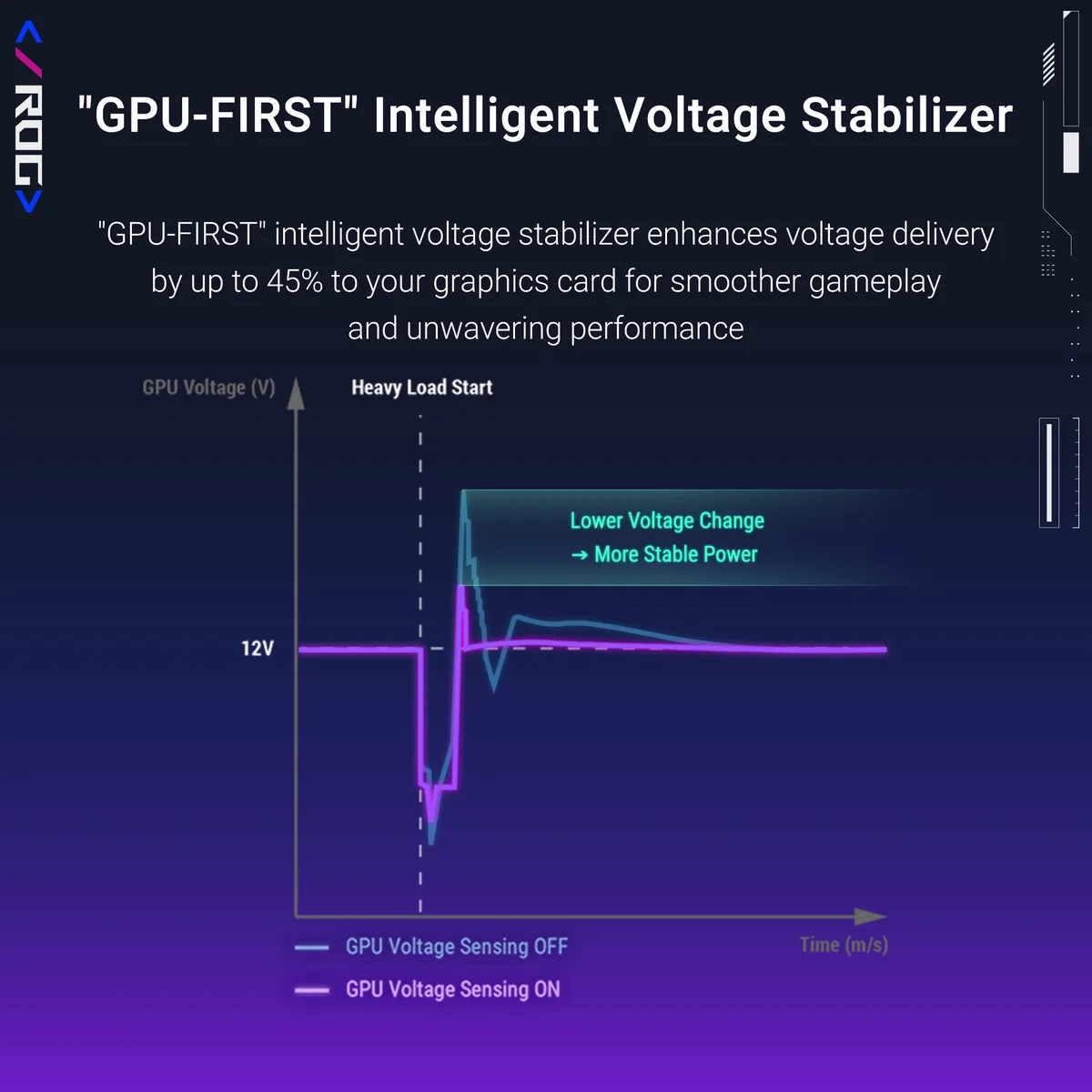

- GPU-First voltage stabilizer enhances graphics card voltage delivery by up to 45% for stable performance
- 0dB fan mode allows silent operation during light gaming with dual ball bearings rated for 120000 hours MTBF
- ATX 3.1 and PCIe 5.0 ready with native 12V-2x6 connector plus full modular cables in compact 150mm length
Power capacity and standard
The ASUS ROG Strix 1000W Platinum White is a fully modular ATX 3.1 power supply rated at 1000 W. It carries 80 PLUS Platinum certification and uses GaN MOSFET technology for up to 30% better efficiency. A patented GPU-First voltage stabilizer improves graphics card voltage delivery by up to 45%. The unit includes a native 12V-2x6 connector for PCIe 5.0 graphics cards.
Builder fit and limits
This unit suits builders who need 1000 W of Platinum-grade power in a compact 150 mm chassis with full cable management. The white finish matches light-themed builds. It is not for systems that require more than 1000 W or for cases that cannot fit a 150 mm deep supply. Buyers needing more than four PCIe 6+2-pin connectors or more than six SATA power connectors should look at a higher-capacity model.
Deciding specification
The single specification that decides fit is the 1000 W maximum power rating combined with ATX 3.1 compliance and the native 12V-2x6 connector. If your graphics card and total system draw stay within 1000 W and you need the latest connector standard, this supply meets the requirement. If your build demands higher wattage, this unit will not be sufficient.
Highlights
- 80 PLUS Platinum certification delivers up to 30% better efficiency with premium low-ESR capacitors
- GaN MOSFET design improves power efficiency by up to 30% while enabling a cooler internal layout
- GPU-First voltage stabilizer enhances graphics card voltage delivery by up to 45% for stable performance
- 0dB fan mode allows silent operation during light gaming with dual ball bearings rated for 120000 hours MTBF
- ATX 3.1 and PCIe 5.0 ready with native 12V-2x6 connector plus full modular cables in compact 150mm length
Specifications
| Brand | ASUS |
|---|---|
| Series | ROG Strix |
| Model | 1000W |
| Part Number | 90YE00W4-BTAA00 |
| Color | White |
| Type | ATX12V |
| Maximum Power | 1000 W |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 6 |
| Max PSU Length | 150 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| MTBF | >120,000 Hours |
| Connectors | PCLE 6+2-pin x 4; CPU 4+4-pin x 2; Peripheral x 3; PCLE16-oin x 1; CPU 4+4-pin x 2 |
Questions about this item
Which model capacity should I choose for a high-end build?
This unit provides 1000 W maximum power, suitable for demanding graphics cards and multi-core processors in a single system.
What does the 80 PLUS Platinum rating mean for daily operation?
It certifies high energy efficiency across typical loads, reducing waste heat and lowering electricity draw compared with lower-rated units.
How does the ATX 3.1 standard affect GPU power delivery?
ATX 3.1 compliance ensures enhanced voltage and current regulation, and the native 12V-2x6 connector supports PCIe 5.0 graphics cards directly.
