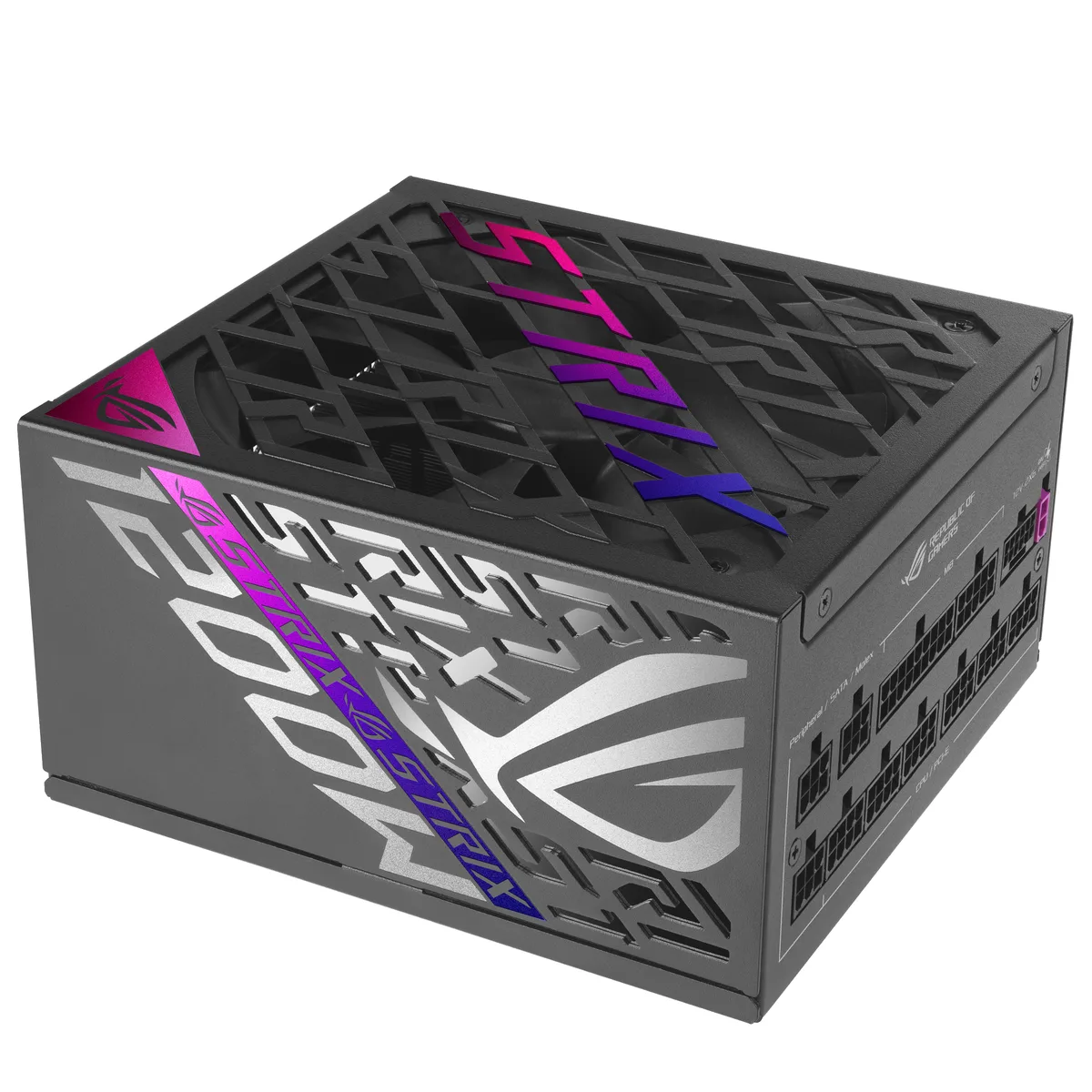

Black fully modular ATX 3.1 power supply 160 mm long with single fan and sleeved cables

ASUS

ASUS ROG-STRIX-1200P-GAMING-E 1200 W ATX 3.1 power supply

SKU CH-V4QJ-G2RRQ MPN ROG-STRIX-1200P-GAMING-E

Fully modular ATX 3.1 unit delivers 1200 W with 80 PLUS and Cybenetics Platinum efficiency, GaN MOSFETs, a GPU-First stabiliser and 12V-2x6 cable

  • ColorBlack
  • TypeATX 3.1 / ATX12V
  • Maximum Power1200 W
  • Fans1
  • Main Connector20+4Pin
  • +12V RailsSingle
  • GaN MOSFETs boost efficiency by up to 30% for cooler operation
  • GPU-First voltage stabiliser improves graphics-card delivery by up to 45%
  • ROG Equalizer 12V-2x6 cable cuts connector heat stress to protect the GPU
  • Dual 80 PLUS and Cybenetics Platinum ratings confirm industry-leading power efficiency
  • Cybenetics A noise rating keeps sound below 20 dB for near-silent gaming

1200 W ATX 3.1 power supply

The ASUS ROG-STRIX-1200P-GAMING-E is a fully modular ATX 3.1 power supply rated at 1200 W. It uses GaN MOSFETs to raise efficiency by up to 30 % and carries 80 PLUS Platinum plus Cybenetics Platinum certifications. A single +12 V rail delivers up to 100 A for stable high-current loads.

Ideal for high-end gaming and workstation builds

The unit suits systems that need a 16-pin 12V-2x6 GPU connector plus four 6+2-pin PCIe cables for multi-GPU or high-power graphics cards. It also provides two CPU 4+4-pin connectors, six SATA and three peripheral connectors for storage and accessories. Builds with limited case depth should verify the 160 mm length before purchase.

Headroom for flagship GPUs and heavy workloads

The 1200 W capacity comfortably handles a top-tier graphics card and overclocked CPU together, with the GPU-First voltage stabiliser improving delivery by up to 45 %. The fan stays off under light loads for 0 dB operation, while Cybenetics A noise certification keeps sound below 20 dB at higher loads. Protection circuits include OPP, OVP, UVP, SCP, OCP and OTP.

Highlights

  • GaN MOSFETs boost efficiency by up to 30% for cooler operation
  • GPU-First voltage stabiliser improves graphics-card delivery by up to 45%
  • ROG Equalizer 12V-2x6 cable cuts connector heat stress to protect the GPU
  • Dual 80 PLUS and Cybenetics Platinum ratings confirm industry-leading power efficiency
  • Cybenetics A noise rating keeps sound below 20 dB for near-silent gaming

Specifications

BrandASUS
ModelROG-STRIX-1200P-GAMING-E
ColorBlack
TypeATX 3.1 / ATX12V
Maximum Power1200 W
Fans1
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector1 x 16-Pin, 4 x 6+2-Pin
SATA Power Connector6
Max PSU Length160 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
PSU Noise LevelCybenetics A
ProtectionOPP/OVP/UVP/SCP/OCP/OTP
Input Voltage100 - 240 V
Output+3.3V@25A, +5V@25A, +12V@100A, [email protected] , +5Vsb@3A
MTBF>120,000 hrs @ 25°C
Connectors1 x MB 24/20-pin
2 x CPU 4+4-pin
1 x PCI-E 16-pin (12V-2x6)
4 x PCI-E 6+2-pin
6 x SATA
3 x Peripheral
Cable Spec1 x Motherboard Power Cable (610mm)
2 x CPU Cable (1000mm)
1 x ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First (750mm)
4 x PCI-E (8-pin-to-6+2-pin) Cable (750mm)
2 x SATA 1-to-3 Cable (400+120+120mm)
1 x Peripheral 1-to-3 Cabel (400+150+150mm)
Dimensions160 x 150 x 86 mm
Weight1.84 kg (single PSU)
Package Content1 x Power Cord
1 x ROG Strix DIY sticker
1 x User Manual
Shipping weight3.63 kg
Package size320 × 203 × 109 mm

Questions about this item

What motherboard connector must my board have to use the 20+4-pin cable supplied with this PSU?

Your motherboard needs a standard 24-pin ATX socket; the 20+4-pin cable splits to fit either 20- or 24-pin headers.

Will the single 16-pin 12V-2x6 cable work with an older graphics card that only has 8-pin sockets?

The 16-pin cable is keyed for 12V-2x6 GPUs; for older cards use the four included 6+2-pin PCIe cables instead.

How can I confirm the 0 dB fan mode is active after I build the system?

At low load the fan stops completely; you will hear no spinning noise until power draw rises above the silent threshold.
