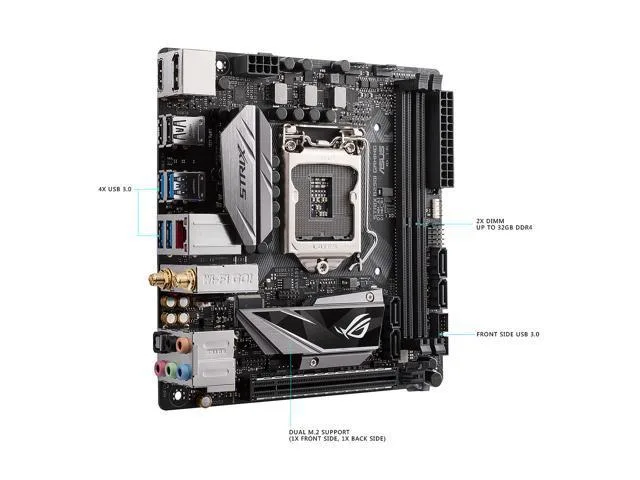

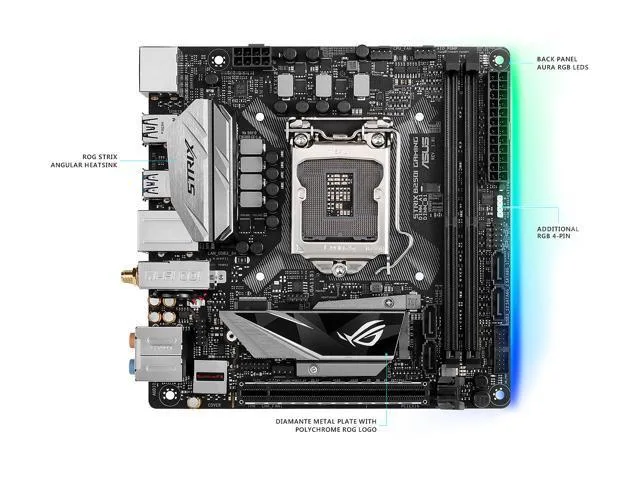

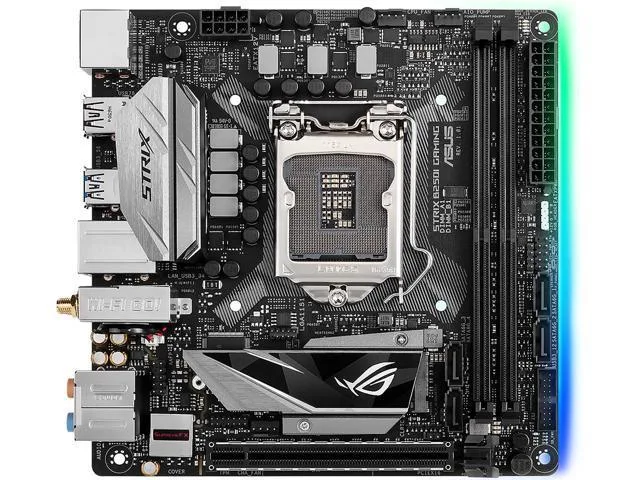

Compact Mini-ITX motherboard with black PCB, silver heatsinks and integrated I/O shield

ASUS

ASUS ROG Strix B250I Gaming Intel Motherboard

SKU CH-6CNY-SSR51

Mini ITX LGA 1151 board with dual M.2, four SATA 6Gb/s ports, Wi-Fi, Bluetooth and SupremeFX 8-channel audio

  • CPU Socket TypeLGA 1151
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4 2400
  • Supports 7th-gen Intel Core CPUs on LGA 1151 socket
  • DDR4 2400 MHz memory speed with 7th-gen processors
  • Dual M.2 slots for fast storage expansion
  • SupremeFX S1220A audio codec delivers 8-channel sound
  • Intel I219-V LAN plus 802.11 ac Wi-Fi and Bluetooth

LGA 1151 Mini ITX Platform

The ASUS ROG Strix B250I Gaming is a Mini ITX motherboard built for the Intel LGA 1151 socket. It accepts Core i7, i5, i3, Pentium and Celeron processors with Turbo Boost Technology 2.0. The board targets compact systems that still demand ROG-grade audio and networking features.

Dual M.2 and Four SATA Ports

Two M.2 sockets sit alongside four SATA 6Gb/s connectors, giving storage flexibility inside a small chassis. Integrated Intel I219-V Gigabit LAN and IEEE 802.11 a/b/g/n/ac Wi-Fi with Bluetooth remove the need for extra add-in cards. Onboard video output relies on a processor with integrated graphics.

DDR4 2400 Memory Ceiling

Two 288-pin slots support dual-channel DDR4 up to 32 GB total capacity. With 7th Generation Intel CPUs the memory controller runs at 2400 MHz; with 6th Generation CPUs it tops out at 2133 MHz. The SupremeFX S1220A codec delivers 8-channel high-definition audio for sustained gaming or media sessions.

Highlights

  • Supports 7th-gen Intel Core CPUs on LGA 1151 socket
  • DDR4 2400 MHz memory speed with 7th-gen processors
  • Dual M.2 slots for fast storage expansion
  • SupremeFX S1220A audio codec delivers 8-channel sound
  • Intel I219-V LAN plus 802.11 ac Wi-Fi and Bluetooth

Specifications

BrandASUS
SeriesROG
ModelStrix B250I Gaming
CPU Socket TypeLGA 1151
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU TechnologiesTurbo Boost Technology 2.0
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 2400
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Audio ChipsetROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels8 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac
BluetoothYes
Back I/O Ports1 x DisplayPort / 1 x HDMI / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.14 x USB 3.1
USB 1.1/2.02 x USB 2.0
Audio Ports5 Ports
Antenna Connectors1 x Wi-Fi antenna port(s)
Onboard USB2 x USB 3.1
Other Connectors1 x Aura RGB Strip Header1 x TPM connector(s)1 x CPU Fan connector(s)1 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x Front panel connector(s)1 x Internal speaker connector(s)1 x System panel(s)1 x Clear CMOS jumper(s)
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin24 Pin
FeaturesROG Exclusive Features:ROG RAMCache IIROG CPU-ZROG CloneDriveOverwolfGameFirst IVROG Aura- Aura Lighting Control- Aura RGB Strip HeadersSpecial Features:Gamer's Guardian:- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports- DRAM Overcurrent Protection- Highly Durable Components- DIGI+ VRM- SafeSlotASUS EPU:- EPUAURA:- Aura Lighting Control- Aura RGB Strip HeadersASUS Exclusive Features:- AI Suite 3- Ai ChargerASUS Quiet Thermal Solution:- ASUS Fan Xpert 4 CoreASUS EZ DIY:- ASUS CrashFree BIOS 3- ASUS EZ Flash 3ASUS Q-Design:- ASUS Q-Shield- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LE
Package ContentsAccessories:User's manualM.2 2242 mounting kitI/O Shield2 x SATA power cable2 x M.2 screws1 x pack of cable tie1 x Supporting DVD1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)1 x ROG Strix stickers1 x 10-in-1 ROG cable label1 x Extension Cable for RGB strips (80cm)1 x Panel cable

Questions about this item

What is the maximum memory capacity the Strix B250I Gaming supports?

The board supports up to 32GB of DDR4 memory across its two 288-pin slots running in dual-channel mode.

How hot or loud does the board get during all-day operation?

The board has no active cooling of its own; noise and heat depend on the CPU cooler and case airflow you provide.

Which processor and memory must I already have for this motherboard to work?

You need an LGA 1151 Core i7, i5, i3, Pentium or Celeron CPU plus DDR4 modules rated for 2133 or 2400 MT/s.
